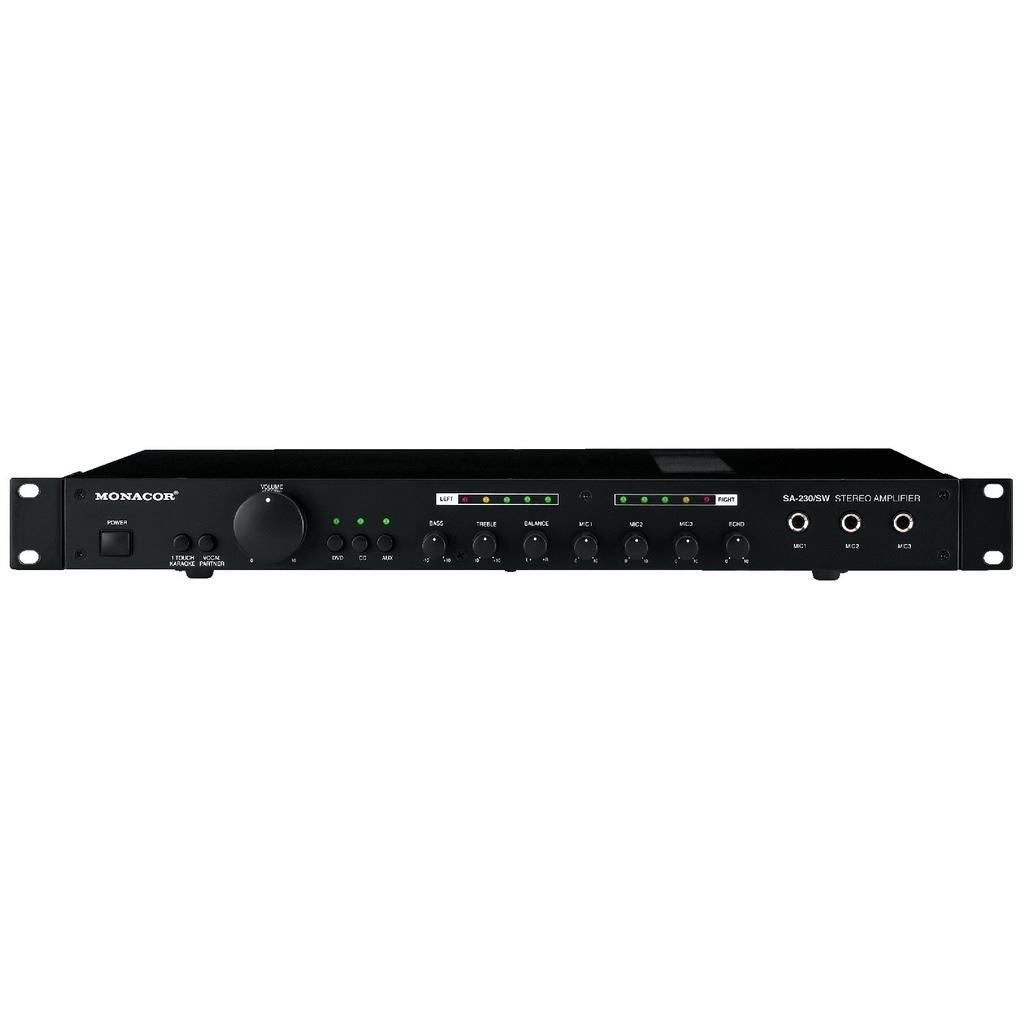

Monacor SA-230 Stereo Mixing Amplifier Karaoke Sound System HiFi

Sing along! The clearly arranged user surface of the SA-230/SW makes listening to music and especially making music really enjoyable. One of the three stereo line sources at a time and three mono microphone sources can be mixed together without any problems. When combined with special karaoke CDs or DVDs, features like "one-touch karaoke" or "vocal partner" are available. An adjustable digital echo can be added to the microphone channels as an effect. The fanless cooling concept of the amplifier ensures a silent operation. The latest protective circuits provide protection against overload, overheating and short circuit.

Silent operation due to the fanless cooling concept
3 stereo line inputs
3 mono microphone inputs on the front panel, each with gain control
Adjustable digital echo for the microphone inputs
Karaoke feature
Vocal partner feature
LEDs for indicating level control and active line inputs
Controls for volume, bass, treble, balance and digital echo
Stereo record output
482 mm (19") rack installation, 1 RS, with supplied mounting brackets

Specifications
Channels 2
Power rating 50 W
Power rating at 4 Ω 2 x 25 W
Power rating at 8 Ω 2 x 20 W
Peak music power output (PMAX) 2 x 50 W
Inputs 175 mV/8 kΩ (line), 2.5 mV/3.5 kΩ (mic)
Frequency range 20-20,000 Hz
Equalizer bass ± 10 dB
Equalizer treble ± 10 dB
S/N ratio 62 dB
Power supply ~ 230 V/50 Hz/150 VA
Mains voltage ~ 230 V
Mains frequency 50 Hz
Power consumption, operation 150 VA
Admiss. ambient temp. 0-40 °C
Rack spaces, RS 1

Connections:
1 x RCA L/R (line),
1 x 6.3 mm jack (mic),
1 x RCA L/R (rec.),
4 x spring-load. speaker term. (speakers)

Dimensions
432 x 45 x 275 mm

Weight
3.8 kg
