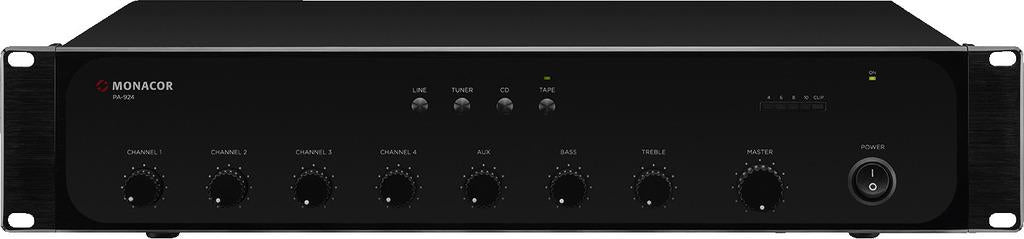

Monacor PA-924 240W Mono PA Mixing Amplifier

Description:

Mono PA mixing amplifier
1 x 240 W
4 balanced microphone inputs and line inputs with selectable priority
4 stereo line inputs
Speaker outputs via screw terminal contacts
Balanced line output
Record output
Insert facility, e.g. for effect units, equalizers, feedback controllers
2-tone or 4-tone chime, can be activated externally
Input level control and output level control
2-way tone control for the output
Switchable 48 V phantom power for microphone inputs
Temperature-controlled fan
Mains operation or 24 V emergency power operation
Removable mounting brackets

Specifications:

Peak output power 340 W
Power rating 240 W
Channels 5
Inputs 2.5-100 mV (mic),350 mV (line)
Frequency range 50-16,000 Hz
Equalizer bass ± 10 dB/100 Hz
Equalizer treble ± 10 dB/10 kHz
S/N ratio > 75 dB
THD < 0.1%
Phantom power 48 V
Mains voltage ~ 230 V
Mains frequency 50 Hz
Power consumption, operation 640 VA
Operating voltage (possible alternative) DC 24 V
Power supply (possible alternative) DC 18 A
Admiss. ambient temp. 0-40 °C
Width 482 mm
Height 95 mm
Depth 390 mm
Rack units, RU 2
Weight 13 kg

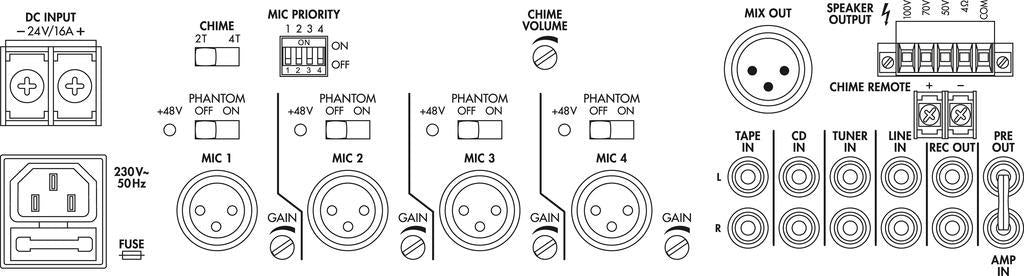

Connections 4 x XLR (mic),4 x RCA L/R (line),

1 x XLR (line out),

1 x RCA L/R (line out),

screw contacts (speakers)
Packing dimensions (W x H x L) 0.54 x 0.195 x 0.505 m
Gross weight 16.12 kg
Net weight 13.21 kg
