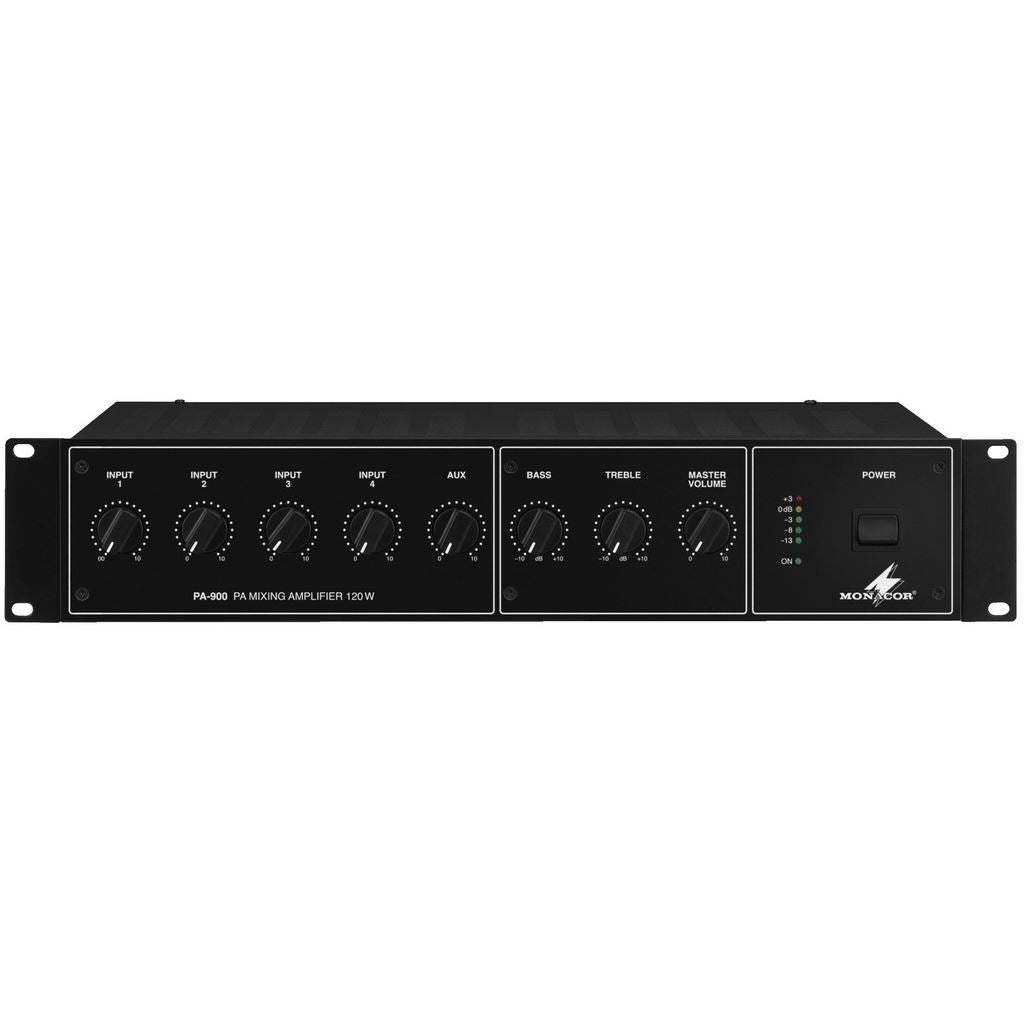

Monacor PA-900 120W PA Mixing Amplifier PA Sound System Church Hall

The Monacor PA-900 is a mono PA mixing amplifier with silent operation due to its fan-less cooling design.

1 x 120 WRMS
4 balanced mic/line inputs
Mic 1 with priority circuit and automatic talk-over
Additional connection for desktop microphone via screw terminal
1 aux input
Speaker outputs via screw terminals
Line output
Insert facility for a preamplifier
Input and output level controls
2-way tone control for the output
21 V phantom power for each microphone input can be selected individually
Mains operation or 24 V emergency power operation
Removable mounting brackets

Specifications
Output power: 120 WRMS, 160 WMAX
Mic input: 3 mV
Line input: 200 mV
Aux input: 140 mV
Speaker output: 4 Ω, 70/100 V
Frequency range: 50-15,000 Hz, ±3 dB
Equalizer bass: ±10 dB/100 Hz
Equalizer treble: ±10 dB/10 kHz
S/N ratio: > 92 dB
THD: < 2 %
Power supply: 230 V˜/50 Hz/300 VA, 24 V DC current /9 A
Admiss. ambient temp: 0-40 °C
Mic/line: 4 x XLR
Aux: 1 x RCA L/R
2 RS

Dimensions
482 x 88 x 275 mm

Weight
9.9 kg
