Description
The Monacor PA-812DAP is a versatile mono Class D PA mixing amplifier designed for both home users and professionals. It integrates an MP3 player, FM/DAB+ tuner, and Bluetooth connectivity and delivers 120 W of power. Its high-efficiency Class D design ensures energy savings, while the fanless cooling system guarantees silent operation.
Design and Build Quality

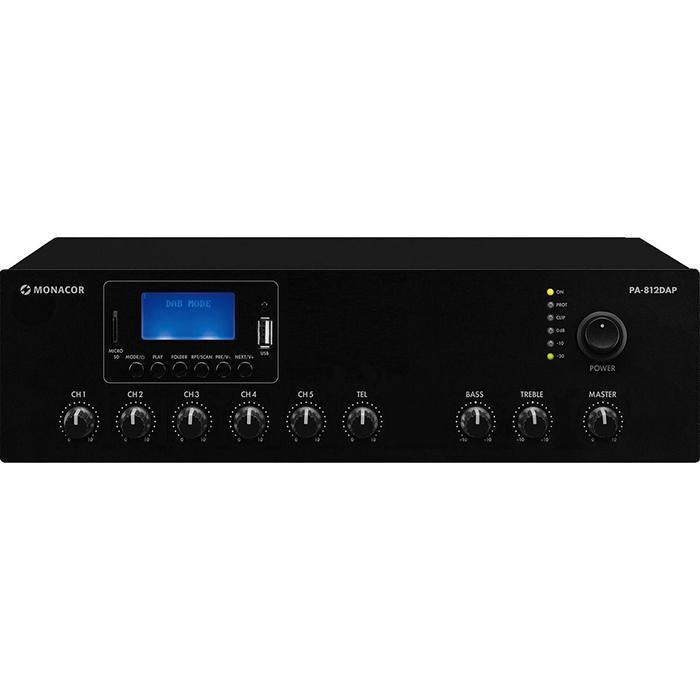

Constructed with a robust steel chassis, the PA-812DAP is built for durability. The front panel features an LED display and intuitive controls for easy navigation. Its compact dimensions (320 mm × 95 mm × 245 mm) and 4.5 kg weight make it suitable for various installations.
Key Technologies and Features
Integrated Audio Sources: MP3 player with USB/SD interface, FM/DAB+ radio, and Bluetooth version 4.2 for diverse audio playback options.

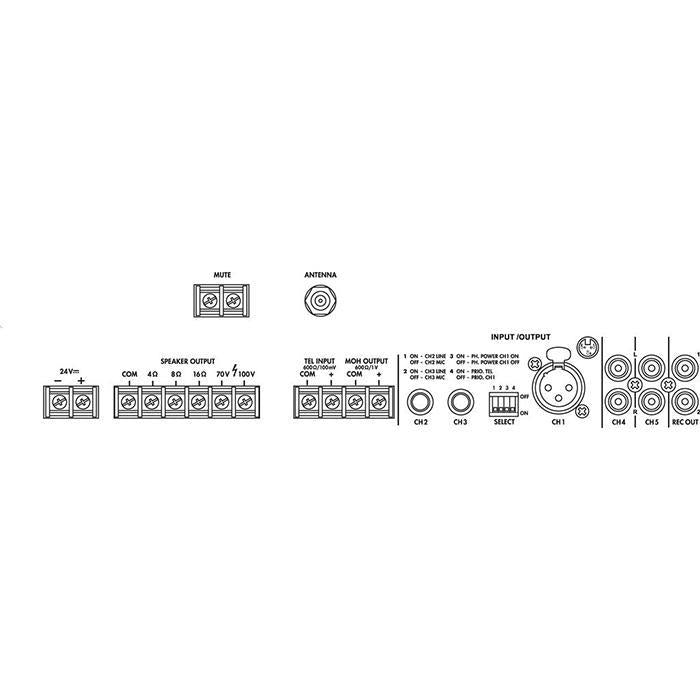

Multiple Inputs: The amplifier includes one balanced XLR microphone input with 48 V phantom power, two unbalanced inputs switchable between mic/line, two unbalanced line inputs, and one TEL input.
Output Flexibility: Speaker outputs are provided through screw terminals, along with a Music-On-Hold (MOH) output, amp input, and preamp output for seamless integration.
Energy Efficiency: Class D amplifier design ensures high efficiency and reduced energy consumption.
Silent Operation: The fanless cooling concept eliminates noise, making it ideal for quiet environments.
Specifications
Power Rating 120 W
Frequency Range 60 Hz - 15,000 Hz
Equalizer Bass and Treble ±10 dB
Signal-to-Noise Ratio 72 dB (mic, channels 1-3); 85 dB (line, channels 2-5)
Total Harmonic Distortion (THD) < 0.5%
Phantom Power 48 V
Power Supply ~230 V/50 Hz/250 VA; DC 24 V/8.4 A
Dimensions (W × H × D) 320 mm × 95 mm × 245 mm
Weight 4.5 kg
Performance and User Experience
The PA-812DAP delivers clear and reliable audio output, making it ideal for settings ranging from small venues to professional installations. Its user-friendly interface, combined with multiple input options and integrated audio sources, offers flexibility and ease of use. The silent, fanless design ensures discreet operation in noise-sensitive environments.
