Monacor PA-4040 4 Channel Mixing Amplifier

£573.00
£573.00
Monacor PA-4040 100V 4 Zone 40W Mixer Amplifier
Vendor: Monacor
SKU: 139-PA-4040
Icon In Stock In Stock
Icon Delivery Time
Icon Delivery Time
iFrame
×

Description

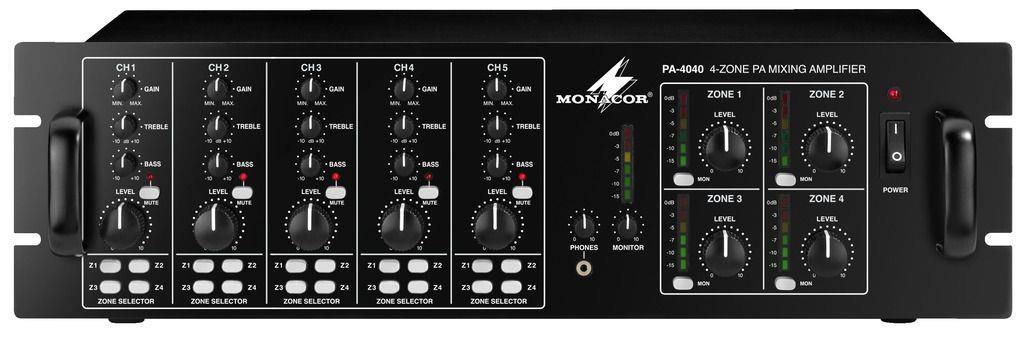

Monacor PA-4040 4 Channel Mixing Amplifier

4-zone mono mixing amplifier, with professional features for general multi-room PA applications.

  • 4 x 40 W, 100 V and 4 Ω/8 Ω operation
  • Perfect utilisation of the capacity and reliable protection of connected speakers due to an integrated limiter
  • 3 inputs microphone/line via comb. jacks
  • 2 inputs line stereo via RCA jacks
  • Each input channel with gain control, 2-way tone control, channel mute switch and routing switch for zones
  • Microphone inputs with +15 V phantom power, can be activated as required
  • Priority function for channel 1, switchable
  • Independent paging input, can be routed to all zones
  • 4 zone outputs, can be controlled individually
  • Zone and monitor line outputs for additional amplifiers or recorders
  • Connection for monitor speakers
  • Level control via VU meters for zone and monitor
  • Adjustable headphone output
  • Temperature-controlled fan, continuously adjustable
  • 230 V mains operation

Specifications

Peak output power 4 x 65 W
Power rating 4 x 40 W
Channels 5
Zones 4
Inputs 5¬†mV/4¬†kΩ, 100¬†mV/10¬†kΩ (mic/line),

100 mV/30 kΩ (line)

Frequency range 50-17,000 Hz
Integrated limiter yes
Equalizer bass ± 10 dB/100 Hz
Equalizer treble ± 10 dB/10 kHz
THD < 1%
Mains voltage ~ 230 V
Power consumption, operation 450 VA
Admiss. ambient temp. 0-40 °C
Rack spaces, RS 3
Mains frequency 50 Hz
S/N ratio > 65 dB (mic),

> 75 dB (line)

Width 482 mm
Height 133 mm
Depth 310 mm
Weight 15 kg

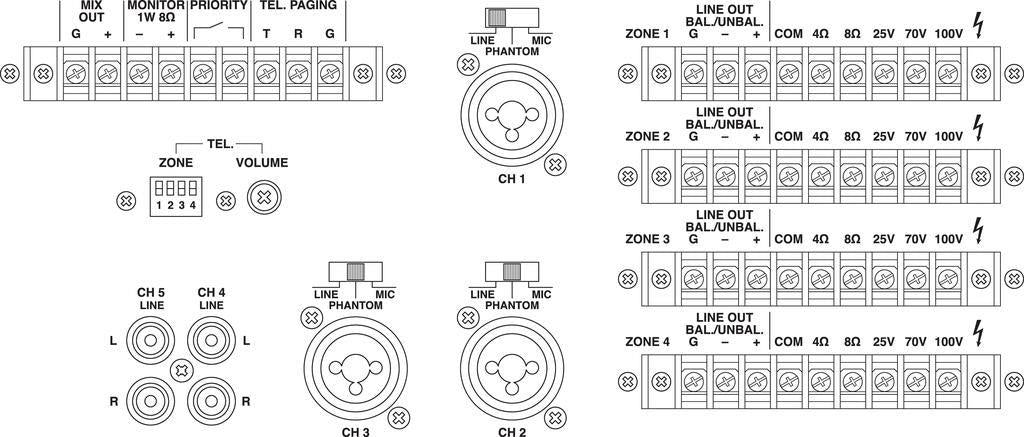

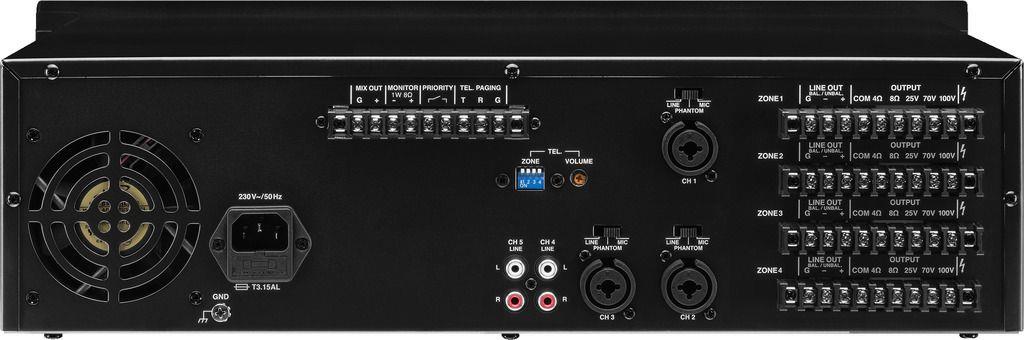

Connections

3 x combo 6.3 mm/XLR (mic/line),
2 x RCA L/R (line),

screw terminal (speaker zone),

screw terminal (speaker monitor),

screw terminal (mix out),

screw terminal (paging),

screw terminal (priority)

3.5 mm stereo jack (headphones)
