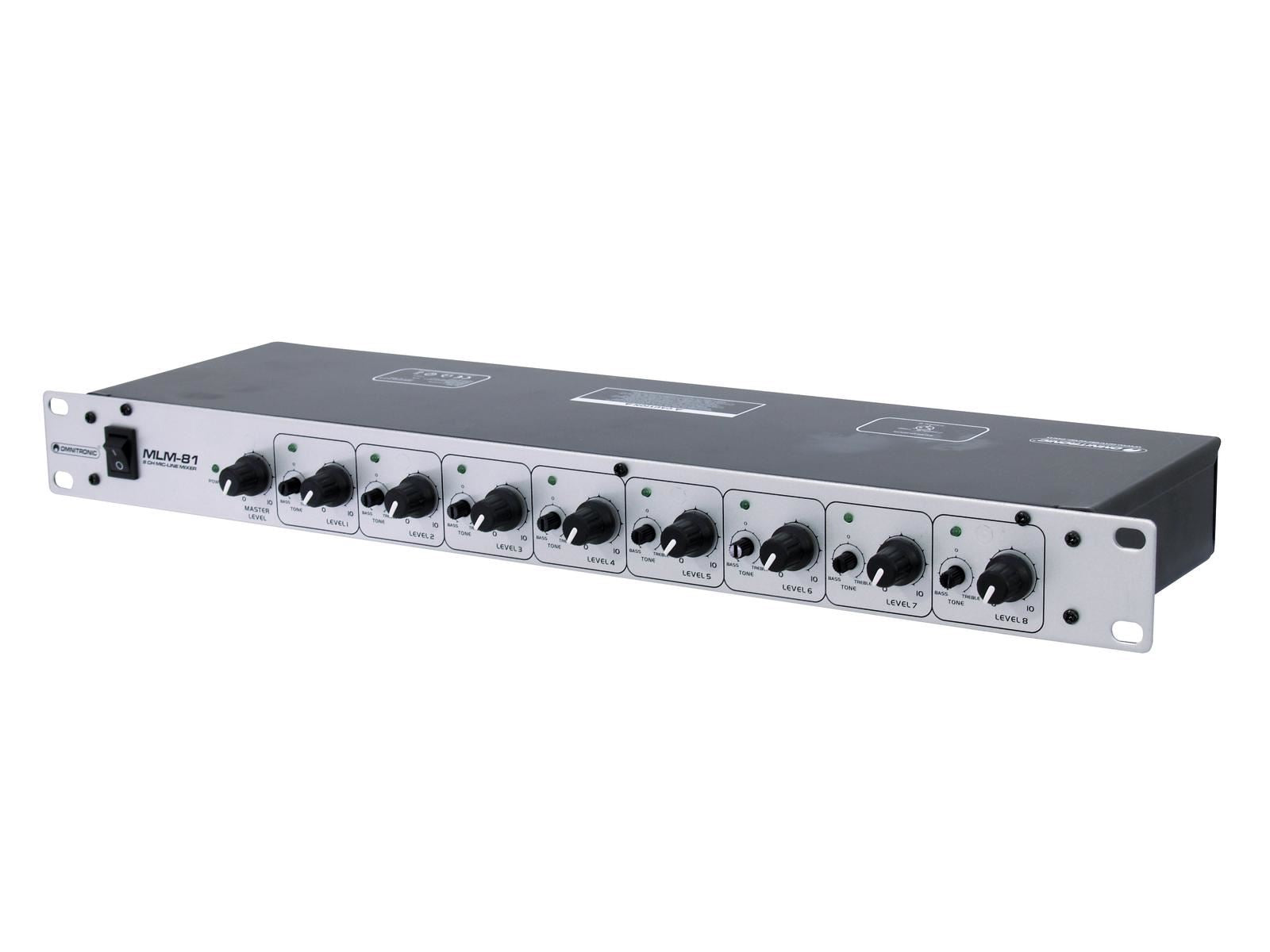

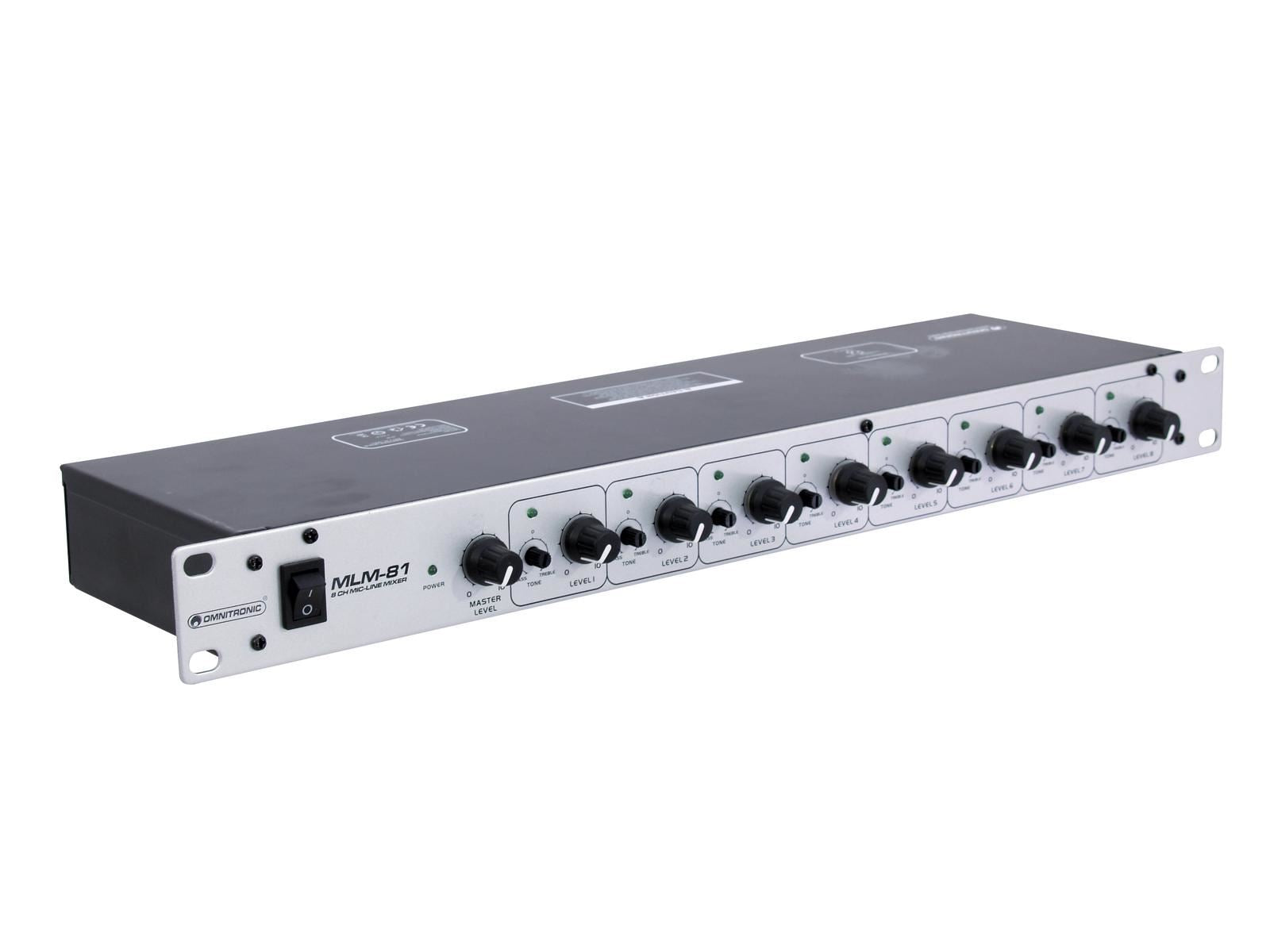

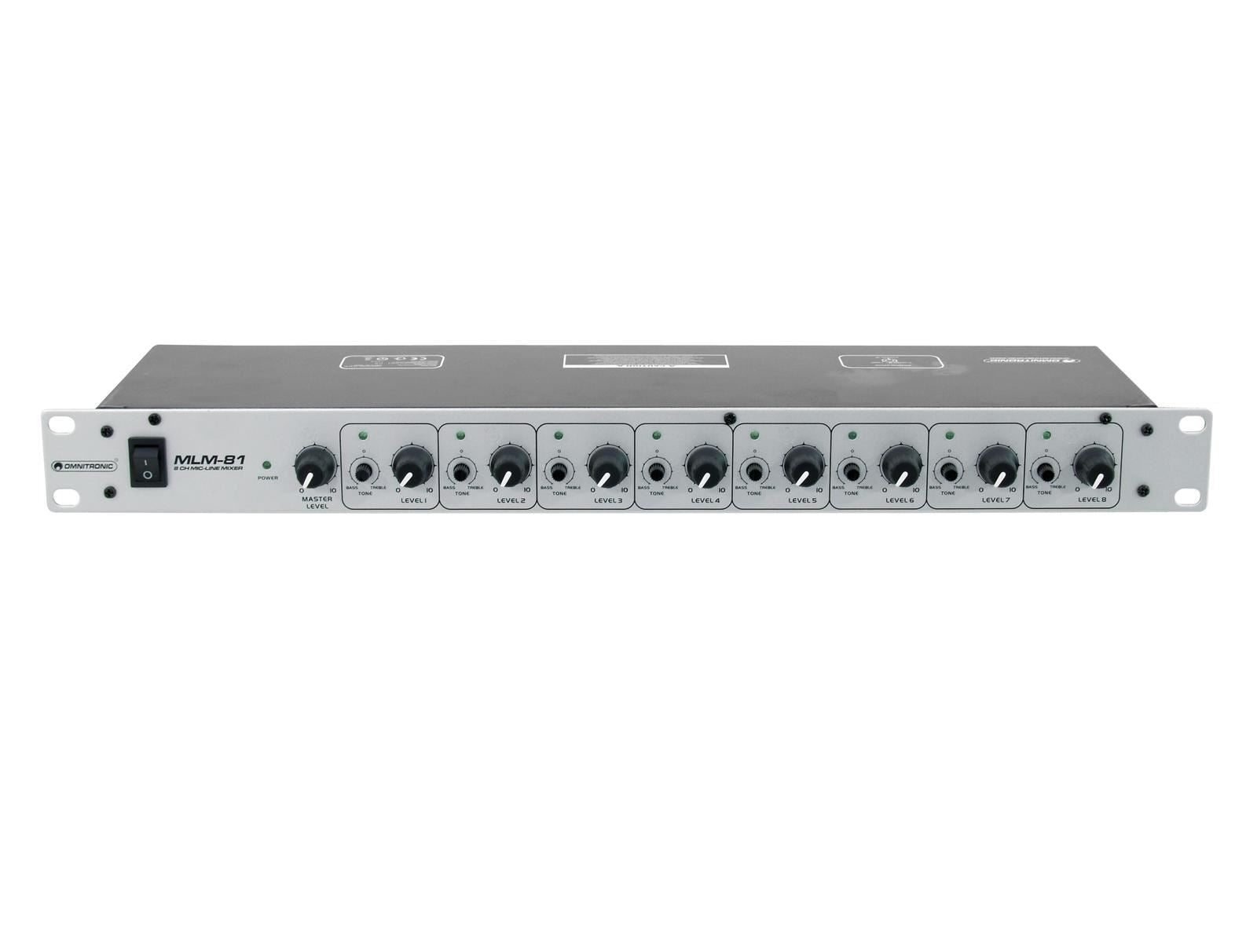

Omnitronic Mlm-81 Microphone/Line Mixer
- £175.50
- £175.50
- Unit price
- per
iFrame
Description
OMNITRONIC MLM-81 mixes up to 8 mono input signals to one output. Via individual level and tone controls, the different sources can be controlled and perfectly dovetailed. The MLM-81 is not only suited for panel discussions or symposiums but for press conferences as well and - due to its compact design - occupies almost no space.
Microphone line mixer, 8 channels
- For mixing up to 8 mono input signals to 1 mono output
- 8 mic/line channels with separate level and tone controls and signal LEDs
- Each channel with balanced XLR mic input and unbalanced 6.3 mm jack (1/4") input
- Each mic input with optional 12 V phantom power via DIP switches
- Master level control; master out via balanced 6.3 mm jack (1/4")
- Feed-through output (independent of master control) for connecting a further MLM-81
- Each 6.3 mm line input can be separately converted to a line output via internal jumpers
- (19") 48.3 cm rack installation 1 U
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 10.00 W |
| Protection class: | Class I |
| Power connection: | Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided) |
| S/N ratio: | >106 dB |
| THD: | <0.003 % at 1 kHz |
| Phantom power: | 12 V DC |
| Impedance: | Input Microphone: 600 Ohm Input line: 18 kOhm Input AUX: 10 kOhm Output 51 Ohm |
| Gain: | Input: Microphone 69 dB Input: line 26 dB |
| Housing color: | Silver |
| Status LED: | Power, signal |

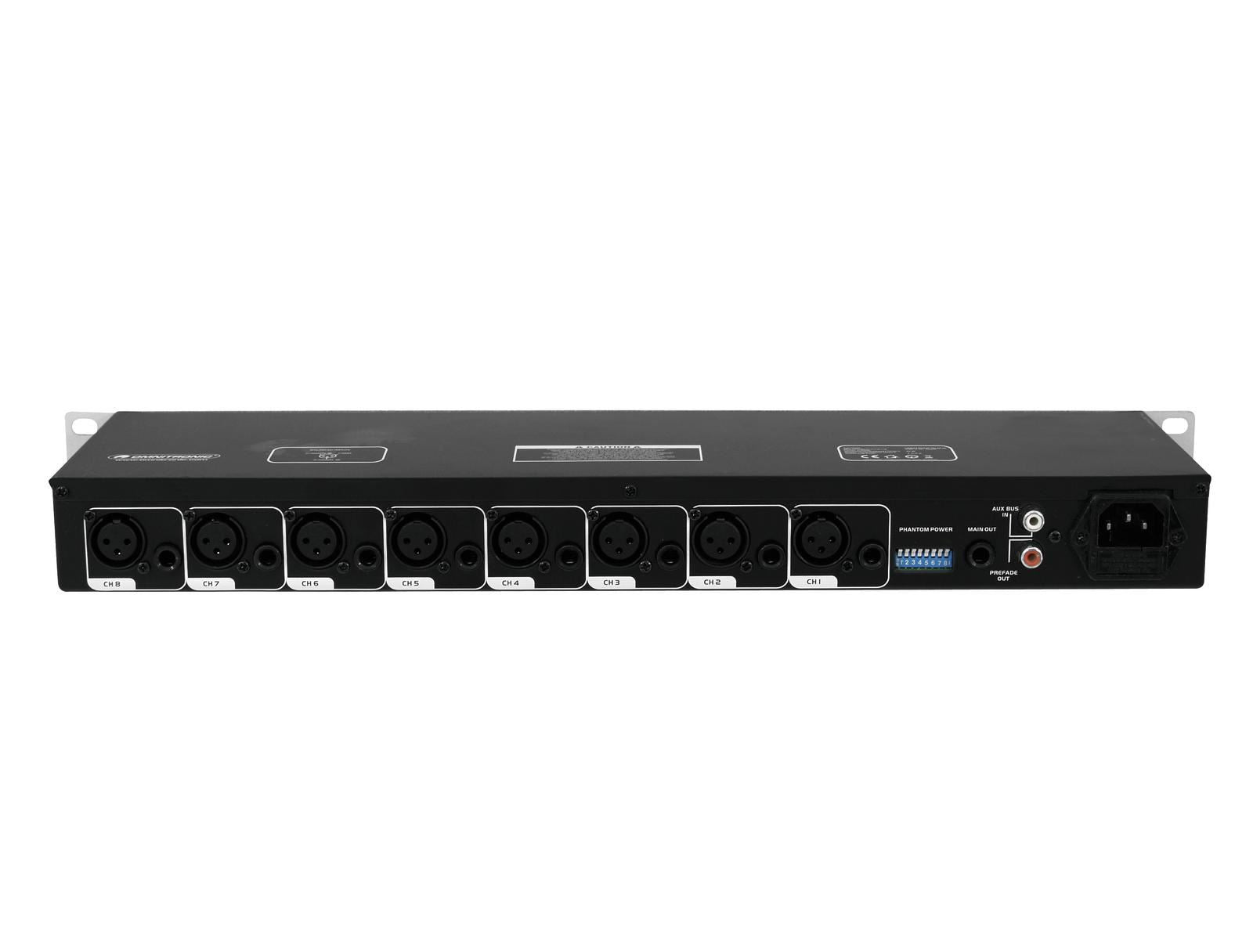

| Connections: | Input: 8 x Microphone via 3-pin XLR Input: 8 x line via 6.3 mm jack socket (mono) mounting version Input: 1 x AUX via RCA (f) mounting version Output: 1 x line via 6.3 mm jack socket (mono) mounting version Output: 1 x AUX via RCA (f) mounting version |
| Chanals: | Input chanel: 8 x mono via XLR or jack, channel control via Rotary knob, Tone control EQ Master output: 1 x mono via Plug 6,3mm/3,5mm (Jack), channel control via Rotary knob |
| Max. level: | Input: Microphone -23 dBV Input: line +22 dBV Output: +17 dBV |
| Housing design: | (19") 48.3 cm rack installation 1 U |
| Dimension: | Width: 48.3 cm Depth: 15.2 cm Height: 4.45 cm |
| Weight: | 2.30 kg |
