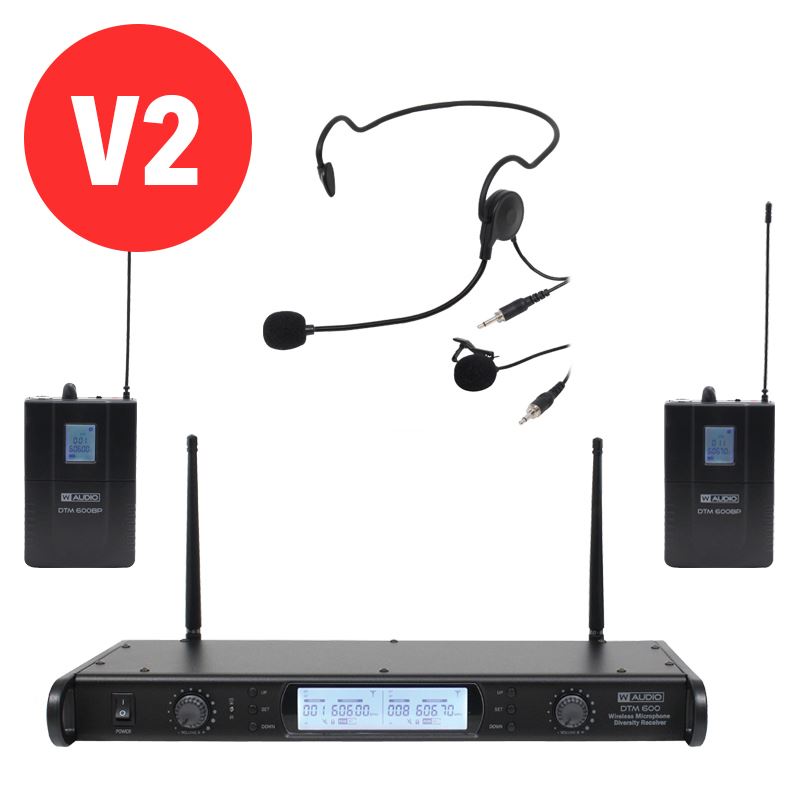

MIC72AV2 W Audio DTM 600 Twin Beltpack Diversity System (606.0Mhz-614.0Mhz) V2 Software *B-Stock

Description

DTM 600 series wireless microphones feature twin UHF belt pack or handheld systems with 80 selectable frequencies allowing up to eight channels (four systems) to be operated with a clear CH38 environment. Available in either (606-614Mhz) for the DTM 600 or (863-865Mhz) for the DTM 800; both systems utilise a true diversity, full width receiver for the ultimate in RF stability. Outstanding vocal reproduction and stable wireless connectivity allow freedom of movement on stage. These systems offer crystal clear sound reproduction and rock solid reliability. Metal bodied transmitters feature ergonomic design with a rugged housing to stand up to the rigours of the road. The flexibility of the systems may be increased by purchasing the additional DTM 600BP.

• Phase Lock Loop (PLL)
• IR sync facility for simple setup
• True diversity receiver 606614Mhz 80 frequencies
• Large LCD receiver display including RF level
• AF level, channel and frequency
• LCD transmitter display, Removable BNC antennae
• Auto frequency scanning

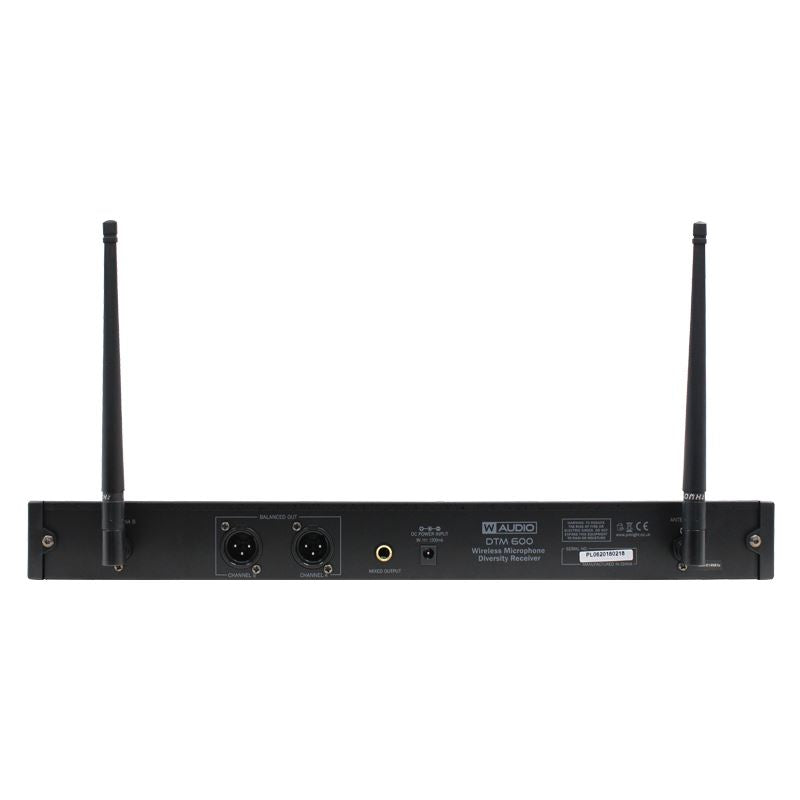

• Balanced XLR output for each channel plus unbalanced mixed output
• Frequency response (handheld): 40Hz15kHz
• Audio output level: 400mV
• Dynamic range: 96dB
• Full width rack mount receiver
• Up to 4 DTM 600 systems can be used simultaneously
• Optional 12V DC 1000mA EU power supply available: Order code MIC70P
• Condenser microphone supply voltage 3V
• Loaded with Version 2 Software

Specifications

• Receiver power supply: 912V DC (adaptor supplied)
• Receiver dimensions: 50 x 420 x 210mm
• Transmitter battery configuration: 2 x 1.5V AA (not supplied)
• Full width rack mount receiver (19'' rack mount adaptor brackets included)
• 1 x receiver

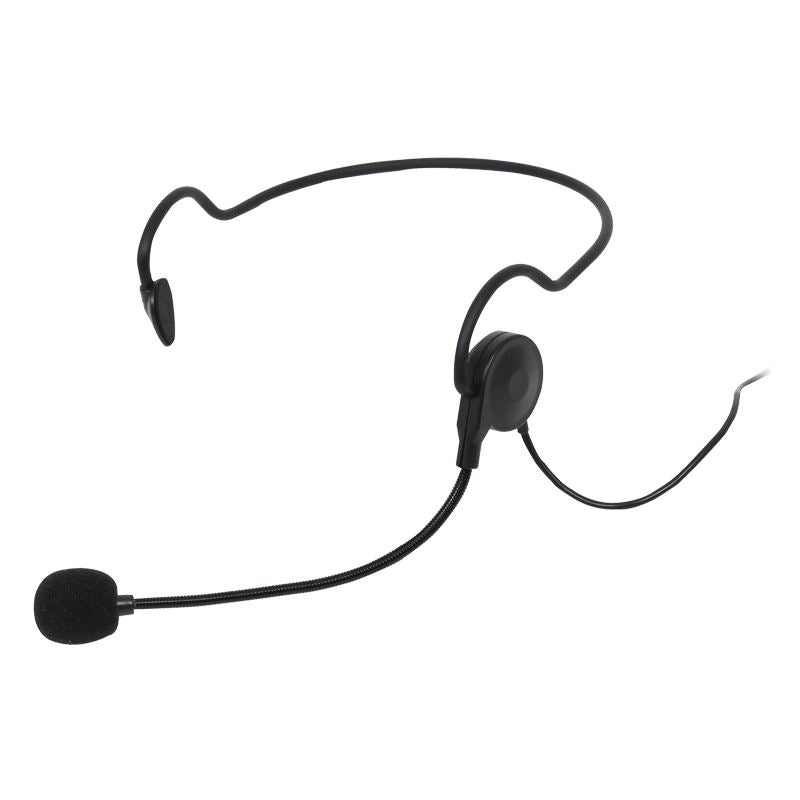

• 2 x headset microphones
• 1 x PSU
• 1 x audio lead and 1 x user manual
