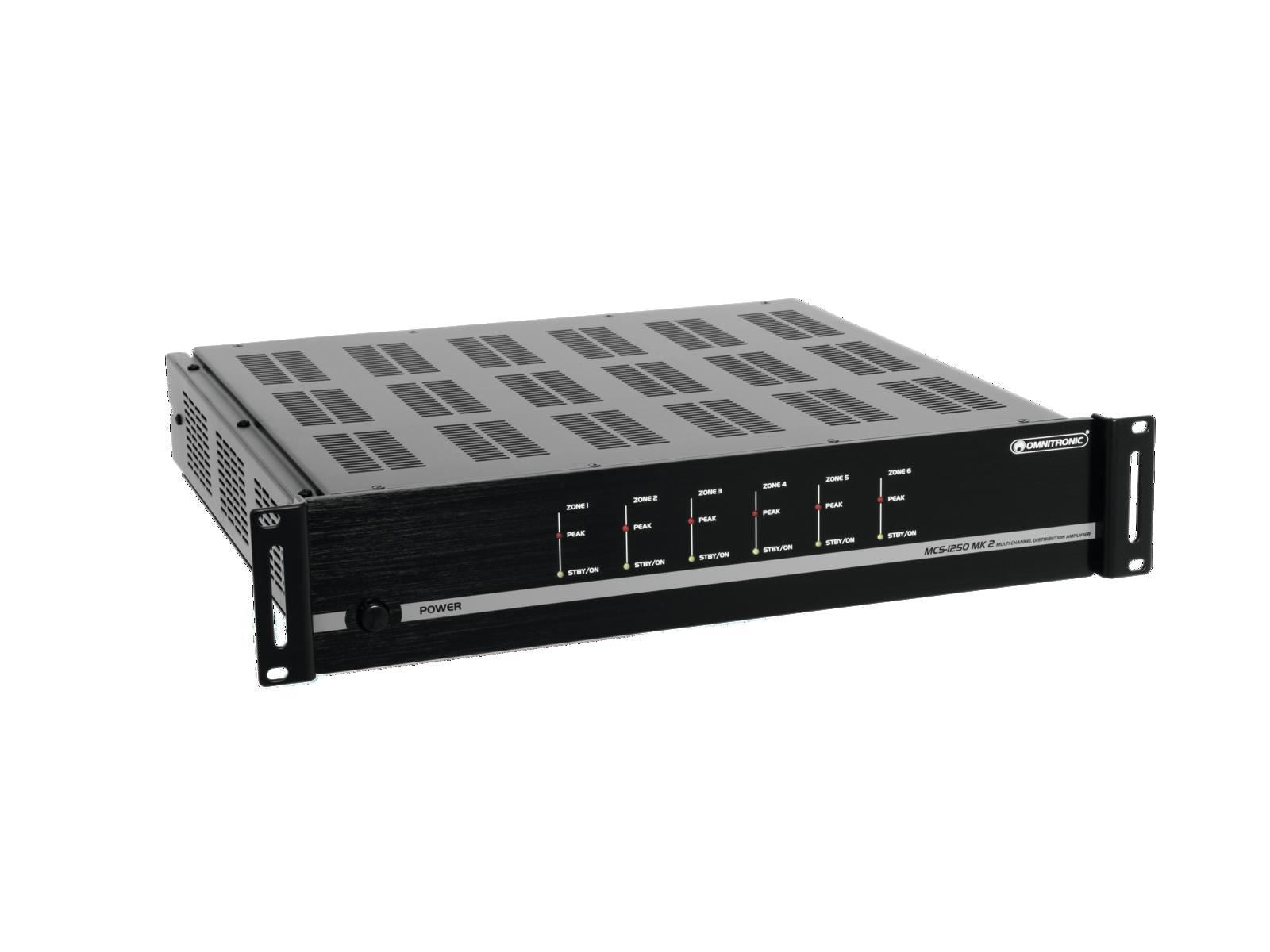

Omnitronic Mcs-1250 Mk2 6-Zone Pa Amplifier
- £1,283.50
- £1,283.50
- Unit price
- per
iFrame
Description
6-zone audio amplifier with matrix assignment, 2 x 50 W / 4 ohms per zone
- 6-zone stereo amplifier for multi-zone PA applications
- Updated version with touch pad wall controller
- 12 x 50 W/4 ohms per zone
- Bridge mode with 100 W/8 ohms individually selectable per zone
- Efficient Class D technology
- 6 stereo inputs expandable to 18 stereo zones with further units
- Matrix input assignment: input sources are freely assignable to each channel
- 6 pre-amp outputs to connect external power amplifiers
- Convenient control via touch pad wall controller or IR remote control

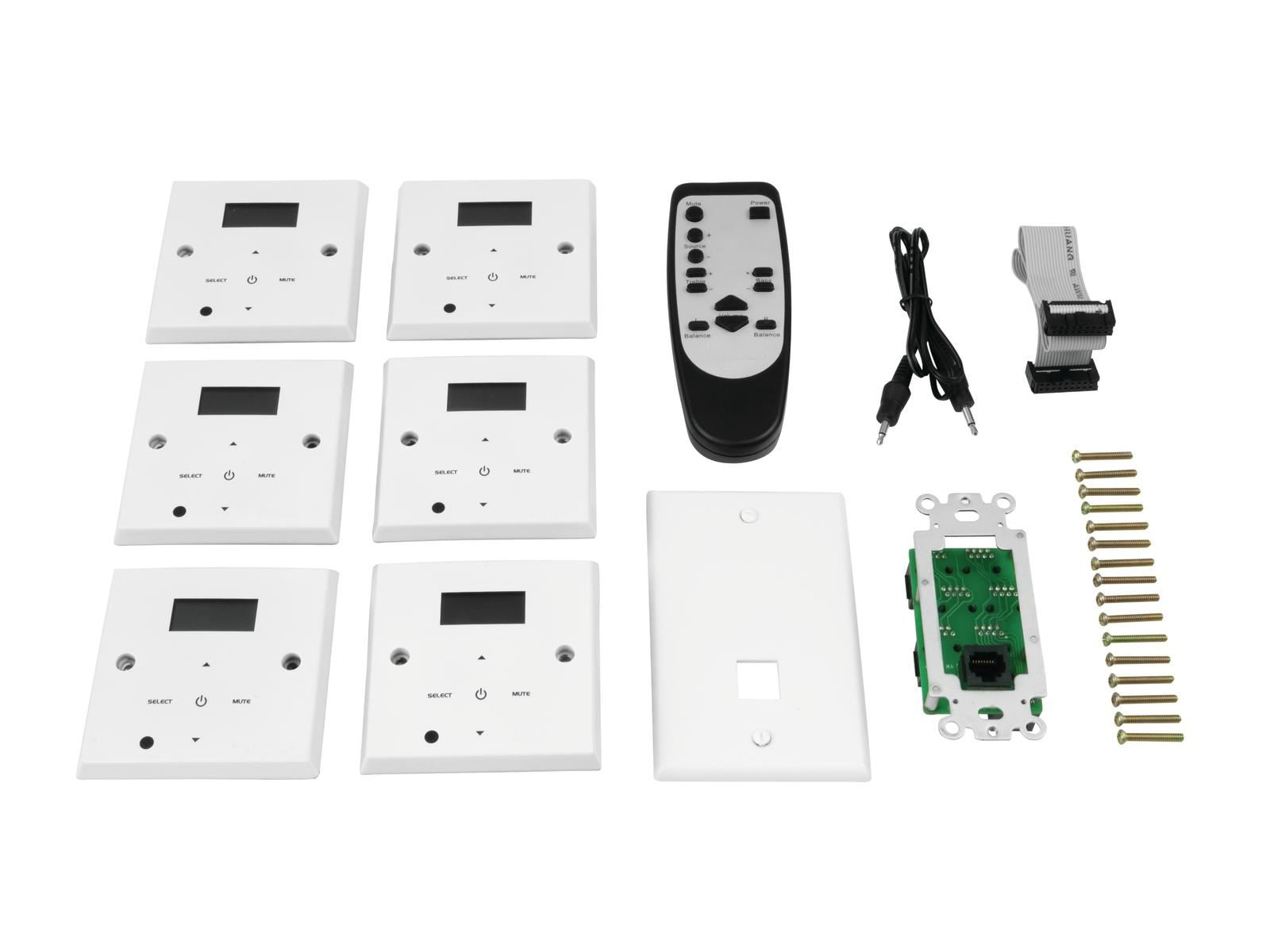

- Incl. 6 wall controllers with touch-sensitive surface (touch pad), LCD with blue backlight and IR receiver
- Wall controller allows selecting the audio source and volume, treble, bass adjustment for each zone individually
- Incl. wall hub for up to 6 wall controllers
- Incl. IR remote control
- Signal inputs: 4 x stereo RCA, 2 x 3.5 mm jack and 1 x Toslink for digital audio signals
- Speaker connection via terminal blocks

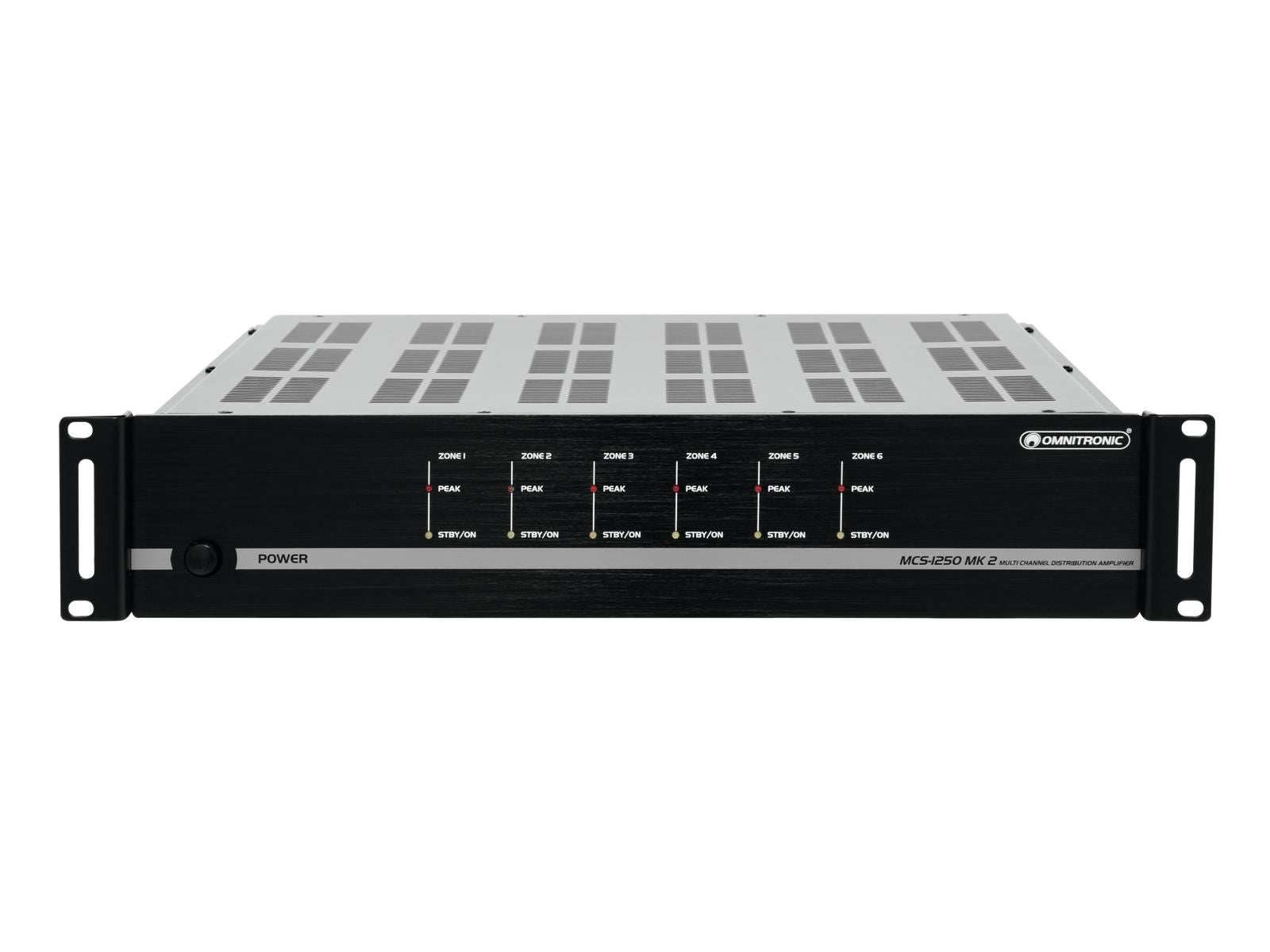

- 6 zone status indicators on the front panel
- Automatic gain control selectable for level matching of signal sources
- Terminals for IR emitters (accessory) allow extending the IR signals from the remote controls of the signal sources
- RS232 port enables two-way communication with a home automation system
- Trigger input for muting
- 6 trigger outputs for switching external amplifiers
- Controlling by IR remote control
- The device can be connected via RJ45 (F) mounting version to the PC
- (19") 48.3 cm rack installation 2 U
| Power supply: | 115/230 V AC, 50/60 Hz |
| Power consumption: | 1250 W |
| Output power: | 12 x 25 W RMS (8 ohms) 12 x 50 W RMS (4 ohms) 6 x 100 W RMS bridged (8 ohms) |
| Power connection: | Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided) |
| Frequency range: | 20 - 20000 Hz |
| S/N ratio: | >85 dB |
| THD: | <0.1 % at 1 kHz |
| Impedance: | Input 47 kOhm |
| Control: | IR remote control |
| Circuitry: | Class D |
| Control elements: | Mode switch (stereo/bridged), power switch |
| Controls: | Short-circuit; overheat; overload |
| Status LED: | Standby, power, peak |

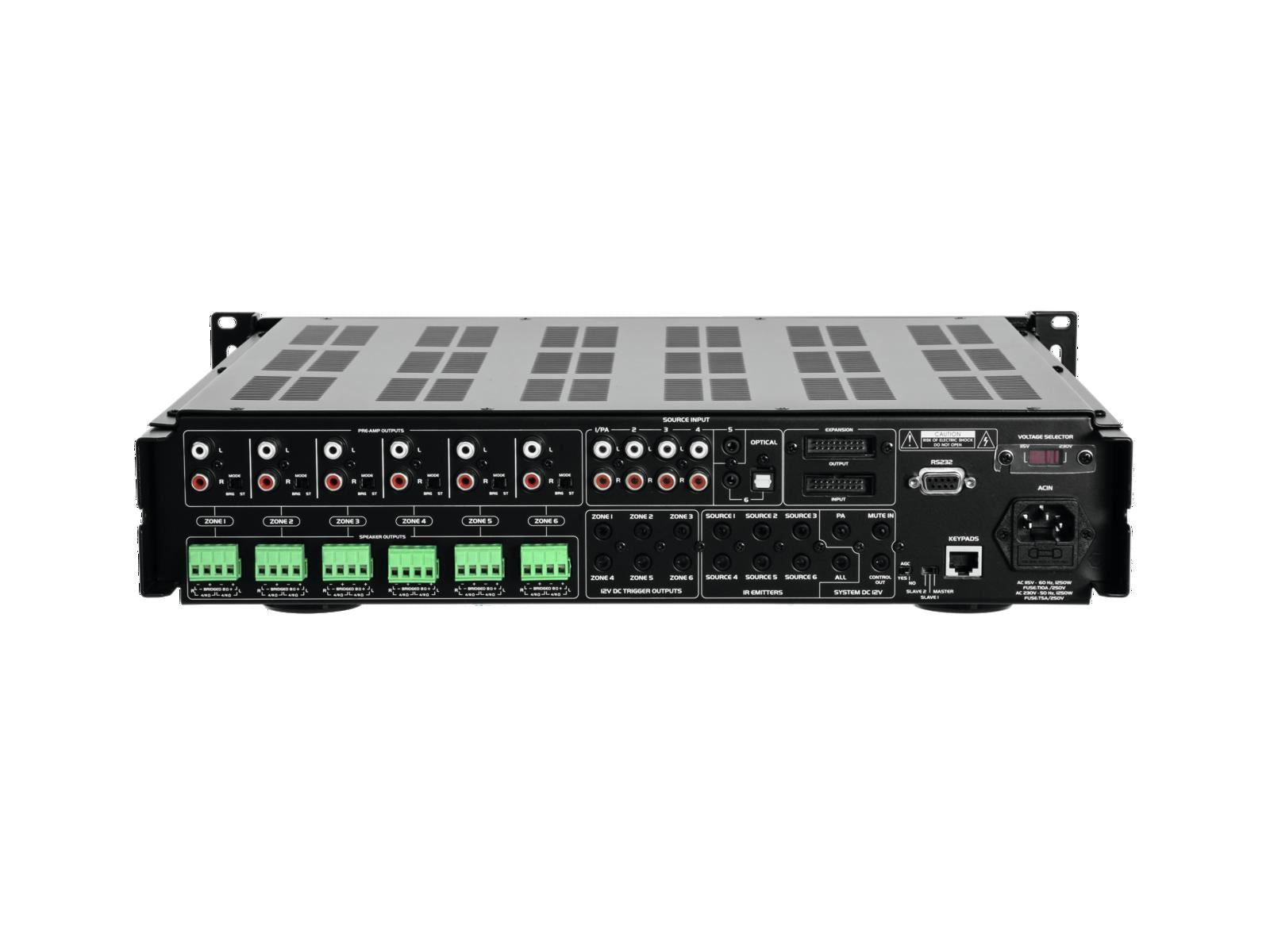

| Connections: | Input: 4 x line via stereo RCA Input: 2 x line via 3.5 mm jack (stereo) mounting version Input: 1 x line via toslink Input: 1 x Keypad via RJ45 (F) mounting version Input: 7 x IR-Extension/receiver via 3.5 mm jack (mono) mounting version Input: 1 x Muting via 3.5 mm jack (mono) mounting version Output: 6 x Trigger via 3.5 mm jack (mono) mounting version Output: 6 x speakers via screw terminal 1 x Home automation via RS 232 |
| Input sensitivity: | 250 mV |
| PC connect: | Via RJ45 (F) mounting version |
| Housing design: | (19") 48.3 cm rack installation 2 U |
| Dimension: | Width: 48.3 cm Depth: 42 cm Height: 8.9 cm |
| Weight: | 12.70 kg |
| Remote control | |
| Battery: | 2 x 1.5 V AAA Micro R03 zinc carbon (provided) |
