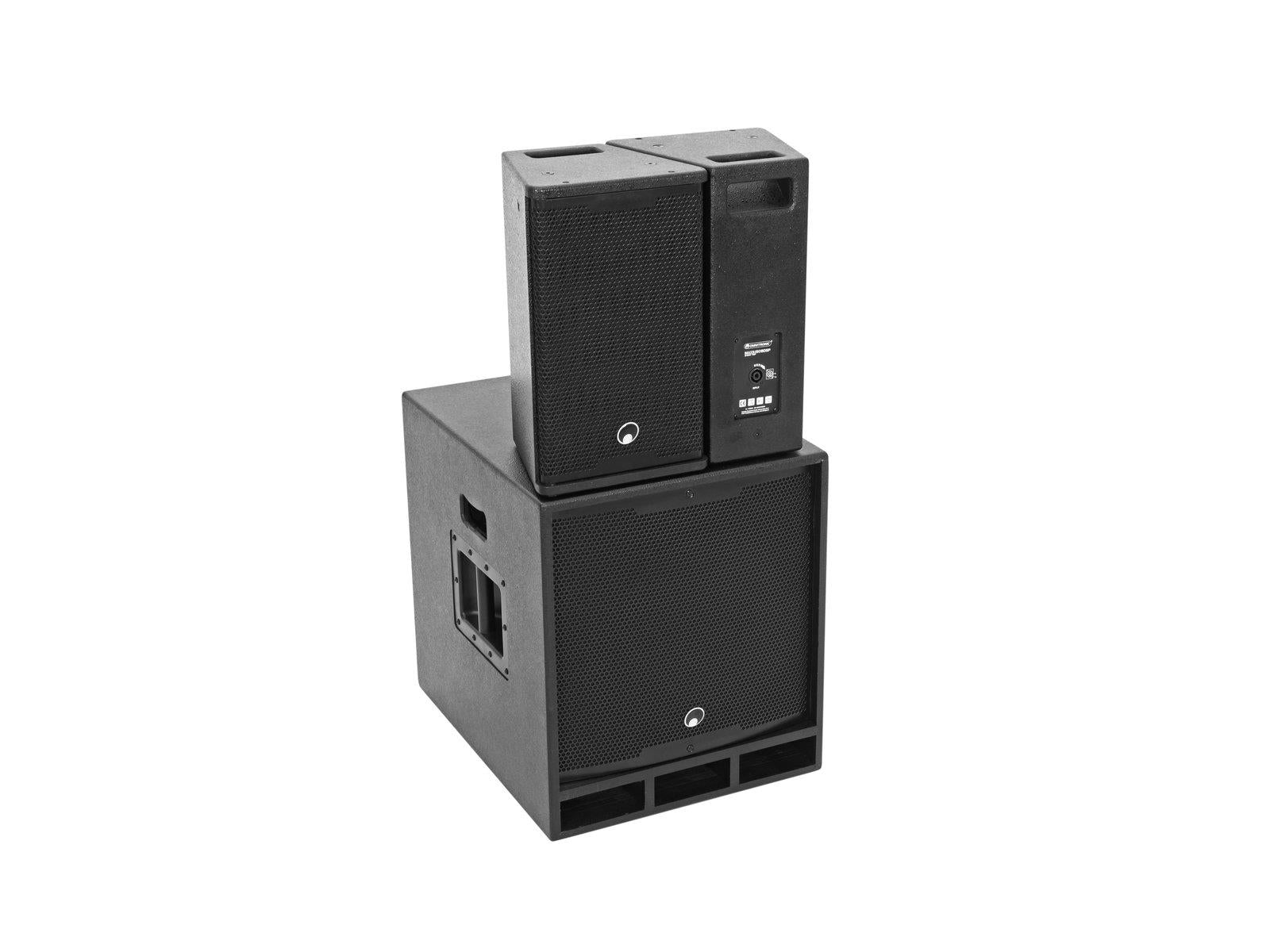

Omnitronic MAXX-1508DSP 2.1 Active Sound System PA 700W

Compact and powerful
The MAXX-1508DSP is a compact, active PA system with an RMS of 700 watts. Are you a mobile DJ, solo entertainer or musician? Then this mobile PA with its high-quality sound and good level stability is your ideal companion.

EQUIPMENT
The 15" subwoofer in the bass reflex cabinet delivers powerful, dry bass. It is equipped with a Class D amplifier. The two satellites with 8" bass/midrange drivers and 1" compression drivers feature a passive 2-way crossover and PTC tweeter protection.

CONNECTIONS
You can choose from a balanced XLR/6.3mm jack, a stereo RCA input with level adjustment and Bluetooth for wireless music enjoyment from your smartphone or tablet. You can connect additional active speakers via an XLR parallel output.

ALL IN
3 EQ presets (DSP-controlled) with status displays, the integrated charging unit for USB devices and the clearly arranged volume controls (separately adjustable for subwoofer and satellites) make working with the 2.1 system easy.

High-power active PA system with DSP, Bluetooth, 700 watts (15" sub, 8" tops)
Mobile 2.1 system with DSP and 700 watts RMS power provides perfect sound and good level stability in various kinds of mobile PA applications up to medium-sized party events - ideal for solo entertainers, bands and mobile discos15" subwoofer with class D amplifier in bass reflex cabinet provides powerful, dry bassTwo satellites with 8" bass-midrange speakers and 1" compression driver satellites with passive 2-way crossover, PTC tweeter protection balanced signal input XLR/6.3 mm jack L/additional stereo RCA input, with level switchParallel XLR line output L/integrated Bluetooth audio streaming for your smartphones and tablets3 EQ presets with indicators, DSP-controlled signal limiter, DSP-controlled separate volume control for subwoofer and satellite stereo/mono selection built-in fast charger (5 V/2 A) for convenient charging of your mobile USB devices enclosures made from 16 mm MPX/MDF (subwoofer) and MDF (satellites) with scratch-resistant lacquer surface and steel grilleSubwoofer with M20 metal flange for mounting a satellite speaker actors available as accessory delivery includes two speakers cables DSP: Digital signal processor

Specifications
High-power active PA system with DSP, Bluetooth, 700 watts (15" sub, 8" tops)

Mobile 2.1 system with DSP and 700 watts RMS power
Provides perfect sound and good level stability in various kinds of mobile PA applications up to medium-sized party events - ideal for solo entertainers, bands and mobile discos
15" subwoofer with class D amplifier in bass-reflex cabinet provides powerful, dry bass
Two satellites with 8" bass-midrange speakers and 1" compression driver
Satellites with passive 2-way crossover, PTC tweeter protection
Balanced signal input XLR/6.3 mm jack L/R
Additional stereo RCA input, with level switch
Parallel XLR line output L/R
Integrated Bluetooth audio streaming for your smartphones and tablets
3 EQ presets with indicators, DSP-controlled
Signal limiter, DSP-controlled
Separate volume control for subwoofer and satellites
Stereo/mono selection
Built-in fast charger (5 V/2 A) for convenient charging of your mobile USB devices
Enclosures made from 16 mm MPX/MDF (subwoofer) and MDF (satellites) with scratch-resistant lacquer surface and steel grille
Subwoofer with M20 metal flange for mounting a satellite speaker
Castors available as an accessory
Delivery includes two speaker cables
DSP: Digital signal processor
Power consumption: 800 W
Frequency range: Top 120 - 18000 Hz; Bass 35 - 120 Hz
Circuitry: Class D
Speakers: 1 x Woofers (15") approx 38 cm
Weight: 46,60 kg
Top
Sensitivity: 92 dB
Max. SPL: 116 dB
Material: MDF (Medium-density fibreboard)
Width: 25,5 cm
Height: 42,1 cm
Depth: 24,1 cm
Weight: 17,25 kg
Bass
Sensitivity: 95 dB
Max. SPL: 120 dB
Material: Birch multiplex; MDF (Medium-density fibreboard)
Width: 45,4 cm
Height: 53,4 cm
Depth: 57 cm
Weight: 29,3 kg
Power supply: 230 V AC, 50 Hz
Amplifier power: LF 400 W RMS + HF 2 x 150 W RMS
Amplifier Type: Class D
Components:
Subwoofer: 38 cm woofer (15")
Satellite speakers: 20 cm bass/mids (8"), 2.5 cm compression driver (1")
Dispersion angle: 90° x 60°
Connection:
Line input: combination XLR/6.3 mm jack L/R, RCA L/R
Parallel output: XLR L/R
Satellite: Speaker L/R

Weight
65kg
