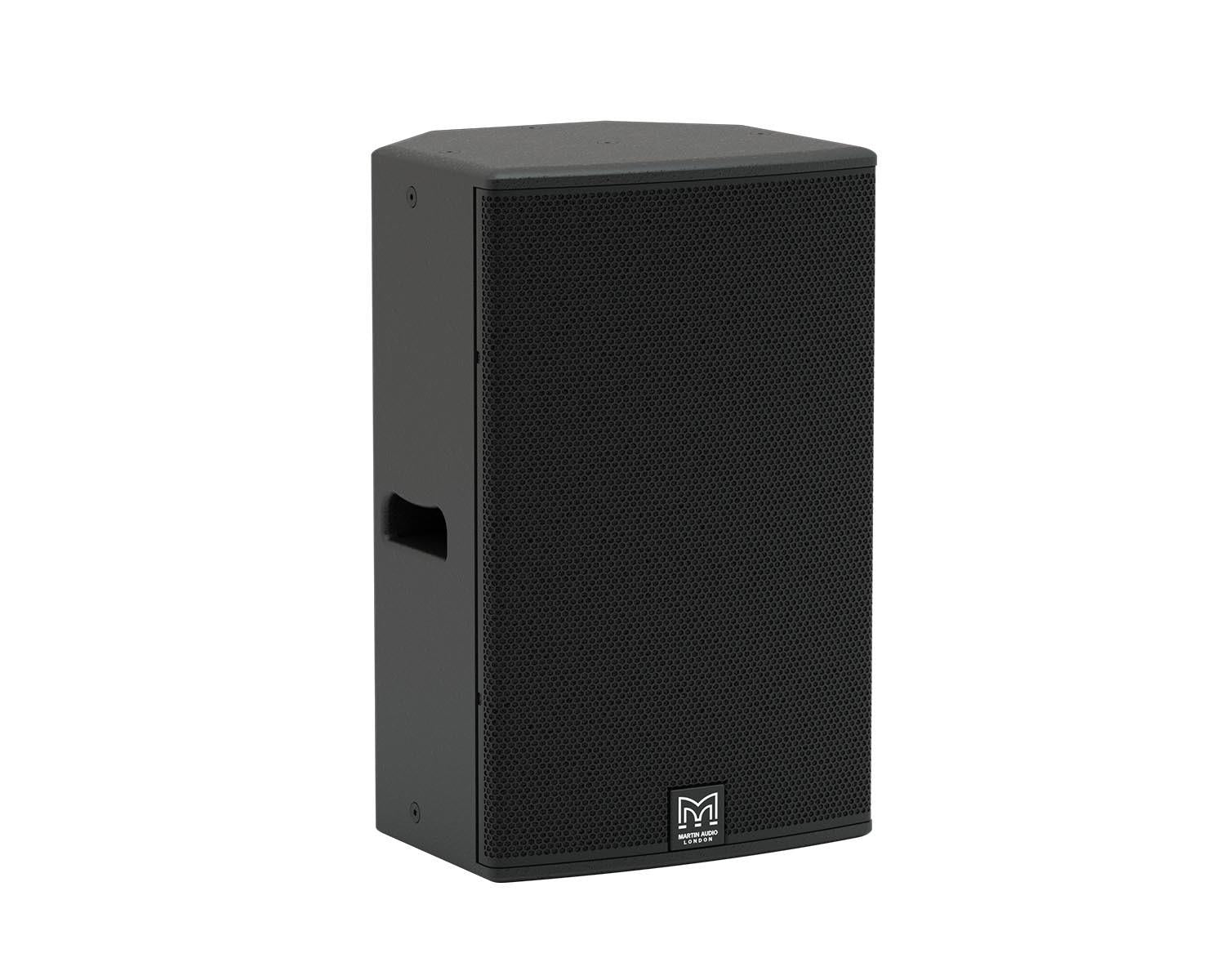

Martin Audio XP12 Blackline XP 12" 2-Way Powered Loudspeaker 1300W Black

Description:

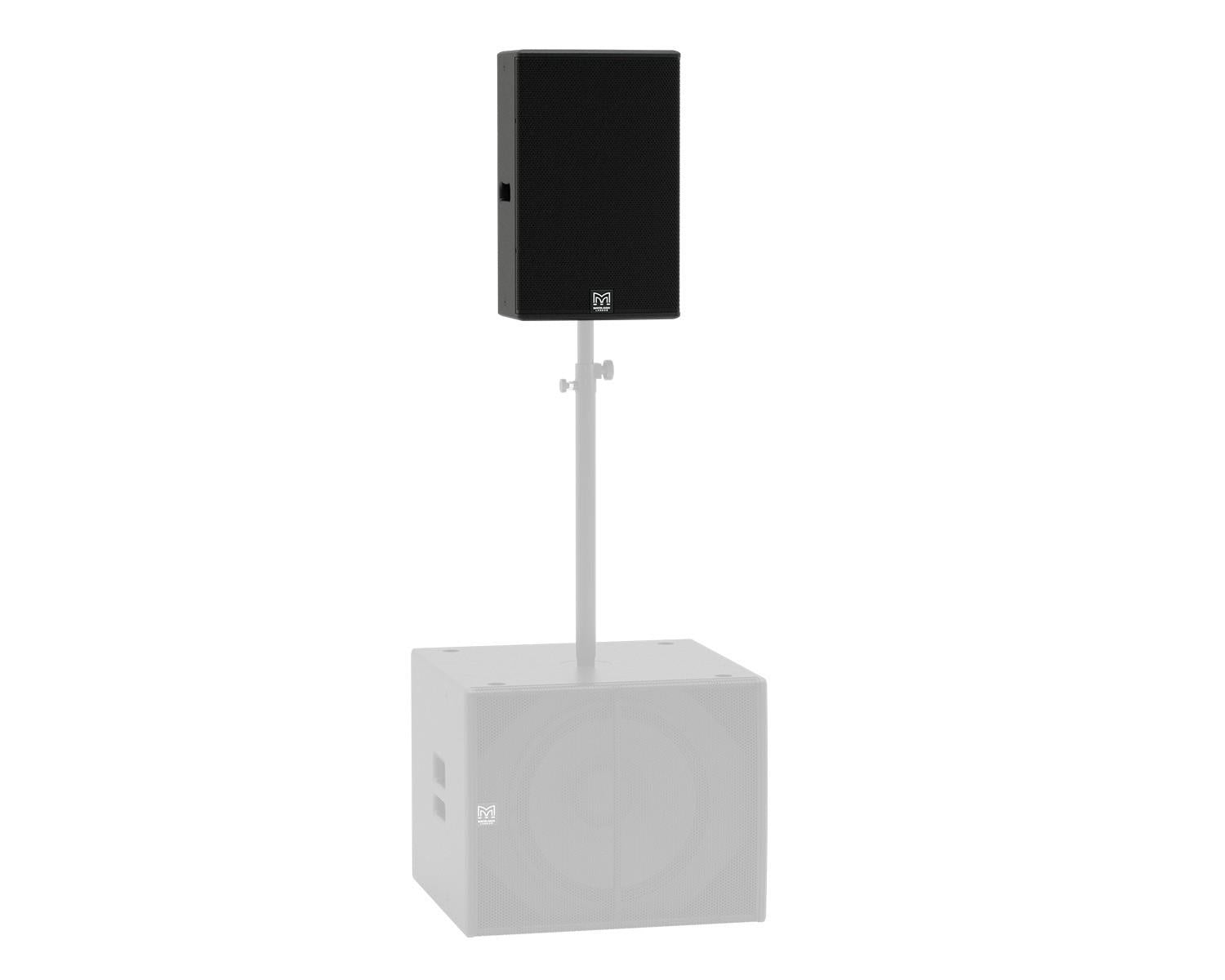

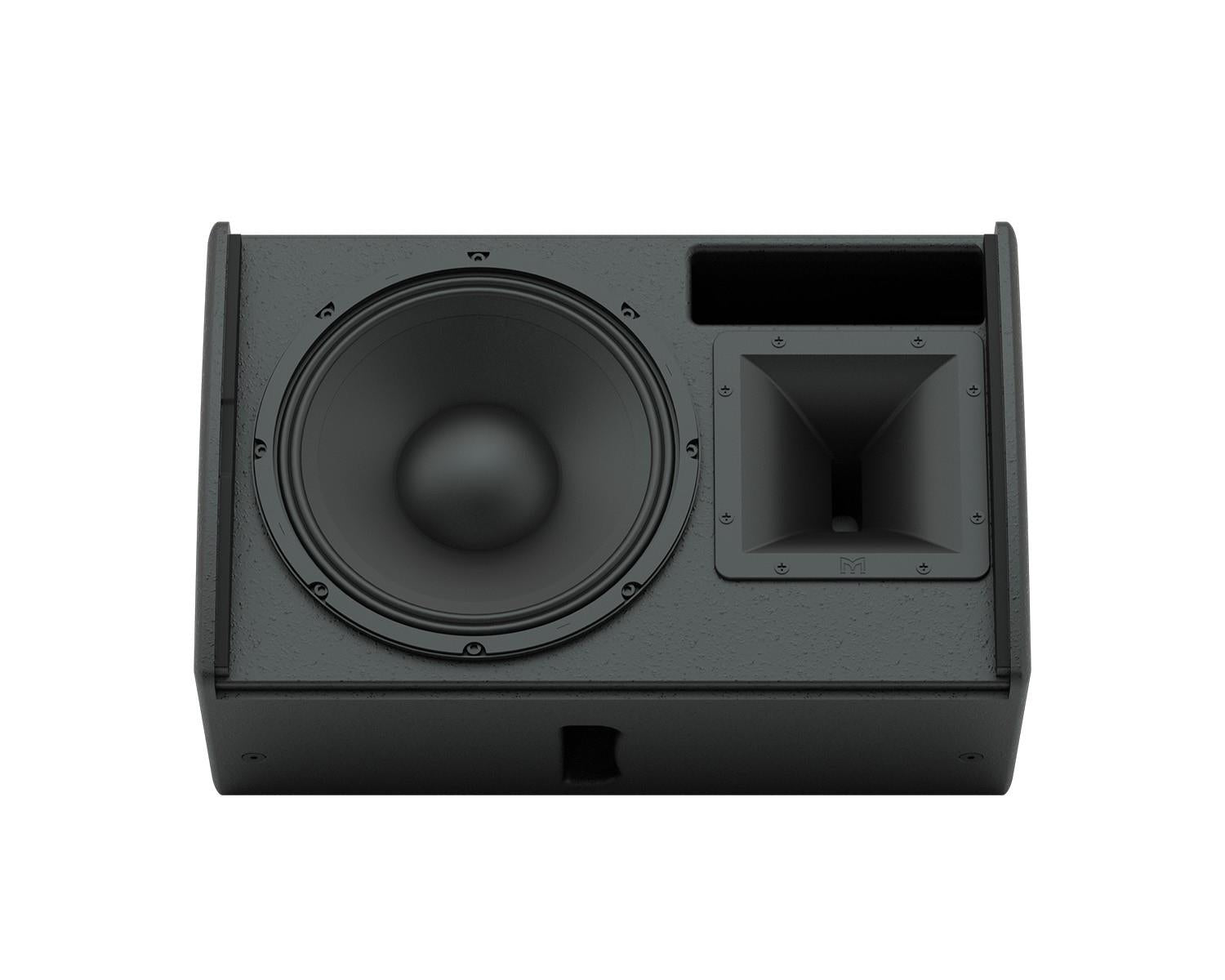

The XP12 is a compact, powered, two-way system designed by leading acoustic engineers. It can be used either as a standalone system, stage monitor or in conjunction with the XP118 powered subwoofer. Featuring a 12” (300mm) LF drivers and a 1” (25mm) exit compression driver on an 80° x 50° rotatable horn, it is ideal for small to mid-size indoor venues requiring class-leading sound from a compact enclosure. The LF driver has a 2.5” (65mm) voice coil and powerful magnet system for the tightest bass response, while the HF compression driver utilises a 1.75” (44mm) polyimide diaphragm for extended high-frequency response without distortion.

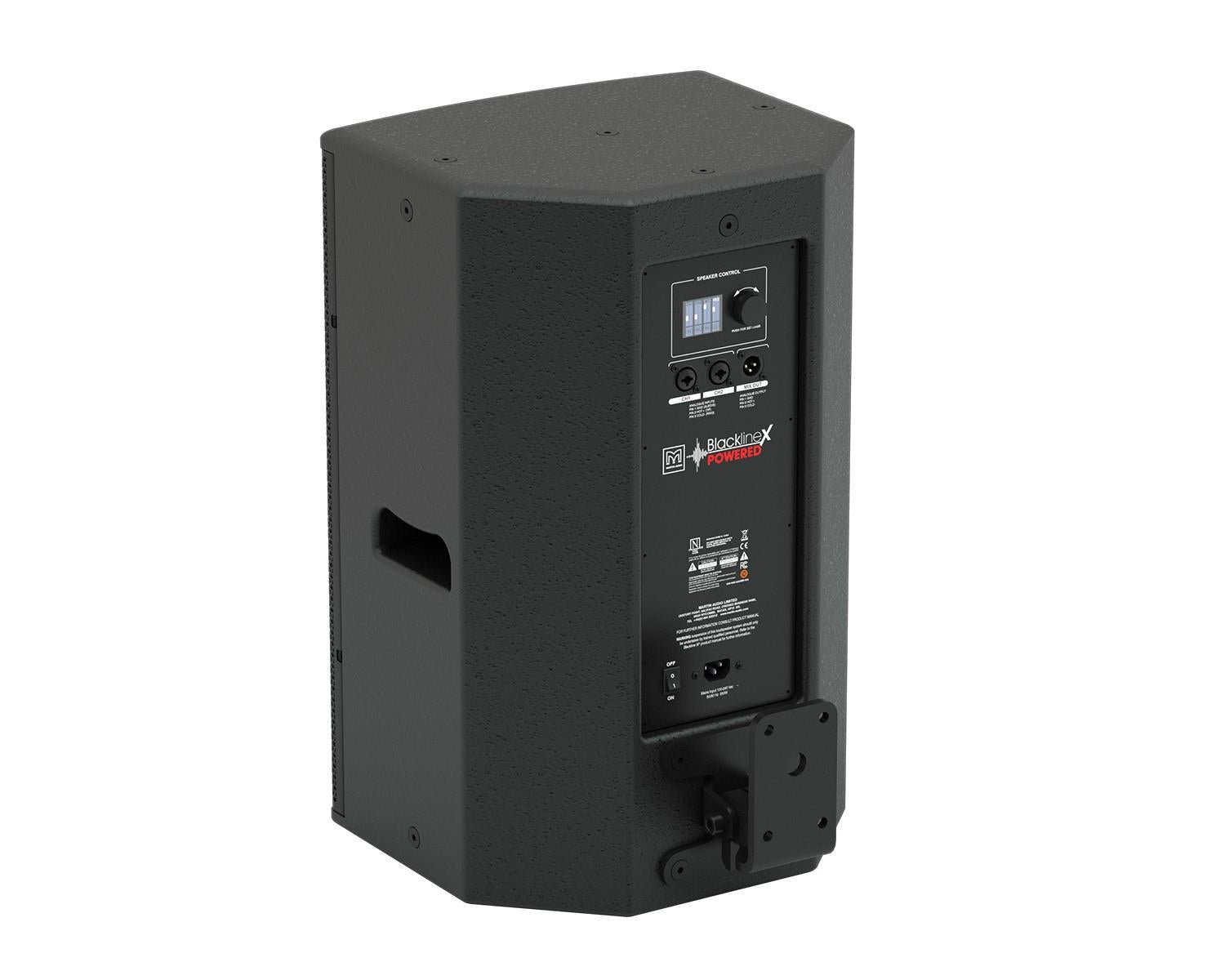

An on-board Class D amplifier module delivers 1000W LF + 300W HF peak output to the drivers and sophisticated DSP functions are controlled by a rotary interface and multifunction, easy-to-use colour screen on the rear panel. DSP features include crossover function, a three-channel mixer with three-band EQ on each input channel and selection of three voicing presets and operating modes for flexible usage without external processing. The LF and HF drivers are independently protected by RMS and peak limiters for longevity and consistency of performance.

The XP12 is road-ready. Constructed from durable plywood, it is fitted with a cloth-backed steel grille to protect the drivers from damage and dust ingress, while not impeding airflow at low frequencies. The enclosure has M8 inserts for eyebolt suspension and a pole-mount socket with a removable cap that maintains clean lines for install applications. It is finished in black textured hard-wearing paint as standard.

Features:

Compact self-powered, portable two-way system
1300W of Class D amplification
Global power supply with PFC (Power Factor Correction)
On-board DSP with rotary control interface
Multi-function display for metering, control and function selection
Three-channel mixer
Three-band channel EQ, plus HPF (Ch1/2)
Independent LF and HF peak and RMS limiters
Three speaker mode and voicing presets
Bluetooth® control and streaming option
Durable plywood enclosure
User-rotatable 80° x 50° HF horn
Vertical and horizontal mounting options

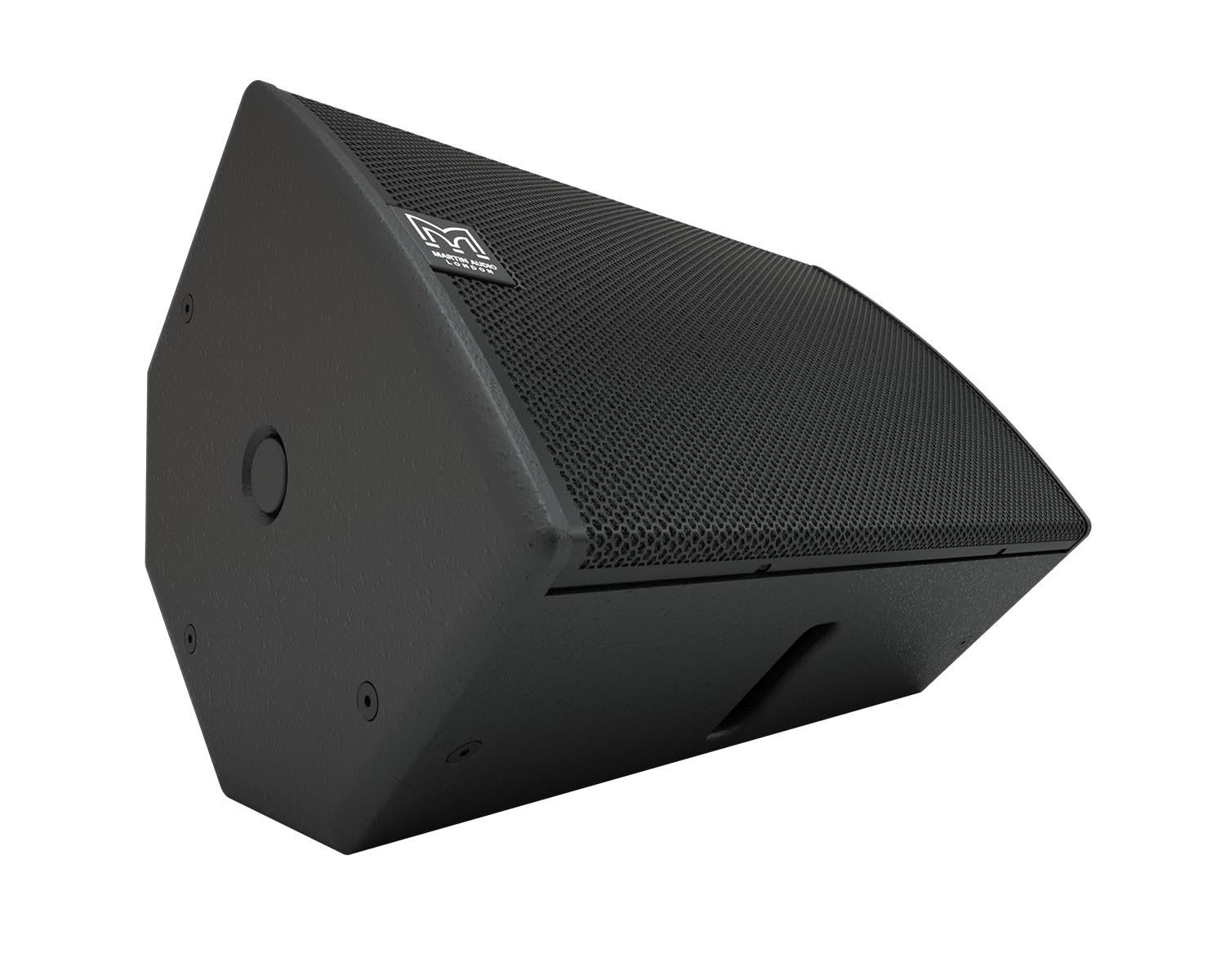

Symmetrical multi-angle enclosure for PA or stage monitor use
Screw-free, cloth-backed steel grille
Integral ergonomic handles

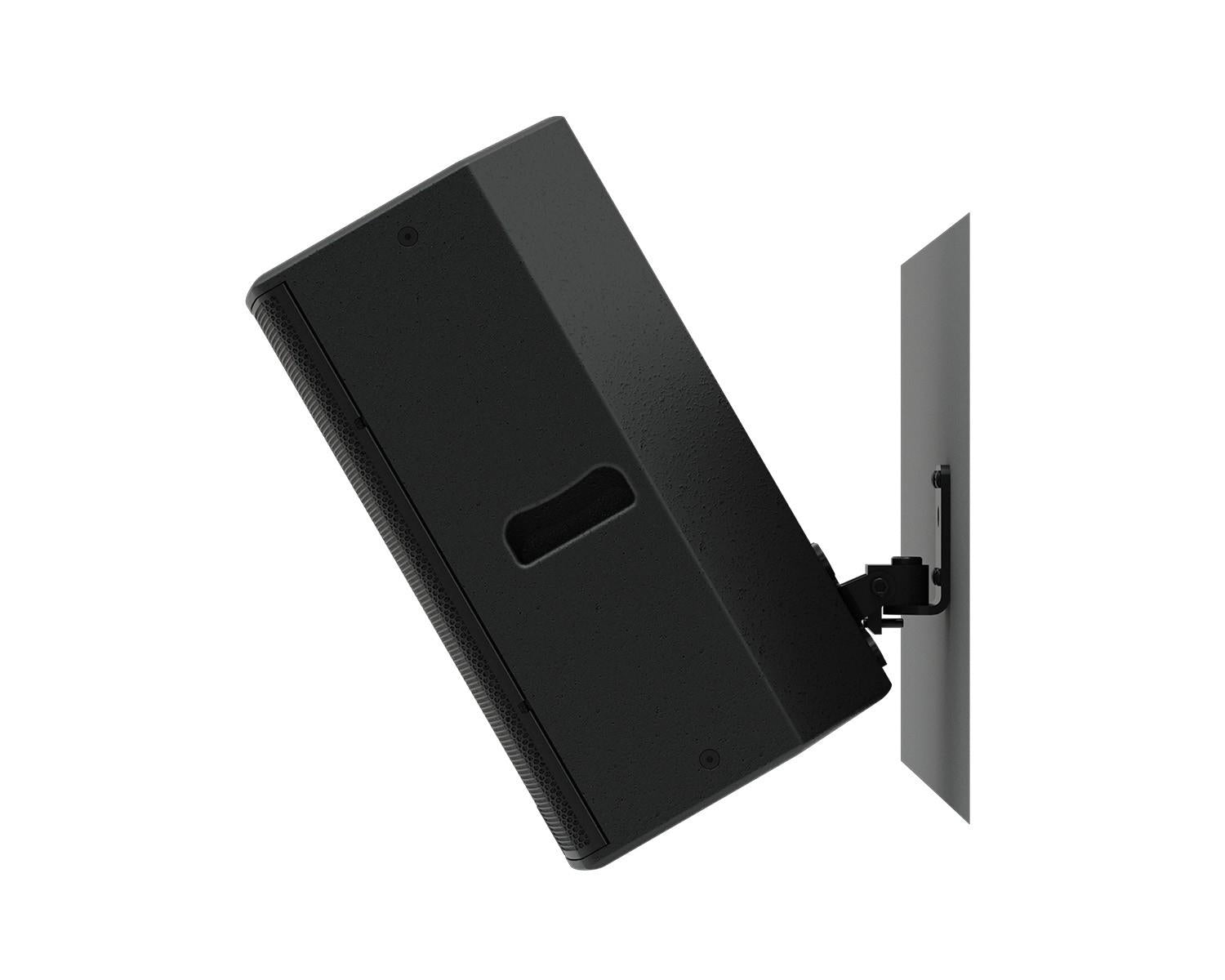

Mounting options include pole-mount, wall bracket and flying inserts

Specifications:

Acoustics
TYPE: Compact self-powered two-way system
Frequency response62Hz – 20kHz ±3dB
-10dB @ 50Hz
DriversLF: 12” (300mm)/2.5” (63.5mm) voice coil, ferrite motor system
HF: 1” (25mm) exit/1.7” (44mm) voice coil, polyimide dome compression driver
Maximum spl: 122dB continuous, 128dB peak
Dispersion: 80° H x 50° V (user-rotatable)
Crossover: 2.3kHz active, 24dB/octave
Audio In/Out
Input connectors: 2 x female XLR/ ¼” jack combo
Mic/line input impedance: 8 kΩ balanced
¼” Jack ts input impedance: 1 MΩ unbalanced
Mix output connector: 1 x male XLR
Mix output impedance: 600 Ω Balanced
Internal Processing
Input channel EQ: 3-band on each channel plus HPF (Ch1/2)
Speaker EQ: 3 speaker mode/voicing presets
Protection: LF and HF Peak and RMS limiting, amplifier thermal protection
Amplifier Module
Type: 2 channel switch-mode, class D
Peak output power1300W total
1000W LF, 300W HF
Average efficiency: 89%
Cooling: External convection cooled
Maximum ambient temperature: 35°C (95°F) for full output
Power Supply
Type: Switch-mode, fixed frequency with PFC
Ac input operating range: 100-240V ~ AC, 50 - 60Hz
Power factor: > 0.98
Nominal power consumption: 550W Max
Mains connector: 3-pin IEC
Physical & Dimensions
Enclosure: Multi-angle birch/poplar ply
Finish: Black textured paint
Protective grille: Black perforated steel with scrim cloth backing
Fittings: 17 x M8 inserts, pole-mount socket, 2 x pocket handles
Dimensions(W) 358mm x (H) 574mm x (D) 318mm
(W) 14.1in x (H) 22.6in x (D) 12.5in
Weight: 18kg (40lbs)
