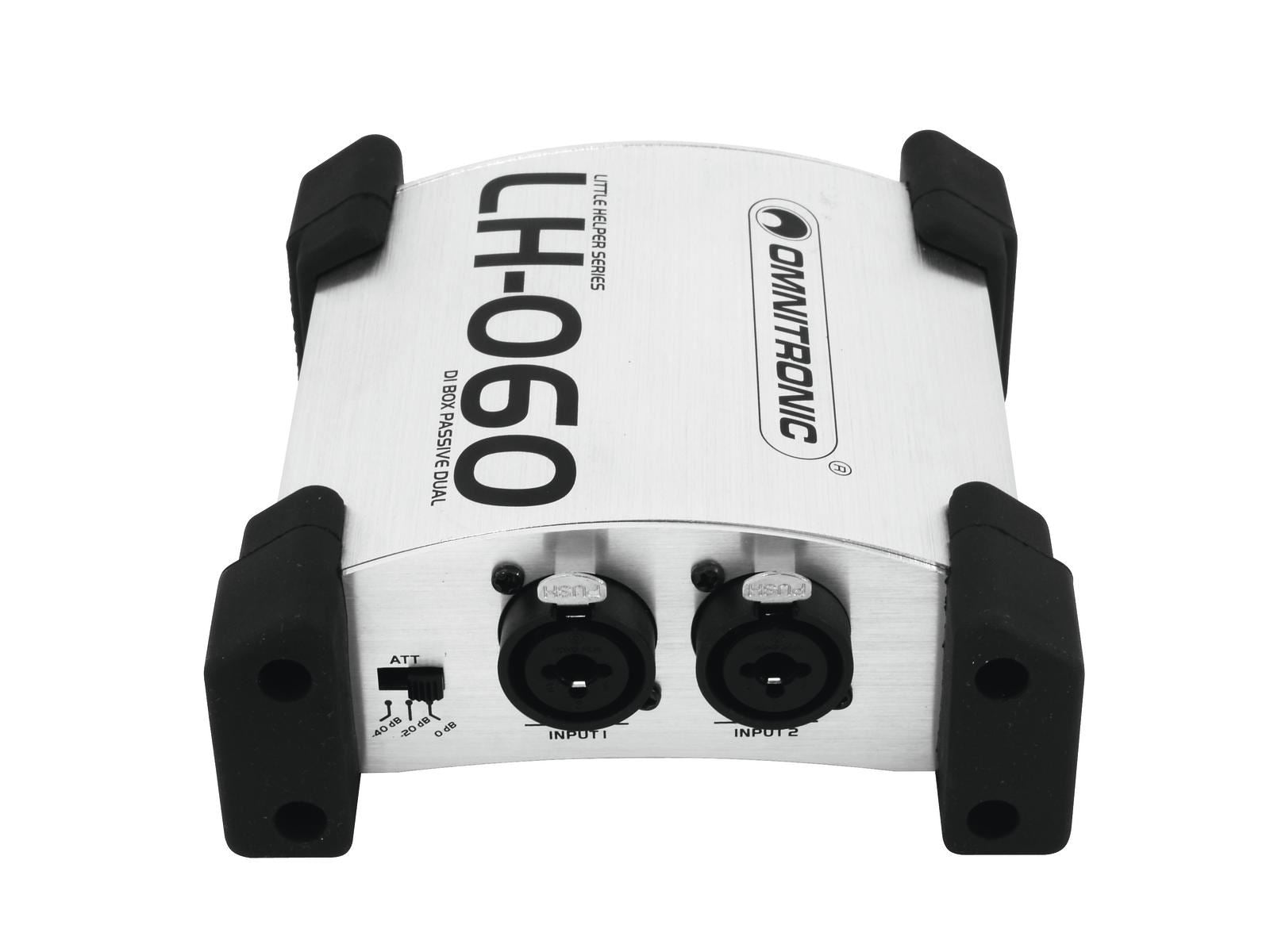

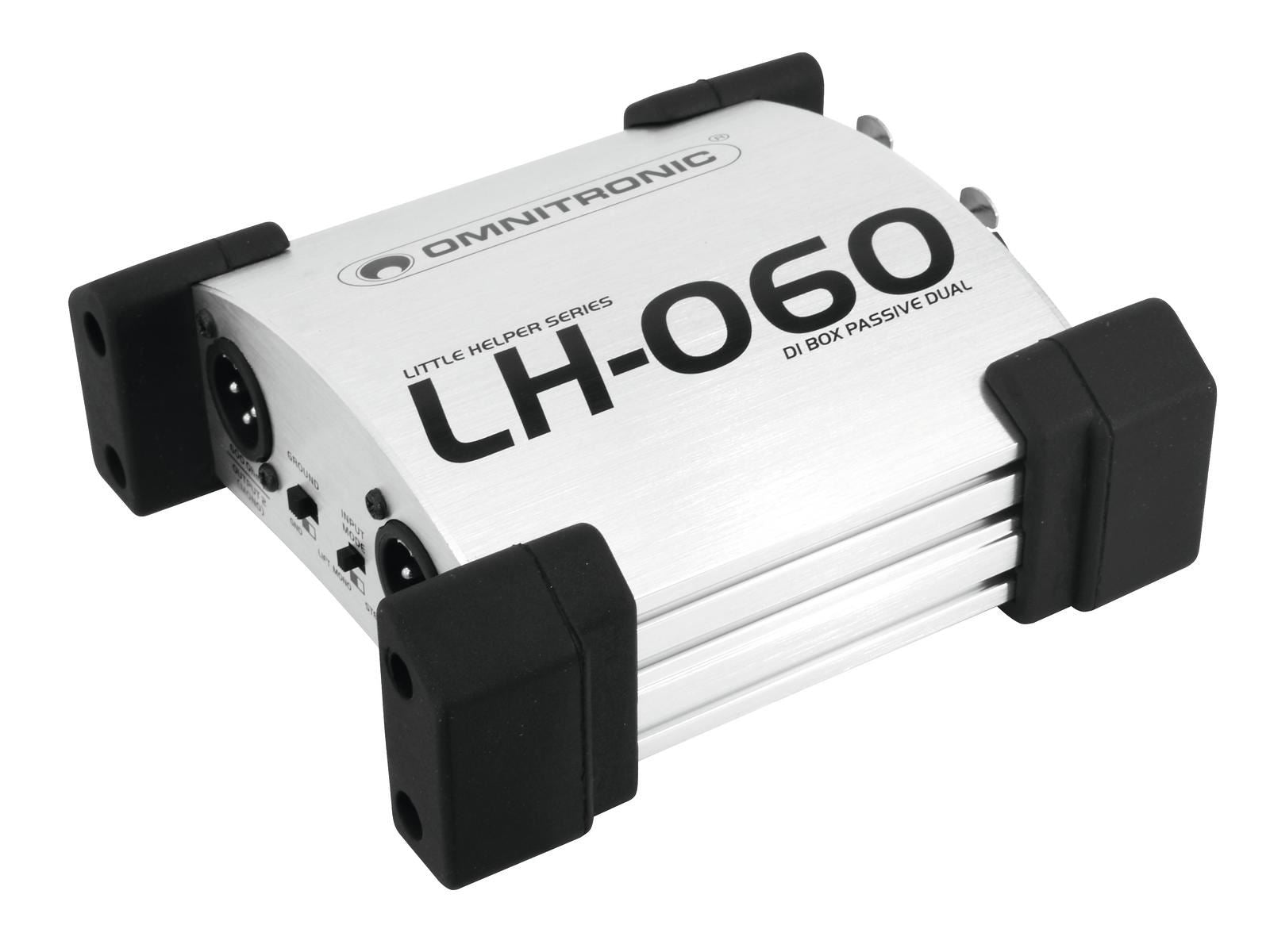

Omnitronic Lh-060 Pro Passive Dual Di Box
Omnitronic Lh-060 Pro Passive Dual Di Box
Omnitronic Lh-060 Pro Passive Dual Di Box
Omnitronic Lh-060 Pro Passive Dual Di Box

Omnitronic Lh-060 Pro Passive Dual Di Box

£78.50
£78.50
Passive 2-channel DI box/splitter, Silver
Vendor: Omnitronic
SKU: 154-10355060
Icon In Stock In Stock
Icon Delivery Time
iFrame
×
DETAILS

Description


Passive 2-channel DI box/splitter, Silver

  • Passive 2-channel DI box with split mode
  • 2 high-impedance signal inputs via combo connectors (XLR/6.3 mm jack)
  • 2 low-impedance XLR outputs
  • Converts 2 separate unbalanced line inputs (e.g. instruments) into 2 balanced XLR outputs, for connecting a mixer
  • Switchable to split mode (input 2 routes the signal to both outputs)
  • Switchable input attenuation: 0 dB, -20 dB, -40 dB
  • Ground-lift switch eliminates signal interference and ground loop problems
  • Modern convex housing design with rubber corners for safe positioning
  • Stackable
  • Cables can be routed under the housing


Frequency range: 15 - 30000 Hz
Impedance: Input 50 kOhm
Output 600 Ohm
Input attenuation: 0 dB, -20 dB, -40 dB; switchable
Connections: Input: 2 x via 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Output: 2 x line via 3-pin XLR
Max. level: Output: +6 dBu
Dimension: Width: 15 cm
Depth: 13 cm
Height: 6 cm
Weight: 0.65 kg
