LD Systems U508 BPHH Wireless Mic System 863 - 865 MHz + 823 - 832 MHz

The U500A Series vocal sets were developed in Germany to bring you affordable professional technology and sound quality. The radio systems for vocals and speech deliver impressive performance and high reliability, which will certainly exceed your expectations. We have designed the range specifically for professional users to ensure that your performance is an impressive and emotional experience.

Selectable transmit power up to 30 mW provides the U500A vocal sets with a free-field range of over 100 metres. They are available in three frequency bands: 584 - 608 MHz and 655 - 679 MHz, where 12 systems can be operated simultaneously, and 823 - 832 MHz + 863 - 865 MHz, where six systems can be operated at the same time. The True Diversity UHF wireless systems are equipped with an automatic scan facility to find the best free frequency, and convenient one-touch infrared synchronisation of transmitter and receiver to facilitate easy set up.

High-contrast OLED displays provide an excellent overview of functions, with indicators for group, channel, radio frequency, and signal strength and battery status. You can even enter individual usernames. In addition to the squelch function, the transmitters silent pilot tone ensures fail-safe operation. It protects against interference and mutes the receiver if signals without this tone are present. The U500As efficient technology and high-quality components provide clear, distortion-free transmission without latency or artefacts. Low power consumption means that the transmitter can run for up to 10 hours with 2 x AA batteries.

The U500A Series vocal sets are available with hand-held transmitters, headsets, lavalier microphones and single or double receivers. The hand-held transmitters feature interchangeable microphone capsules to suit singing or speaking.

Overview of frequency ranges of vocal sets:

U505 // 584 - 608 MHz // 12 systems can be used simultaneously
U506 // 655 - 679 MHz // 12 systems can be used simultaneously
U508 // 823 - 832 MHz + 863 - 865 MHz // six systems can be used simultaneously
U506 UK (Channel 38) // 606 - 614 MHz // six systems can be used simultaneously
U518 // 1785 - 1800 MHz // four systems can be used simultaneousl

Features
True diversity UHF wireless system
Shock-mounted dynamic and condenser microphone capsules
Automatic channel scan
Easy one-touch infrared frequency syncing
Pilot tone squelch circuit prevents noise
Switchable RF transmitter output (2, 10 or 30 mW)
Rugged enclosures
High-contrast OLED display

Specifications
Product type: Wireless Microphone Systems
Type: Headsets
Transmission frequency range: 823 - 832 MHz, 863 - 865 MHz
Weight: 2,46 kg

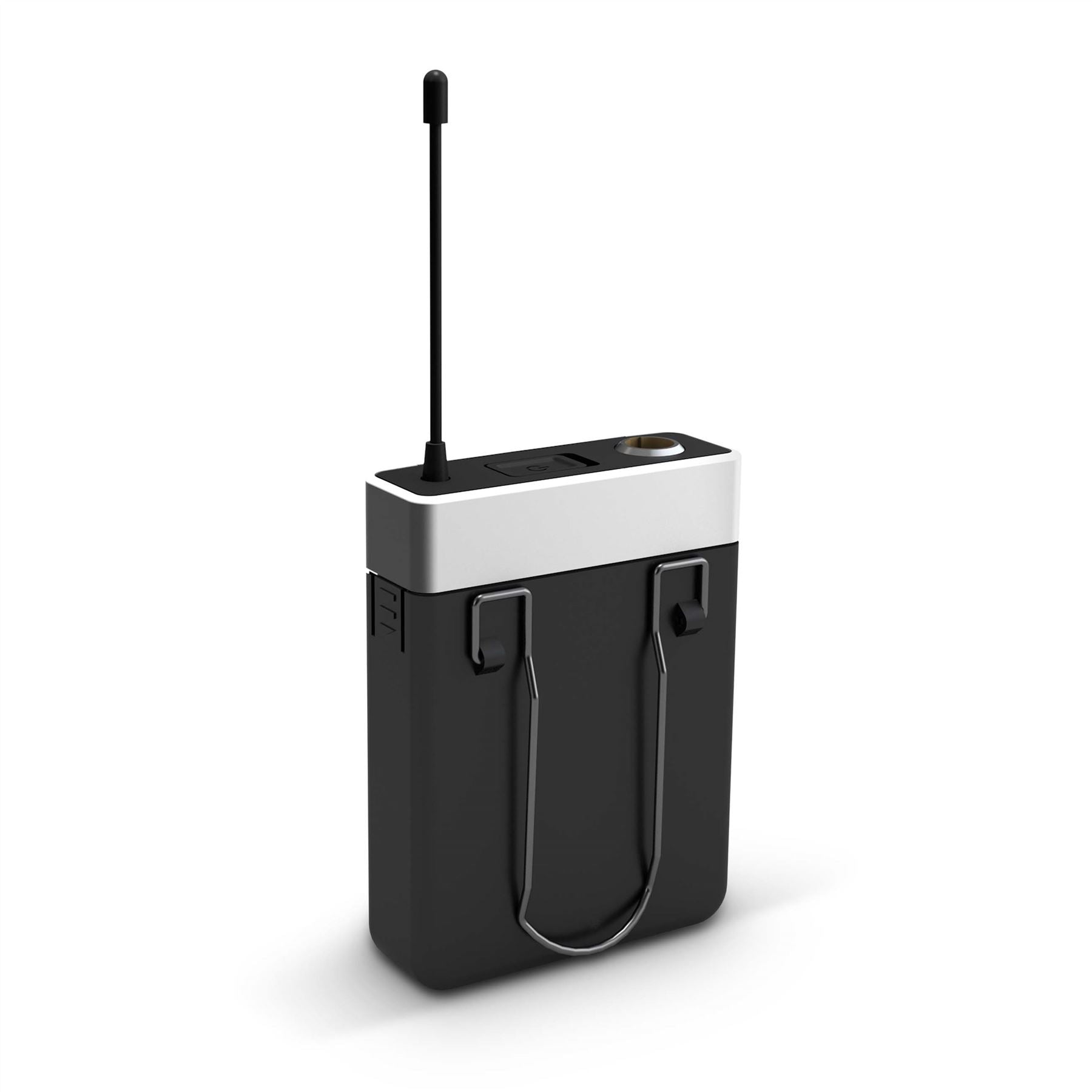

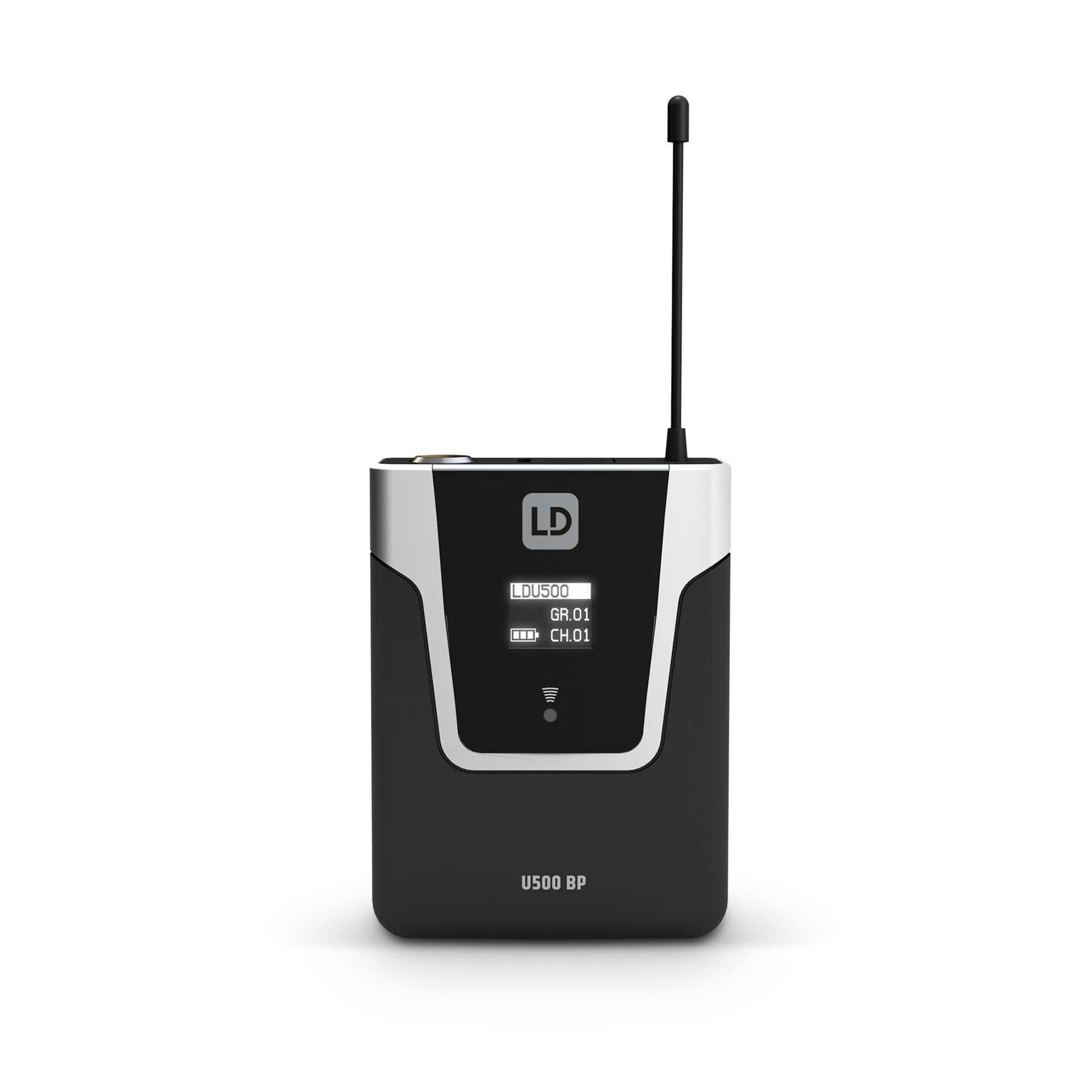

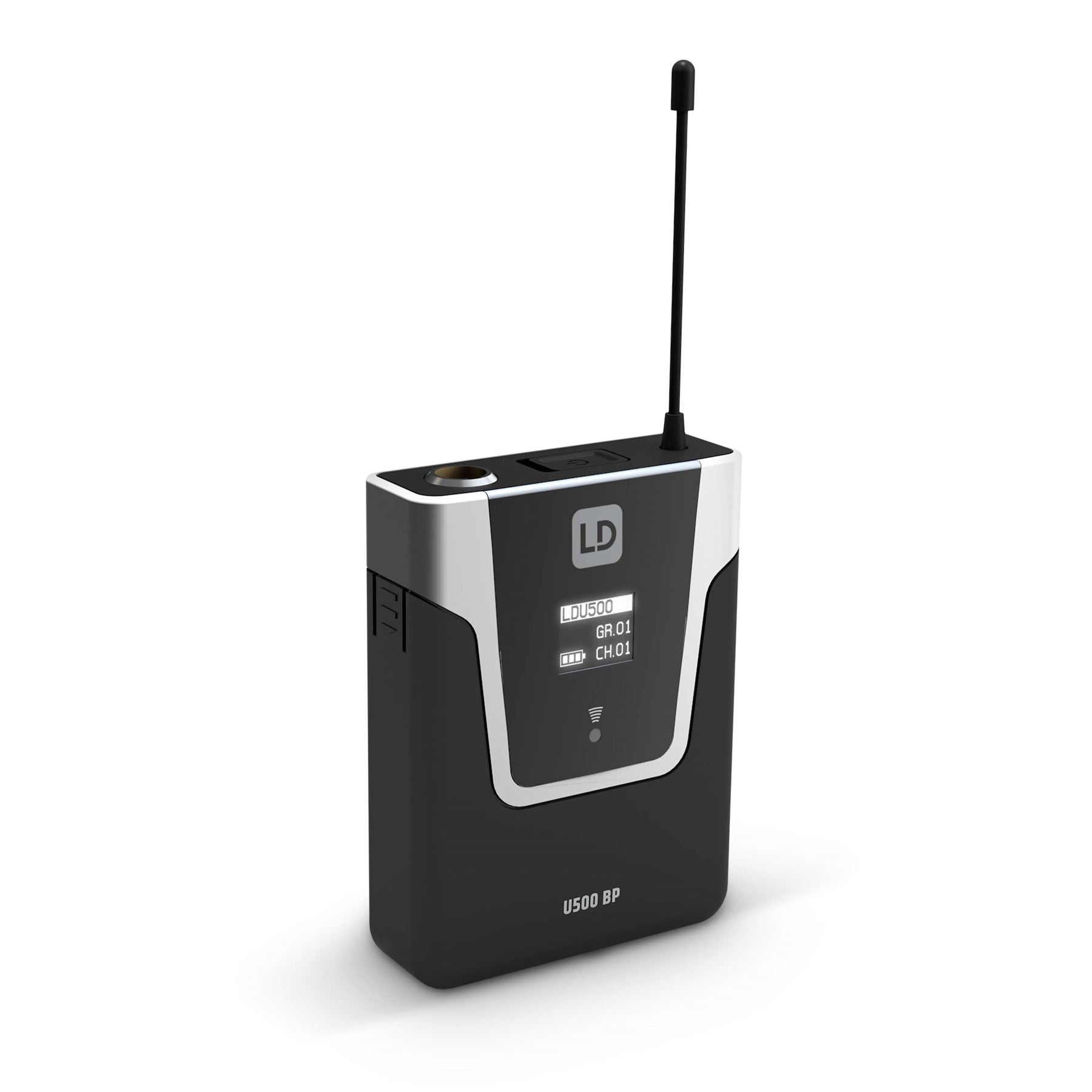

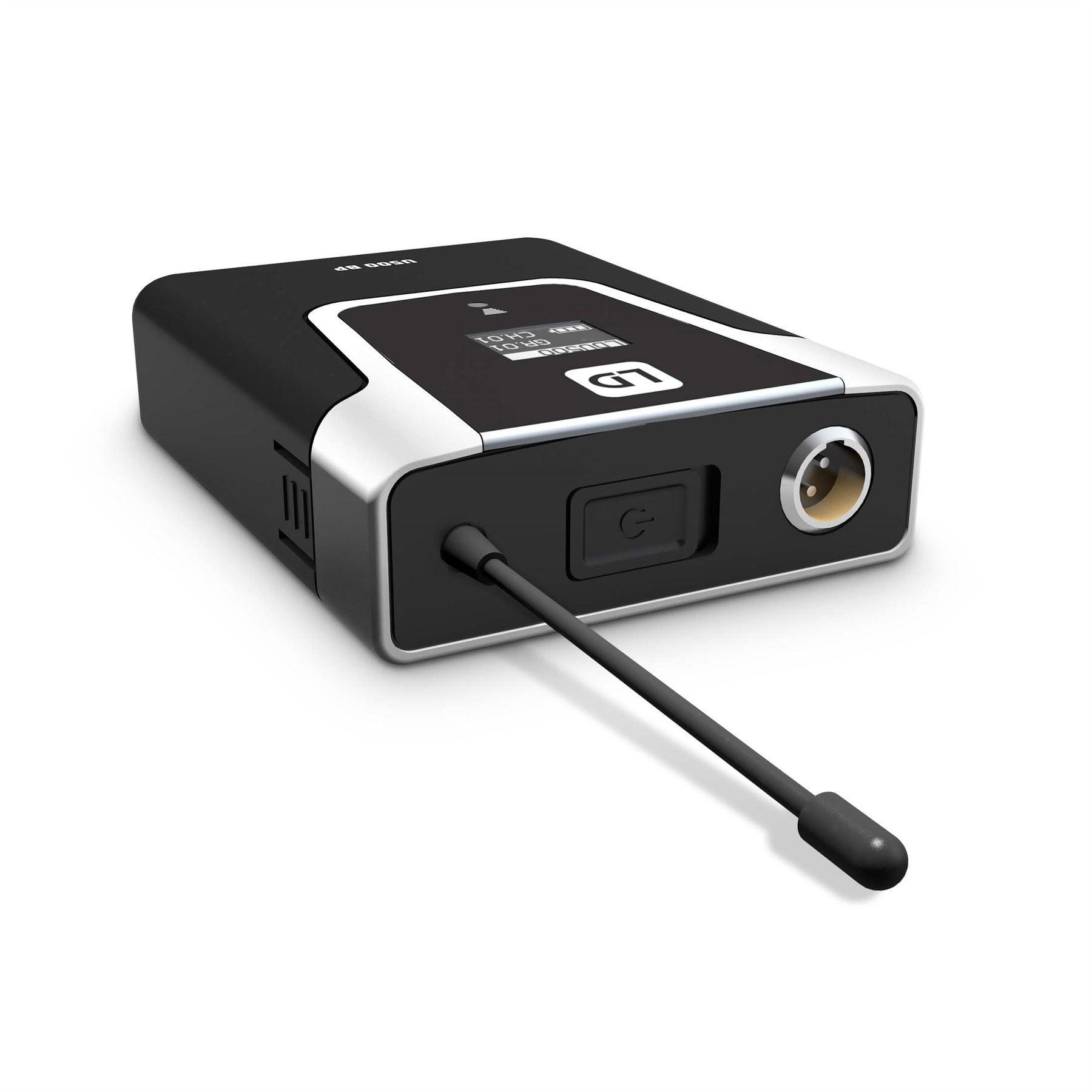

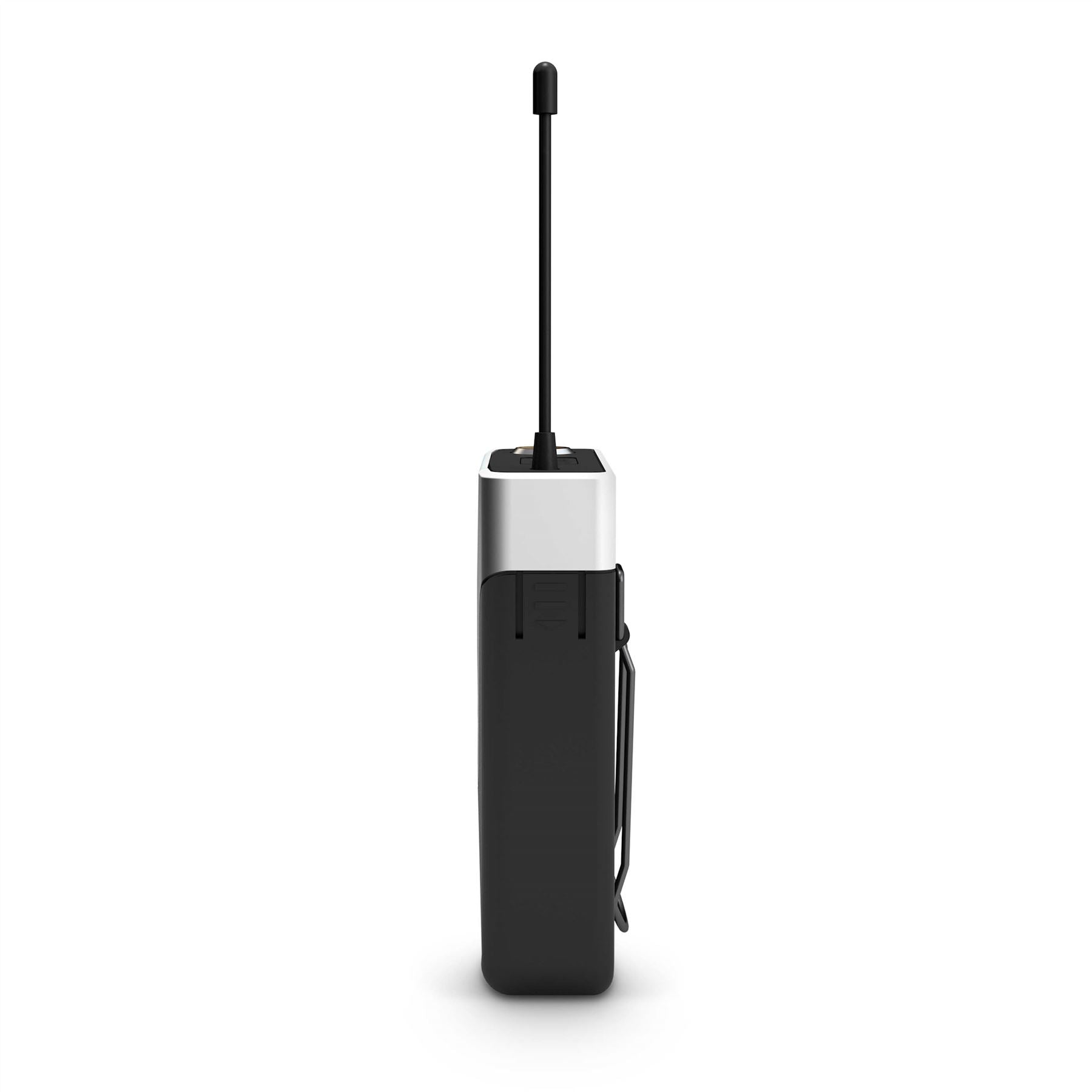

LDU508BP - U508 BP
Product type: Wireless Microphone System Accessories
Type: Bodypack
Transmission frequency range: 823 - 832 MHz, 863 - 865 MHz
Channels: 96 (8 groups of 12 channels)
Groups: 8
Inputs: Mini-XLR (3-pin)
Frequency response: 30 - 16000 Hz
Signal-to-noise ratio: >90 dB
Rated HF output power: Variable (2mW, 10mW, 30mW)
Controls: arrow keys (up/down value entry), Power On/Off, select
Indicators: OLED Display
Operating voltage: 2 x AA battery
Operating time: >10 h (with alkaline batteries)
Width: 65 mm
Height: 86 mm
Depth: 23 mm
Weight: 0,09 kg
Other features: detachable antenna, IR frequency synchronisation, Pilot tone squelch, switchable gain, switchable gain, switchable RF power

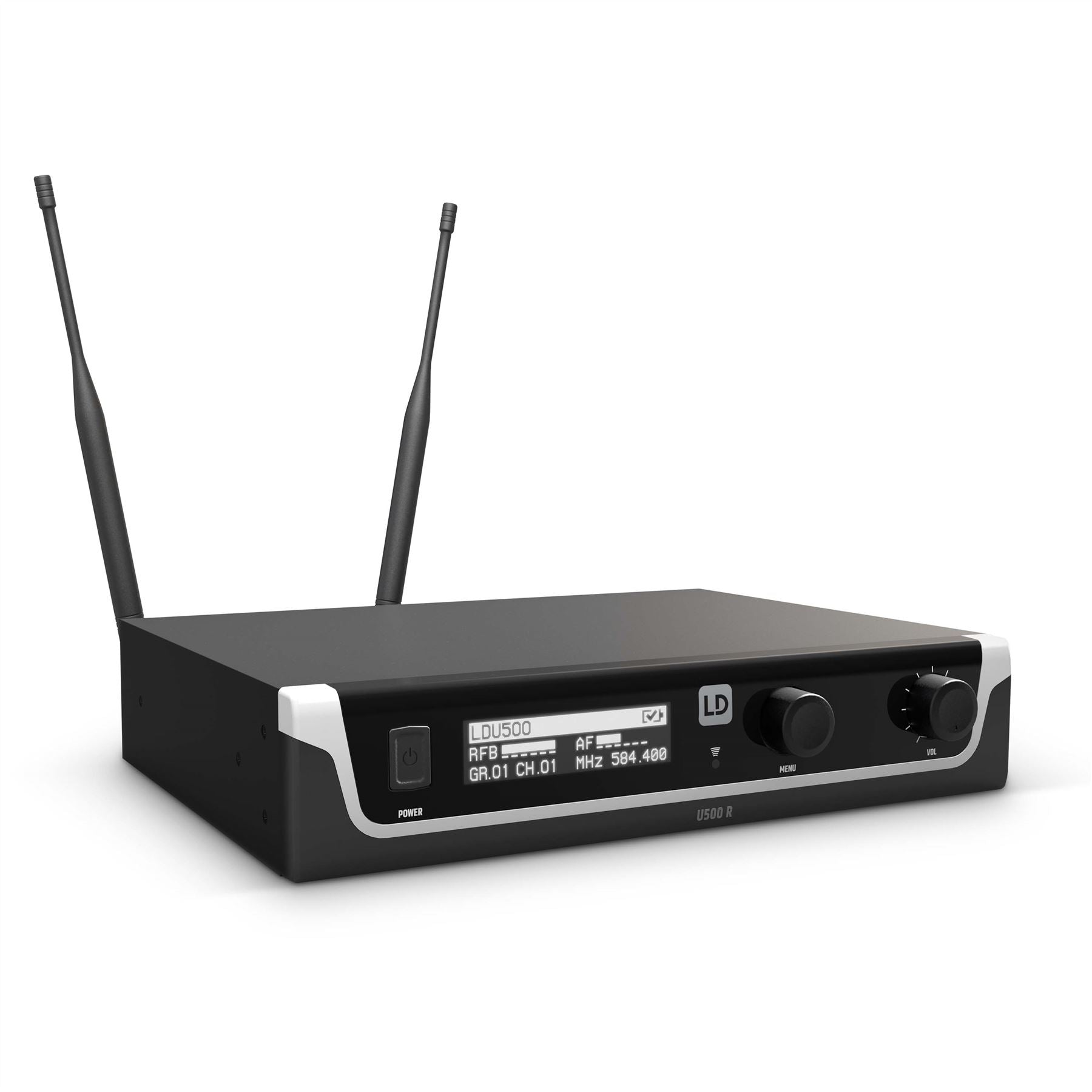

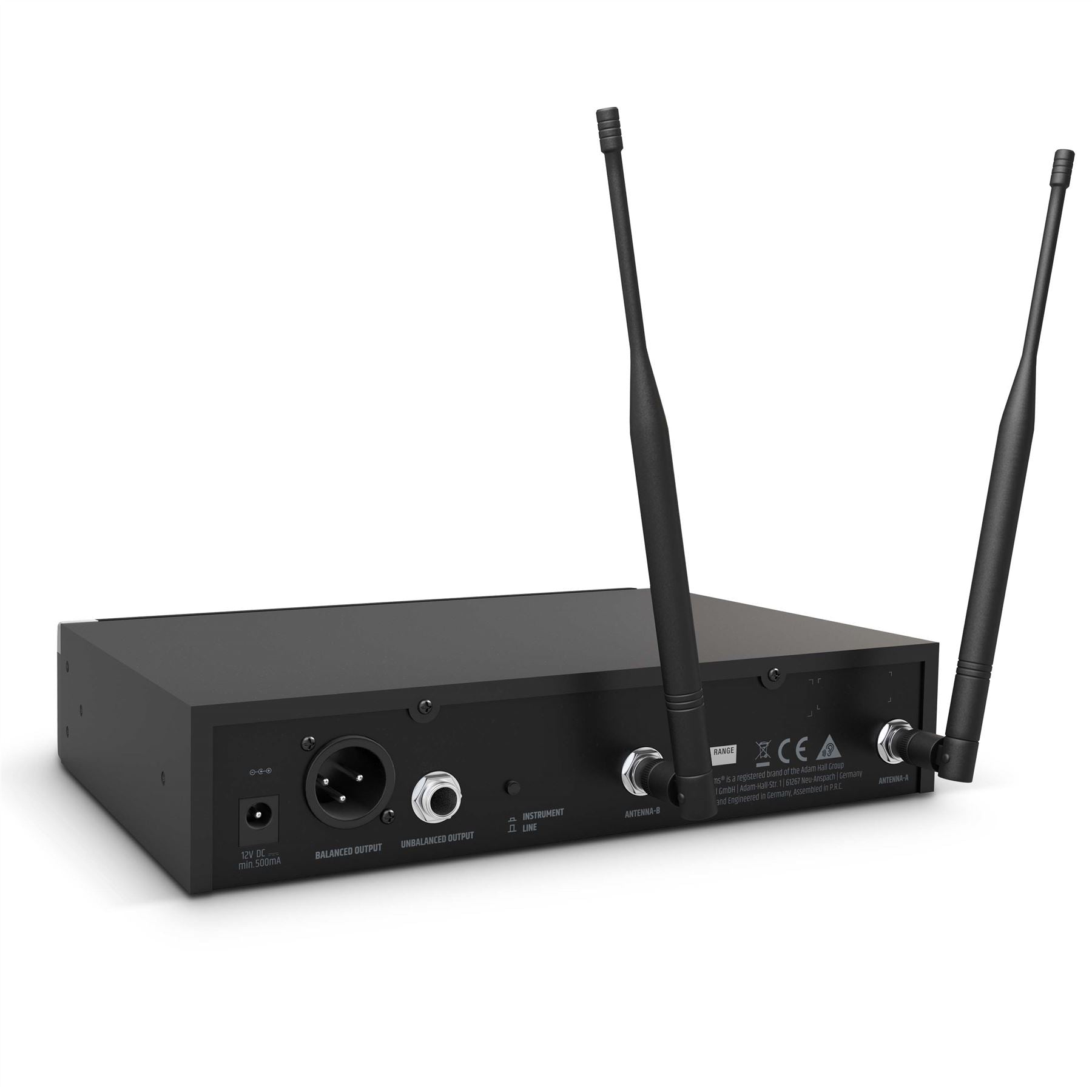

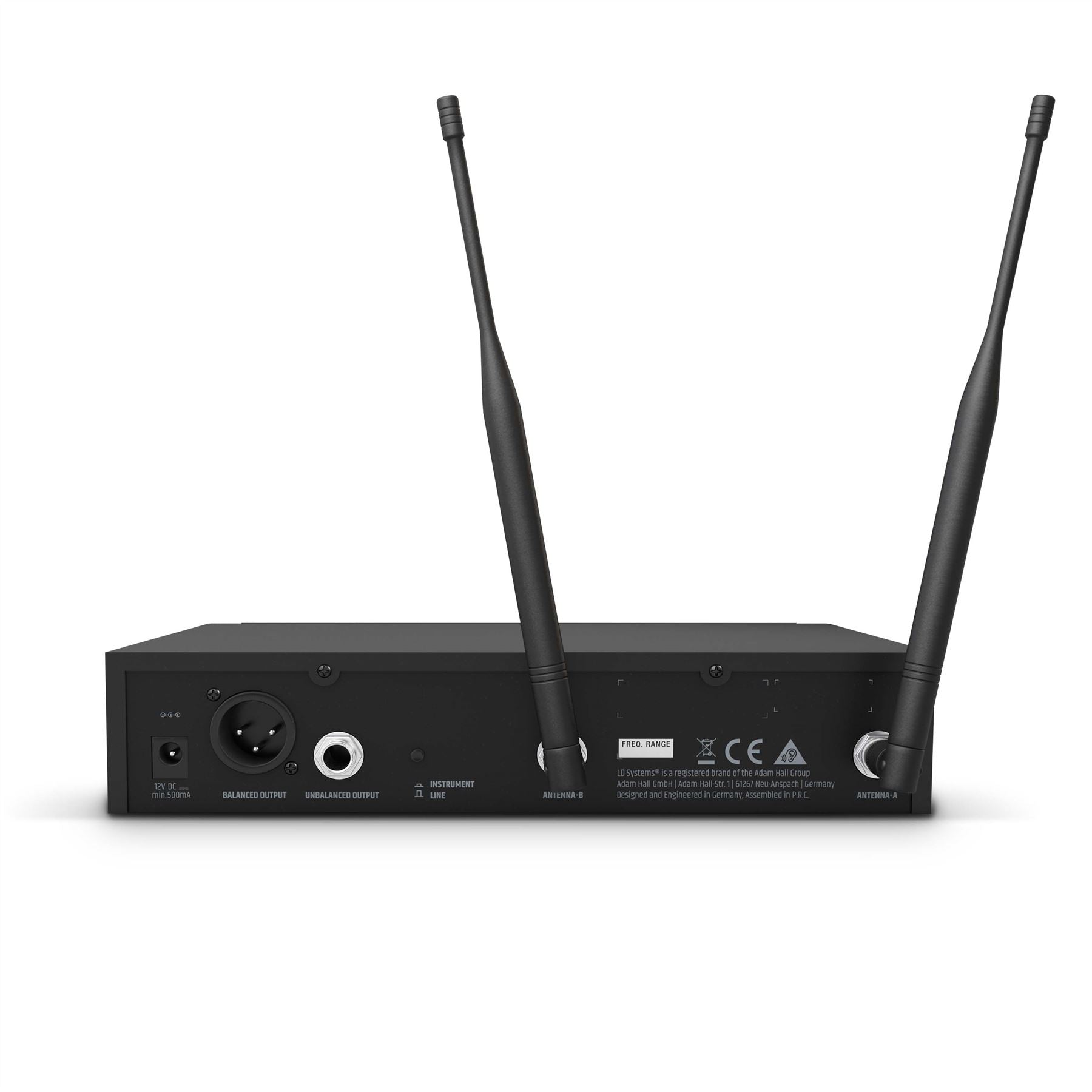

LDU508R - U508 R
Product type: Wireless Microphone System Accessories
Type: Receivers
Modulation Type: FM
Transmission frequency range: 823 - 832 MHz, 863 - 865 MHz
Channels: 96 (8 groups of 12 channels)
Groups: 8
Antenna inputs: 2
Antenna connector: BNC
Frequency response: 30 - 16000 Hz
Noise reduction: Squelch
Total Harmonic Distortion (THD): < 0.3 %
Signal-to-noise ratio: > 100 dB
Audio output, balanced: XLR
Audio output, unbalanced: 6.3 mm jack
Max. output level: +10 dBu
Controls: digital encoder, Power On/Off, volume
Indicators: OLED Display
Operating voltage: 12 - 18 V DC, 12 V DC, 500 mA
Width: 212 mm
Height: 44 mm
Depth: 159 mm
Weight: 0,85 kg
Accessories (included): 2 x antenna, Audio cable, power adapter
Other features: channel search function, IR frequency synchronisation, Pilot tone

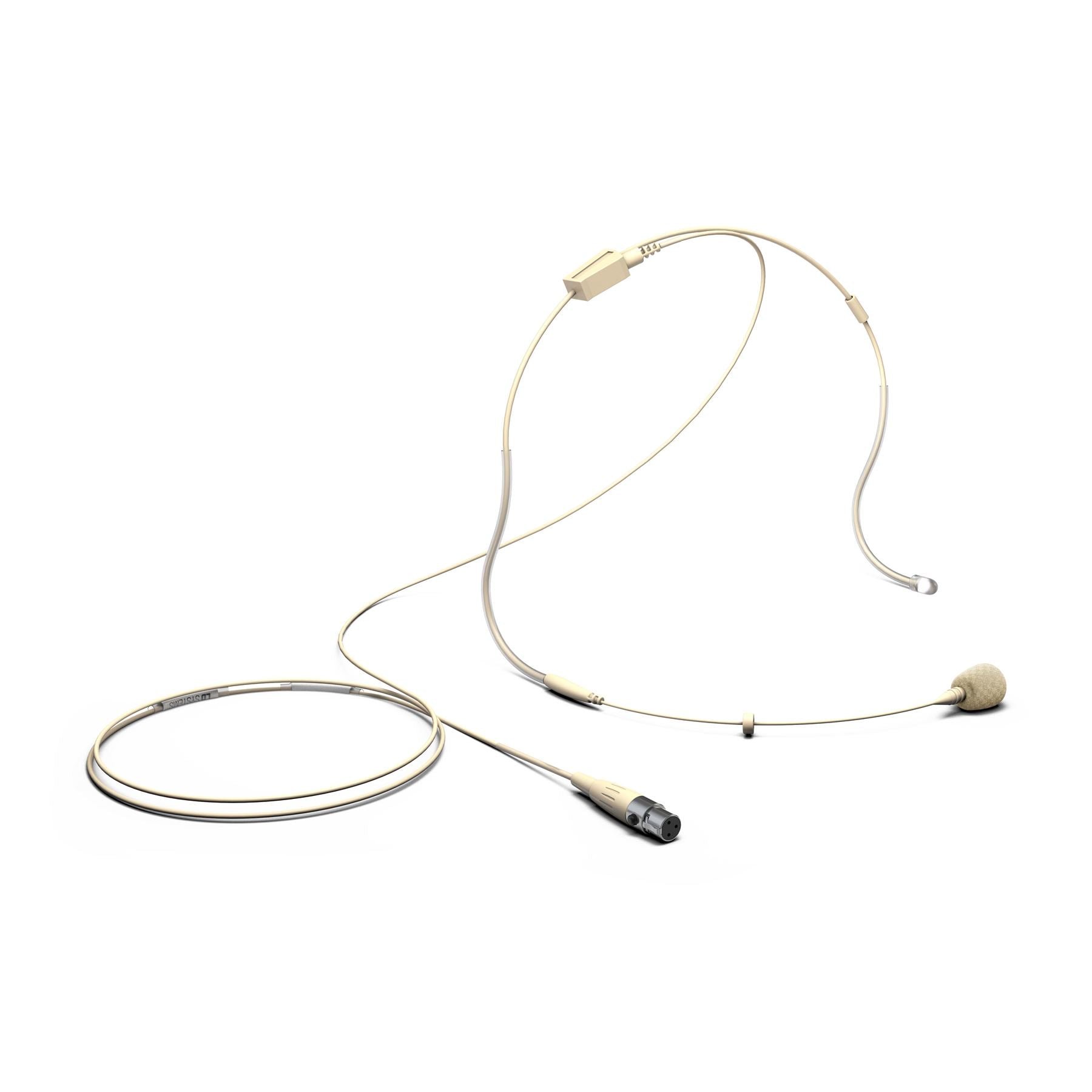

LDWS100MH3 - WS 100 Series
Product type: Wireless Microphone System Accessories
Type: Headsets
Colour: beige
Frequency response: 70 - 16.000 Hz
Directivity: Cardioid
Nominal impedance: 1400 Ohm(s)
Max. SPL: 125 dB
Phantom power requierements: 5 V
Microphone input: Mini-XLR (3-pin, female)
Accessories (included): Foam windscreen
Weight: 0,2 kg
