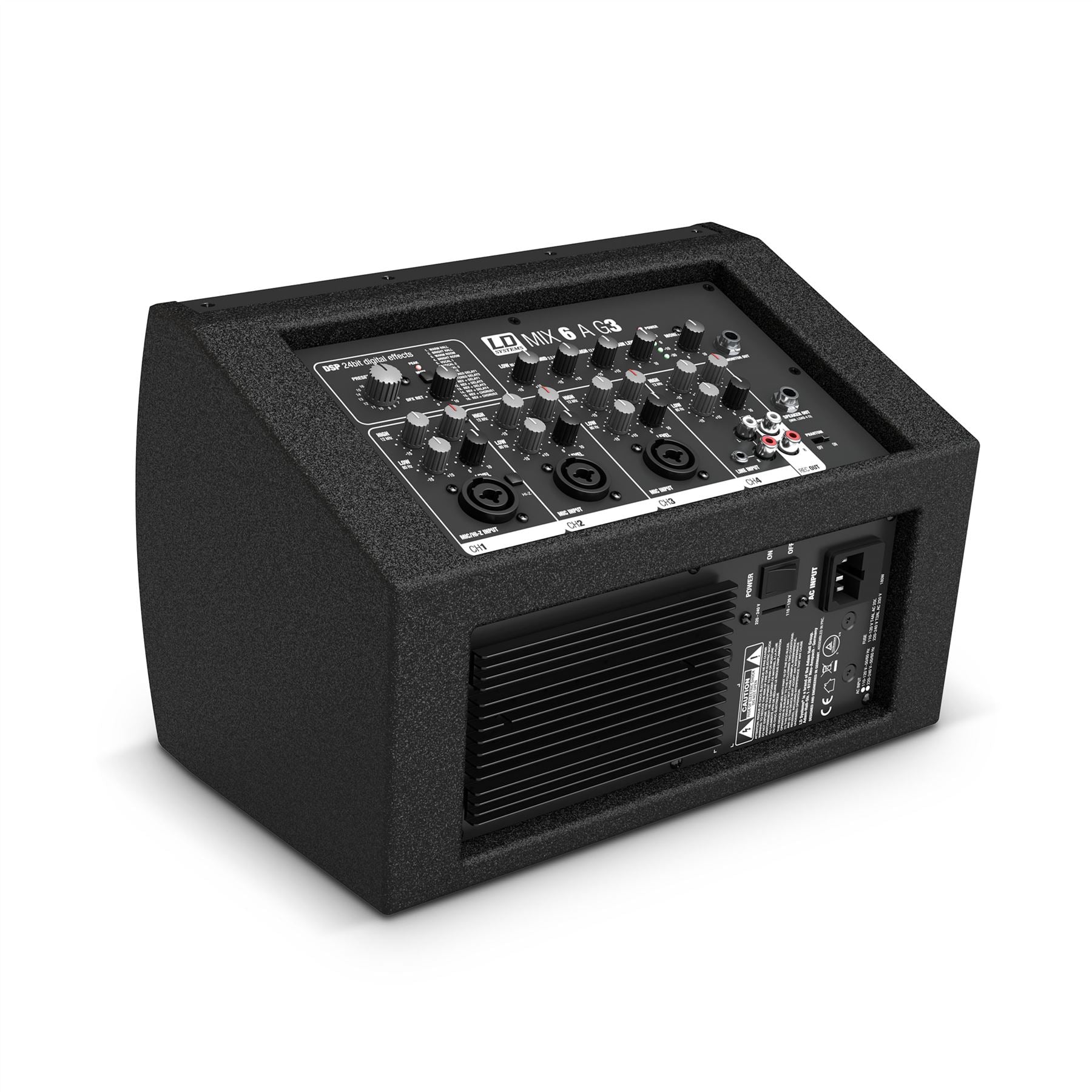

LD Systems MIX 6 A G3 Active 2-Way Loudspeaker with Integrated 4-Channel Mixer

The ideal choice for small-scale PA and personal monitoring applications, the active LD MIX 6 A G3 integrates a 4-channel mixer and Class D amplification with 2 x 280 watts peak power. The compact bass reflex loudspeaker features a 6.5" custom woofer and 1" HF driver complement, 80 Hz to 20 kHz frequency response and 80° x 70° dispersion delivering crystal clear sound with punch and detail.

Accomodating a wide variety of input sources including electric instruments, smartphones, tablets, MP3 and CD players, the built-in mixer provides 3 microphone channels and a stereo line channel with 2-band EQ each plus switchable hi-Z input and 15 V phantom power. The output section includes a 3-band master EQ for overall tone shaping, 4-segment LED metering, an adjustable monitor and RCA recording outputs. In addition, the LD MIX 62 A G3 sports a DSP with 16 effect presets, limiter and overcurrent, overload, short circuit and thermal protection. A 4 ohm slave output allows powering the passive LD MIX 6 G3 for a dual speaker setup.

The rigid MDF enclosure features two 16 mm pole mounts for horizontal or vertical orientation. On its own or in tandem with the passive unit, the LD MIX 62 A G3 provides amazing performance and versatility in a lightweight, easily portable package.

Features
Class D amplification with 2 x 280 watts peak power
6.5" custom woofer and 1" HF driver
Integrated 4-channel mixer
24-bit DSP with 16 FX Presets
Slave output for combination with LD MIX 6 G3 passive loudspeaker
Bass reflex enclosure for powerful, punchy bass
Dual 16 mm pole mounts for horizontal or vertical orientation

Specifications
Product type: PA loudspeaker
Type: active
Woofer dimensions: 6.5 "
Woofer size: 165.1 mm
Woofer brand: Custom-made
Tweeter dimensions: 1 "
Tweeter dimensions (mm): 25.4 mm
Tweeter brand: Custom-made
Dispersion (H x V): 80 x 70
Frequency response: 80 - 20.000 Hz
Amplifier: Class D
Amplifier output (RMS): 2x70 W
Amplifier output (peak): 2x280 W
Max. SPL: 122 dB
Protection circuits: ICL (Intelligent Clip Limiting), over-current, overload, short circuit, thermal overload
Mixer
Channels: 4
Mic inputs: 3, 6.3 mm jack, XLR
Controls for Mic Inputs: DFX Send, EQ Hi, EQ Low, Hi-Z Switch (channel 1 only), level
Input Impedance Mic Inputs: 14 kOhm
Input Sensitivity Mic Input: 70 mV
Line inputs: 1
Line input connectors: 2 x RCA
Controls Line Inputs: DFX Send, EQ Hi, EQ Low, level
Input Impedance Line Inputs: 4.4 kOhm
Input Sensitivity Line Inputs: - 5 dBu
Hi-Z inputs: 1
Hi-Z input connectors: 6.3 mm jack
Input Impedance Hi-Z Input Connectors: 100 kOhm
Monitor Line Outputs: 1
Connector Type Monitor Line Output: 2 x RCA
Controls for Monitor Line Output: Monitor Volume
Max Output Level Line Output Monitor: 28 dBu
Record Outputs: 1
Connector Type Record Output: 2 x RCA
Increased power main output (at 4 ohm): 70 W
DSP Digital Effects Unit
DSP Number of Programs: 16
DSP Controls: DFX Return, Mute switch
DSP Display Elements: Peak LED
Main Section:
Main section controls: EQ Hi, EQ Low, EQ Mid, Master Volume, Phantom Power, voltage selector switch
Main section indicators: 4-segment Level Meter, power LED
Phantom power: 15 V
Mains connector: IEC socket
Operating voltage: transformer, 110 - 120 V ~ 50/60 Hz or 220 - 240 V ~ 50/60 Hz, switchable
Power consumption: 180 W
Cabinet
Cabinet construction: Bass Reflex
Cabinet material: MDF
Cabinet surface: texture paint
Cabinet colour: Black
Width: 214 mm
Height: 323 mm
Depth: 221 mm
Weight: 7 kg
Other features: 2 x 16 mm pole mount socket, rubber feet
