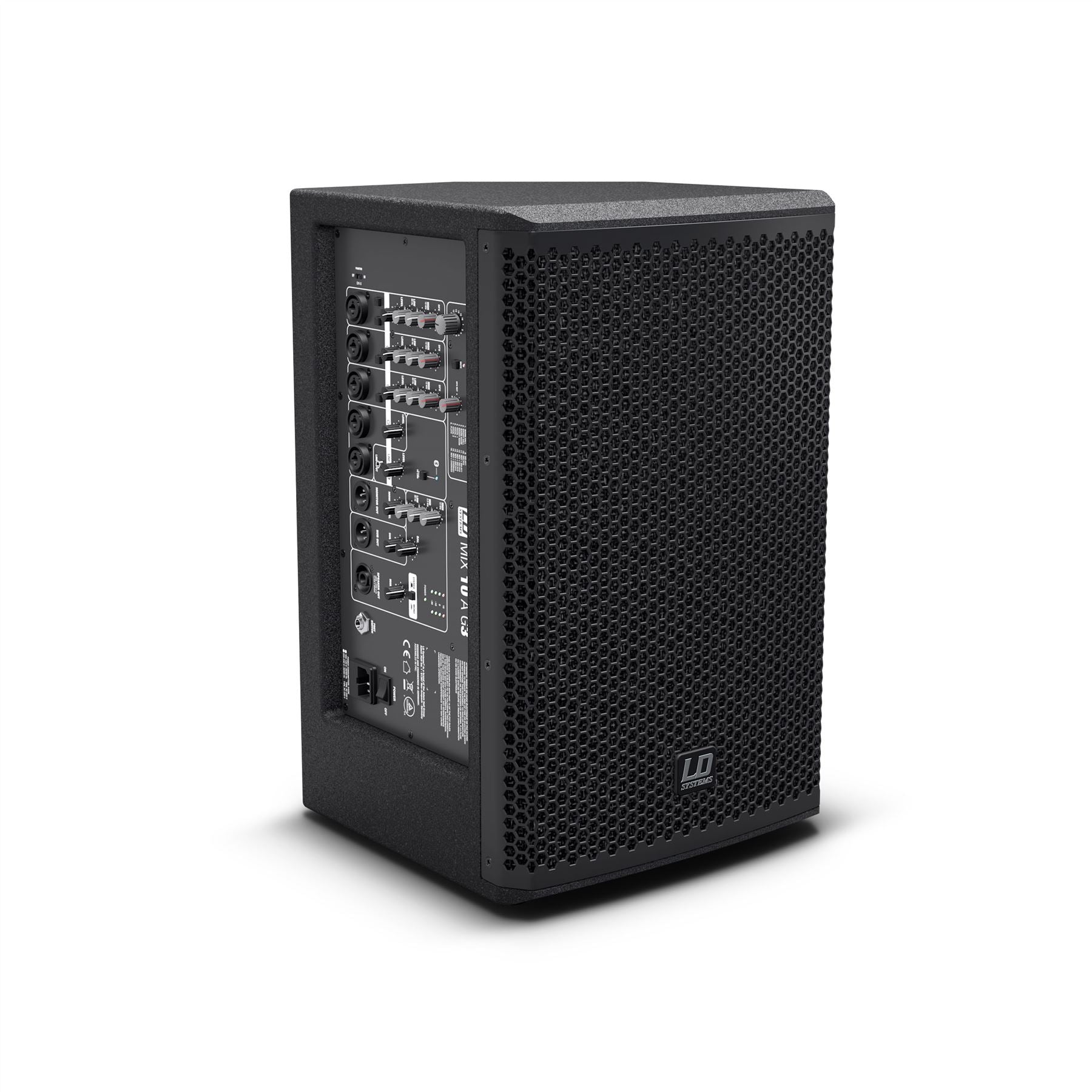

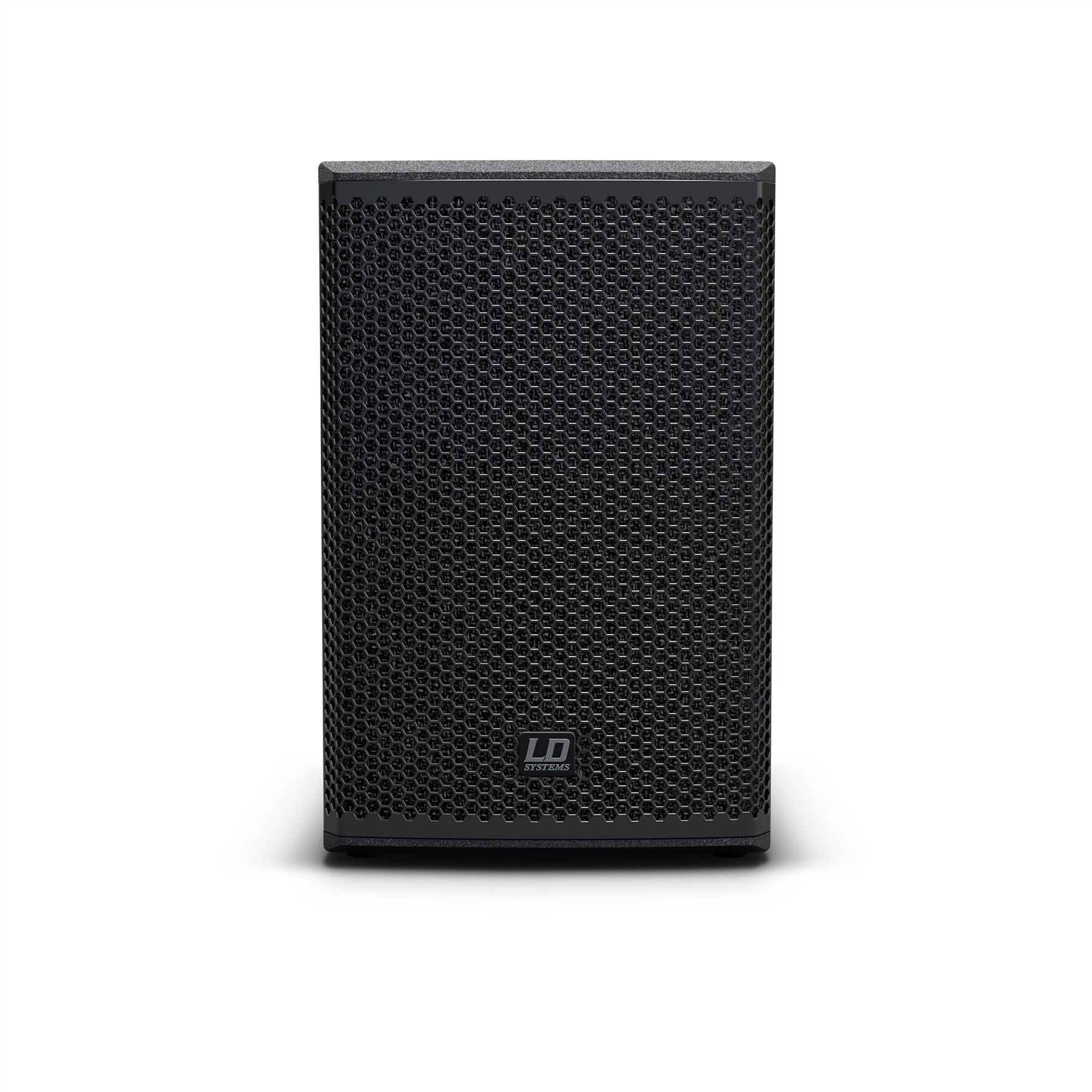

LD Systems MIX 10 A G3 Active 2-Way Loudspeaker with Integrated 7-Channel Mixer

The ideal choice for small-scale PA and personal monitoring applications, the active LD MIX 10 A G3 integrates a 7-channel mixer and Class D amplification with 2 x 400 watts peak power. The compact bass reflex loudspeaker features a 10" custom woofer and 1" Celestion HF driver complement, 65 Hz to 20 kHz frequency response and 90° x 60° dispersion delivering crystal clear sound with punch and detail.

Accomodating a wide variety of input sources including electric instruments, smartphones, tablets, MP3 and CD players, the built-in mixer provides 3 microphone channels with 2-band EQ, 48 V phantom power plus switchable hi-Z input (CH1) and stereo line channel. The output section includes a 3-band master EQ for overall tone shaping, 4-segment LED metering and XLR monitor and subwoofer outputs. In addition, the LD MIX 10 A G3 sports a DSP with 16 effect presets, limiter and overcurrent, overload, short circuit and thermal protection. A speakON output allows powering the passive LD MIX 10 G3 to easily create a stereo setup.

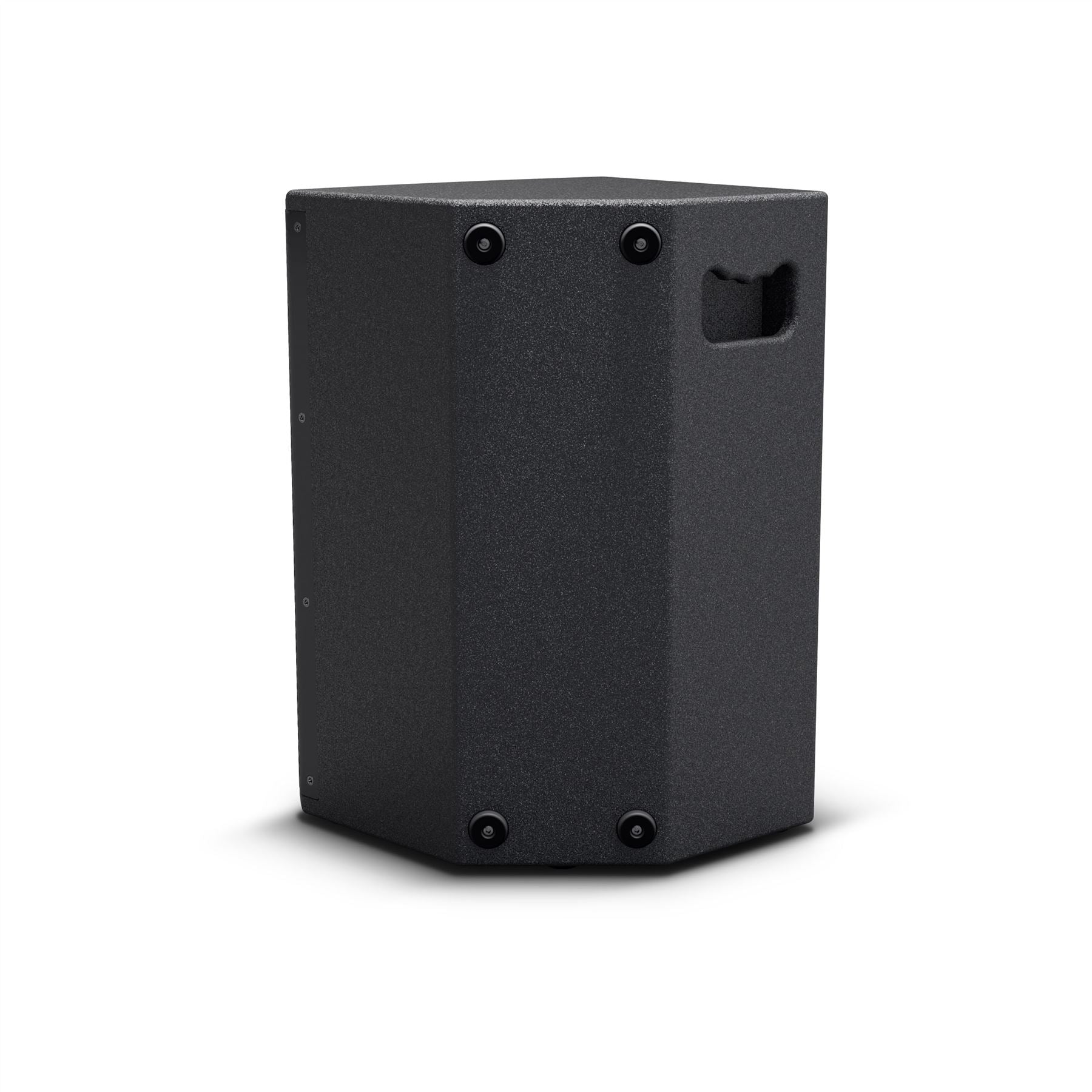

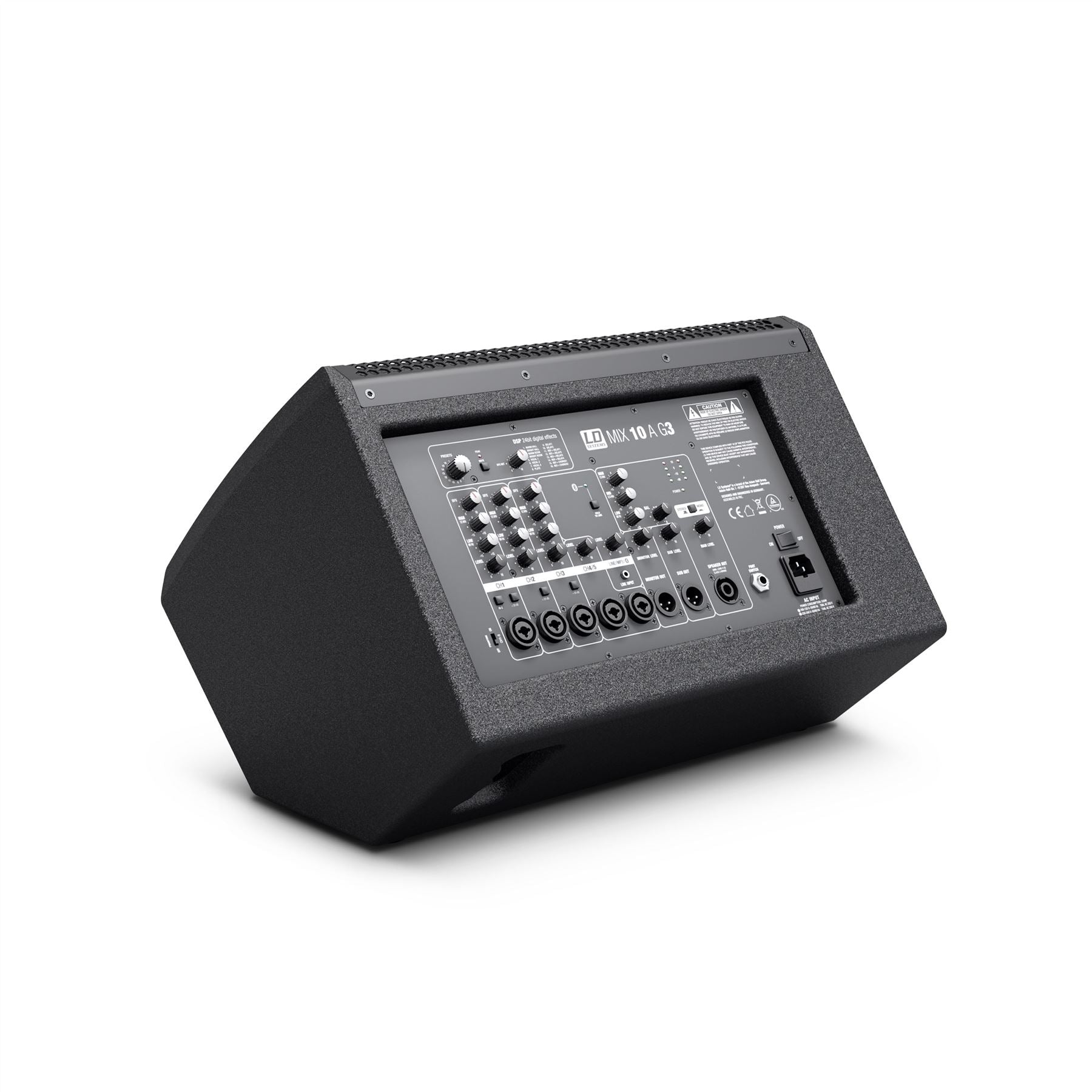

The rigid enclosure is constructed with tough plywood featuring a 50° monitor angle and Dual-Tilt pole receptacle for 0° or 5° mounting angles. On its own or in tandem with the passive unit, the LD MIX 10 A G3 provides amazing performance and versatility in a lightweight, easily portable package.

Features
2 x 200 watts RMS class D amplification
10" custom woofer and 1" Celestion HF driver
Integrated 7-channel mixer
DSP with 16 FX Presets
BluetoothA audio streaming
Standalone mono or stereo applications with LD MIX 10 G3
Subwoofer and monitor outputs
Rigid plywood enclosure

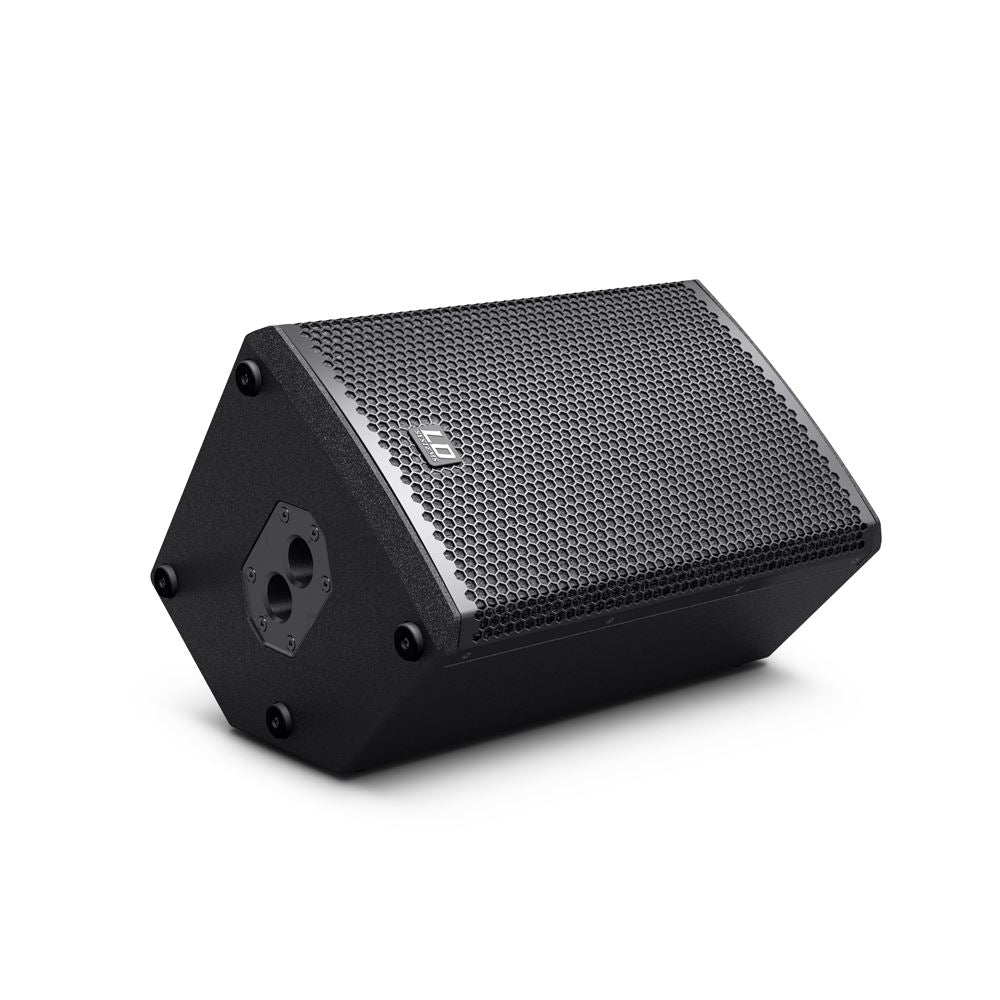

Dual-Tilt pole mount for 0° or 5° orientation

Specifications
Product type: PA loudspeaker
Type: active
Woofer dimensions: 10 "
Woofer size: 254 mm
Woofer brand: Custom-made
Tweeter dimensions: 1 "
Tweeter dimensions (mm): 25.4 mm
Tweeter brand: Celestion
Dispersion (H x V): 80 x 70
Frequency response: 65 - 20.000 Hz
Amplifier: Class D
Amplifier output (RMS): 2 x 200 W
Amplifier output (peak): 2 x 400 W
Max. SPL: 124 dB
Protection circuits: limiter, over-current, overload, short circuit, thermal overload

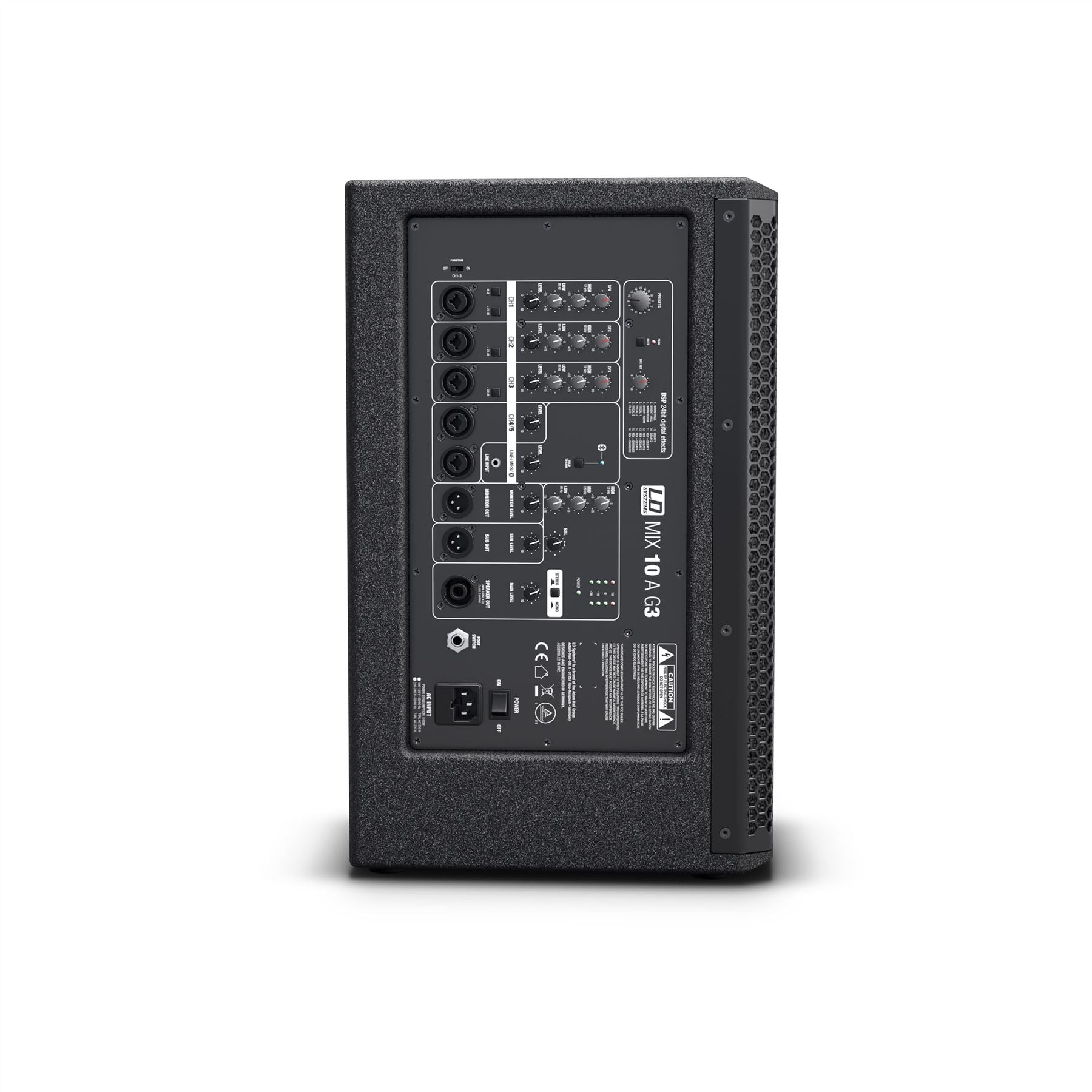

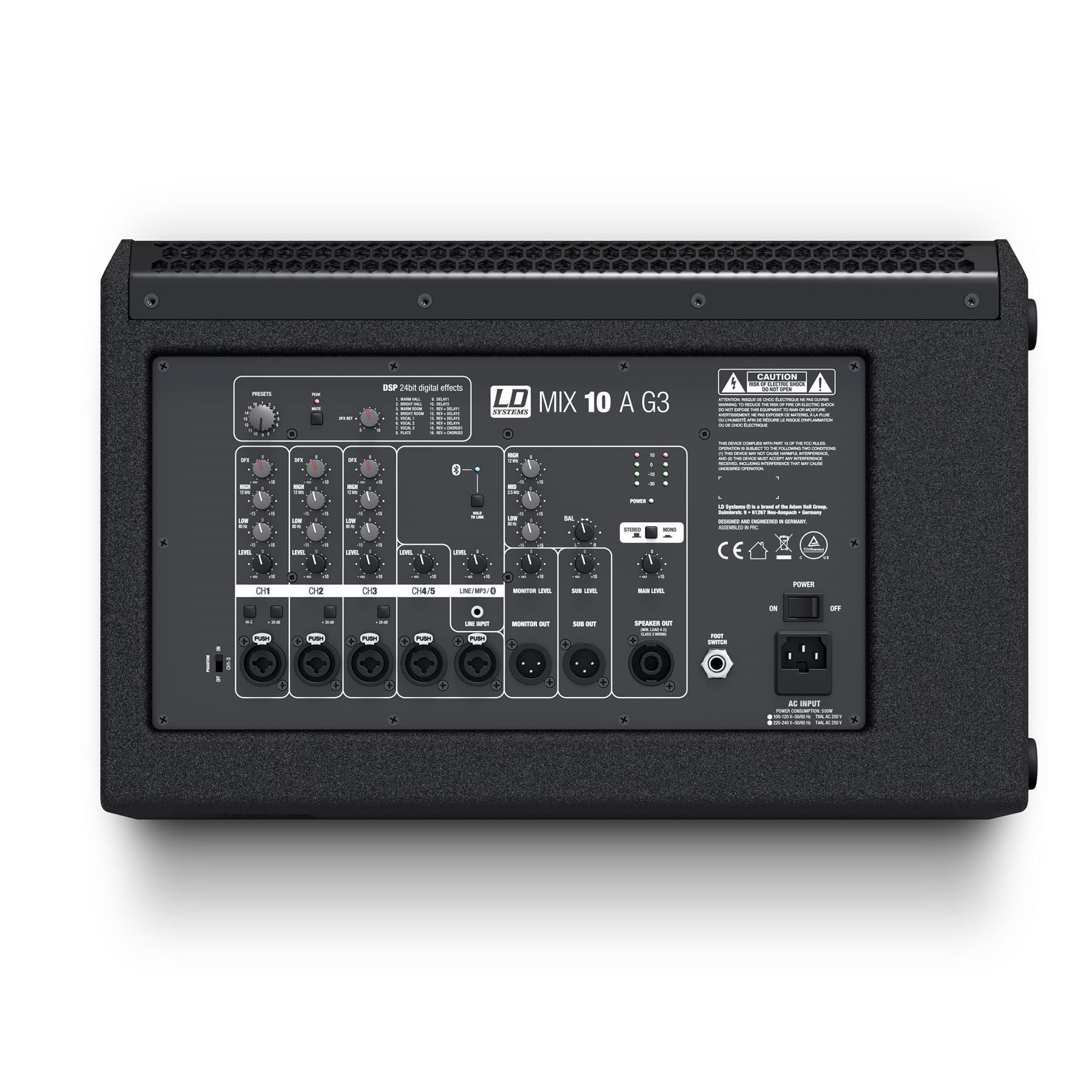

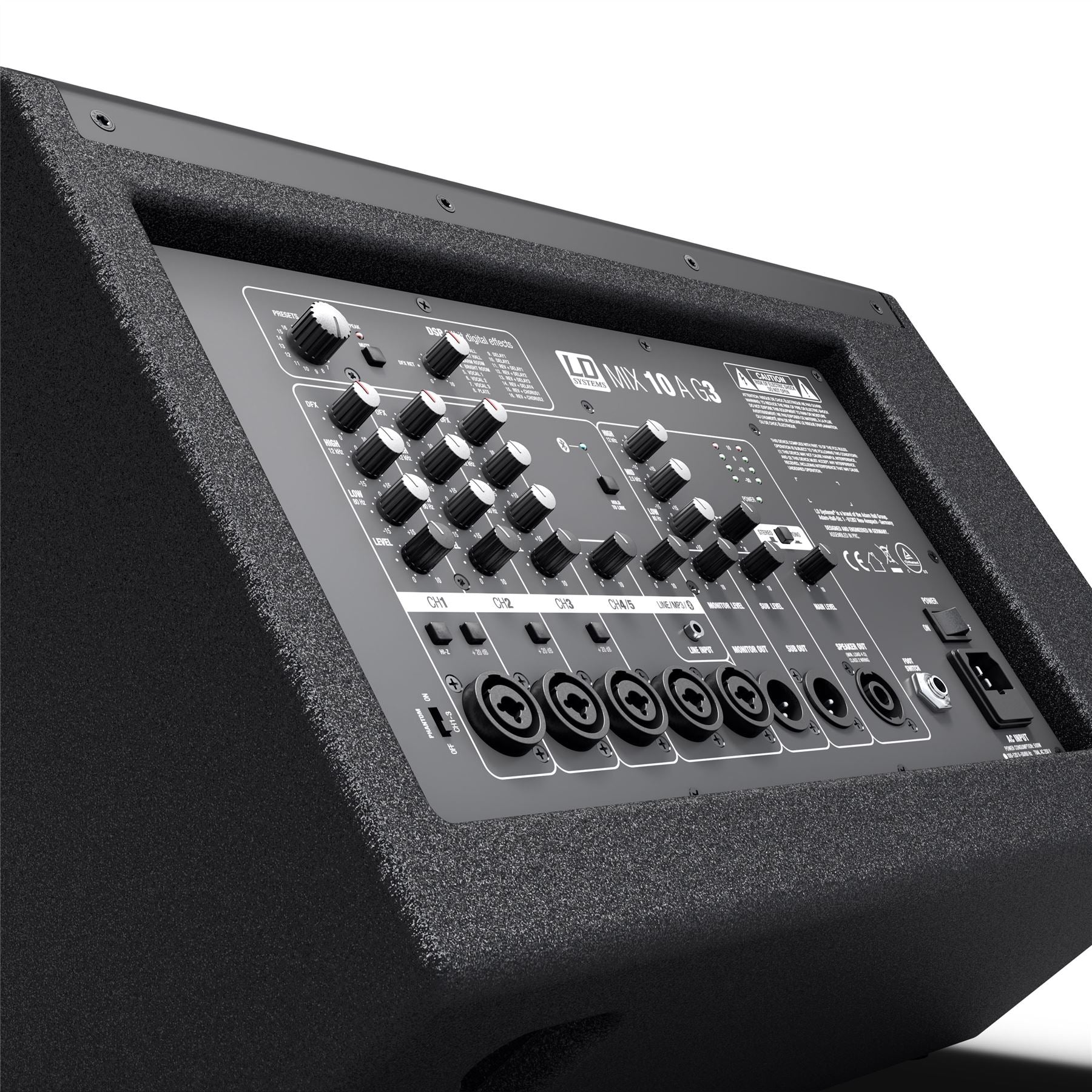

Mixer
Channels: 7
Mic inputs: 3, 6.3 mm jack, XLR
Controls for Mic Inputs: + 20 db switchable, DFX Send, EQ Hi, EQ Low, Hi-Z Switch (channel 1 only), level
Line inputs: 2
Line input connectors: 2 x XLR, 3.5mm TRS
Controls Line Inputs: level
Hi-Z inputs: 1
Hi-Z input connectors: 6.3 mm jack
Input Impedance Hi-Z Input Connectors: 1000 kOhm
Monitor Line Outputs: 2
Connector Type Monitor Line Output: XLR
Controls for Monitor Line Output: Monitor Volume, Sub level
Max Output Level Line Output Monitor: 17 dBu
Record Outputs: 1
Increased power main output (at 4 ohm): 200 W
DSP Digital Effects Unit
DSP Number of Programs: 16
DSP Controls: DFX Return, footswitch, Mute switch, presets
DSP Display Elements: Peak LED
Main Section
Main section controls: Balance, EQ Hi, EQ Low, EQ Mid, Master Volume, mono/stereo, Phantom Power, Power On/Off, switch operating voltage
Main section indicators: 4-segment Level Meter, power LED
Phantom power: 48 V
Mains connector: IEC socket
Operating voltage: SMPS, 110 - 120 V ~ 50/60 Hz or 220 - 240 V ~ 50/60 Hz, automatic switching
Power consumption: 500 W
Cabinet
Cabinet construction: Bass Reflex
Cabinet material: 16 mm Plywood
Cabinet surface: texture paint
Cabinet colour: Black
Width: 315 mm
Height: 489 mm
Depth: 307 mm
Weight: 12,3 kg
Other features: Bluetooth, dual-tilt flange (0°/5°), Ergonomic handle
