LD Systems ICOA 12 W 12" Passive Coaxial PA Loudspeaker, White

Description
This 12" full-range loudspeaker stands out with impressive sound even at low frequencies. As a jack-of-all-trades, the unpowered ICOA 12 speaker by LD Systems and its design with a coaxial design and rotating, BEM-optimised CD horn means it is extremely flexible.

The horn-loaded woofer's outstanding bass reproduction makes the ICOA 12 the ideal choice for dance schools, musicians, bands and entertainers. It also allows DJs to play sets without the need for a subwoofer. The speaker also makes a good impression in fixed installations due to its freedom of flexibility. The white version with a white grille blends in subtly into any environment and doesn't distract.

Deployed vertically, the speaker impresses as a satellite; horizontally, it's excellent in suspended systems or as a floor monitor. It Delivers a maximum sound pressure level of 123 dB peak and has 1000 Watt peak performance.

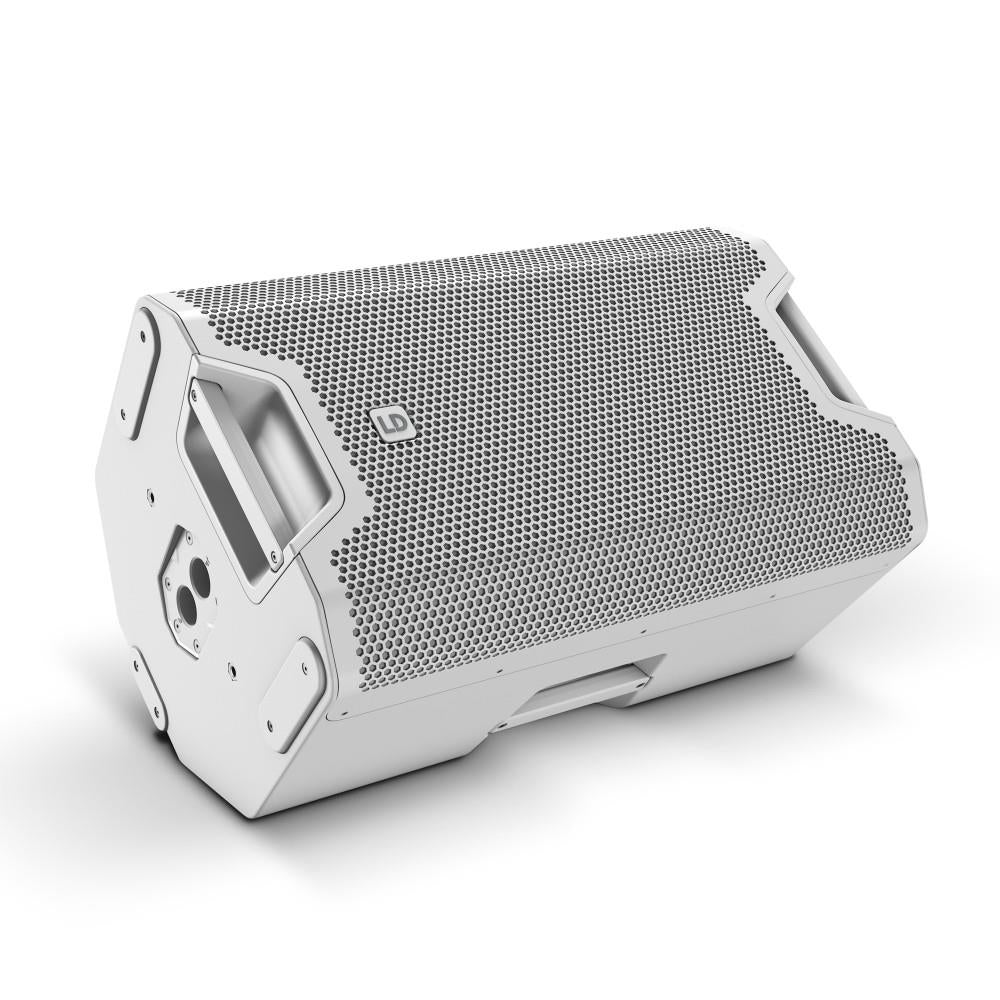

Thanks to its shock-resistant front grille and ideal 55° tilt angle make the ICOA 12 outstanding as a floor monitor. Placed vertically, the 36 mm dual tilt stand attachment offers the choice of a 0° or 5° tilt angle for optimally adapting the system to the local acoustic environment. Extensive and smart accessories for installation and transport are optionally available. Four aluminium handles with an ergonomic rubber surface provide optimal grip when carrying the speaker.

A genuine all-rounder for full-range, satellite and monitor applications as well as fixed installations
Passive loudspeaker with 123 dB max. SPL and 1000 W peak power

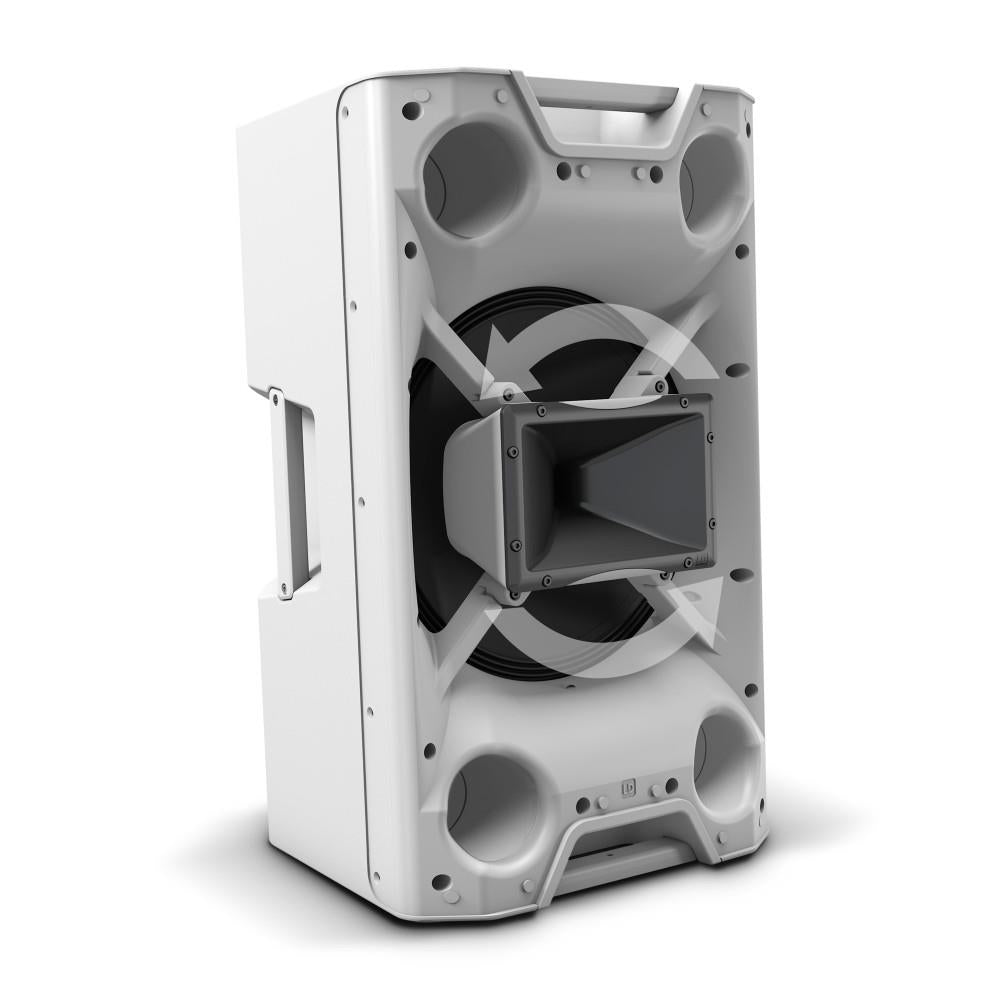

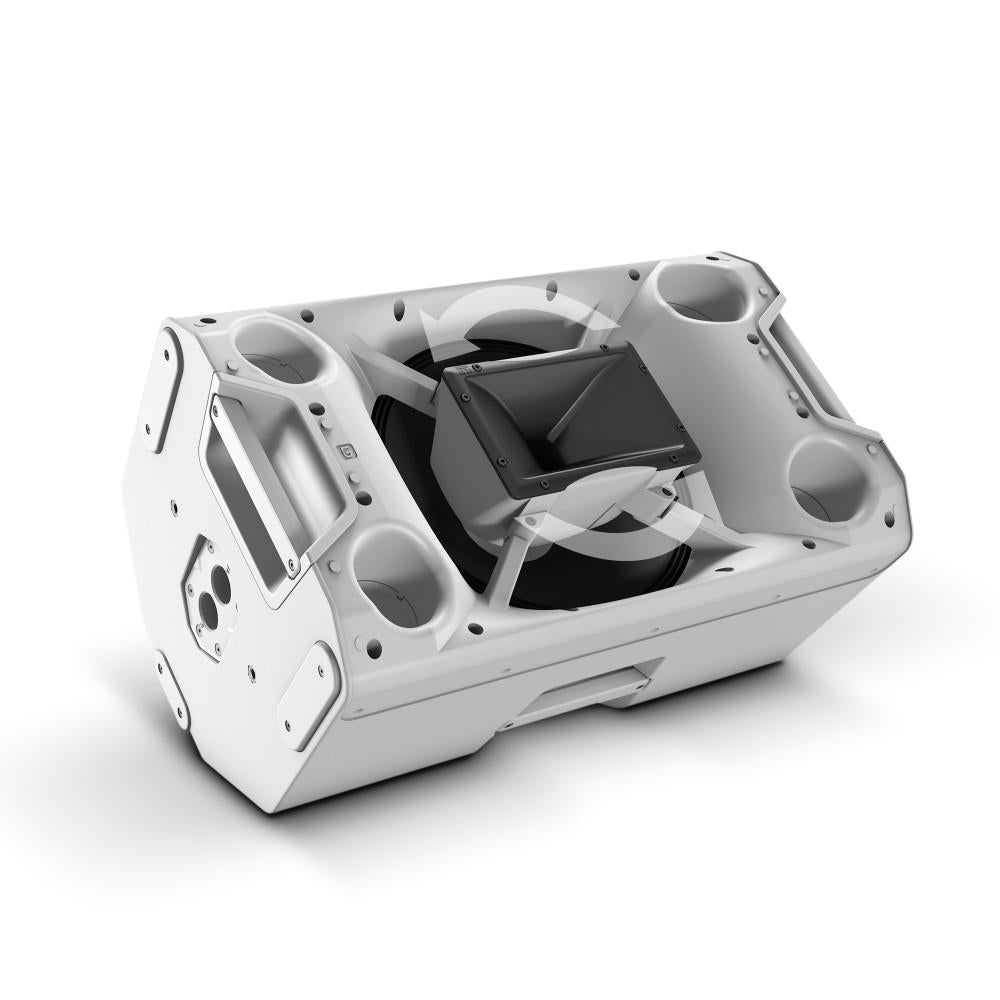

Vertical and horizontal use thanks to coaxial design with rotating, BEM-optimised CD horn (Patent pending)
Horn-loaded woofer

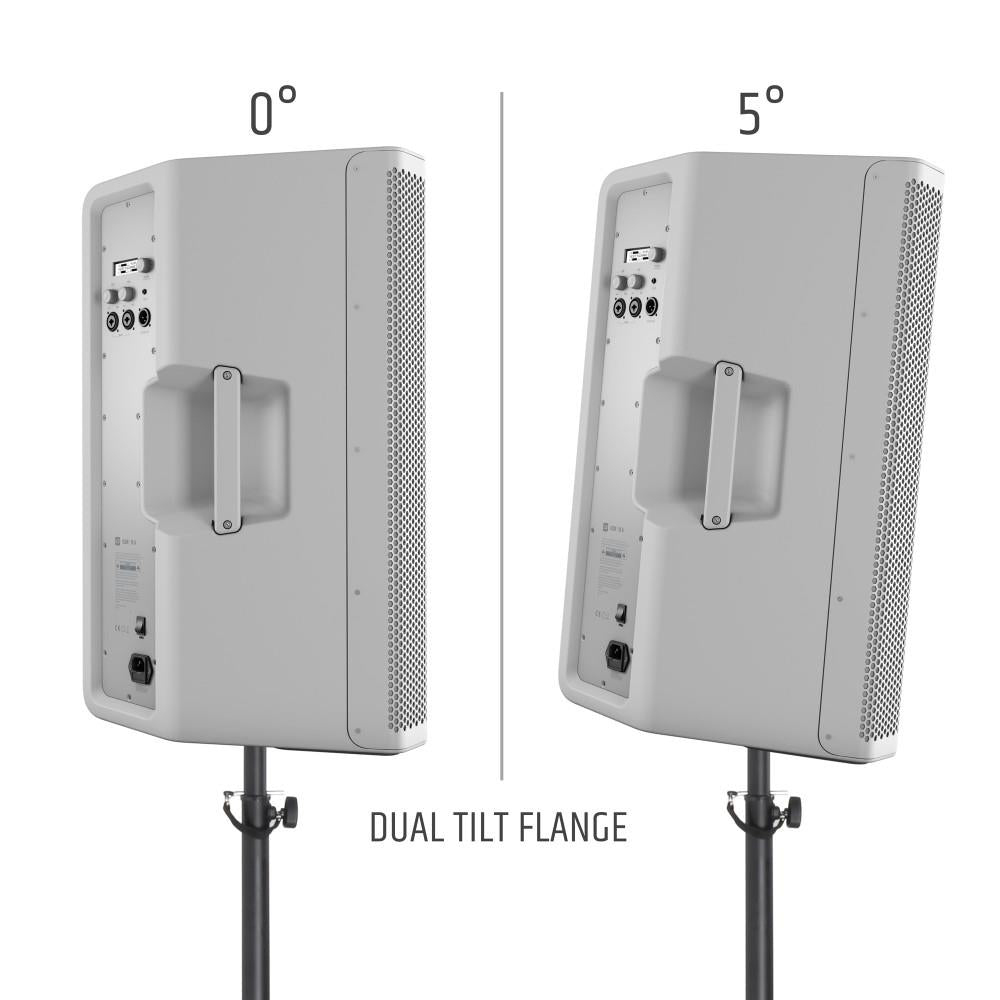

36 mm dual tilt stand attachment with 0° and 5° tilt angle, 55° monitor angle with sturdy stand
6 x M10 flying points
Shock-resistant front grille for optimal speaker protection
Four aluminium grips with ergonomic, rubber surface
Extensive range of optionally available accessories for installation and transport

General
Product type
PA loudspeaker
Type
Passive
Color
White (RAL 9003)
Low/mid driver dimensions
12 "
Woofer size
304.8 mm
Woofer magnet
Ferrite
Woofer brand
Custom-made
Horn
BEM optimized CD Horn
HF driver dimensions
1 "
HF driver size
25.4 mm
HF driver magnet
Ferrite
HF driver brand
Custom-made
HF driver voice coil
1.4 "
HF driver voice coil
35 mm
Dispersion (H x V)
90° x 50°
Load rating (RMS)
250 W
Peak power
1000 W
Frequency response
55 - 20000 Hz
Crossover frequency
2000 Hz
SPL (1W/1m)
93 dB
Max. SPL
123 dB
Impedance
8 Ohm(s)
Loudspeaker inputs
1
Speaker input connections
Speakon compatible
Loudspeaker outputs
1
Speaker output connections
Speakon compatible
Cabinet material
Polypropylene
Cabinet construction
Bass Reflex
Mounting
36mm flange (0°, 5°) , 6 x M10 flying points
Monitor angle
55 °
Width
375 mm
Height
635 mm
Depth
396 mm
Weight
19,8 kg
