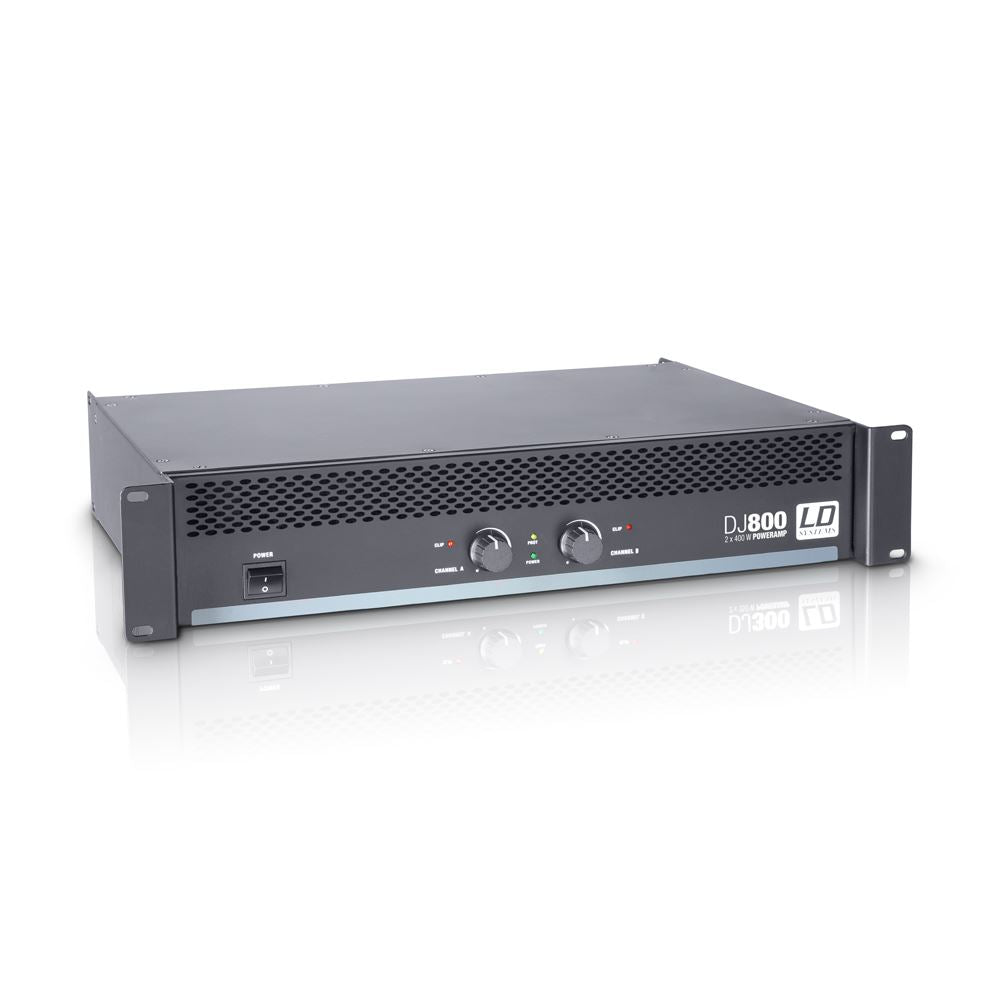

LD Systems DJ 800 PA Power Amplifier 2 x 400 W 4 Ohms

LD Systems DJ800 Power Amplifier

The DJ800 is the most powerful power amplifier in LD Systems' DJ series. The dependable Class AB design has an output of 400W per channel @ 4 ohms, 2x 240W @ 8 ohms and 800W in switchable bridge mode. Weighing in at just 10 kg, it is perfect for mobile use, but also for installation.

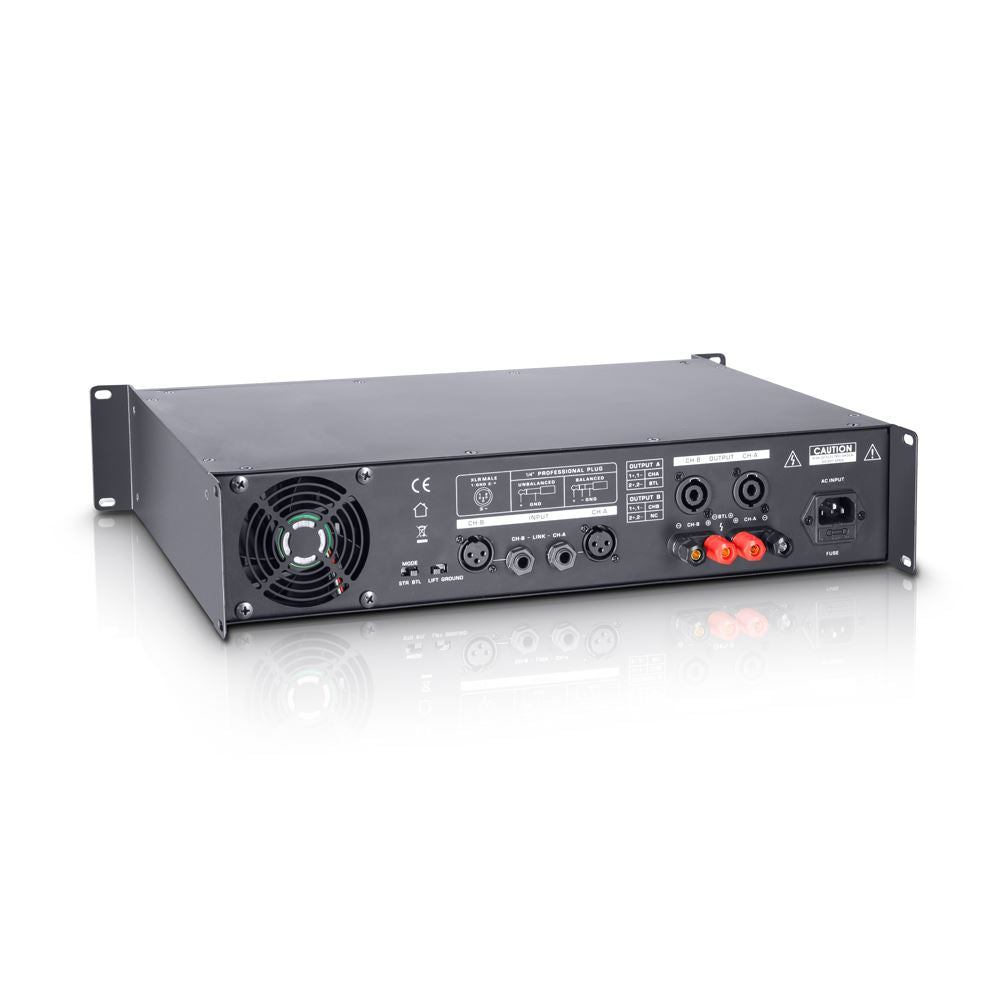

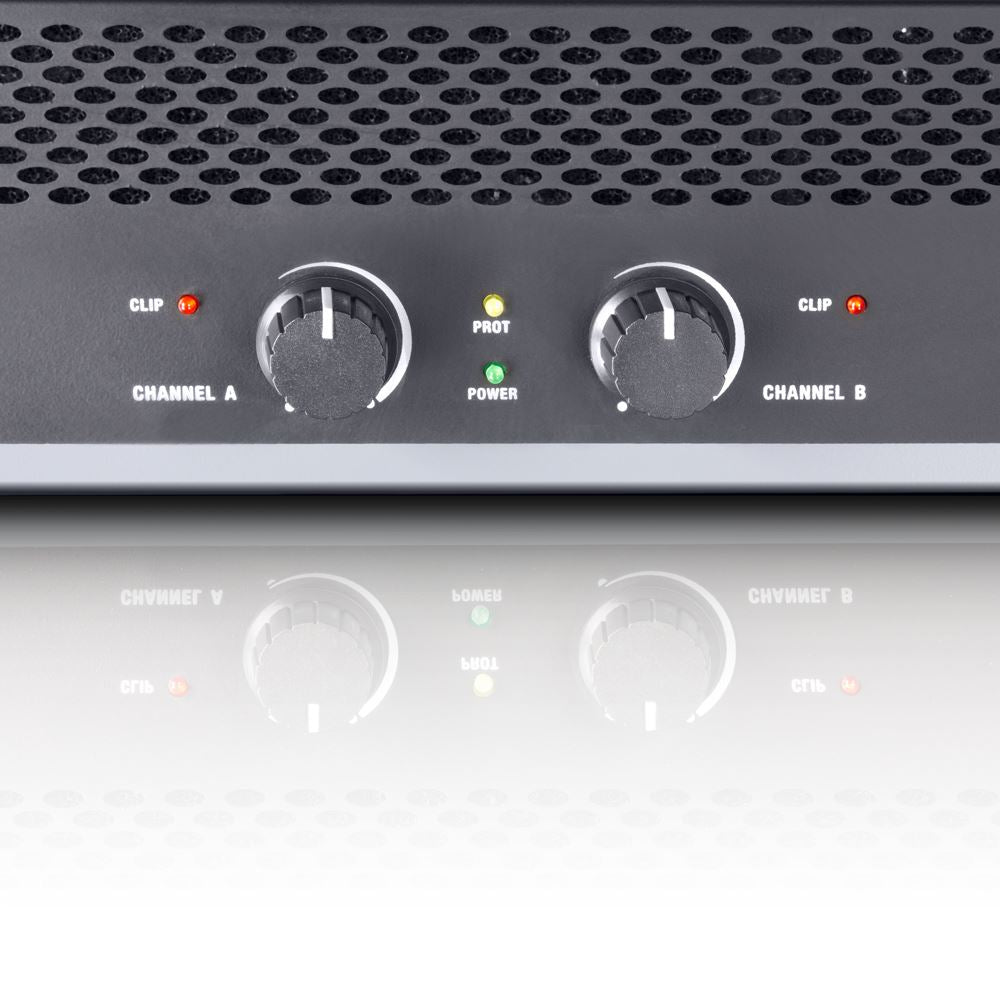

The DJ800 is equipped with extensive protection circuitry and a power-on delay. The front panel perforations and a low-noise fan keep the amp cool. XLR and stereo TRS sockets are used as inputs and Speakon-compatible sockets and heavy-duty screw terminals as outputs. A ground lift switch eliminates ground loop hum. LEDs on the front panel next to the easy-grip volume controls indicate functional status, overloading, and triggering of the protection circuit.

The DJ800 functions in the entire frequency range of 20Hz - 20kHz with maximum dependability, dynamics, and impulse fidelity.

Specifications
Product type: Power Amplifiers
Type: PA Power Amplifiers
Rated ouput power (1kHz @ 4 Ohms): 2 x 400 W
Rated ouput power (1kHz @ 8 Ohms): 2 x 240 W
Rated ouput power (1kHz @ 8 Ohms, bridged): 800 W
Output circuitry: Class A/B
Frequency response: 20 - 20000 Hz
Total Harmonic Distortion (THD): 0.05%
Gain: 32 dB
Input sensitivity: 0.85 V
Protection circuits: DC, over-current, short circuit, soft start, thermal overload
Controls: ground lift, Mode, On / Off, volume
Indicators: clip, Power, Protect (protection circuit engaged)
Line inputs: 2
Line input connectors: 6.3 mm jack, XLR
Loudspeaker outputs: 2
Speaker output connections: Speakon compatible, Terminal posts
Cooling: fan
Operating voltage: 230 V AC
Width: 483 mm
Height: 88 mm
Depth: 298 mm
Weight: 10,1 kg
