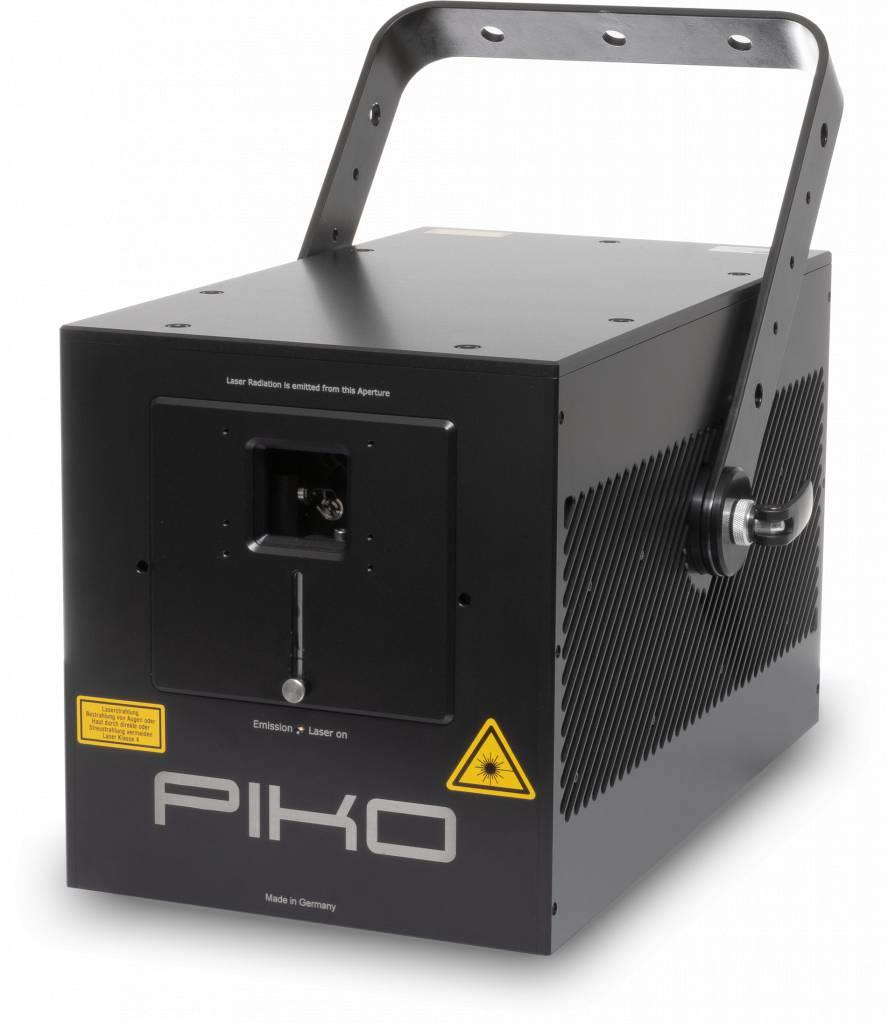

Laserworld Piko 40 Compact 40W Laser

£31,499.00
£31,499.00
Vendor: Laserworld
SKU: PIKO40
Icon Out of Stock Out Of Stock

This product has been discontinued.

Please find alternative products or check out similar products below.

iFrame
×

Description:

The RTI PIKO 40 impresses with a guaranteed RGB output power of 40'000 mW. Great visibility is achieved with the new RTI Semiconductor Laser Modules (RSL) with special wavelengths for increased visibility: 12'500 mW / 637 nm for a very bright red combined with 13'000 mW / 525 nm green and a strong blue laser module with 22'000 mW / 455 nm. The 525nm green provides a warmer green tone than the 520nm diodes and has increased visibility. These new RSL modules with their extremely low divergence and homogenous beam shape make the RTI PIKO 40 a top professional laser system. The extremely small beam diameter of only ca. 7 mm allows for the use of small scanner mirrors which leads to reduced inertia and higher scan speeds. This is especially important, as the RTI PIKO 40 can be used for any kind of laser show application: Super sharp beams and vivid colors for large scale concerts and festivals but also a perfectly matched beam for crisp graphics.

Maintenance free, no misalignment: new generation of laser color combination
Integrated network switch for linking the control signal

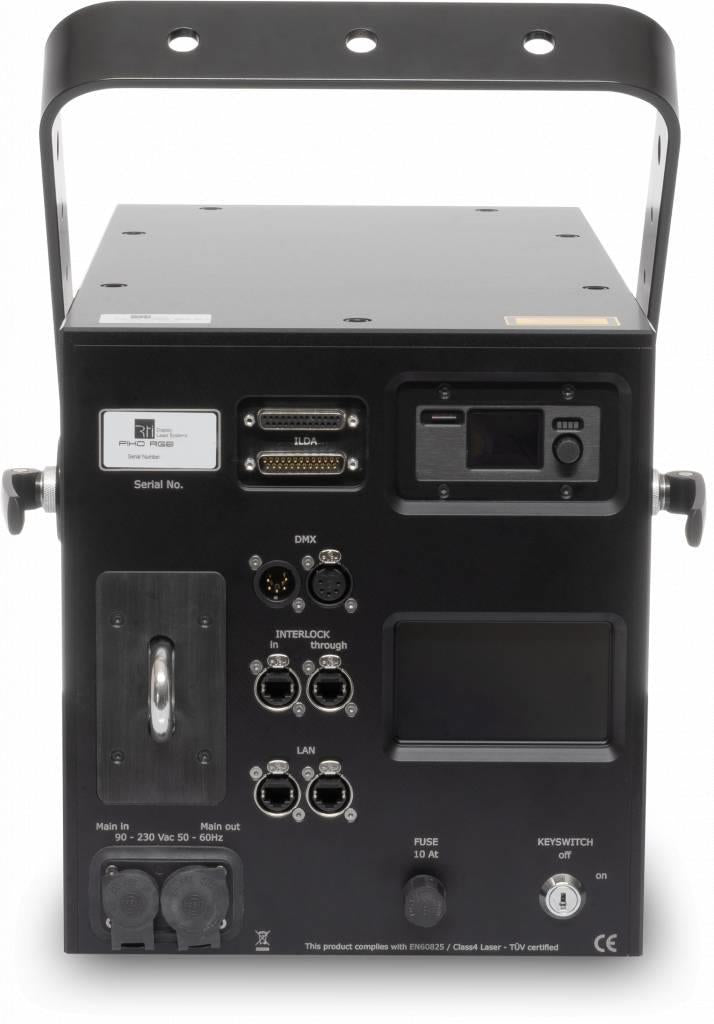

The RTI Semiconductor Laser Modules are maintenance free and do not come out of internal alignment. The standard scanners can be run at a maximum of 45kpps ILDA 8°; optional CT-6210 with LAS Turboscan: 60kpps ILDA 8°; max. 60° (@35 kpps) and a maximum scan angle of max. 50°. CT-6210 scanners with LAS Turboscan drivers are available as option and provide even higher scan speeds with up to 60kpps at ILDA 8°. The housing is built very durable and ideal for use on the road. It has an interlock / e-stop through port, which allows for daisy-chaining the interlock signal, which means that only one e-stop is required for several laser systems. Control signals can be looped through directly via the network switch, which is also integrated. Due to the dustproof housing, the maintenance effort is very low and the device is also suitable for tough touring applications. The new 360° brackets can be safely fixed in the needed position in just a few moments thanks to the quick-lock system. The powerful RTI PIKO 40 is suitable for indoor and outdoor show laser applications at concerts, festivals and other huge events. Demanding graphics projections or projections over long distances are possible without any problems, due to the extremely good divergence.INCLUDING LaserAnimation Sollinger Mainboard and ShowNET

The intelligent LaserAnimation Sollinger Mainboard is integrated into the RTI PIKO 40, which provides the laser operator with a variety of control and setting options (e.g. the LA.toolbox) or transmission options (such as AVB). Together with the ShowNET laser mainboard, which is also integrated, ILDA, LAN (software), DMX and ArtNET control, ILDA streaming, stand-alone operation, among others, are available, ensuring the highest possible flexibility.

The emergency stop signal can be looped through the interlock through connection and only one emergency stop switch is required for several devices. Control signals can be looped through directly via the network switch, which is also integrated.

Features:

40 W guaranteed power
Advanced RTI Semiconductor laser modules (RSL) produce a perfect shaped beam profile across all colors
Equal divergence on x and y axis
Maintenance free laser system
RSL Modules with no color misalignment
New advanced sealed optical section with no color misalignment
Complex graphics capable - 45kpps ILDA 8° scanners – upgradable to 60kpps
Full-color mixing
Extremely sharp intense beams - low divergence
Integrated intelligent LaserAnimation Sollinger Mainboard and ShowNET Laser Mainboard
Integrated Touch Display for adjustment of basic functions
Integrated network switch for linking the control signal
FB4-QS MAX optional integration

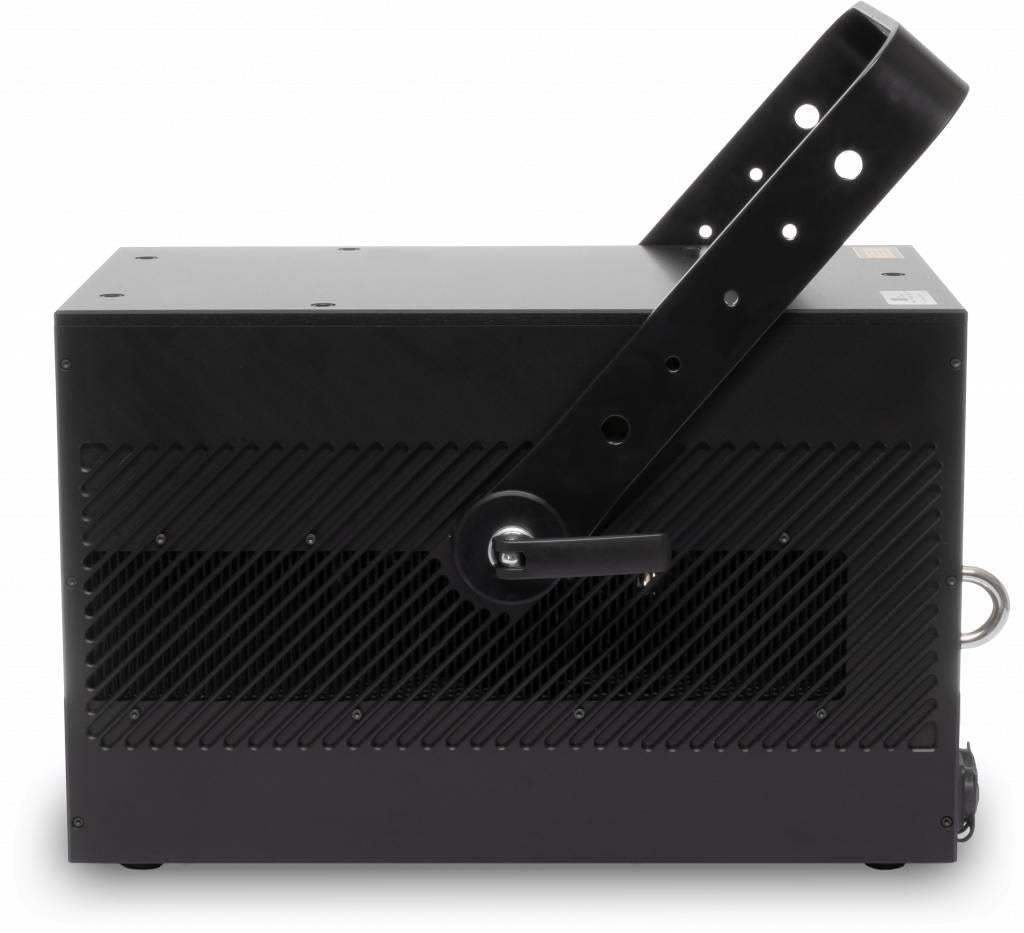

360° Bracket with quick-lock system
Rugged tour-grade compact housing
Incl. waterproof flightcase and rain cover
operating temperature: +5°C to +45°C

Specifications:

Guaranteed Power at aperture 40'000 mW
Power Red 12'500 mW / 637 nm
Power Green 13'000 mW / 525 nm
Power Blue 22'000 mW / 455 nm
Beam Specifications* ca. 7 mm / <0.8 mrad
Scanner 45kpps ILDA 8°; optional CT-6210 with LAS Turboscan: 60kpps ILDA 8°; max. 60° (@35 kpps)
Max. Scan Angle max. 50°
Laser Source RTI Semiconductor Laser Modules RSL 2
Laser Class 4
Operation Modes AVB / TSN interface for streaming ILDA data via Ethernet, AIFF player function, stand-alone player, ILDA, DMX / ArtNET, control software “LA.toolbox” for PC or Mac included, LAN (software) with ShowNET DAC
Basic Patterns over 120 (layers, tunnels, fences, waves, etc.)
Accessories Incl. waterproof flightcase, interlock connector, key, power cable, manual,, incl. the LA.toolbox control software
IP rating IP54
Power Supply 85-250 V AC 50/60 Hz
Power Consumption 600 W
Dimensions 271 x 491 x 296 mm
Weight 27 kg
