Laserworld EL-200RGB MK2 RGB Laser System

Description

The Laserworld EL-200RGB MK2 is an RGB laser system with a total output power of up to 200 mW.

The red diode laser module with 70 mW / 638 nm, the green DPSS laser module with 25 mW / 532 nm and the royal-blue laser module with 60 mW / 450 nm ensure beautiful colours and brightness. The beams have good specifications with ca. 3 mm / 2 mrad and the projector offers high-speed step motors with up to 2-5 kpps as well as a scan angle of up to 30°. About ca. 50 (layers, tunnels, fences, waves, etc.) basic effects can be controlled via DMX. A sound-to-light mode as well as a stand-alone mode are available too. For the sound-to-light mode the sensitivity of the integrated microphone can be adjusted.

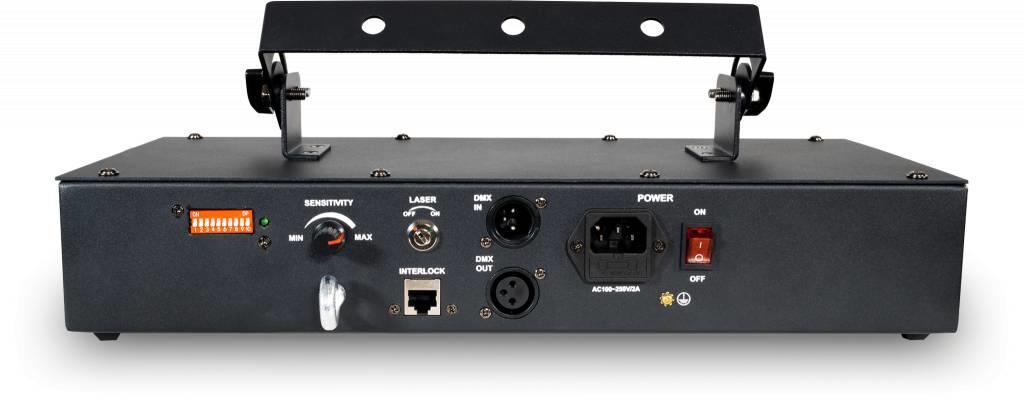

There is an interlock connector for safety switch as well as a key switch at the rear side of this very compact device.The triple laser aperture provides extra intense red, green and blue beam effects.

The Laserworld EL-200RGB MK2 is a good solution for first-time users and mobile use and it is often used in bars, small clubs, at private parties or for home use.

With ultra bright 450 nm royal blue!

Total Power 200 mW

Guaranteed Power 155 mW

Power Red 70 mW / 638 nm

Power Green 25 mW / 532 nm

Power Blue 60 mW / 450 nm

Beam Specifications ca. 3 mm / 2 mrad

Scanner high-speed step motors with up to 2-5 kpps

Max. Scan Angle 30°

Laser Source Diode, DPSS Laser

Laser Class 3B

Operation Modes Stand-Alone, Sound-to-Light, DMX

Basic Patterns ca. 50 (layers, tunnels, fences, waves, etc.)

Accessories power cable, manual, interlock, key

Power Supply85V - 250 V AC

Power Consumption 60W

Dimensions 175 x 395 x 85 mm

Weight 3.9 kg
