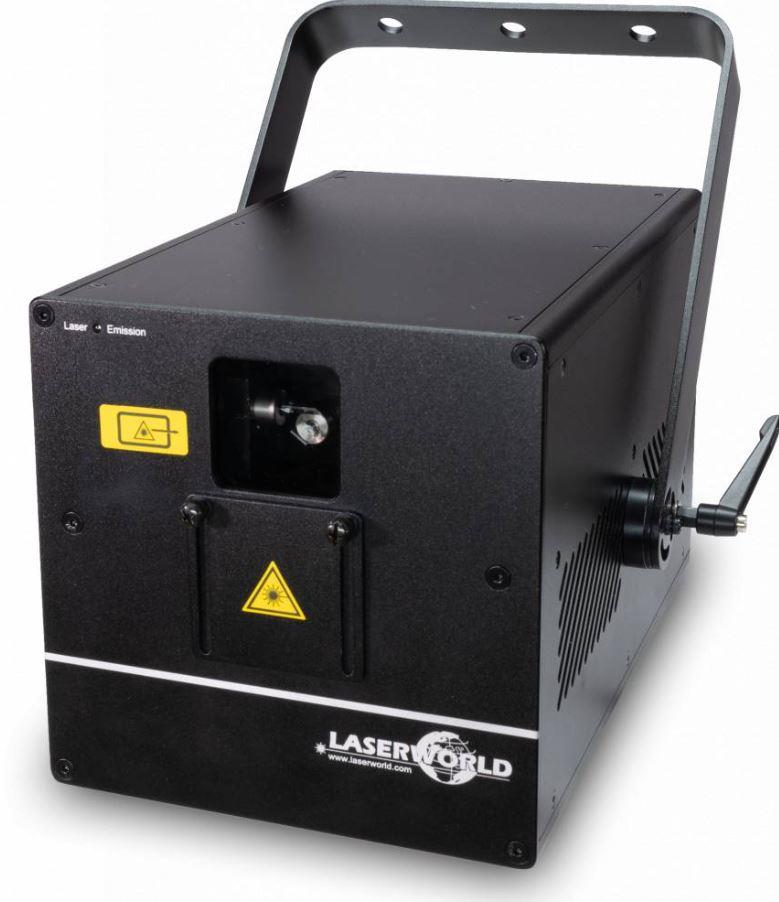

Laserworld CS-8000RGB FX Laser

A powerful semi-professional pure diode laser, capable of intense standard laser effects like beams, waves and tunnels but also basic graphics all of which can combine with the 2 built-in grating effects to become a real room filler. This laser has easy plug and play, sound-to-light and stand-alone modes, DMX control, so it can be controlled with the rest of the lighting, but also has an ILDA port for computer control. Perfect for medium-sized to large nightclub installs, indoor as well as small outdoor events.

8 W pure diode RGB laser system
two additional grating effects: Line and Burst
DMX controllable, master-slave operation possible
Full diode laser system

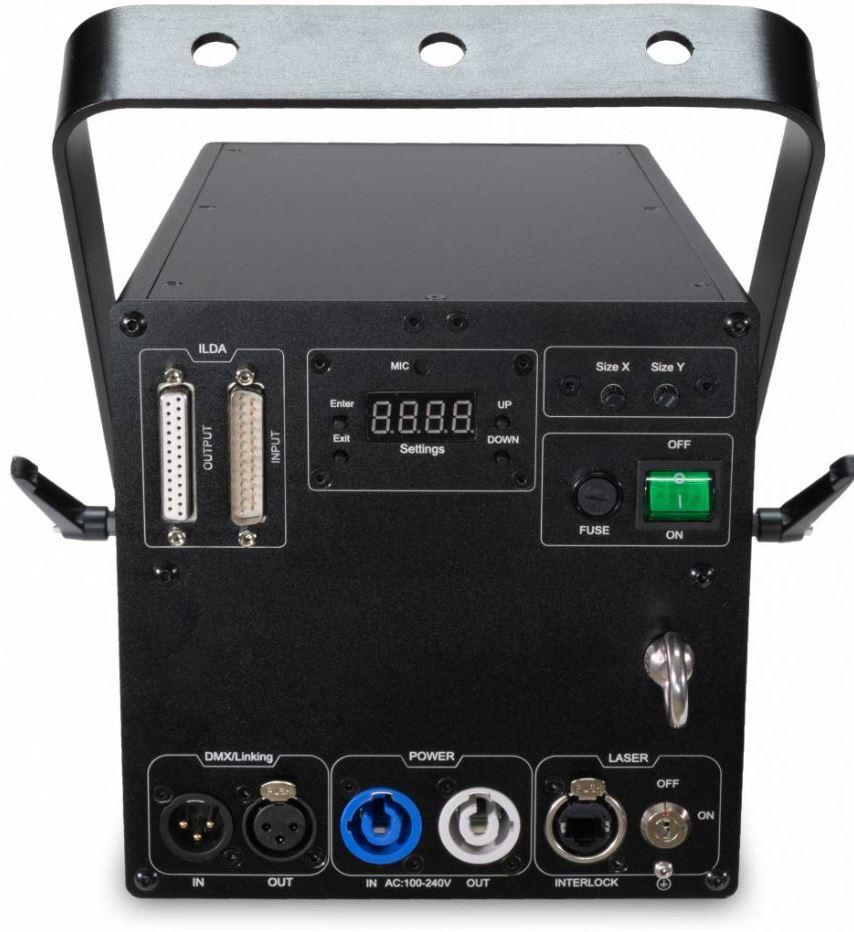

Computer controllable via ILDA
Plug & play: Sound-to-light and stand-alone modes
Capable of basic graphics - 28kpps @ 8° ILDA, galvo system, switchable effects grating wheel scanners
Full color with analog modulation
Front panel laser beam masking plate
360° mounting bracket

Total Power: 8'000 mW
Guaranteed Power: 7'300 mW
Power Red: 1'800 mW / 635 nm
Power Green: 1'800 mW / 520 nm
Power Blue: 3'700 mW / 450 nm
Beam Specifications: ca. 5 mm / 1.4 mrad
Scanner: 28kpps @ 8° ILDA, galvo system, switchable effects grating wheel
Max. Scan Angle: 40°, up to 90° with effects gratings
Laser Source: Diode
Laser Class: 4
Operation Modes: stand-alone, sound-to-light, DMX, ILDA, master-slave
Basic Patterns: ca. 130 (layers, tunnels, fences, waves, etc.), effects gratings
Accessories: power cable, manual, interlock, key
Power Supply: 85V - 250 V AC
Power Consumption: 111 W
Dimensions: 285 x 180 x 190 mm
Weight: 7.7 kg
