Laserworld CS-500RGB KeyTEX *B-Stock

Description

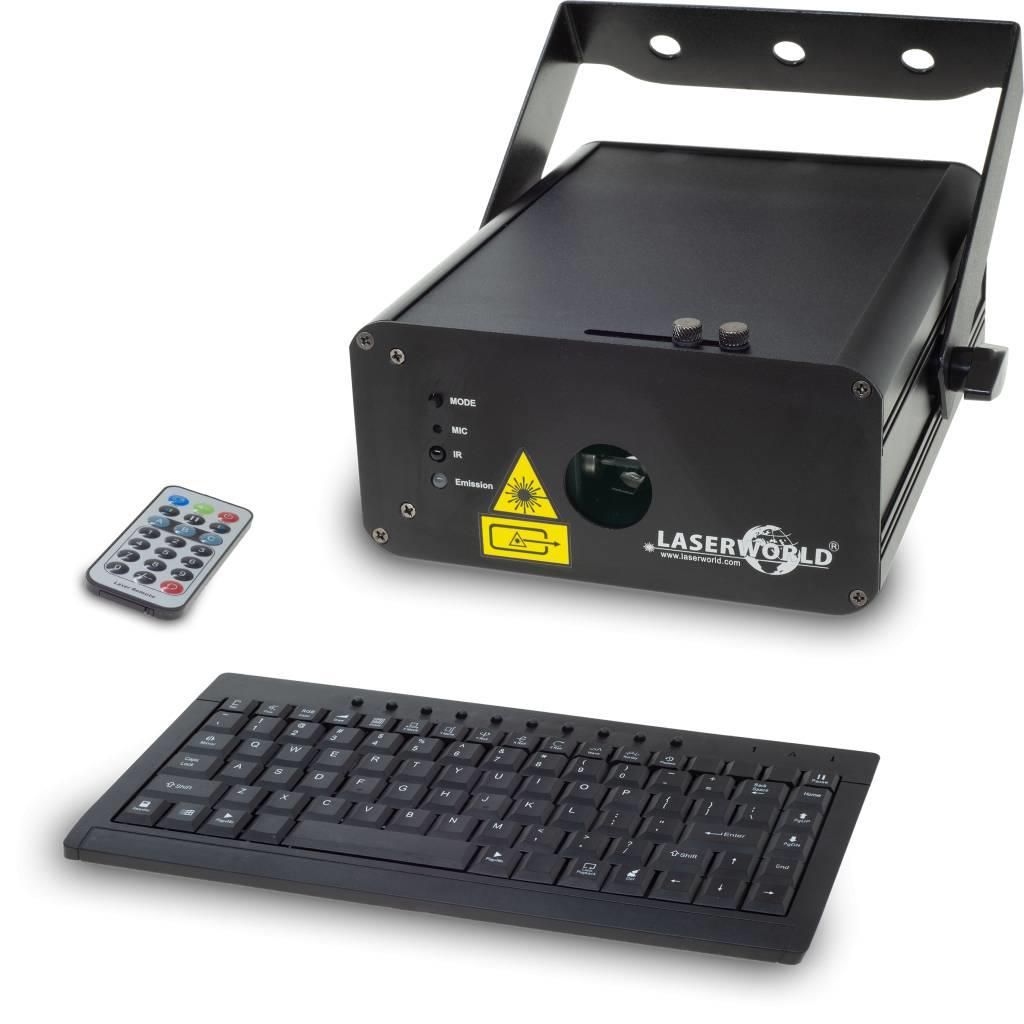

The Laserworld CS-500RGB KeyTEX is a RGB text and pattern projection laser that does not need any software or additional controller for operation. It comes with a special keyboard and an infrared remote control.

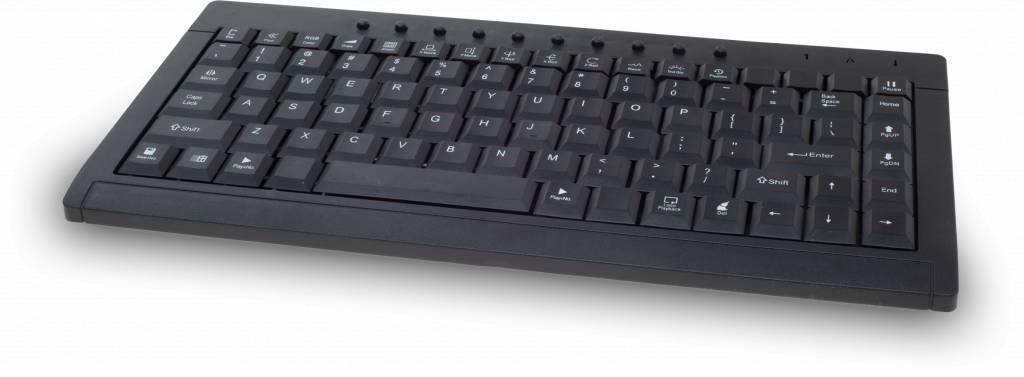

With the keyboard it is possible to control the whole show laser light system. This device is also controllable via ILDA!
Features of the Laserworld CS-500RGB KeyTEX are:

write texts live with the keyboard
save texts and recall them later
animate the texts: scrolling, flipping, typing of single letters, rotations and many more features available through the keyboard

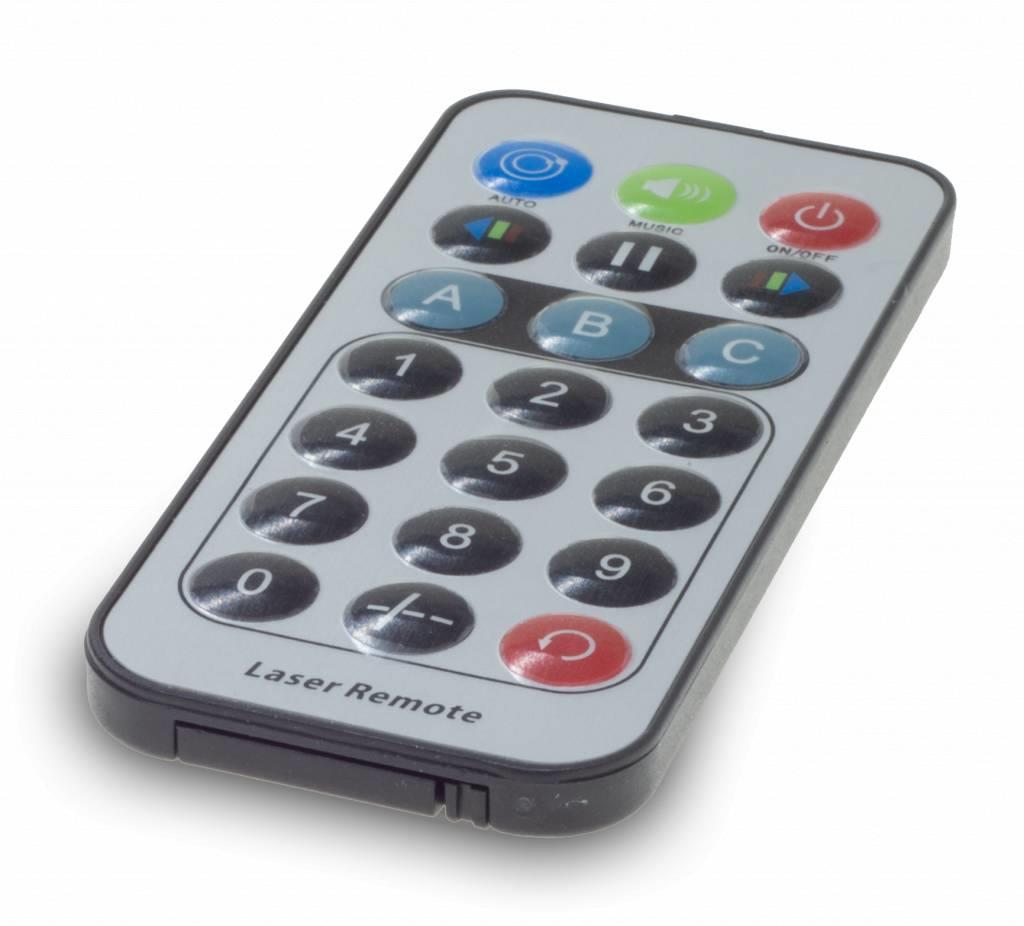

trigger saved texts with infrared remote control
play the preset patterns and effects in automatic mode or sound mode - this can be switched with the keyboard or the infrared remote control
clock feature: set time and project it on any surface
the projection (texts, patterns) can be multiplied through a diffraction grating at the laser aperture
controllable via ILDA & DMX
RGB projections

This text laser is equipped with a strong red (180 mW / 650 nm), green (80 mW / 532 nm) and blue (160 mW / 445 nm) laser source, so the projections are well visible. The scanning systems allows for simple text projections and runs at ca. 15 kpps@4°, graphics capable.

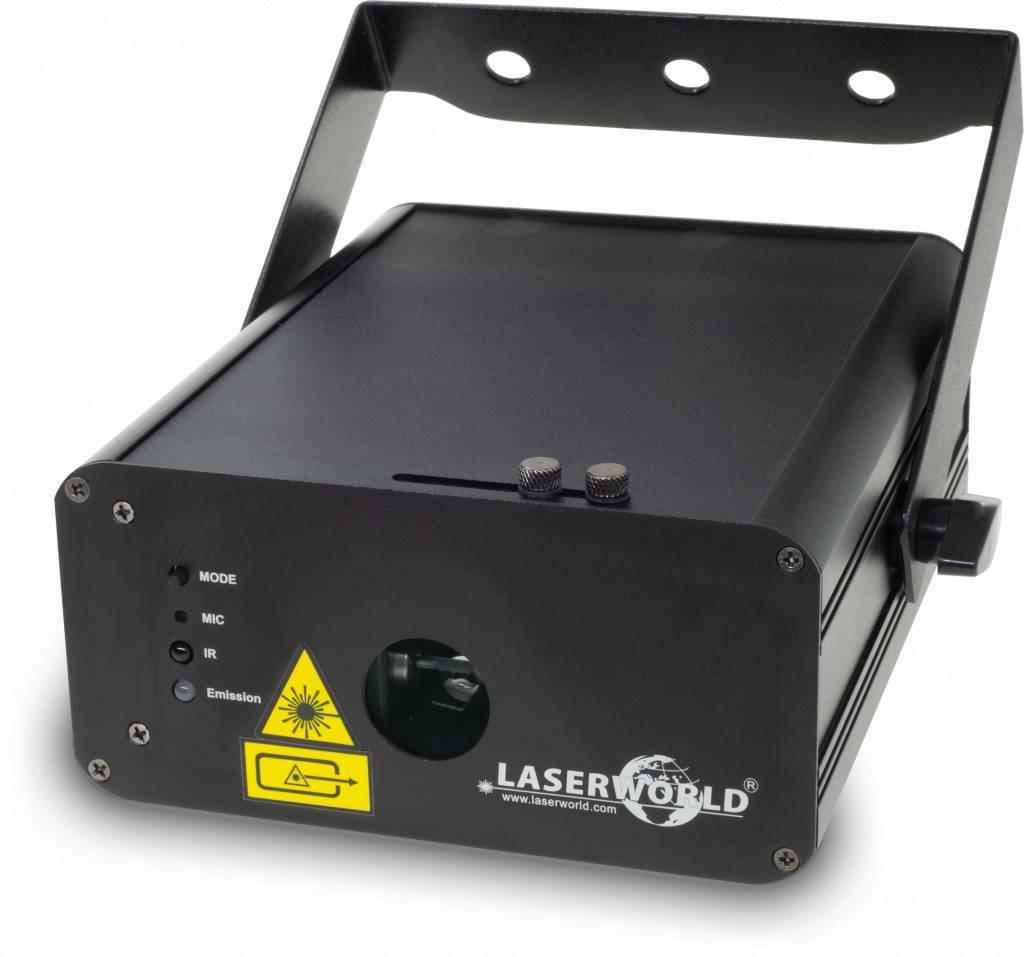

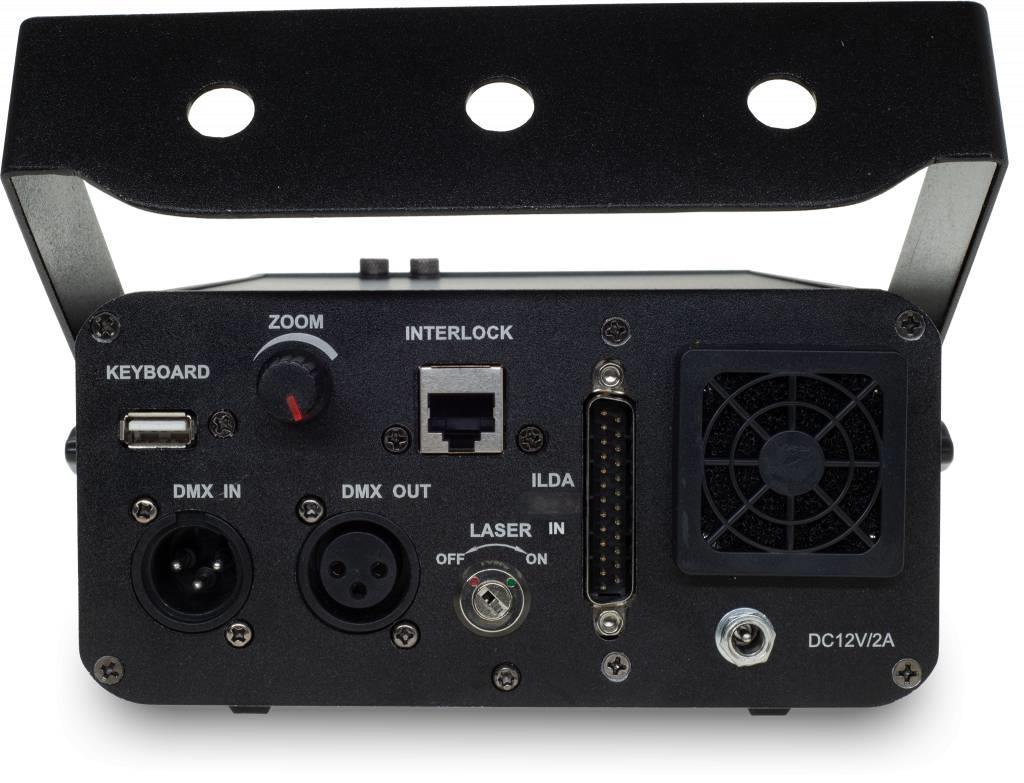

The mounting bracket of the Laserworld CS-500RGB KeyTEX laser can be used to mount the projector at walls, ceilings or at other appropriate objects. There is also an interlock connector for safety switch as well as a key switch at the rear side of this very compact device.

Total Power 490 mW
Guaranteed Power 400 mW
Power Red180 mW / 650 nm
Power Green80 mW / 532 nm
Power Blue160 mW / 445 nm
Beam Specificationsca. 3 mm / 2 mrad
Scannerca. 15 kpps@4°, graphics capable
Max. Scan Angle
Grating ca. 90°, projection ca. 20°
Laser Source DPSS,Diode
Laser Class3B
Operation Modes ILDA, Stand-alone mode, sound-to-light mode, text mode, clock mode, DMX
Basic Patternsca. 50
Accessories Keyboard, USB extension cable, infrared remote control, interlock, key, external power supply 12 V
Power Supply100 - 250 V AC
Power Consumption 10 W
Dimensions 210 x 165 x 85 mm
Weight1.64 kg
