Laserworld CS-24000RGB Laser FX 22,200mW Laser

Description

A strong, semi-professional, pure diode laser that can display the typical laser effects such as beams, waves, tunnels, but also simple graphics that can be combined with the 2 built-in grating effects. In combination with the grating effects, the entire room is filled.
This laser features an easy-to-use Plug & Play mode, music or automatic mode and DMX control, allowing the laser to work seamlessly with the rest of the lighting setup.
It also has an ILDA connection so that it can be controlled professionally by computer.
Perfect for large club installations, larger indoor and outdoor events.

In addition to the graphics-capable scanners, the Laserworld CS-24.000RGB FX has three integrated grating effects: line grating, radial grating and burst grating.
Together with the approx. 130 effect gratings (levels, tunnels, grids, waves, etc.) stored on the laser, these effects offer a multitude of possible combinations for the impressive illumination of medium-sized to large locations. The grating effects make the projected patterns appear as if they are being output from many projectors simultaneously. The resulting expansion enables effects that could not be achieved in any other way.
But that's not all the Laserworld CS-24.000RGB FX has to offer:

The Laserworld CS-24.000RGB FX is an analogue modulated, full color RGB diode laser system with a total output power of up to 22'200 mW and a guaranteed output power of 22'000 mW. The red laser source has an output of 5,000 mW / 638 nm, the green of 5,200 mW / 520 nm and the royal blue laser source has an output of 12,000 mW / 450 nm. The diode laser sources ensure strong laser beams. The projector has good beam specifications with a beam diameter of about 6 mm and a beam divergence of 1.4 mrad. The galvo system has a scan speed of up to 28kpps @ 8° ILDA, galvo system, switchable effect grating.

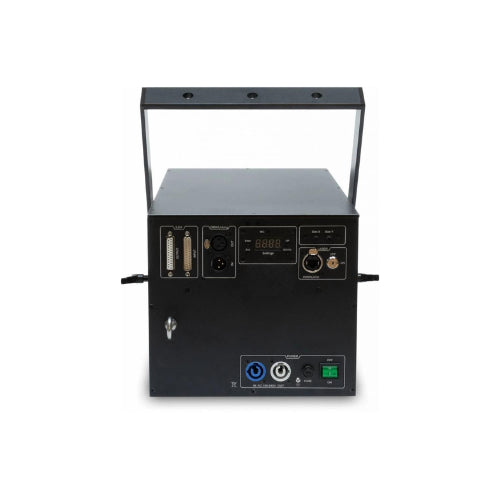

The microphone sensitivity can be adjusted via the integrated display, the projection size via two rotary controls on the back of the device.

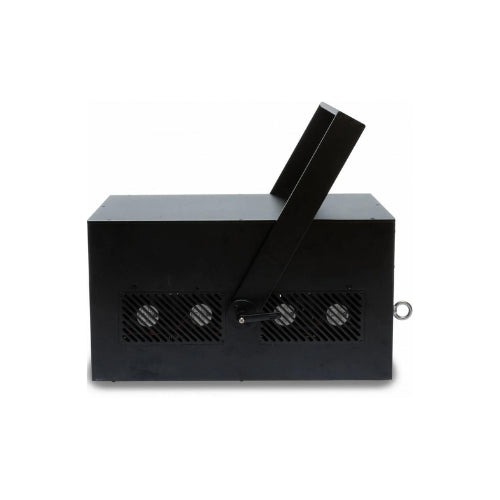

There is no air circulation in the optical area, the temperature is regulated via the separate heat sink section. This reduces the maintenance and cleaning effort to a minimum.

About 130 (levels, tunnels, grids, waves, etc.), effect gratings in different colors and at different speeds can be projected via DMX both in automatic mode and in music mode. If the automatic mode is active, the pre-programmed patterns run without further action and in music mode the laser system projects in tune with the sound.

Besides the above modes, this laser projector also offers a master-slave mode. Show lasers of the same series (slave projectors) connected to a main projector (master projector) with a DMX cable will project the same patterns as the master projector.

The Laserworld CS-24.000RGB FX is computer controllable via a professional ILDA interface. You can show your own or pre-programmed laser shows, logos, texts or your own graphics and animations in combination with laser control software (eg Showeditor or Showcontroller).

There are safety features like a key switch, an interlock, and an on-off switch.

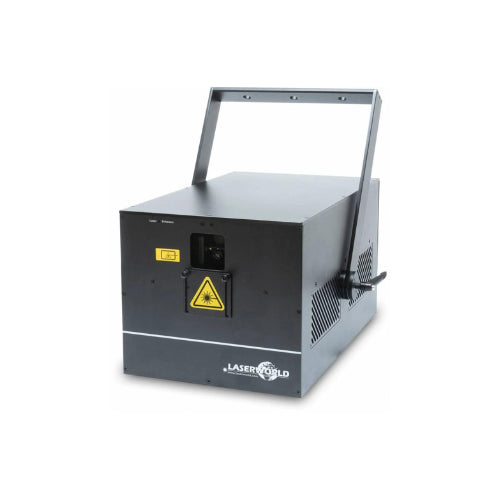

The Laserworld CS-24.000RGB FX show laser projector comes with a compact body that is lightweight and features a stable 360° bracket mount. The bracket allows various mounting positions: both a hanging and a standing installation are possible - ideal for mobile DJs and temporary laser shows, but also for fixed installations on a truss or on the ceiling.

The Laserworld CS-24.000RGB FX is ideal for semi-professional applications and is perfect for large clubs and discotheques as well as for festivals or stage shows and outdoor events in general.

22.2W pure diode RGB laser system

three built-in grating effects: Line, Radial and Burst
DMX controllable, master-slave operation possible
computer controllable via ILDA
Plug & Play: music and automatic mode
Display of standard graphics
Scanner 28kpps @ 8° ILDA, galvo system, switchable effect grating
Full color laser with analogue modulation

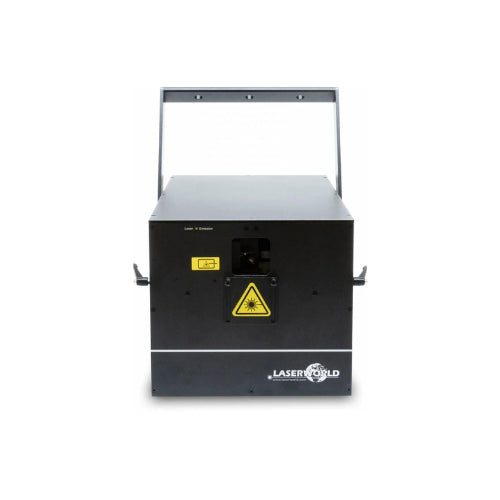

adjustable beam stop at the exit window
360° mounting bracket
TECHNICAL DETAILS

Total power: 22,200mW
Guaranteed power: 22,000 mW
Power Red: 5,000 mW / 638 nm
Power Green: 5,200 mW / 520 nm
Power Blue: 12,000 mW / 450 nm
Beam data*: approx. 6 mm / 1.4 mrad
Scanner: 28kpps @ 8° ILDA, galvo system, switchable effect grating
Max. scan angle: 40°, up to 90° with effects gratings
Laser source: diode
Laser class: 4
Operating modes: automatic mode, music mode, DMX, ILDA, master-slave,
Basic patterns: approx. 130 (levels, tunnels, grids, waves, etc.), effect gratings
Accessories: power cable, user manual, interlock, key
IP protection class: IP4X
Power supply: 85V - 250V AC
Power Consumption: 400W
Dimensions: 400 x 240 x 230mm
Weight: 19kg
*Due to the advanced optical correction technologies used in our laser systems, the output power of the modules for each individual color may deviate slightly from the power specifications for the corresponding module. Divergence FWHM model-dependent average value
