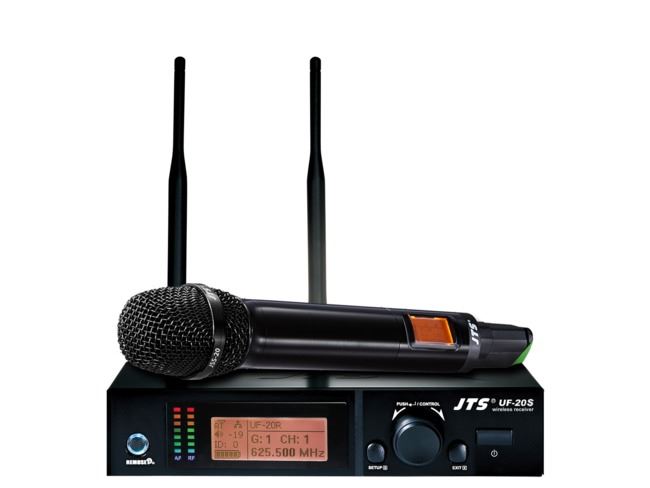

JTS UF-20S Receiver and JSS-20 Microphone UHF Wireless System

Description
UHF Single Channel Wideband True Diversity Handheld Wireless Microphone System The UF-20S/JSS-20 system consists of a Single Handheld microphone and a Top of the range Single Channel True Diversity Reciever

Features
UF-20S Receiver Features:
*Flagship Single Microphone True Diversity system
* Supplied in the UK with a 606-681 MHz Frequency Range. Channel 38 (606-614Mhz)
* UHF True diversity technology renders 200-480 meters of operation distance.
JTS “True diversity” is when the two independent antennas (antenna diversity) are connected additionally to two independent receiver modules. So not only do they switch to which of the two antennas is getting the best signal, but also which receiver module is getting the best signal. This is JTS’ ultimate method of preventing drop-outs.
* Pre-set 15 groups each of up to 63 compatible channels
* User programmable 6 groups each of 64 channels
* Free space scan function
* JTS Patented obstacle-free RF function synchronizes a transmitter by pushing a button
* JTS LCX circuit design technology minimizes companding noise
* Latest REMOSET not only sends the frequency data but also transmitter’s RF power,
sensitivity, low cut, key lock and 10 Character user's name.
* RF “NO SIGNAL” alert function.
* AF “MUTE” alert function.
* Transmitter “LOW BATTERY” alert function.
* Built in equalizer
*Optional rack mount kits available.
JSS-20 Handheld Microphone Features:
* 2400 to 3000 selectable frequencies
* Preset 15 groups each of up to 63 compatible channels
* Phase-Locked Loop (PLL) synthesized tune
* 10 Character Naming function.
* Adjustable transmission power between Low and High
* Low cut function.
* The JSS-20 also features the latest development of the SAM-8 capsule the SAM-8WLN this Dynamic Capsule assures outstanding acoustic performance while minimizes touching noise.
* Optional Condenser Capsule is available.
* Interchangeable capsule design for various choices including some classic capsule modules.
* Utilizes 2 X AA batteries and optional 2 way or 8 way recharging docking stations are available.


Specification
Frequency response:50Hz ~ 18kHz, with high-pass filter
Frequency Preparation:PLL Synthesized Control
S/N Ratio:> 108dB (A)
Audio Output Level:Maximum 6dBu
Squelch:Pilot Tone & Noise Mute
Operation Voltage:100 ~ 240V or 12V DC
Output Connector:1x XLR Balanced Socket, 1x 6.3mm Unbalanced Jack
Chassis:1/2U standard metal chassis
Frequency Setting:JTS patented obstacles-free RF REMOSET
Receiving Mode:True diversity
Bandwidth:75MHz
Frequency Range:606-681MHz
Handheld Capsule:Dynamic
Antenna:BNC In + Out
Preset Channels / Groups:* From group 1 ~ 15 up to 63 interference-free compatible channels. * 844 preset channels / group and 3000 selectable frequencies across 63 to 75 Hz Bandwidth. * User programmable from U1 ~ U6 each of 64 channels reserved.
Channel:Single
