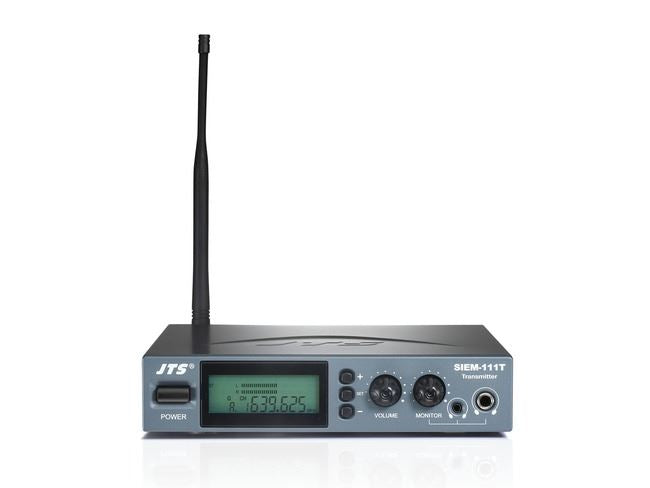

JTS SIEM-111T UHF PLL In Ear Monitor Single Channel Transmitter (Channel 38 to 42)

Description:

UHF PLL Single Channel True Diversity Transmitter The SIEM-111 System features reliable JTS UHF PLL technology.

Features:

* There are 961 selectable UHF channels available. As many as 16 sets of SIEM-111T transmitters can operate on the same stage.
* The system offers 4 groups, with each group having 16 compatible preset channels to choose from. This allows the monitor engineer to set up systems quickly and easily.
* MPX Stereo Audio Transmission / Reception, switchable to Mono operation if desired.
* All metal case construction on the SIEM 111R and SIEM 111T.
* The JTS advanced circuitry assures outstanding signal-to-noise ratio.
* IE-1 and IE-6 earphones seal off the ear canal with JTS designed Dyna-Driver ear buds which reduce undesired stage noise, ambient sound levels.
* 3 pairs of different sized Silicon sleeves included with the IE series earphones ensure a right fit for the users ear canal and comfort.

Specification:

• RF Outputs:10mW
• Frequency Deviation:±40KHz
• Carrier Frequency Range:606-642Mhz
• LCD Display:AF Level, Stereo/Mono, Attenuation Level, Group, Channel, Frequency
• Audio Input Impedance:20kΩ
• Norminal Input Level:-10dBV; 0dBV (ATT -10dBV)
• Maximum Input Level:10dBV; 20dBV (ATT -10dBV)
• Audio Input Connector:2x Balanced XLR / 6.3mm Jack Combo Socket
• Audio Output Connector:1x 3.5mm (1/8") Stereo Jack, 1x 6.3mm (1/4") Stereo Jack
• Loop Out Connector:2x Balanced Loop out socket
• Switching Power Supply:100-240V Switch mode power supply
