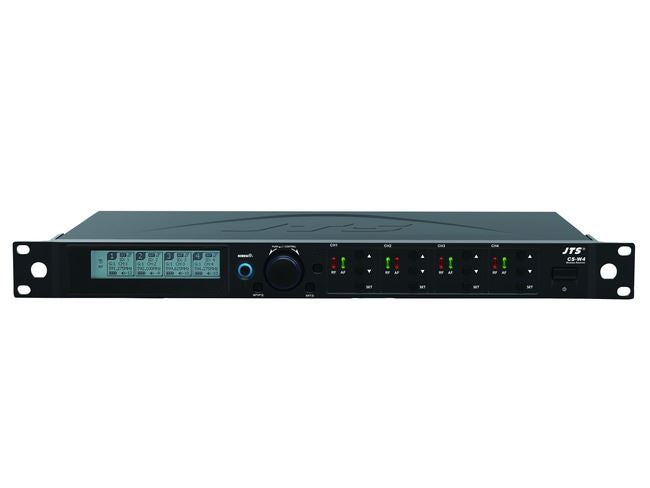

JTS CS-W4C Conference Wireless Gooseneck Microphone System Receiver Only

CS-W4 is designed with JTS newest wireless and conferencing technology. It provides maximized compatible channels with a given bandwidth. Built-in logic circuit provides conferencing feature. A microphone assigned with priority will work as a chairman unit. It overrides other microphones. The logic setting of one CS-W4C receiver can be cascaded. A microphone with priority in one receiver will also have priority in a cascaded system. JTS patented REMOSET synchronizes all four microphones simultaneously by push one button. The microphone is of 108 MHz bandwidth. This feature allows more attendants to join the conference.

Specifications
Frequency Preparation PLL Synthesized Control
Carrier Frequency Range 470~960 MHz / 502.000 - 694.000 MHz (T band)
Frequency Setting 2.4G RF REMOTES
Channel 4
Bandwidth 36MHz
S/N Ratio >105dB(A)
T.H.D <0.6%@1KHz
Sensitivity -95dBm, S/N>80dB
CMRR >80 dB
Audio Frequency Response 80Hz~16KHz±2dB
Antenna Connector BNC (Female)
Antenna Booster Power DC12V/100mA
Display LCD+LED
Controls Power ON/OFF, Group, Channel, Frequency, Sensitivity, Key Lock, Volume, Output
Attenuation(XLR), Frequency Scan(ON/OFF), Antenna Power, Display Setting, Language,
Remotes ID Number, Reset Setting, Priority Setting
Audio Output Level Ref: ±22.5KHz Dev@1KHz Tone
ψ6.3 Phone Jack: -10dBV
XLR Jack: -4dBV(Line), -24dBV(MIC)
Audio Output Level 600Ω
Squelch Pilot Tone & Noise Mute
Output Socket XLR Balanced Socket x5, φ6.3mm Unbalanced x1
Automixer Control 8PIN MINI DIN Input, 8 PIN MINI DIN Output
Power Supply DC12~15V/1A
Dimension(mm) 485(W) x 45(H) x 260(D)
Not Actual Product specifications may vary depending on model and region

Dimensions
48.5 x 4.5 x 26 cm

Weight
Not specified
