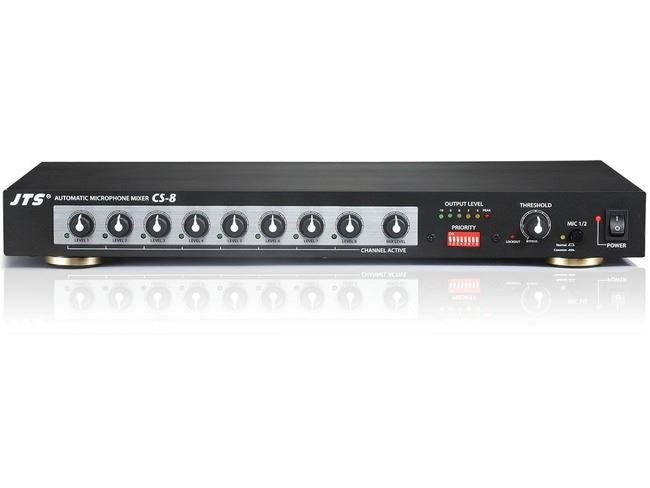

JTS CS-8 Automatic 8 Channel Microphone Mixer

Description
Automatic Microphone Mixer The CS series microphone automatic mixers provide great convenience to sound reinforcement installation with any size and any combination. The outstanding performance enables effective managing of multi-microphone installations including corporate boardrooms, conference rooms, government builds, houses of worship, classrooms.

Features
Full feature design includes :
* Daisy-chain with unlimited number of the mixer
* Three operation modes: one-channel-at-a time, all active or override
* Switchable inputs accept microphones or line level devices
* Switchable output levels between mic. and line level
* Individual gain control and phantom power for each channel
* Last In stays on for continuous ambience sound
* Control voltage provided to trigger external device such as speaker switching and camera switching

Specification
Frequency response:35Hz - 20kHz
Net Dimension (WxHxD):420 x 44 x 198.5mm
Net Weight:2.25kg
Power Consumption:13.5W
S/N Ratio:>70dB
Power Supply:18VDC, 1A
Type:XLR
Phantom Power:+48v
Output Attenuation:-50dB
Voltage Output:+4VDC �0.3V
Mic:4.7KΩ
Line:20KΩ
Max Output Level:>17dB
Max Gain:>70dB
Input Attenuation:-50dB
Mic In Attenuation:-10dB / -15dB / -20dB
