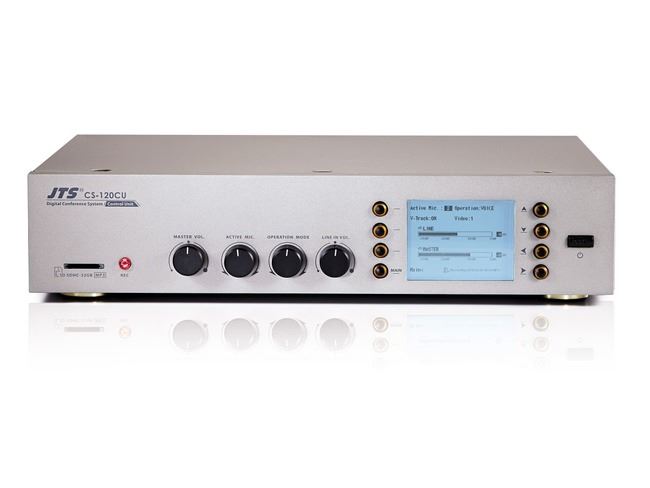

JTS CS-120CU Control Unit

JTS CS-120CU Control Unit

£1,315.50
£1,315.50
Part of the CS-120 Conference system. The CS-120CU works as a main unit of the whole system. It provides all inputs and outputs needed to manage complex audio system.A single CS-120CU can be connected with 90 sets of CS-120CH and CS-120DU. With an additional power unit (CS-120EMU) up to 256 sets can be connected.Maximum 4 video cameras can be connected to perform video tracking.
Vendor: JTS
SKU: 125-81600
Icon Out of Stock Out Of Stock
iFrame
×
DETAILS

Description
Digital Conference System - Control Station CS-120CU works as a main unit of the whole system. It provides all inputs and outputs needed to manage complex audio system. A single CS-120CU can be connected with 90 sets of CS-120CH and CS-120DU. With an additional power unit (CS-120EMU) up to 256 sets can be connected. This stand-alone system provides 4 types of conferencing mode, Open, Over-ride, Voice and Apply. It meets most conference requirement. Voting function is also provided. A large LCD screen provides detailed information. Soft-key design provides intuitive operation Maximum 4 video cameras can be connected to perform video tracking.

Specification
Frequency response:40-16000Hz
Audio Outputs:Recording output: RCA type*1
Supply Voltage:AC110V or AC220V (default settings)
Number of connectable conference units:̢�254
Signal-to-noise ratio:>80dBA
Dynamic range:>85dB
Audio crosstalk:>70dB
Audio inputs:Recording input: RCA type*1 Original output: RCA*2 balanced, XLR*1 balanced
SD card slot:Support 32GB SD card in FAT format
LAN interface:RJ45 , or PC control
Conference unit connector:DIN7P
Maximum power consumption:200W
