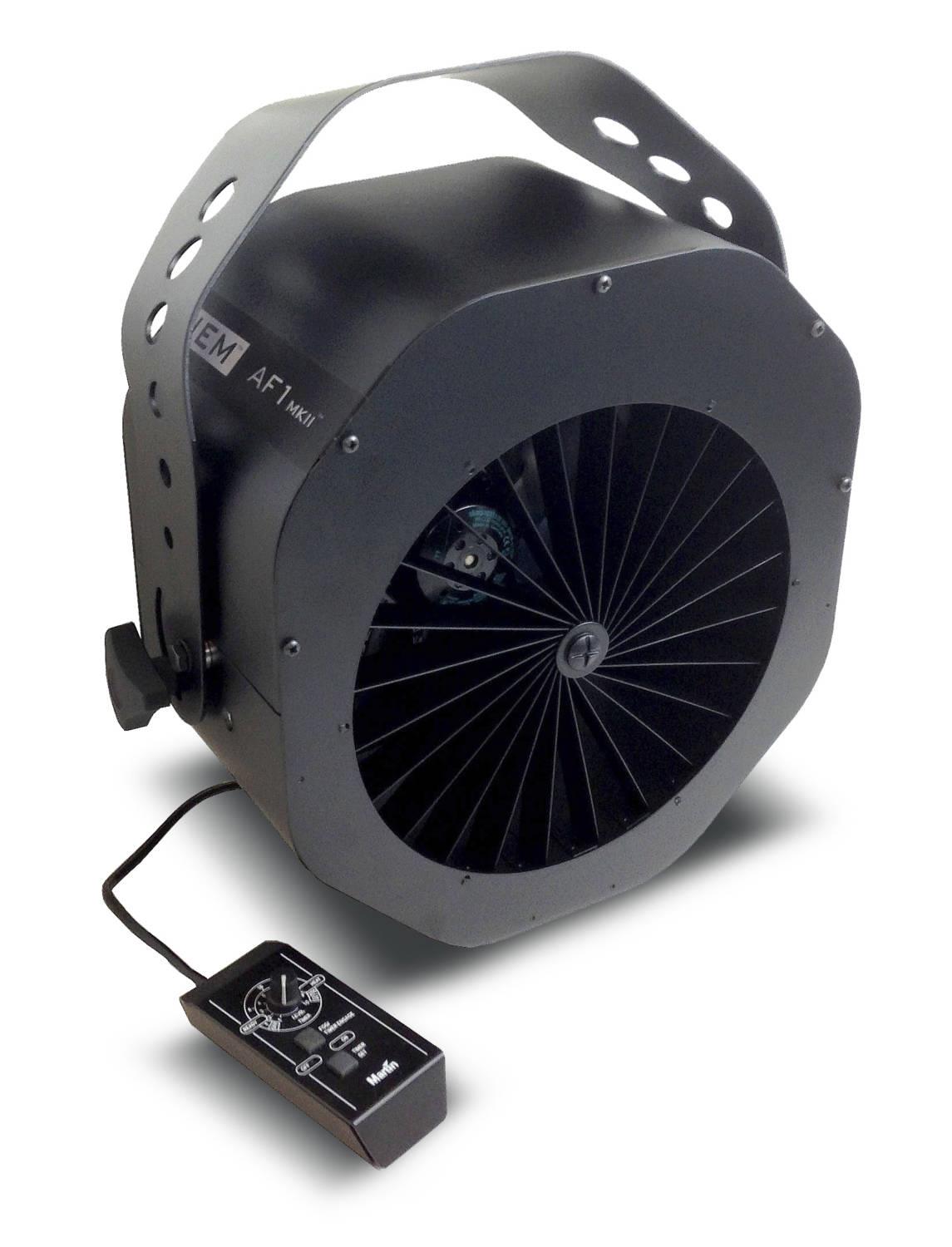

Jem AF-1 DMX Fan 12" Effect Fan With Variable Speed and Remote Control

Description:

The JEM AF-1 MkII is Martin's industry-standard compact fan which sets the benchmark for effect fans. The JEM AF-1 MkII is more responsive and even more versatile than its original predecessor the AF-1. Using a 12” sealed axial motor, with variable speed, the AF-1 is responsive even at low speeds while remaining silent, only producing 70 dBA at maximum speed. The AF-1 MkII has integrated DMX or by using the included remote control to control, it is the ideal fan for a large variety of indoor or outdoor applications from touring and stage to theme parks, cruise ships and much more.
Integrated DMX and included remote control
Instant On
Low noise, 70 dBA at maximum output

Features:

12” Sealed motor – resists moisture
Variable speed range and control
Instant On
Low minimum speed
Integrated DMX
Included analog timer remote control
Reduced motor noise at low speeds, 70 dBA at maximum
Floor standing or truss mounting
Broad regulatory compliance

Specifications:

PHYSICAL

Width: 320 mm (12.6 in.)

Width with multi-function bracket: 397 mm (15.6 in.)

Height: 350 mm (13.8 in.)

Height with multi-function bracket: 407 mm (16.0 in.)

Depth: 176 mm (6.9 in.)

Weight: 8.5 kg (18.7 lb.)

PERFORMANCE

Maximum airflow: 1815 m3 (65,000 ft3 ) hour

CFM: 1083 CFM

Fan speed: 200-2500 rpm

Maximum noise level: 70 dBA

CONTROL AND PROGRAMMING

Control options: Included analog timer remote control, DMX, test switch

Control parameters: Instant or timer-controlled output

Fan: Variable output, 0-100%

Remote cable: 3-pin XLR, includes 3 m (9.8 ft.), maximum length 50m (164 ft.)

DMX channels: 1

DMX compliance: ANSI E1.11 - USITT DMX512-A

CONSTRUCTION

Housing: Steel

Color: Black

Fan motor: 12” Sealed axial

Multi-function bracket: Integrated yoke w/safety attachment point

INSTALLATION

Mounting: Floor or hanging

Orientation: Any

Minimum clearance around machine: 101 mm (4 in.)

CONNECTIONS

AC Power,

EU: IEC male inlet, C14AC Power,

NEMA 5-15PDMX in/out: 3- and 5-pin locking

XLRRemote control: 3-pin locking XLR

ELECTRICAL

AC power: 220-240 V AC nominal, 50/60 Hz
Typical current draw: 0.5 A @ 230 V *
Power Consumption
Typical: 120 W *

* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
THERMALMaximum ambient temperature (Ta max.): 55° C (131° F)Minimum ambient temperature (Ta min.): 0° C (32° F)
APPROVALSEU safety: EN 60 335-1EU EMC: EN 61000-6-3, EN 62233EU immunity: EN 61000-6-1US safety: UL 507Canadian safety: CSA C22.2 No 113Australia/NZ: RCM (pending)United Kingdom: UKCA

INCLUDED ITEMS

Analog timer remote control, 3 m (9.8 ft.) cable: P/N M55765042

Power input cable, EU, IEC C13 female, stripped ends, 1.5 m (4.9 ft.): P/N 11501012 Multi-function bracket and hardware

ACCESSORIES

G-clamp: P/N 91602003
Half-coupler clamp: P/N 91602005
Quick trigger clamp (vertical hanging suspension only): P/N 91602007
Safety cable, SWL 60 kg, BGV C1/ DGUV 17, black: P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
Epsilon 5 AVR Programmer: P/N 50502004
