IMG Stageline TXS-646 4 Channel Wireless Desktop Microphone Conference Mic System

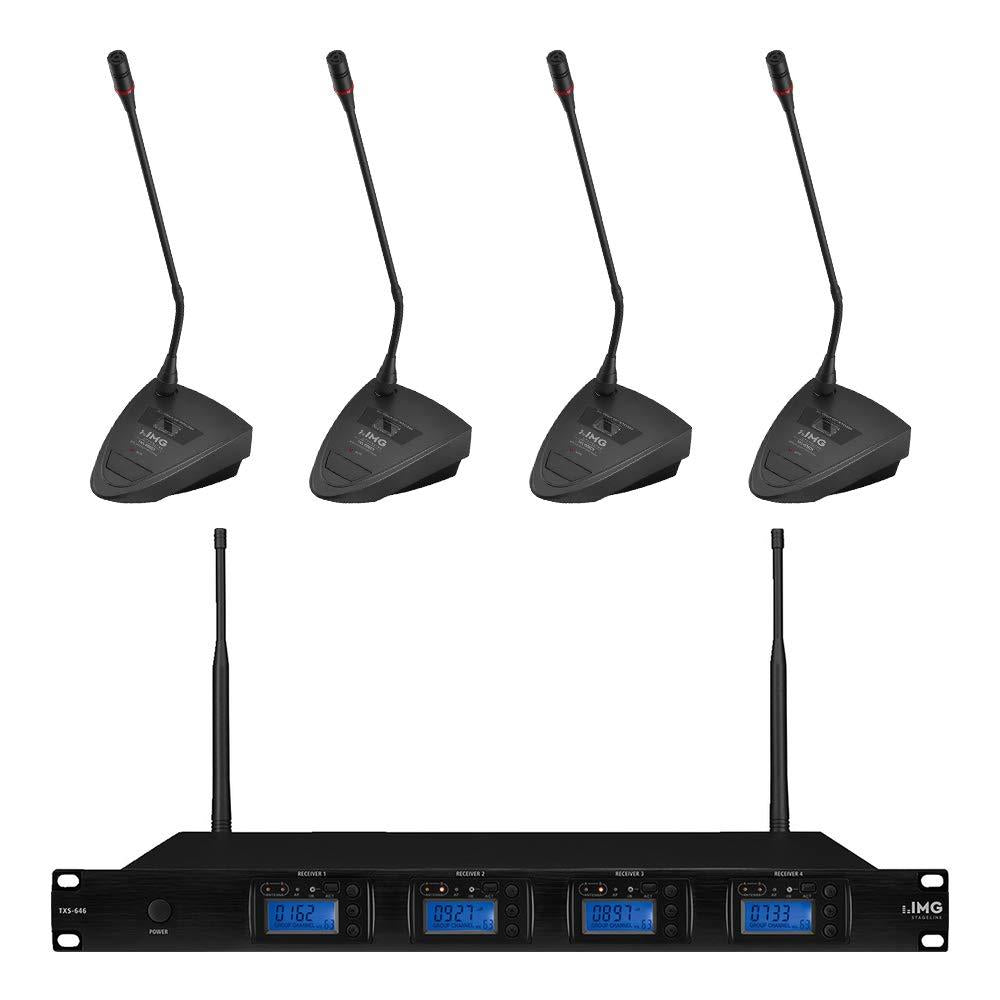

This bundle includes 1x IMG Stageline TXS-646 4-Channel Multi-frequency Receiver and 4x IMG Stageline TXS-606DT Wireless Desktop Microphones.

Quad receiver TXS-646
1,000 selectable UHF frequencies () for each channel (10 groups with 100 channels each)
ACT function for transmitting the selected frequency to pocket transmitter TXS-606LT or hand-held microphone TXS-606HT via infrared signal
Automatic scan
True diversity system with removable antennas (BNC connection)
Volume and squelch can be adjusted for each channel
LCD for group/channel, antenna A/B, RF transmitting level, AF audio level and additional LED display for audio signal of each channel
XLR output for each channel, bal.
6.3mm output for mixed signal
Robust metal housing
Supplied with PSU
482mm (19") rack installation, 1RS

Specifications
Carrier frequency range 672.000-696.975 MHz
Audio frequency range 30-18,000 Hz
Channels 4
THD < 0.500%
Dynamic range 100 dB
RF S/N ratio 105 dB
Admiss. ambient temp. 0-40 °C
Specifications receiver
Audio signal receiver 350 mV/600 Ω (jack)
25 mV/600 Ω (XLR, bal.)
Power supply receiver via encl, plug-in power supply
Connections receiver 4 x XLR, bal.,
1 x 6.3 mm jack, unbal.

Dimensions
482 x 45 x 310 mm

Weight
2.900 kg

IMG Stageline TXS-606DT
Wireless desktop microphone with integrated multi-frequency transmitter.

Electret microphone cartridge, cardioid polar pattern
350 mm gooseneck, removable
1,000 selectable UHF frequencies (), can be synchronised with receivers TXS-606, TXS-626, TXS-646 or TXS-686 via ACT function
Adjustable sensitivity
Switchable transmitting power (high: 25 mW/low: 2.5 mW)
LCD for indicating group/channel, audio level and battery status
Power supply via 2 x 1.5 V battery AA size (not supplied)

Specifications
Transmission method wireless
Polar pattern cardioid
System electret
Transmitting power 25 mW/2.5 mW
Power supply 2 x 1.5 V batt. AA size
Operating time > 8 h
Audio frequency range 30-18,000 Hz
Admiss. ambient temp. 0-40 °C

Dimensions
120 x 65 x 178 mm (w/o gooseneck)

Weight
1.200 kg (Single Unit)
