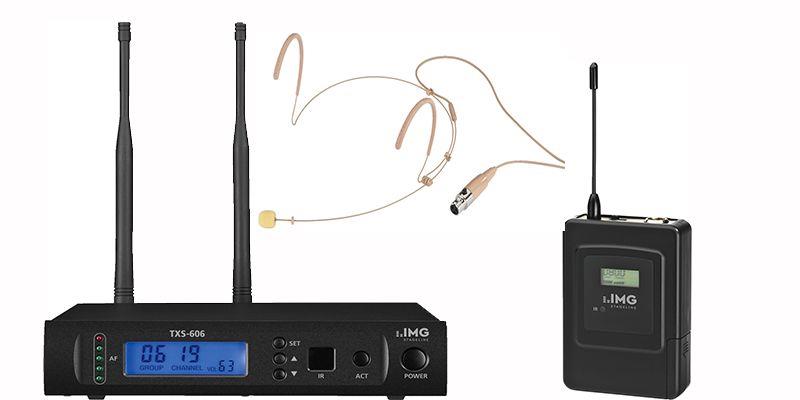

IMG Stageline TXS-606PK1 Headset Radio Microphone Wireless CH38

Single-channel 38 kit.

Features
Multifrequency receiver unit, with UHF PLL technology.
1,000 selectable UHF frequencies (606.000-614.000 MHz) in 10 groups with 100 frequencies each
ACT function for transmitting selected frequency to pocket transmitter TXS-606LT/38 or hand-held microphone TXS-606HT/38 via infrared signal
Autoscan
True diversity system with removable antennas (BNC connection)
Volume and squelch controls
LCD for indicating group/channel, antenna A/B, RF receiving level and AF audio level
Additional LED level display for indicating audio level
XLR output and 6.3 mm output
Robust metal housing
Supplied with power supply

Specifications
Carrier frequency range: 606.000-614.000 MHz
Audio frequency range: 30-18,000 Hz
Channels: 1
THD: < 0.5%
Dynamic range: 100 dB
RF S/N ratio: 105 dB
Admiss. ambient temp.: 0-40 °C
Audio signal receiver 350 mV/600 Ω (jack)
25 mV/600 Ω (XLR, bal.)
Power supply receiver via encl.
plug-in power supply
Width receiver 212 mm
Height receiver 45 mm
Depth receiver 180 mm
Weight receiver 930 g
Connections receiver 1 x XLR, bal.
1 x 6.3 mm jack, unbal.
Multifrequency 1

Includes
1 x TXS-606/38
1 x TXS-606HSE/38
1 x HSE-130/SK
