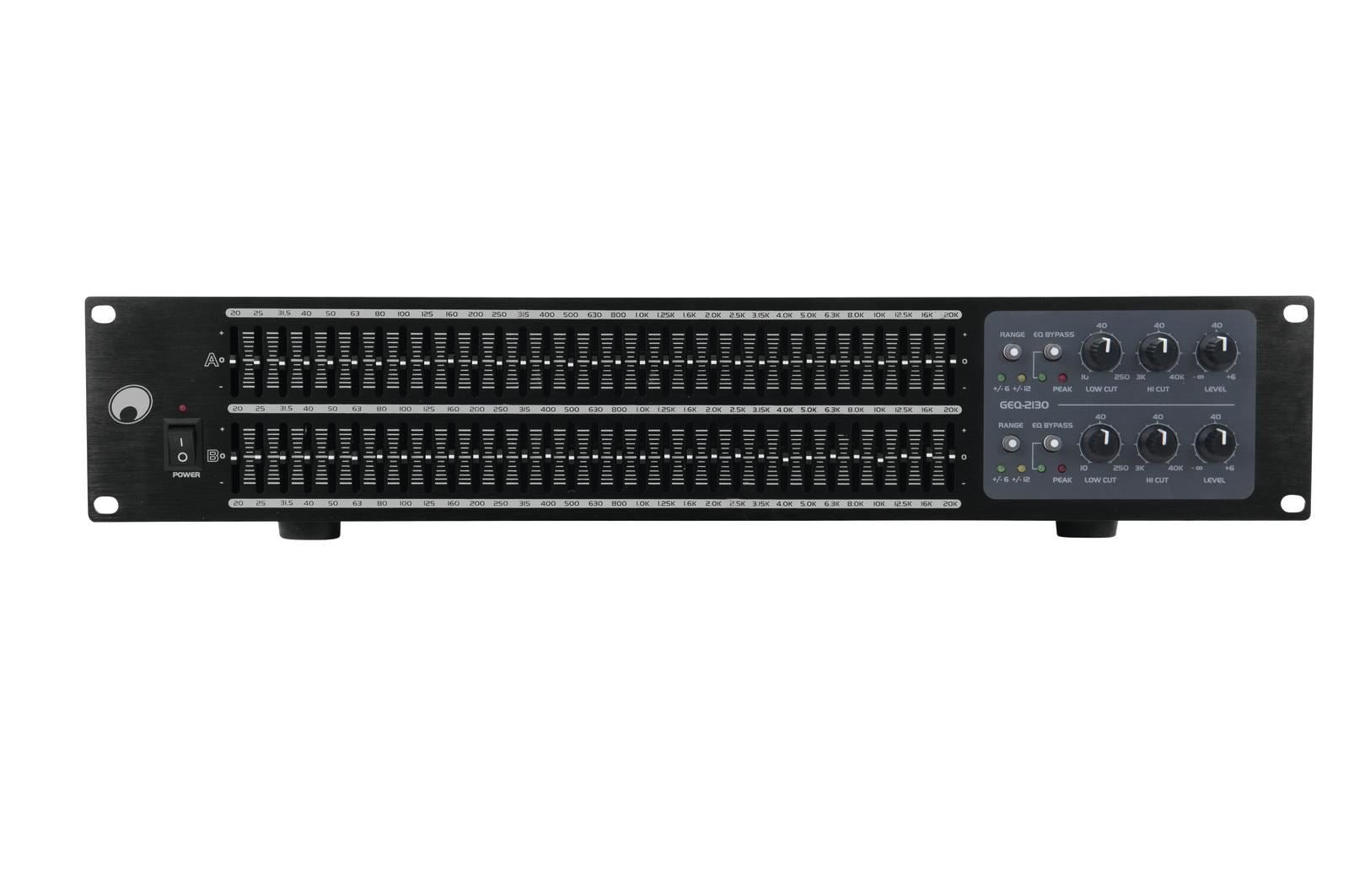

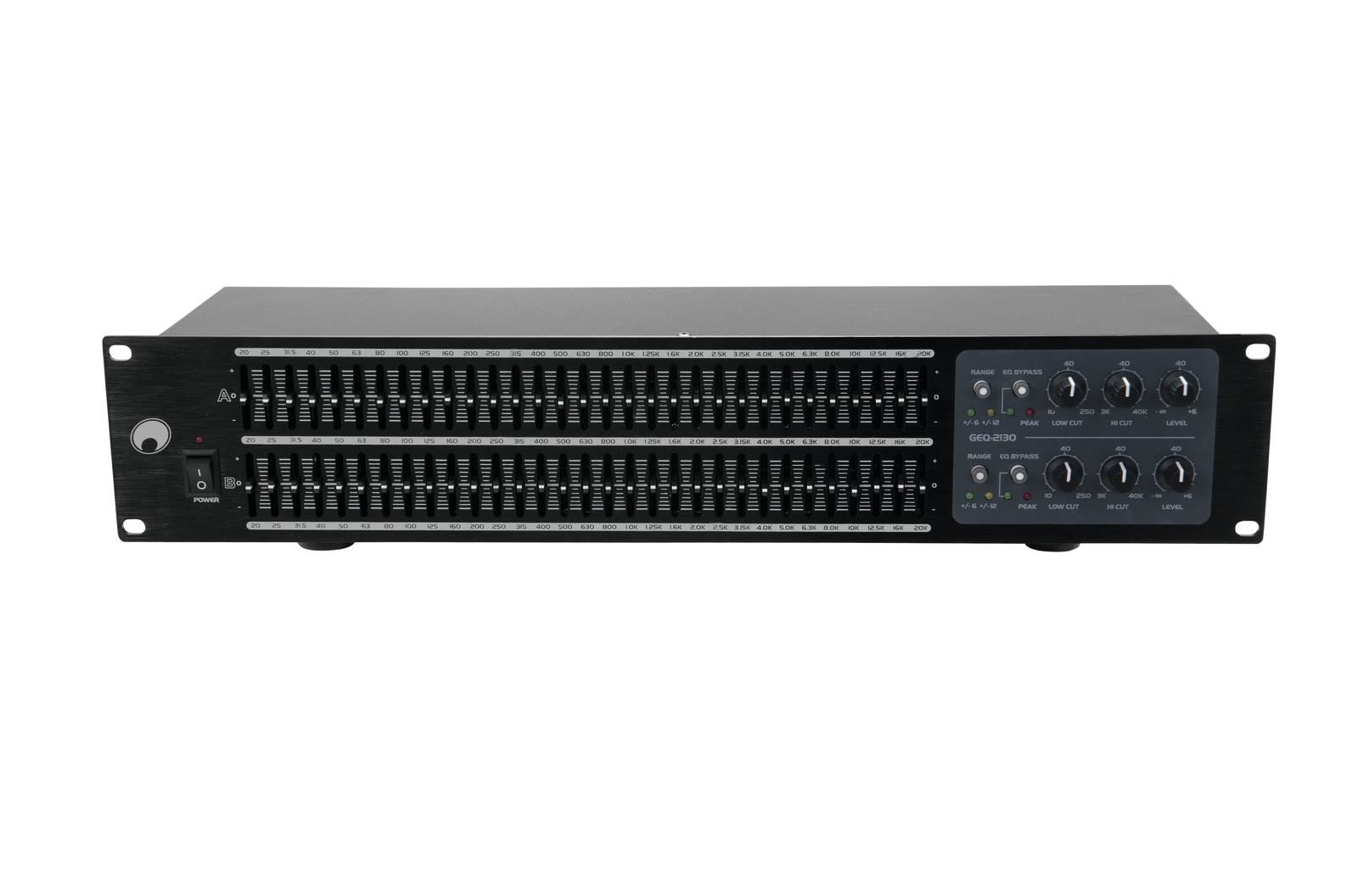

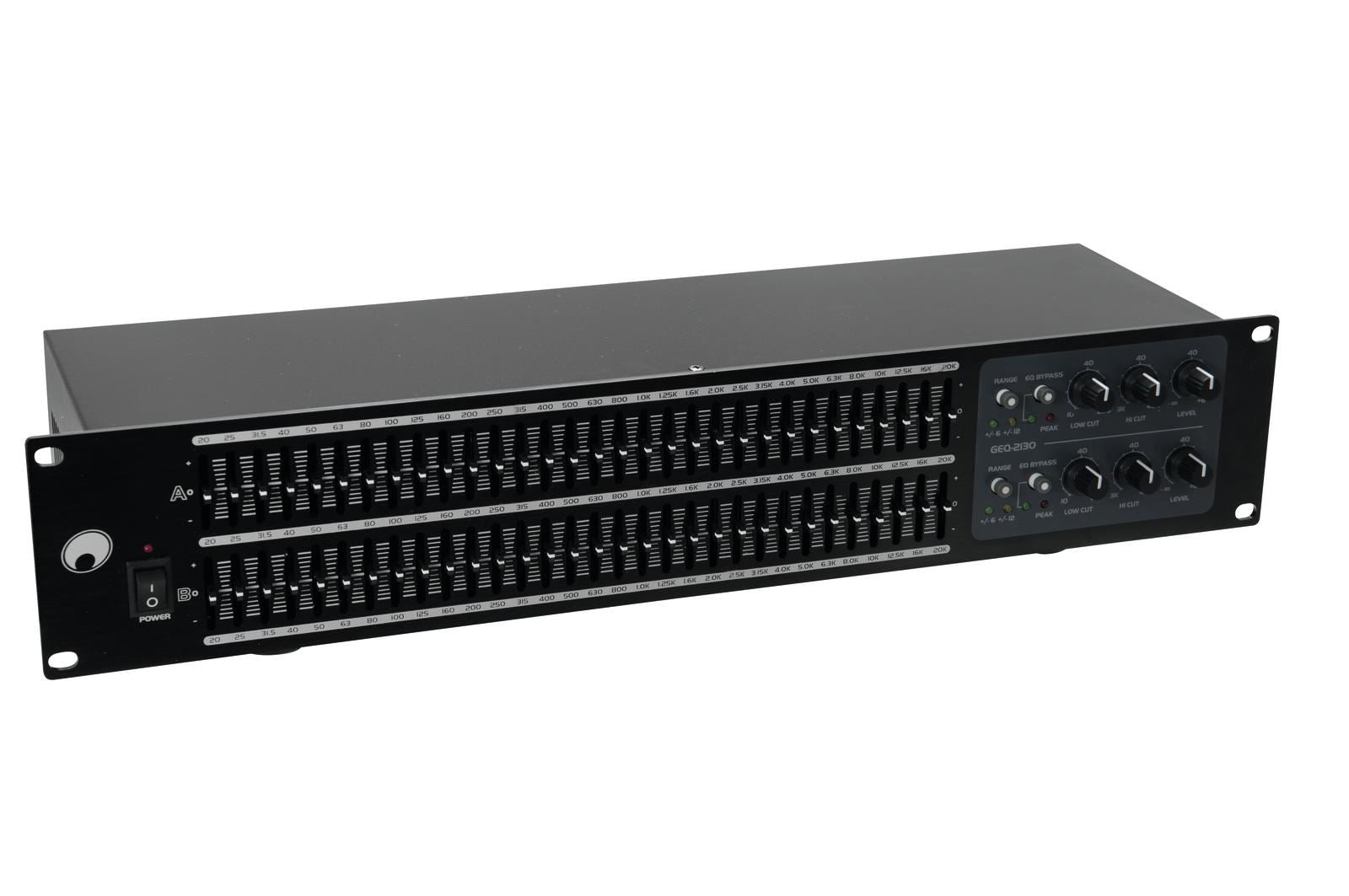

Omnitronic Geq-2310 Equalizer 2X31-Band
- £164.00
- £164.00
- Unit price
- per
2 x 31-band equalizer
iFrame
Description
2 x 31-band equalizer
- 2-channel version, 2 x 31 frequency controls with 1/3 octave steps
- Long sliding frequency controls with center click
- EQ gain switchable ?6 dB to ?12 dB
- Hi Cut (3-40 kHz) and Low Cut (10-250 Hz), adjustable
- Separate level control per channel
- Bypass switch allows instant comparison of the original sound with the equalized sound
- Clip indicator

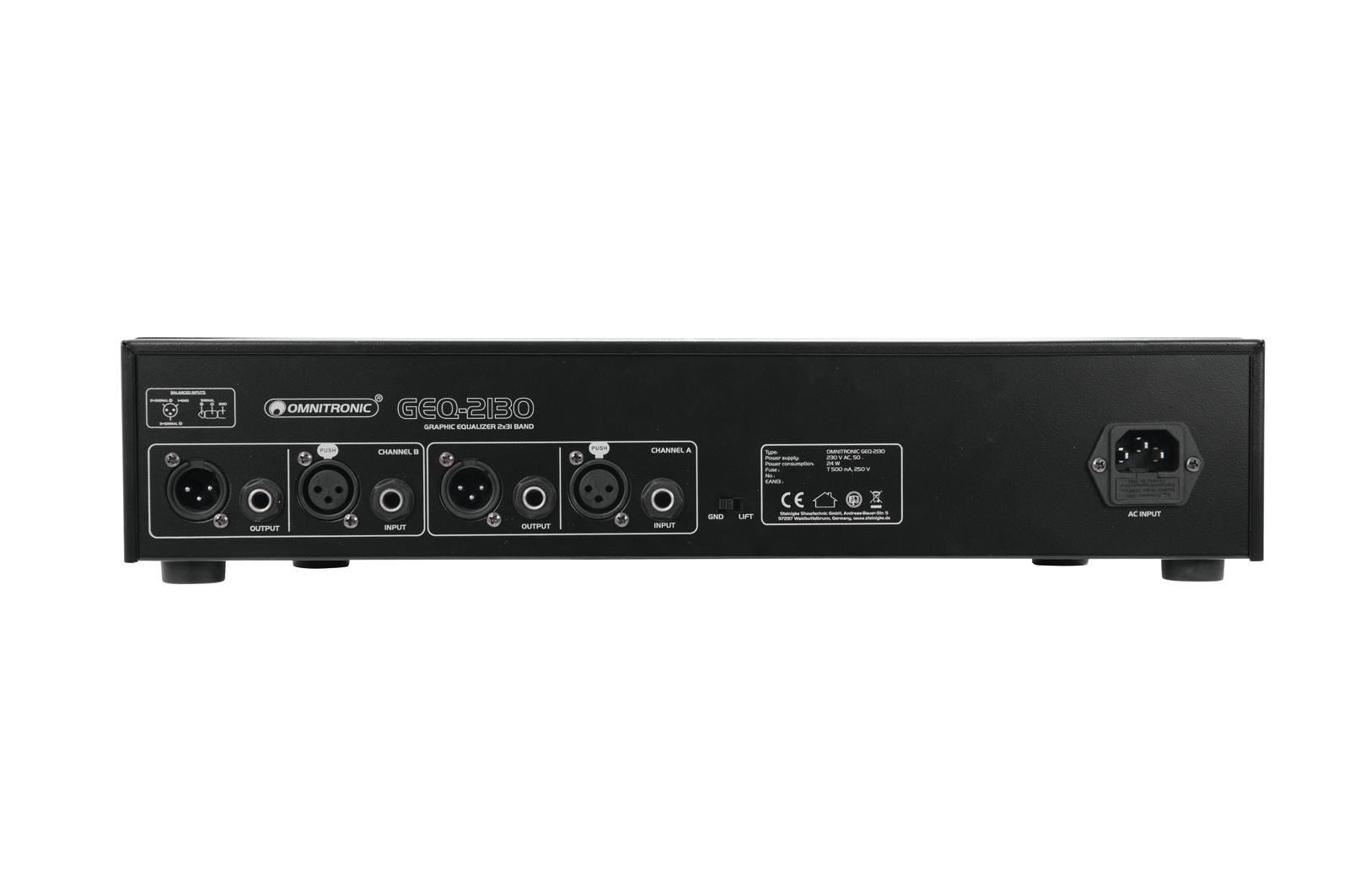

- Inputs and outputs via 6.3 mm jack sockets and XLR sockets
- Groundlift switch
- Rack installation, 2 U
- (19") 48.3 cm rack installation 2 U
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 17 W |
| Power connection: | Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided) |
| Frequency range: | 20 - 20000 Hz |
| S/N ratio: | >96 dB |
| THD: | <0.05 % at 1 kHz |
| Impedance: | Input 20 kOhm , bal. Input 15 kOhm , unbal. Output 300 kOhm , bal. Output 150 kOhm , unbal. |
| Gain: | Output: - ? to + 6 dB |
| Filter: | Hi cut: 3000 Hz - 40000 Hz; low cut: 250 Hz - 10 Hz |
| Control range: | ?6dB, ?12dB, switchable |
| Equalizer: | Master: 2 x Graphic equalizer 31-band Centre frequency: ISO standard, 1/3 octave (terzband), 20/25/31,5/40/50/63/80/100/125/160/200/250/315/400/500/ 630/800 Hz, 1/1,25/1,6/2/2,5/3,15/4/5/6,3/8/10/12,5/16/20 kHz |
| Connections: | Input: 2 x line via 3-pin XLR Input: 2 x line via 6.3 mm plug (unbal.) Output: 2 x line via 3-pin XLR Output: 2 x line via 6.3 mm plug (unbal.) |
| Max. level: | Input: +24 dBu, bal. Input: +18 dBu, unbal. Output: +24 dBu, bal. Output: +18 dBu, unbal. |
| Material: | Metal |
| Color: | Black |
| Housing design: | (19") 48.3 cm rack installation 2 U |
| Dimension: | Width: 48.3 cm Depth: 15 cm Height: 8.9 cm |
| Weight: | 2.92 kg |
