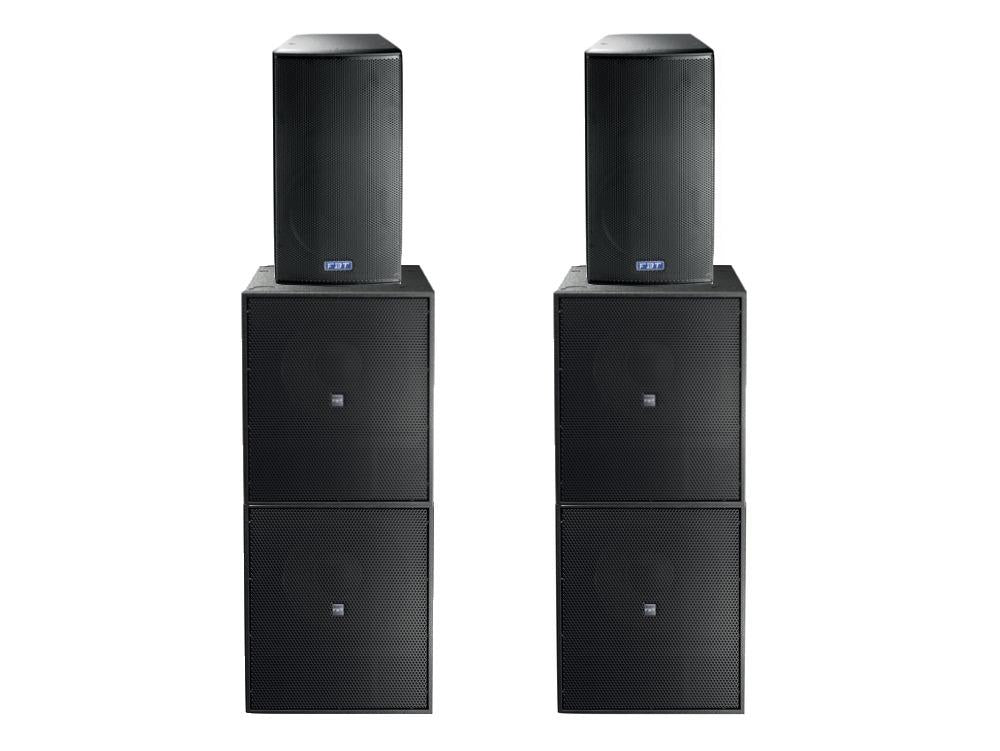

FBT Audio MT 2000 Package

Description
MITUS 114A + MITUS 118SA combination Mid-High Cabinet The FBT MITUS 114A two-way bi-amplified speaker system shall incorporate 1 x 14” B&C neodymium woofer with 3” voice coil and 1.4” exit B&C neodymium driver with 2.5” voice coil coupled to a rotatable 70° x 50° horn; thanks to the rotatable HF horn it is possible to create horizontal arrays of 2 enclosures for a total coverage of 120°. The FBT MITUS 114A shall meet the following performance criteria: Frequency response of 46Hz to 20kHz, Maximum SPL of 135.5dB, 600W RMS + 300W RMS class D amplifiers. The FBT MITUS 114A provides a DSP with 8 EQ presets. The FBT MITUS 114A feature 0.59" baltic birch plywood construction covered in a scratch & scuff resistant black finish; the front shall be protected by a heavy duty metal grille with anti-resonance spacers and exclusive synthetic cloth to protect the drivers.The control panel provides XLR input & link, level, preset, HP filter and GND lift. The 12 M10 anchoring points built into the cabinet allow the FBT MITUS 114A speaker to be surface mounted on ceilings and a standard 1.38" speaker stand socket allows the FBT MITUS 114A to be mounted on speaker stands. Subwoofer The FBT MITUS 118SA, 18" compact vented band-pass subwoofer is the perfect low-frequency extension for the MITUS range and the ideal companion for the FBT MITUS 206LA line array for ground stack applications with optional metal base. The FBT MITUS118SA shall meet the following performance criteria: Frequency response of 36Hz to 100Hz, Maximum SPL of 139dB peak,Class D amplifier 1200W RMS. The FBT MITUS 118SA provides a DSP with 8 presets-cardioid and infra configurations. The FBT MITUS 118SA feature 0.70" Baltic birch plywood construction covered in a scratch resistant black paint with eight M10 fly points, M20 top-mounted stand adapter and two FBT design aluminium handles. The control panel provides XLR in &link, volume control, preset, delay, phase 0°-180°, GND lift.

Features
Mid-High Cabinet
15mm / 0.59" baltic birch plywood cabinet
Class D built-in amplifier 600W RMS LF, 300W RMS HF
14" B&C neodymium woofer with 3" voice coil
1x1.4" exit B&C neodymium HF driver with 2.5" voice coil
70° H x 50° V rotatable horn
Input panel with XLR in&link, volume, preset, HP filter, GND lift
SPL capability: 135.5dB
Frequency response 46Hz to 20kHz
12 x M10 fly points
Completely Manufactured in Italy
Subwoofer
18mm / 0.70" birch plywood enclosure
1200W RMS class D amplifier
460mm/18" custom B&C neodymium magnet with
75mm/3" coil
Frequency response 36Hz - 100Hz
Input panel with XLR in & link, volume, preset, delay,
phase, GND lift
SPL capability 139dB
4 swivel mount casters 3.15" on request
8 M10 fly points
Completely Manufactured in Italy
