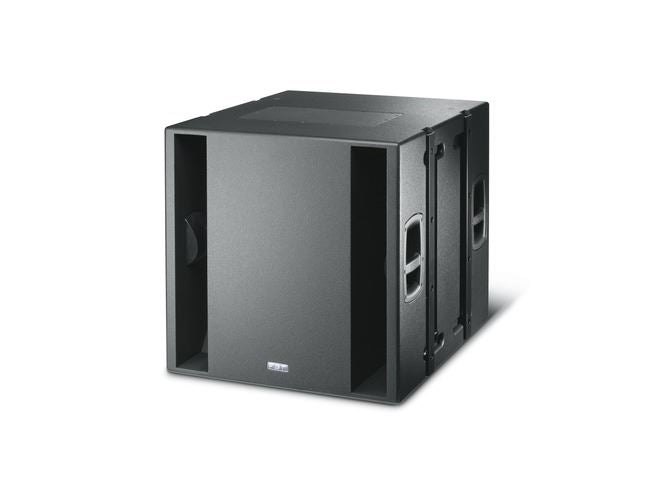

FBT Audio Modus 215FSA dual 15'' subwoofer

Description
The MODUS 215FSA is a dual 15'' subwoofer with a band-pass design and push-pull configuration, delivering significantly extended low frequency response despite its compact size. It is acoustically designed to support two or three MODUS 4805 or 4820 modules. The FBT MODUS 215FSA powered subwoofer meet the following performance criteria: frequency response of 33Hz to 100Hz, peak output of 146dB half-space, input impedance 22 kOhm . FBT MODUS 215FSA is of bandpass design incorporating 2x15” B&C neodymium woofers with 4” voice coil. High efficiency internal amplifier 2000W in “D” Class with switch mode power supply and built in DSP signal processor with 6 eq. presets cardioid configurations. All components are mounted in a 0,70" birch plywood enclosure with a resistant black textured finish. The rear facing input panel provides XLR signal input and link, level control, preset, delay , phase 0°-180° switch, diagnostic led, power supply with Neutrik powercon cable duplex with input and output. The FBT MODUS 215FSA can be suspended above the line array modules or ground stacked.

Features
Powered subwoofer in band-pass push-pull
2 x 380mm (15") B&C neodymium subwoofer with 100mm (4") coil
Class D amplifier delivering 2000W RMS with high efficiency switch mode power supply
DSP with 6 EQ presets cardioids configurations, delay
control panel with XLR input and link, volume, presets, delay, phase 0°-180°, ground lift
Frequency response extended to 33HZ
18 mm (3/4") birch plywood enclosure, with 4 integrated handles and mechanical hardware for suspension
the particular acoustic loading enable to drastically reduce the distortion and movement of the cone, ensuring high SPL and very high reliability

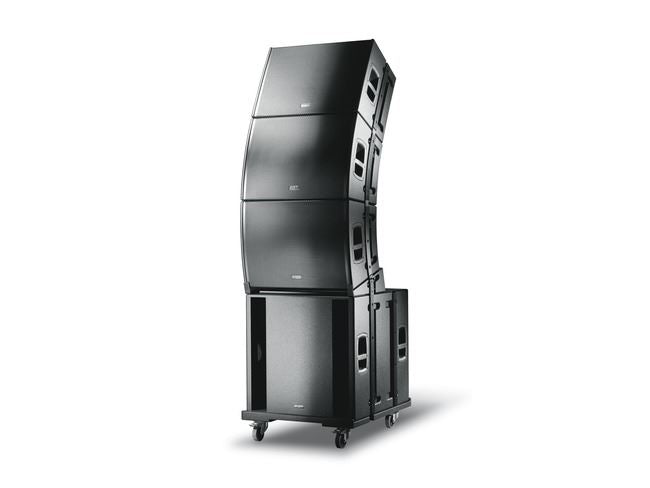

can either be suspended above the line array modules or ground stacked
4 Optional wheels for transport


Specification
Configuration:1 Way
Frequency response:33Hz - 100Hz
Low frequency woofer:2x 15" with 4" VC
Maximum SPL cont/peak:140 / 146dB
Dispersion:Omnidirectional
Input impedance:22kohm
Input connector:XLR with link
Net Dimension (WxHxD):727 x 512 x 580mm
Net Weight:94.5kg
Transport Dimension (WxHxD):920 x 1800 x 780mm
Transport Weight:106kg
AC Power requirements:1840VA
Built-in amplifier LF/HF:2000w RMS
Built-in amplifier peak LF/HF:4000w
Power cord:5m PowerCon True1
