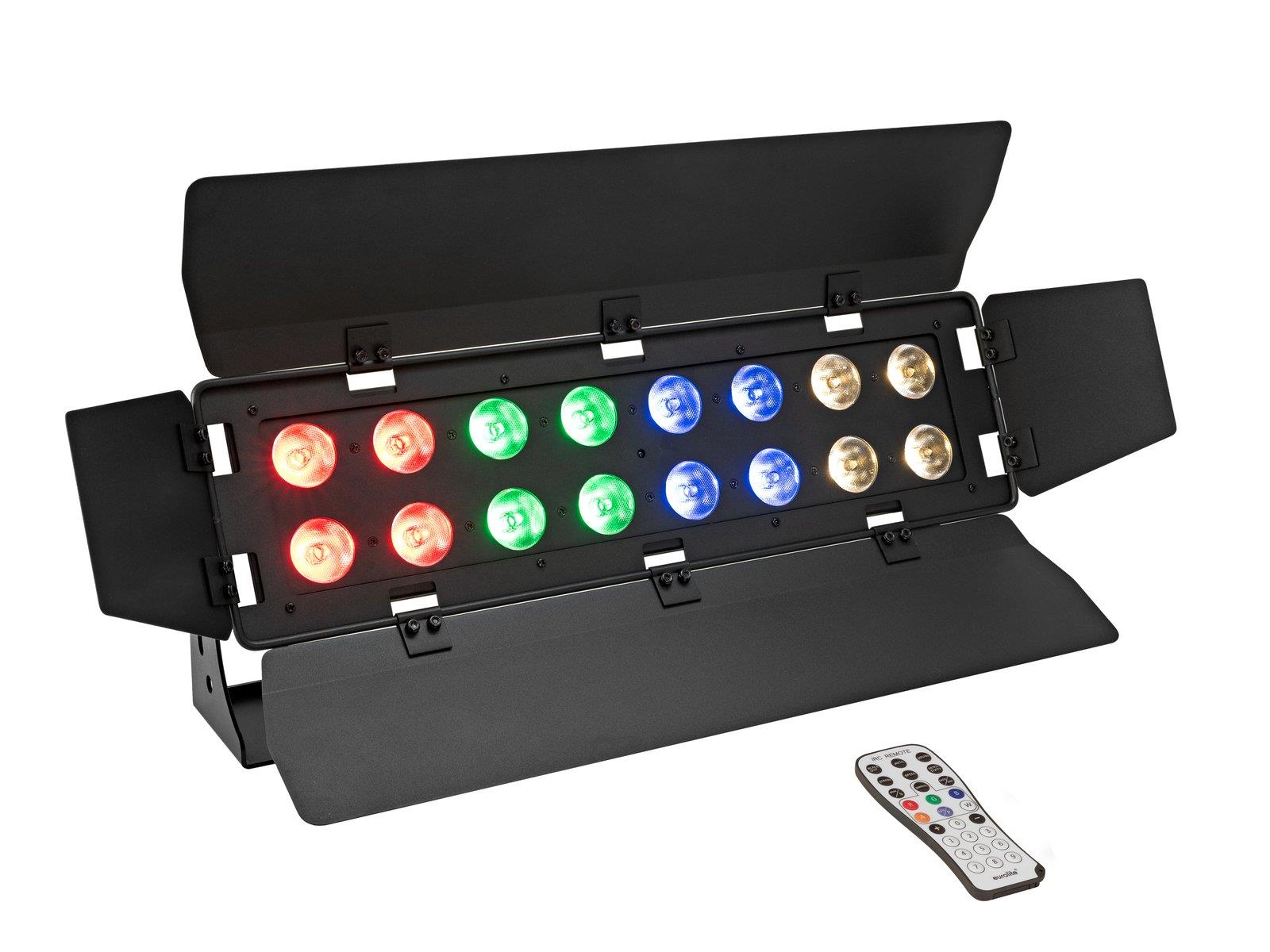

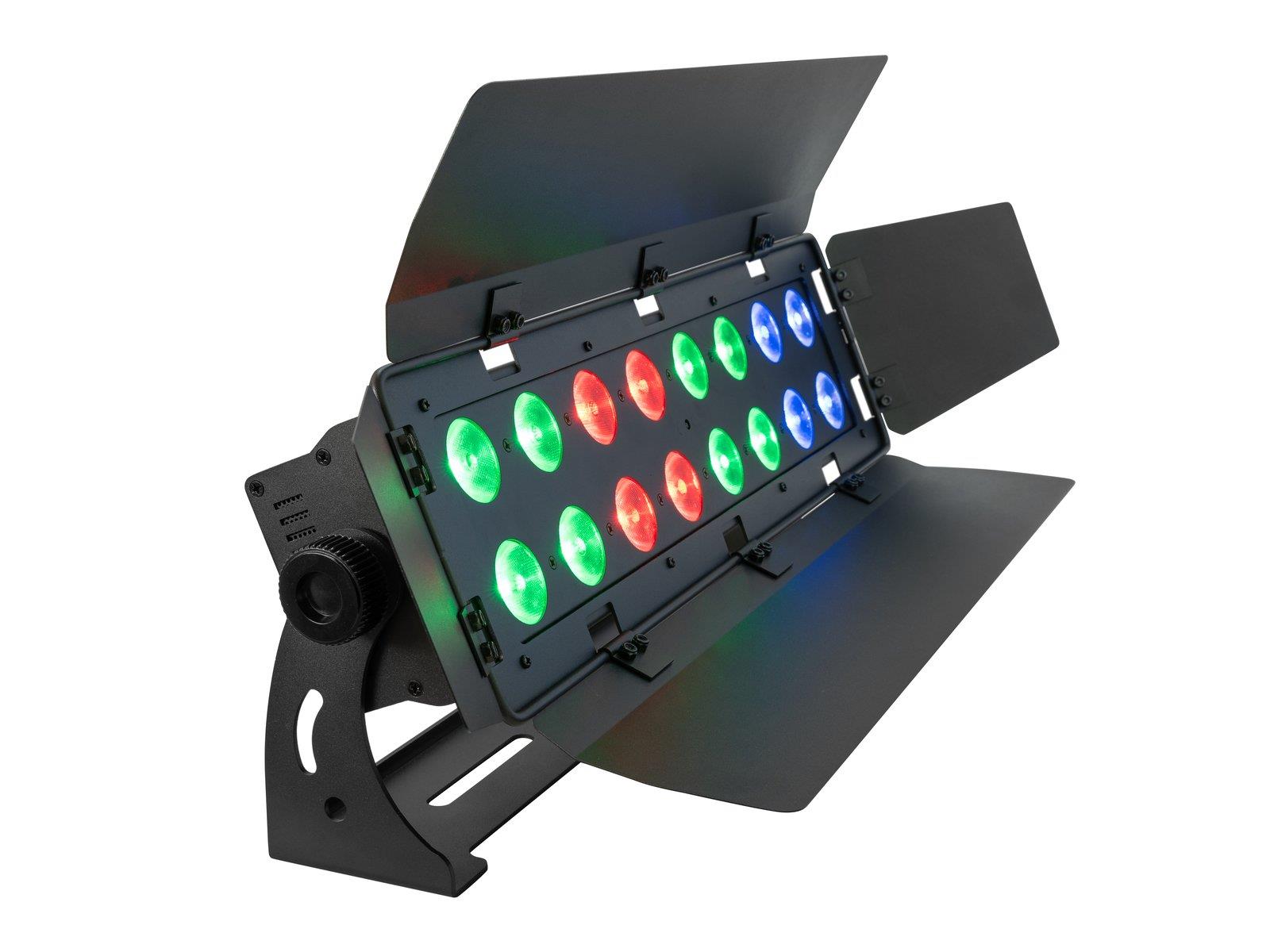

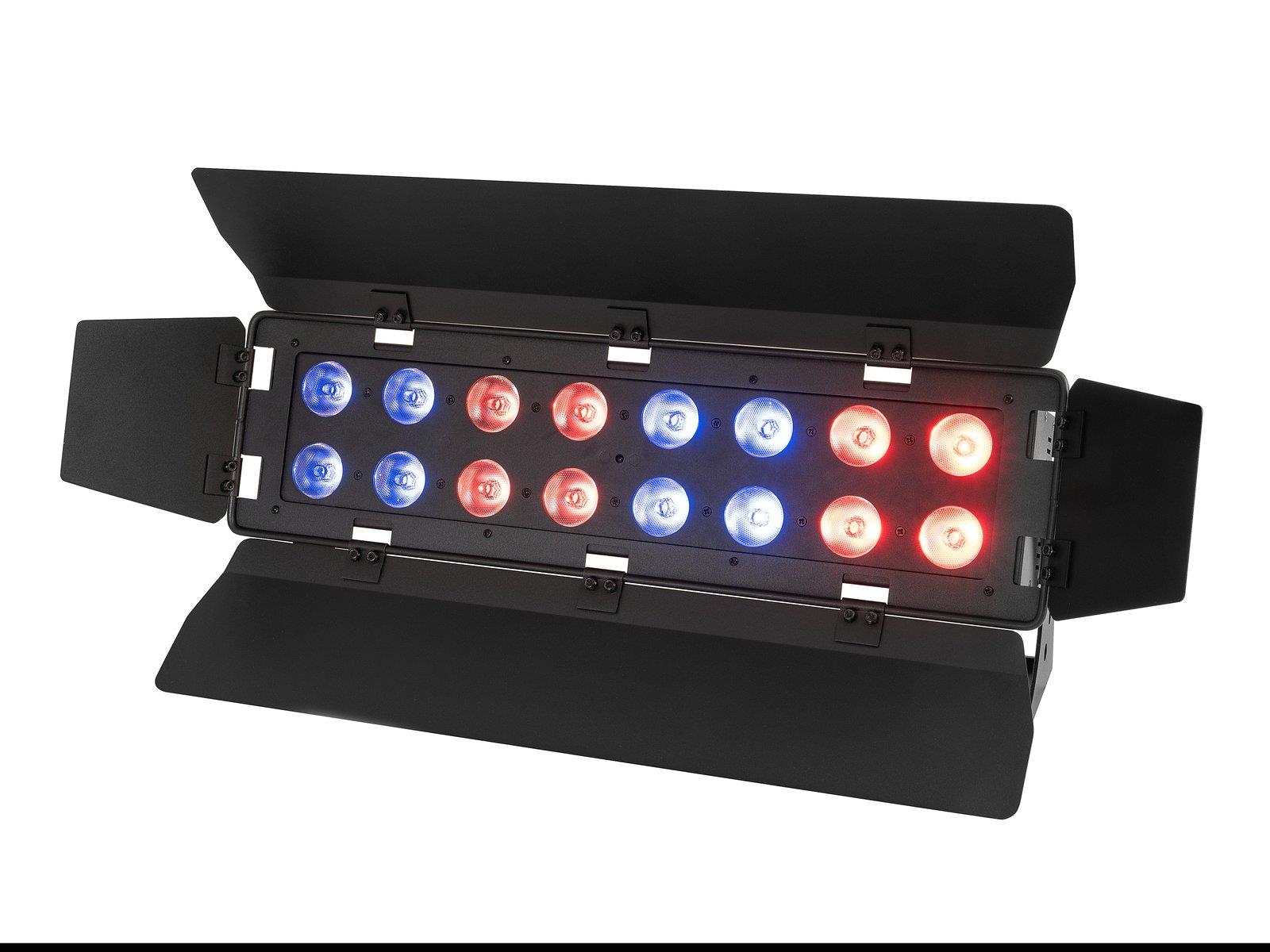

Eurolite Stage Panel 16 QCL RGB/WW LED

Description:

LED light effect bar with RGB/WW color mixing

16 powerful LEDs 7 W SMD 4in1 QCL RGB/WW (homogenous color mix)
9 integrated show programs
Direct color selection for 19 preset colors
The device is cooled by passive convection cooling
Control via stand-alone; Sound to light via Microphone; Master/slave function; DMX; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); IR remote control
Flicker-free
With a beam angle of 15°
With Mounting bracket
4 digit 7-segment LED display
4 pixel groups for dynamic running light effects

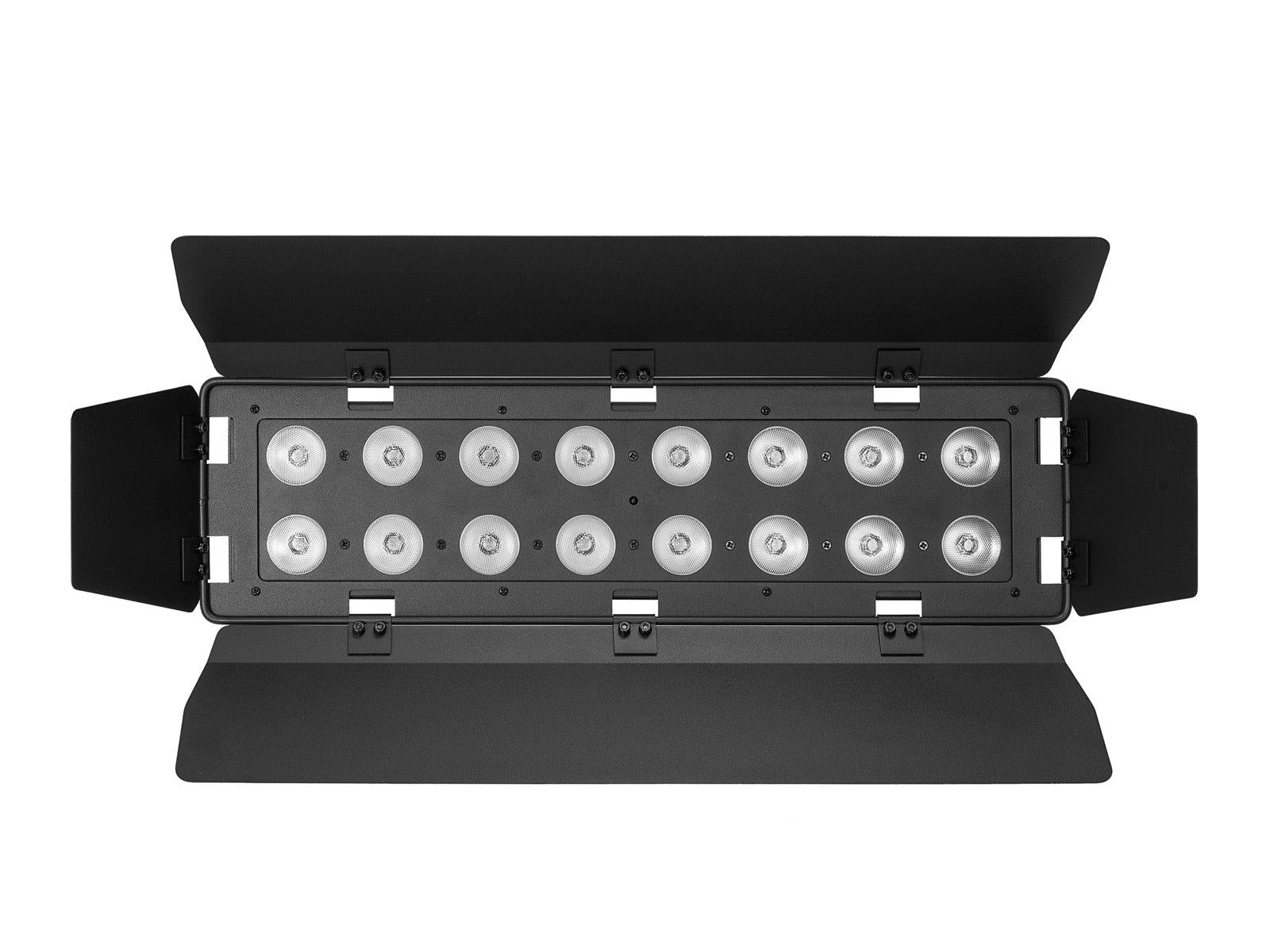

4 barn doors to avoid blinding the audience and for protection during transport
Preprogrammed in Light Captain; Colorchief; EASY SHOW 2; EASY SHOW 3; Light´J
Mains input and output for power linking up to 8 units

Specifications:

Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 65 W
IP classification: IP20
Protection class: Protection class I

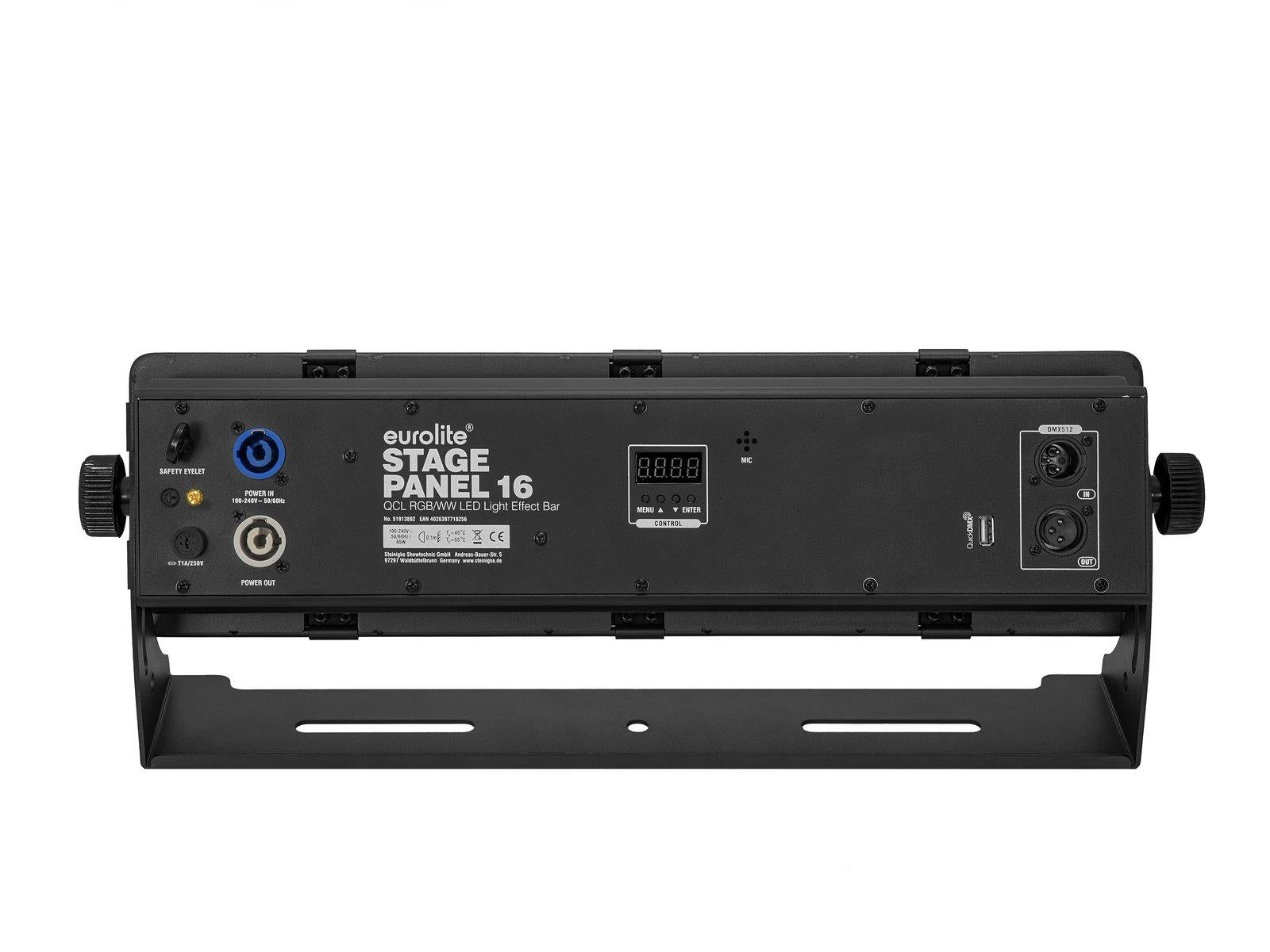

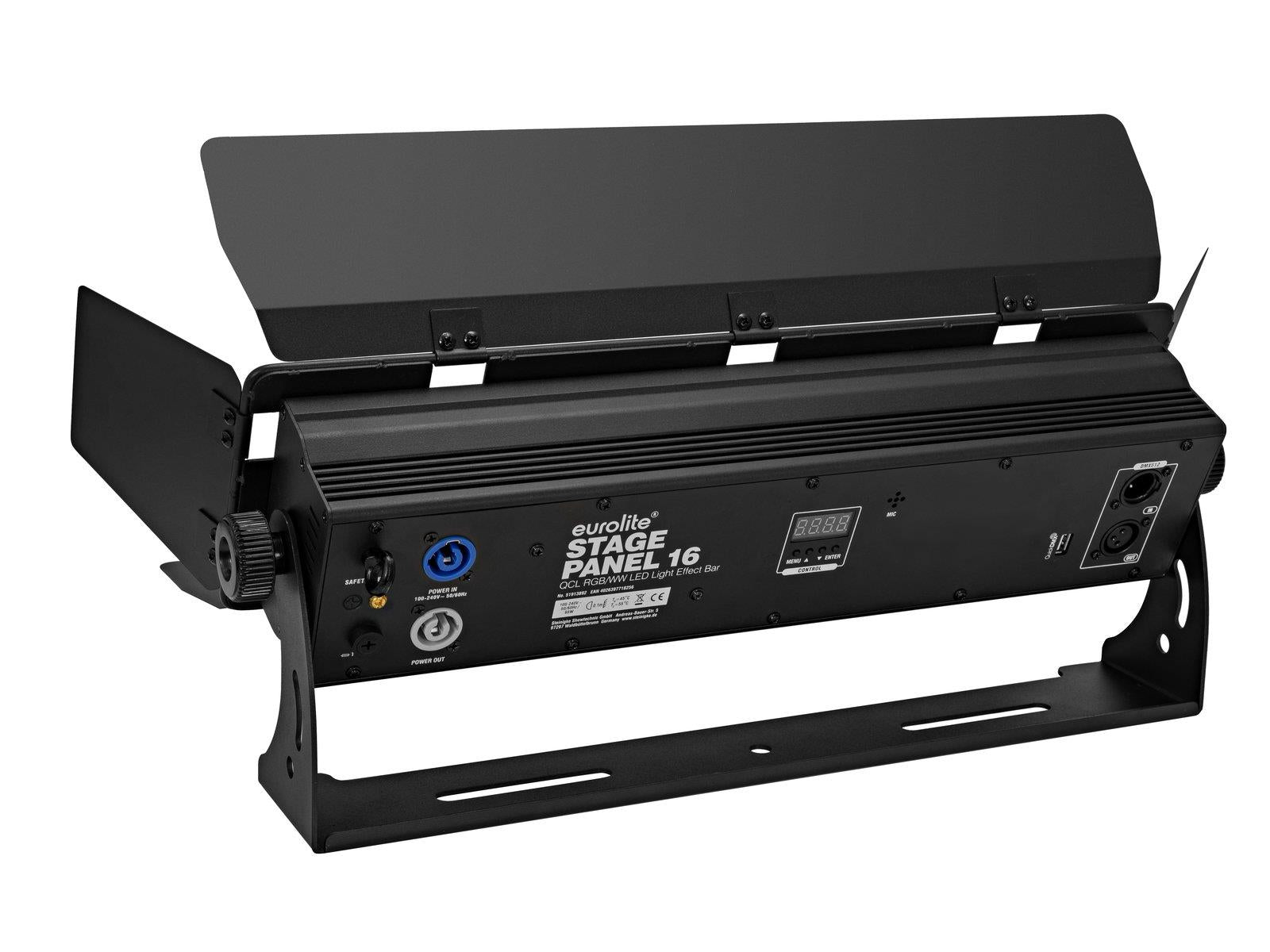

Power connection: Mains input via P-Con (blue), mounting version power supply cord with safety plug
Power output: P-Con (gray), mounting version
Fuse: T 1 A Fuse replaceable
Lamp type: LED lamp
LED: 16 x 7 W SMD 4in1 QCL RGB/WW (homogenous color mix)
Flash rate: 0 - 20 Hz
DMX channels: 3; 4; 5; 6; 8; 9; 16; 24
DMX input: 3-pin XLR (M) mounting version
DMX output: 3-pin XLR (F) mounting version
Cooling: Passive convection cooling
Control: Stand-alone; Sound to light via Microphone; Master/slave function; DMX; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); IR remote control
Preprogrammed in: Light Captain; Colorchief; EASY SHOW 2; EASY SHOW 3; Light´J
Beam angle: 15°
Beam angle (1/2 peak): 15°
Beam angle (1/10 peak): 32°
Housing color: Black
Attachment system: Mounting bracket
Display type: 4 digit 7-segment LED display
Dimensions:
Width: 52,5 cm
Depth: 9,9 cm
Height: 18,1 cm
Weight: 5,35 kg
Remote control
Battery: Button cell 3.0 V CR2025 lithium manganese built-in
Legal specifications
Special product: Not designed for household room illumination
Intended use: Show effect lighting
