Epic Audio FONESTAR MX-867RU Mixer/preamplifier 5-channel Matrix 4 Output Zones

Description:

Mixer/preamplifier with 5-channel audio matrix assignable to 4 output zones with independent volume control. USB/SD player with digital radio FM tuner. Audio distribution in multi-zone installations with different music programmes. Independent output remote volume control.

Features:

Excellent features

Matrix allocation of 5 input channels to 4 output zones

Priority paging

Phantom power supply

Remote volume control

Specifications:

Mixer/preamplifier
Microphone input with paging priority
Matrix allocation of 5 input channels to 4 output zones
USB/SD player
Digital FM radio tuner
4 speaker zones with independent volume control
Remote zone volume control
Phantom power supply

INPUTS:
1 balanced microphone, 6.3 mm stereo jack, 12 mV RMS
1 balanced mic., combo (XLR and 6.3 mm jack), 12 mV RMS
2 balanced mics./lines combo (XLR and 6.3 mm jack) adjustable, 12 mV RMS and 640 mV RMS
1 stereo aux, 2 x RCA, 230 mV RMS
1 stereo aux, 3.5 mm jack, 450 mV RMS

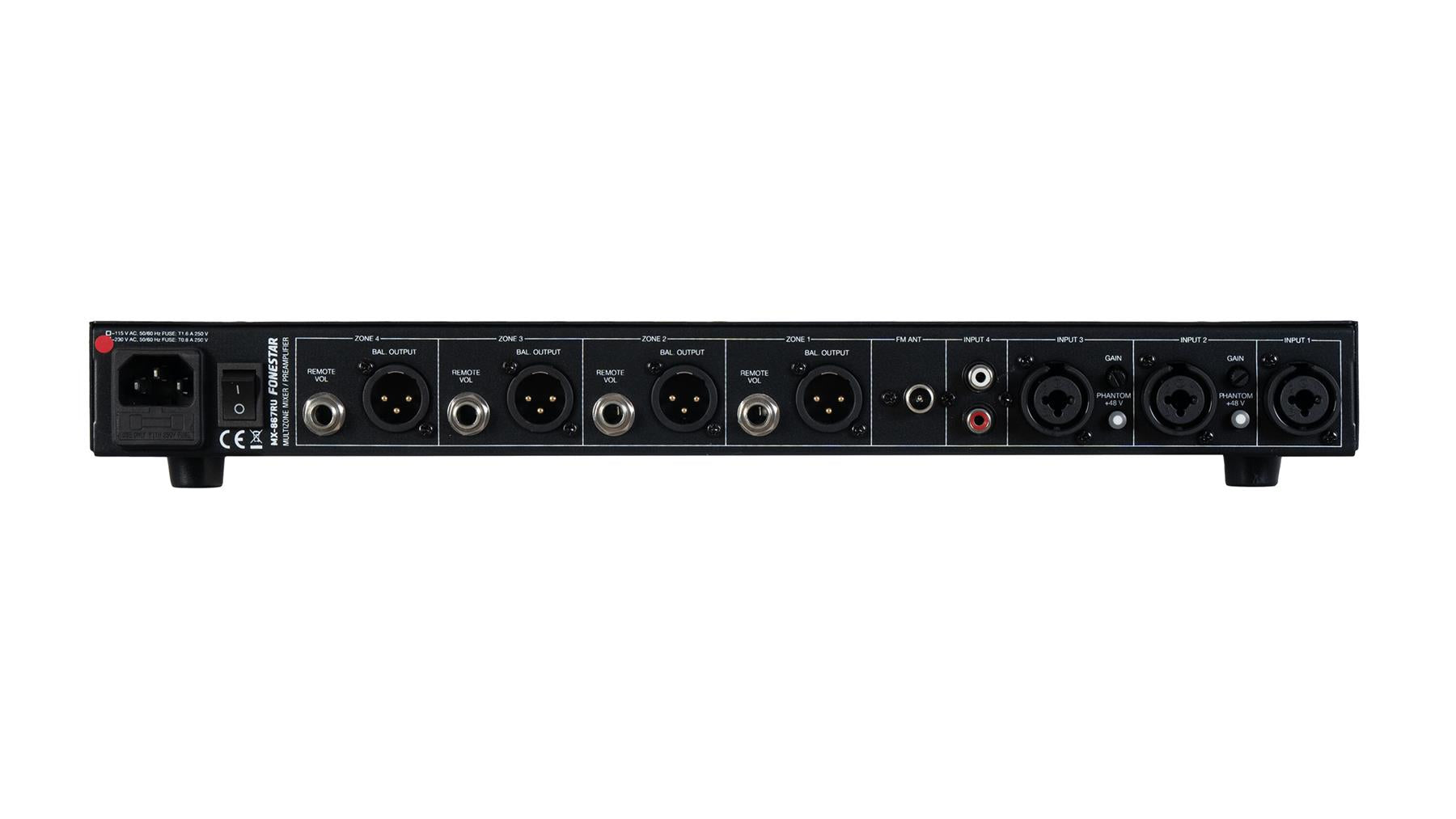

OUTPUTS:
4 balanced zones, XLR, 2.5 V RMS
Remote volume control for the zones
1 stereo monitor, 6.3 mm jack, 1 V RMS

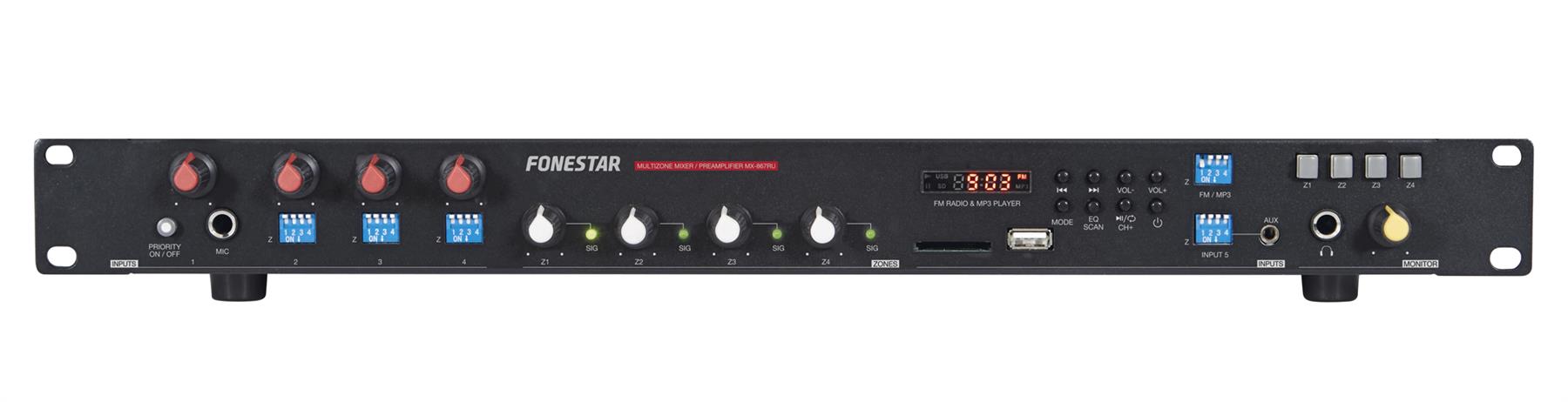

CONTROLS:
4 micro allocation switches for zones 1 to 4
Inputs 1 to 4: volume control
Inputs 2 and 3: gain control
Zones 1 to 4: volume control
Monitor: volume control and zone selection
USB/SD player
FM tuner

RESPONSE:
20-20,000 Hz

DISTORTION:
Harmonic: < 0.2 % to 1 kHz

S/N RATIO:
Microphones > 65 dB
Aux/Line > 80 dB

PHANTOM:
48 V in mics. 2 and 3, selectable

PRIORITY:
Mic. 1 input level priority, selectable

POWER SUPPLY:
230/115 V AC, 9 W

DIMENSIONS:
483 x 44.5 x 200 mm depth, 1 U 19" rack

WEIGHT:
3.15 kg
