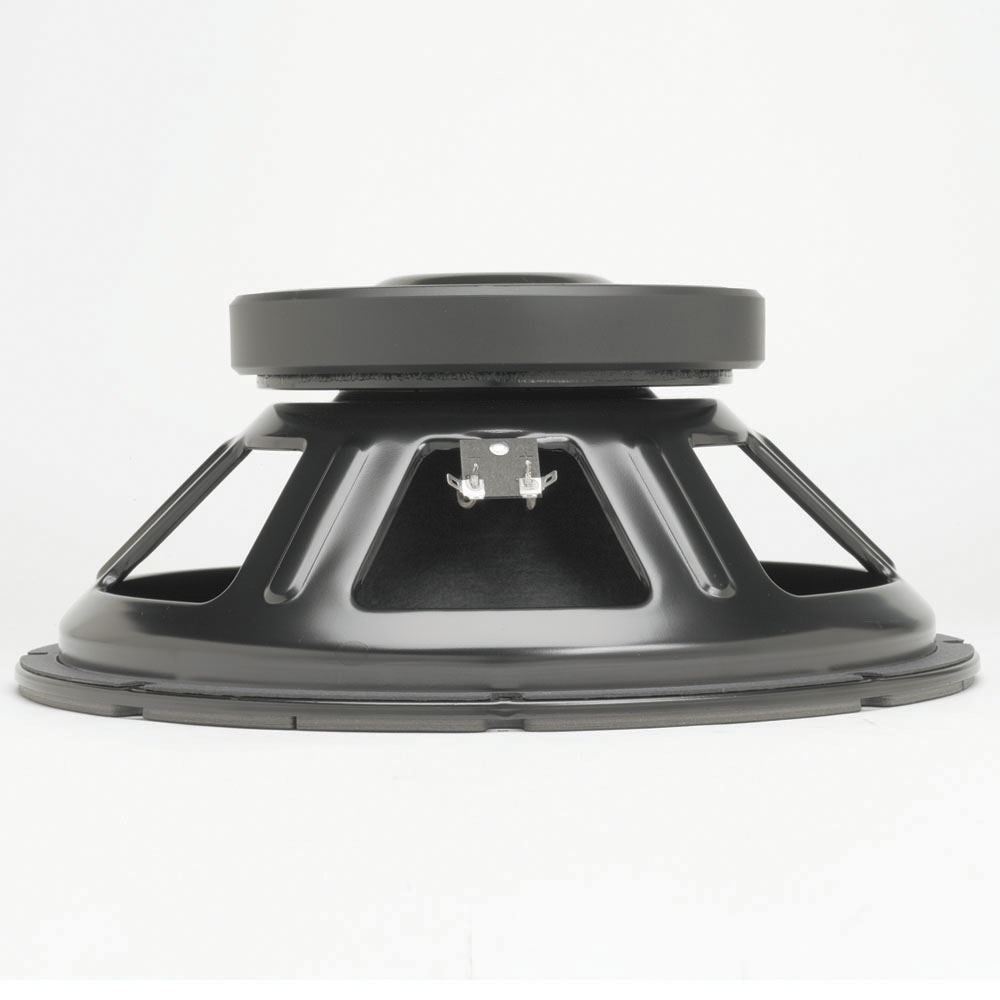

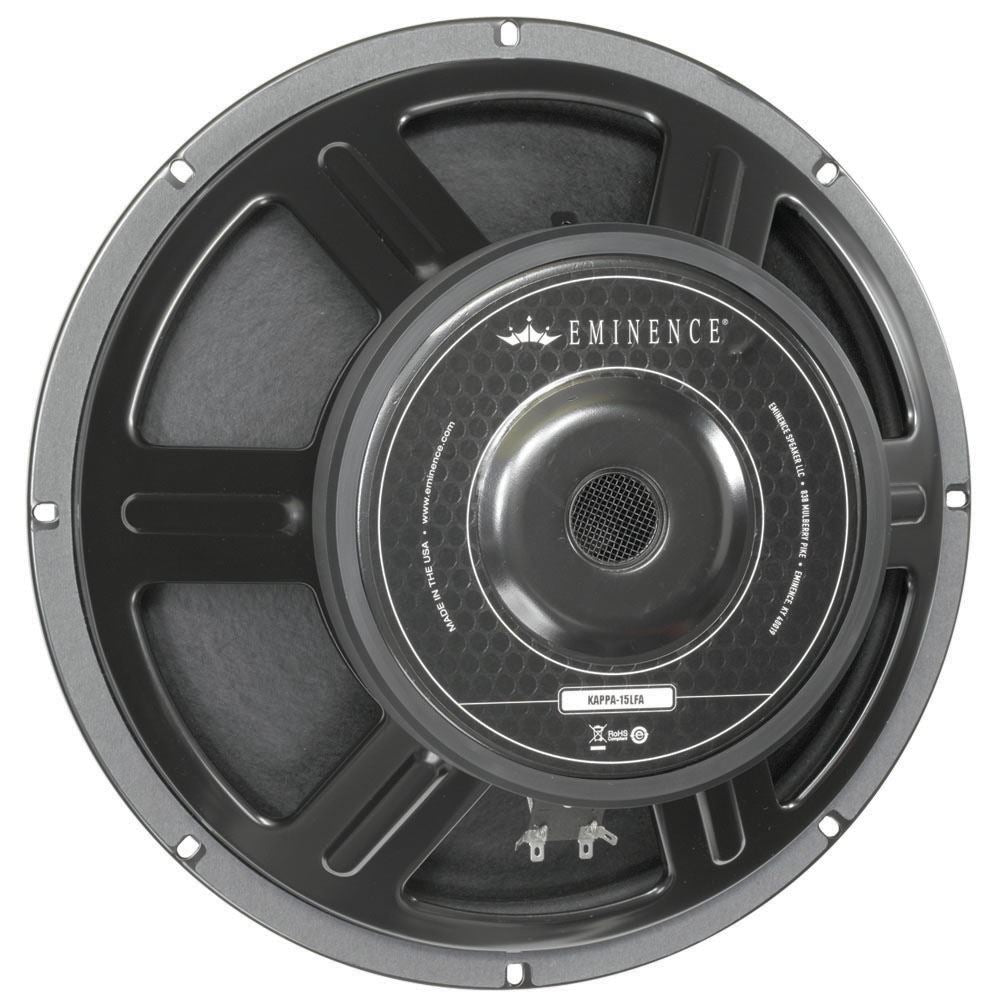

Eminence Kappa 15 LFA 15" Speaker 600 W 8 Ohms

Recommended for professional audio in a vented mid-bass or bass enclosure. Also suitable for bass guitar.

Specifications
Product type: Loudspeaker Chassis
Type: PA
Nominal Diameter: 15 ", 381 mm
Voice Coil: 3 ", 76.2 mm
Overall diameter: 384.9 mm
Pitch Circle Diameter: 369.9 mm
Cut- out Measurement: 352.3 mm
Diameter of fixing holes: 6.4 mm
Depth: 156 mm
Nominal Impedance: 8 Ohm(s)
Nominal Load Capacity: 600 W
maximum rated load: 1200 W
Sensitivity (1 W / 1 m): 99 dB
Frequency response: 38 - 2700 Hz
Voice Coil Material: copper
Magnet: Ferrite
Depth of the magnetic gap: 9.53 mm
Thiele & Small Parameter
Fs (Resonance Frequency): 39 Hz
Re (DC resistance): 5.4 Ohm(s)
Qms (mechanical quality): 6.08
Le (inductance of the voice coil): 1.27 mH
Qes (electrical quality): 0.41
Qts (overall quality): 0.38
Vas (equivalent volume): 159
Mms (moving mass): 105 g
BL (power factor): 18.6 T/m
Xmax (maximum displacement): 5.5 mm
Cms (elasticity of the suspension): 0.15 mm/N
Sd (membrane area): 856.3 cm²
Weight: 9,414 kg
