Omnitronic Em-312 Entertainment Mixer
- £162.00
- £162.00
- Unit price
- per
Microphone/line mixer, 6 mono channels + 3 stereo channels
iFrame
Description

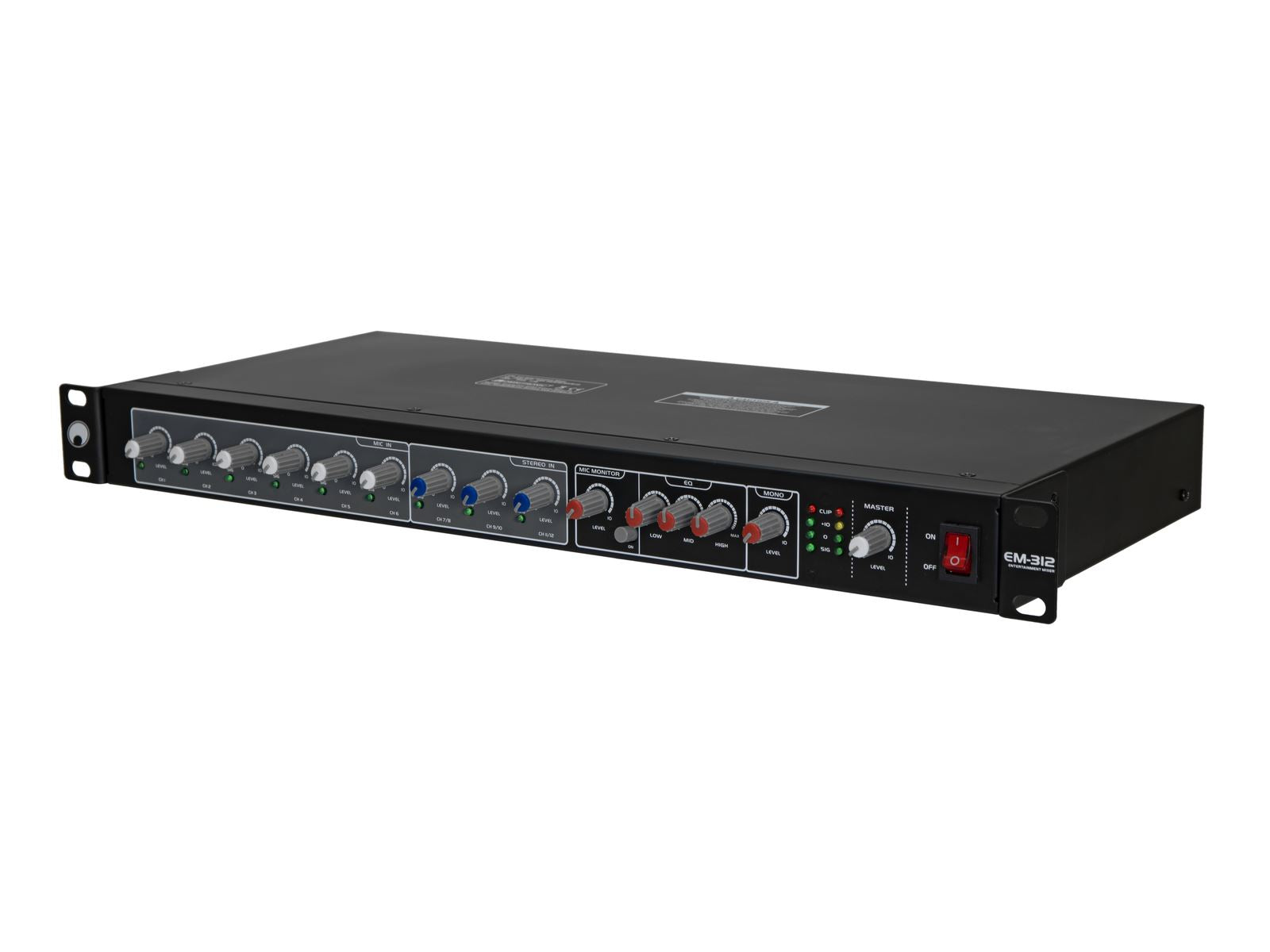

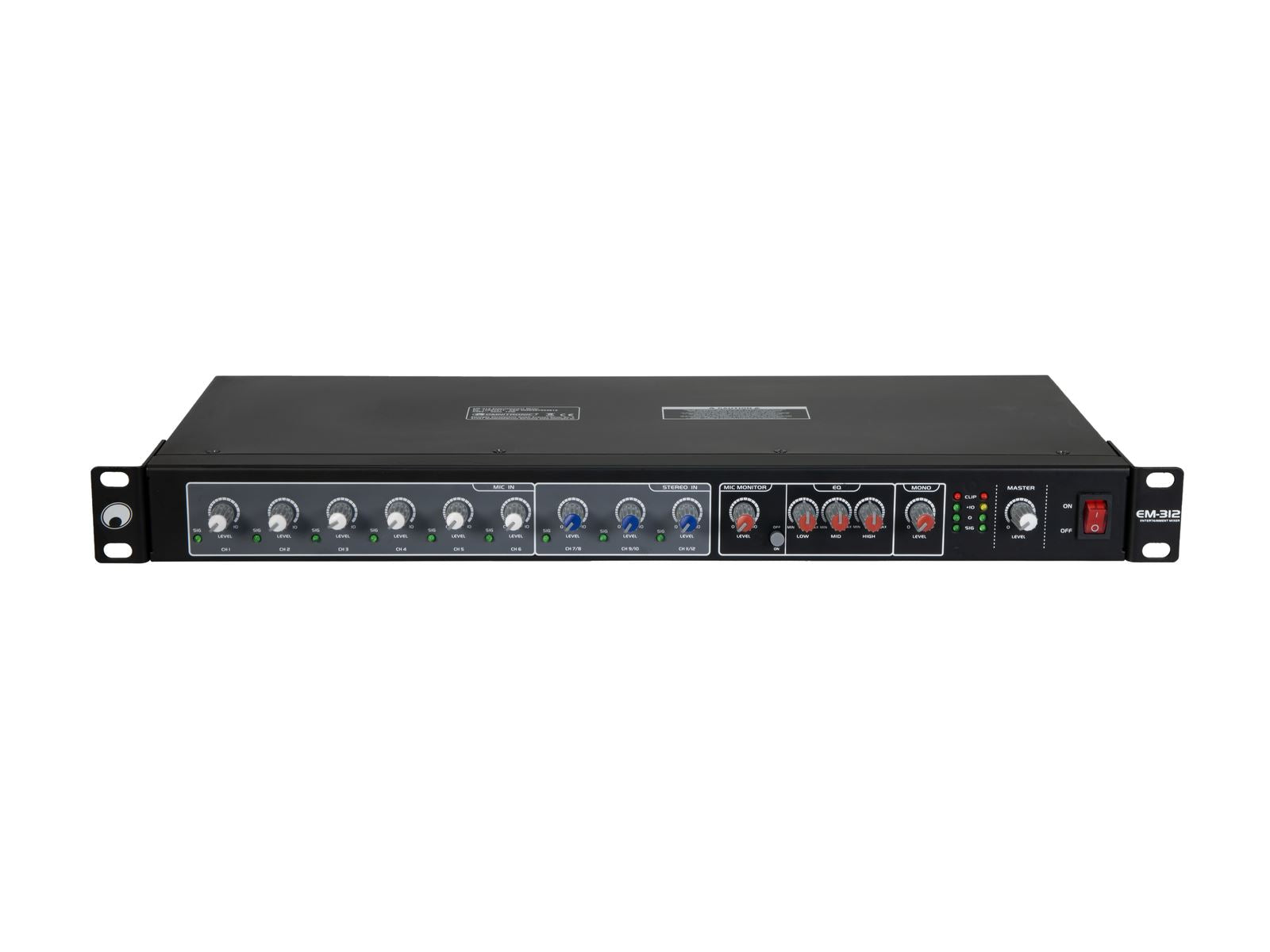

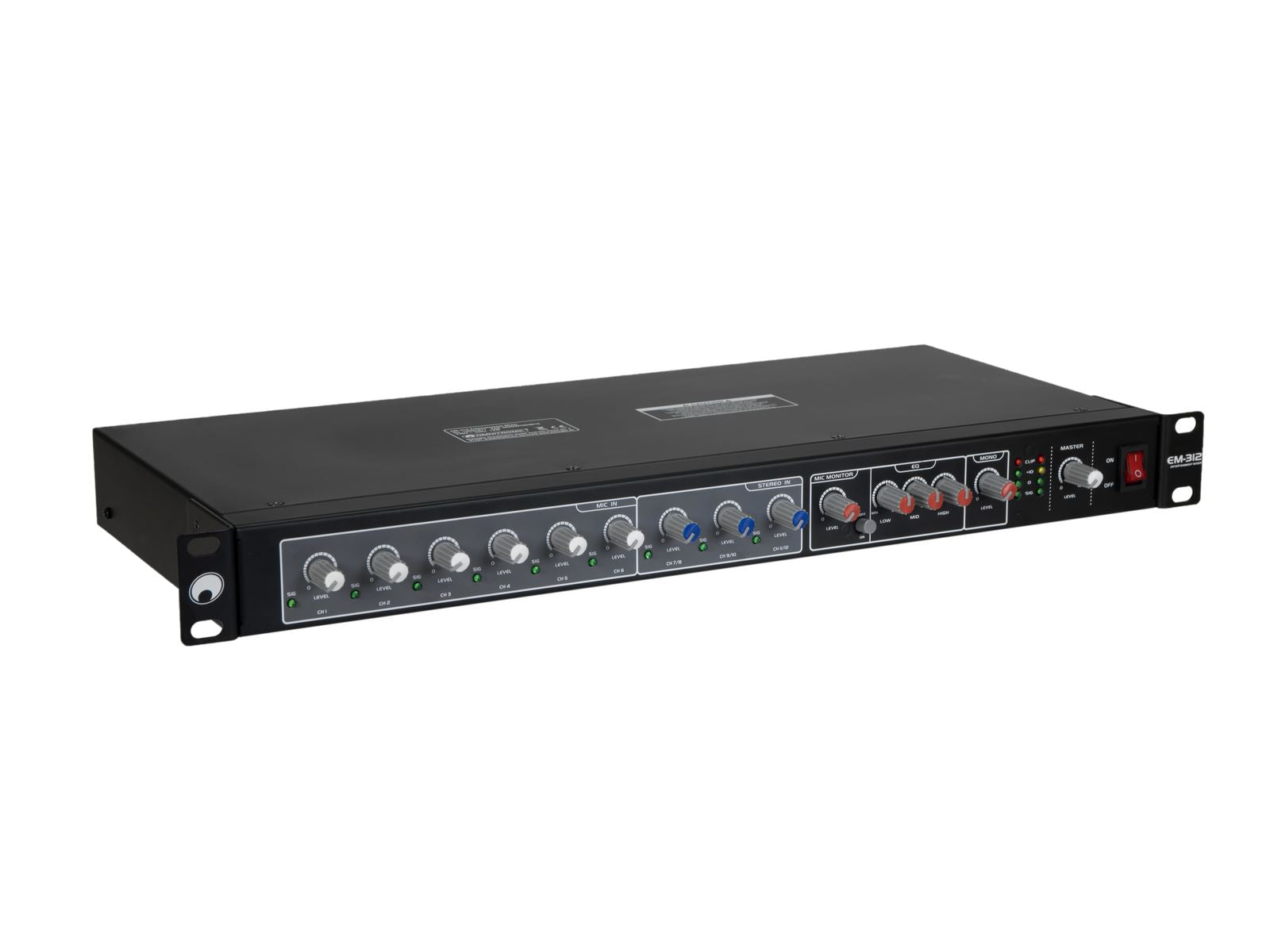

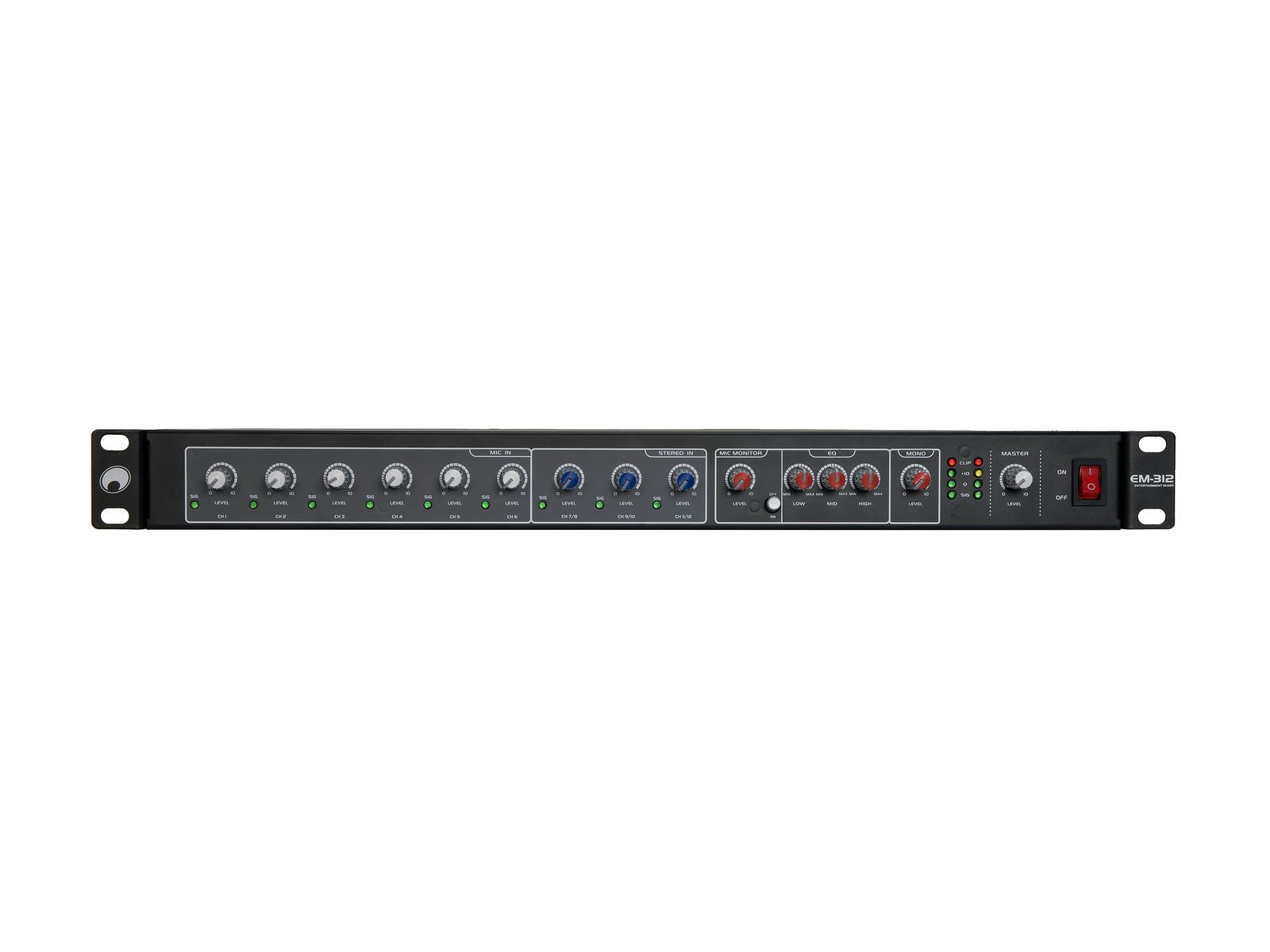

The EM-312 is a slim rack-mounted 12-channel mixer with 6 mic/line combo inputs and 6 additional line inputs. It has XLR outputs, a 6.3 mm mono output, a stereo RCA recording output, and a 6.3 mm monitoring output for the mic section. The EM-312 offers separate volume controls for all inputs in addition to volume control for the mono output and a master volume control. It has a 3-band equalizer and an adjustable priority function for microphone announcements through channel 1.
Microphone/line mixer, 6 mono channels + 3 stereo channels
- 6 mono mic/line input channels (combo jack), switchable
- 3 stereo line input channels (RCA)
- Phantom power can be switched on for each microphone input
- All input channels with separate level controls and signal LED
- Adjustable priority circuit for channel 1
- Balanced stereo XLR outputs and RCA outputs
- Adjustable monitor output (6.3 mm jack) for monitoring the microphone signals
- Adjustable mono line output (6.3 mm jack)
- Master level control, 4-digit stereo LED level meter and 3-band equalizer
- Additional screw terminals for 24 V DC power input
- Incl. mounting brackets for 483 mm rack installation (1 U)
- (19") 48.3 cm rack installation 1 U
| Power supply: | 230 V AC, 50 Hz Or 24 V DC |
| Power consumption: | 12 W |
| Protection class: | Class I |
| Power connection: | Mains input IEC connector (M) mounting version Power supply cord with safety plug Mains input screw terminal |
| Frequency range: | 20 - 22000 Hz |
| S/N ratio: | >103 dB |
| THD: | <0.03 % at 1 kHz |
| Phantom power: | 18 V DC or 21 V DC |
| Impedance: | Input mic/line: 1.4 kOhm Input line: 10 kOhm Output 120 Ohm |
| Control elements: | Power switch |
| Status LED: | Signal, master level meter, clip, power |

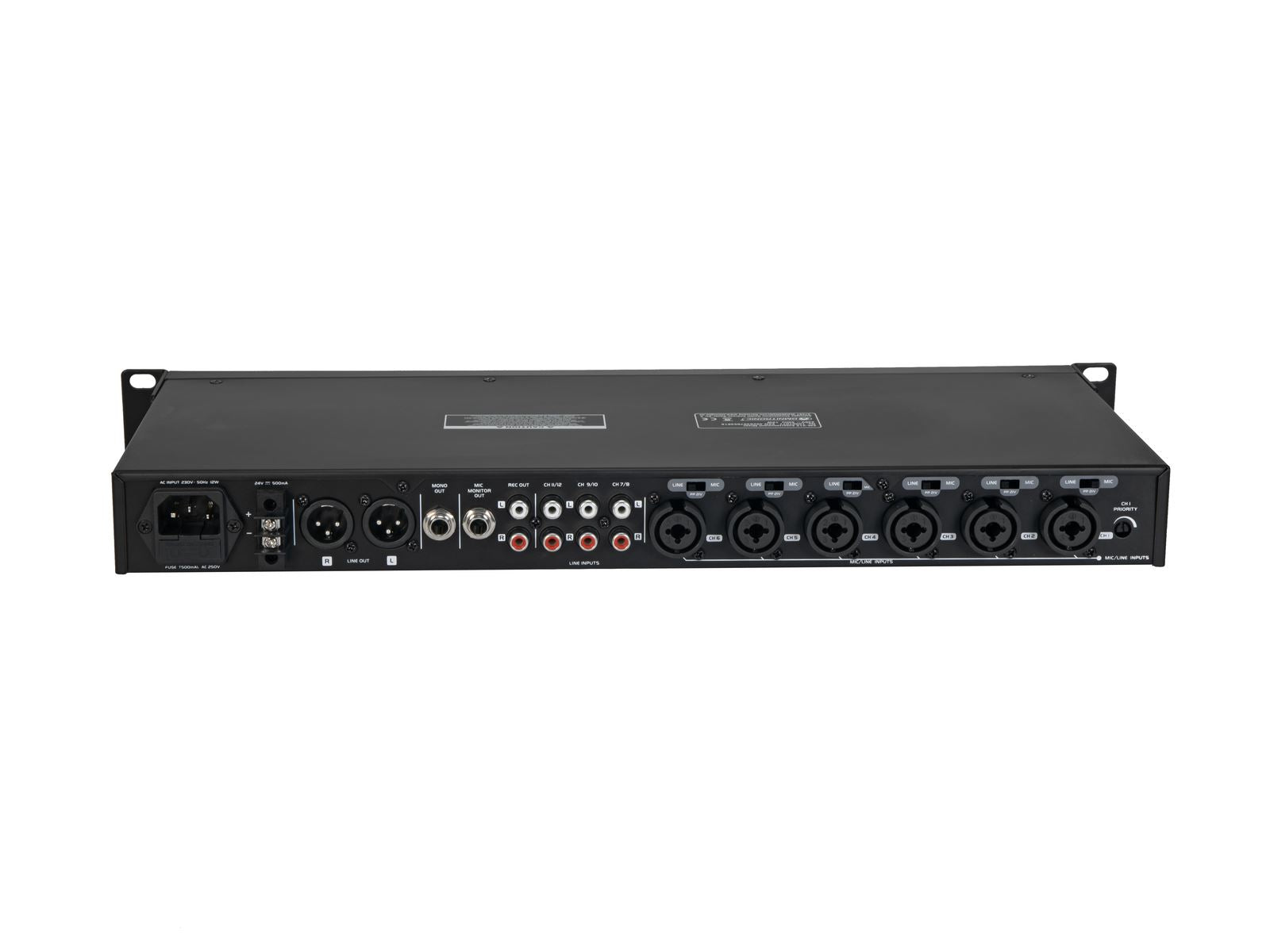

| Connections: | Input: 6 x mic/line via 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Input: 3 x line via stereo RCA Output: 2 x master via 3-pin XLR Output: 1 x mono via 6.3 mm jack socket (mono) mounting version Output: 1 x line via 6.3 mm jack socket (mono) mounting version Output: 1 x rec. via stereo RCA |
| Chanals: | Input chanel: 6 x mono with Mic-line switch via 3-pin XLR/6.35mm jack (F) combination socket (mounting version), channel control via Rotary knob, 3-band tone control EQ 80Hz/2,5kHz/12kHz Input chanel: 3 x stereo via RCA, channel control via Rotary knob, 3-band tone control EQ 80Hz/2,5kHz/12kHz Master output: 1 x stereo via XLR, channel control via Rotary knob Master output: 1 x mono via Plug 6,3mm/3,5mm (Jack), channel control via Rotary knob |
| Max. level: | Input: Microphone -19 dBu Input: line +21 dBu Output: +21 dBu |
| Housing design: | (19") 48.3 cm rack installation 1 U |
| Dimension: | Width: 48.3 cm Depth: 23 cm Height: 4.45 cm |
| Weight: | 3.04 kg |
