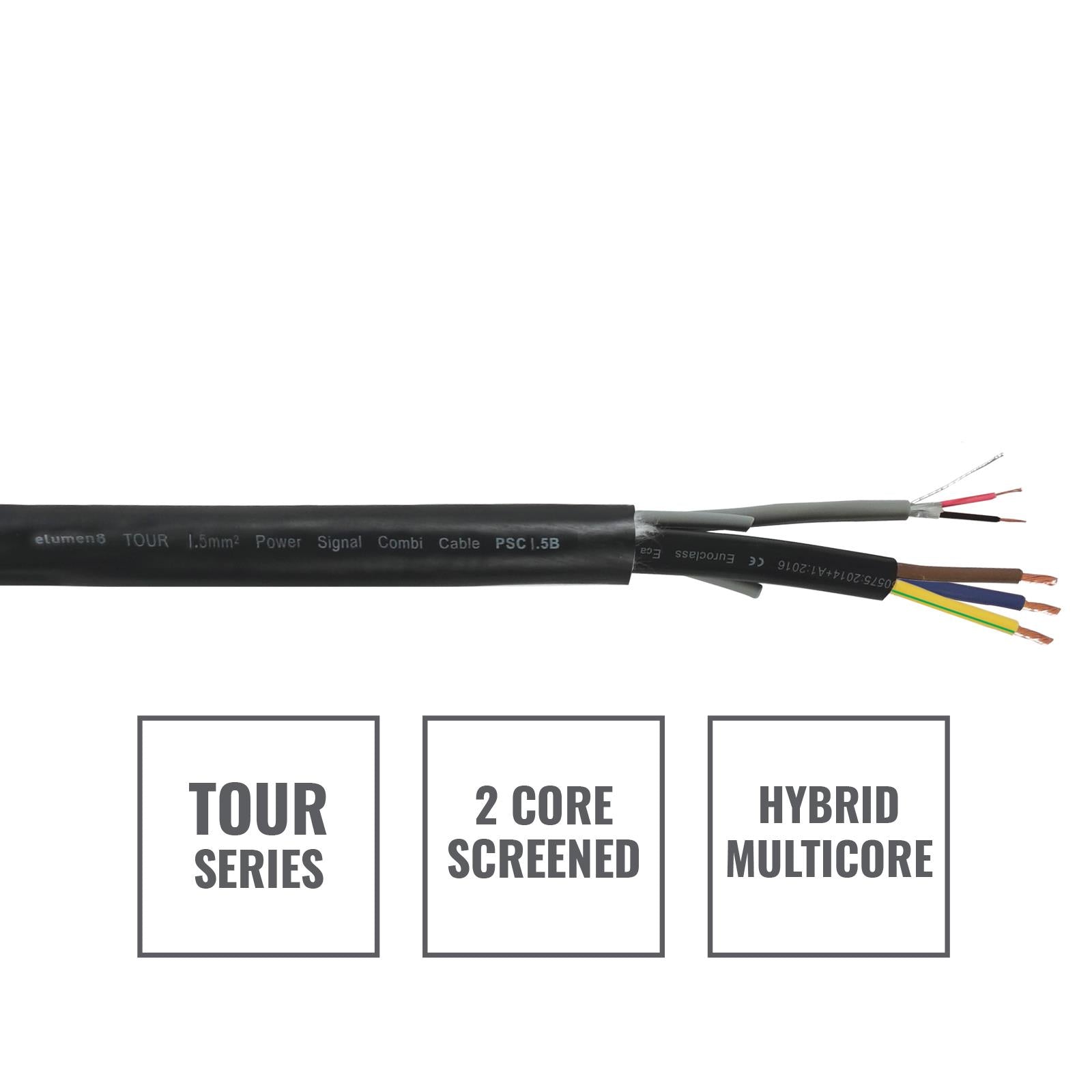

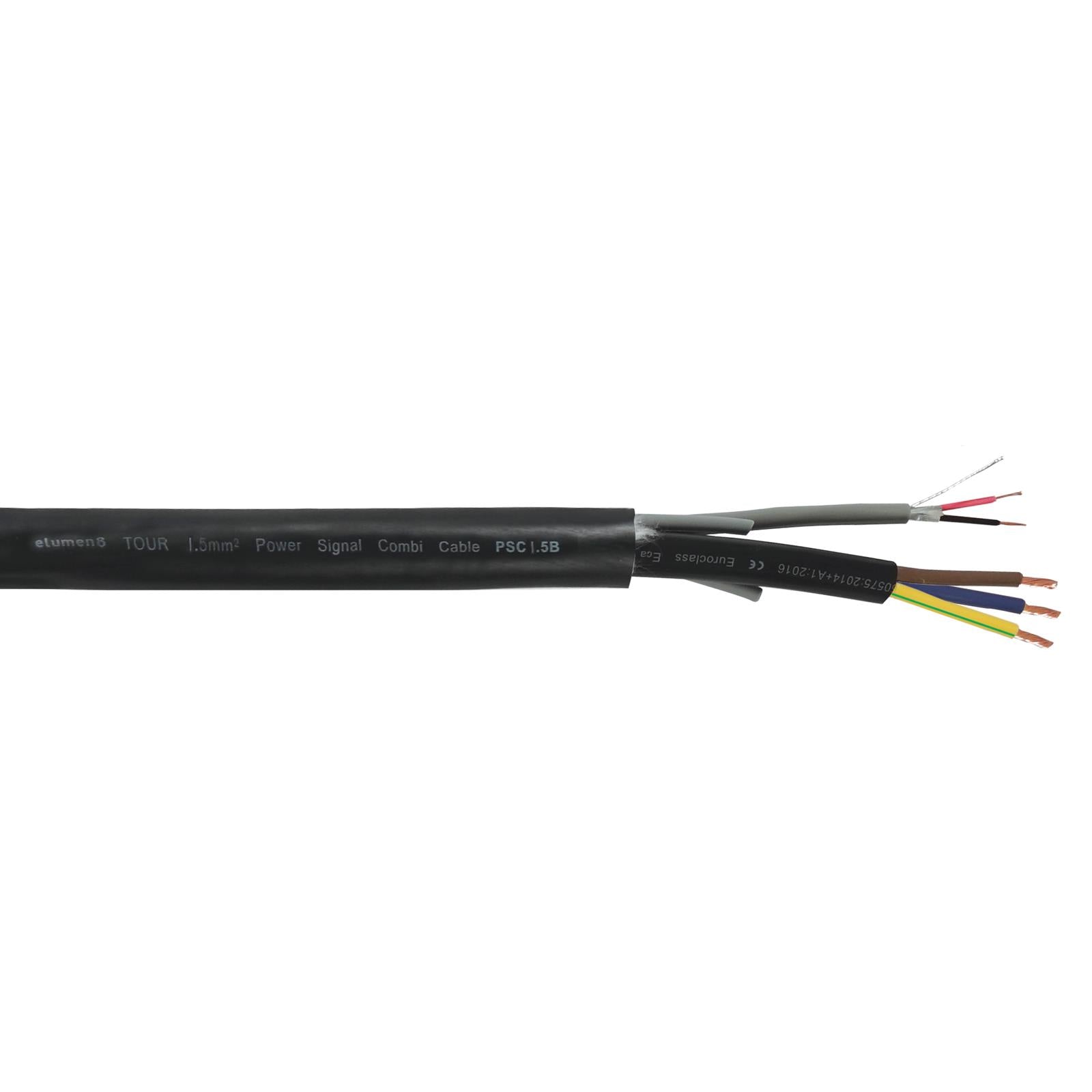

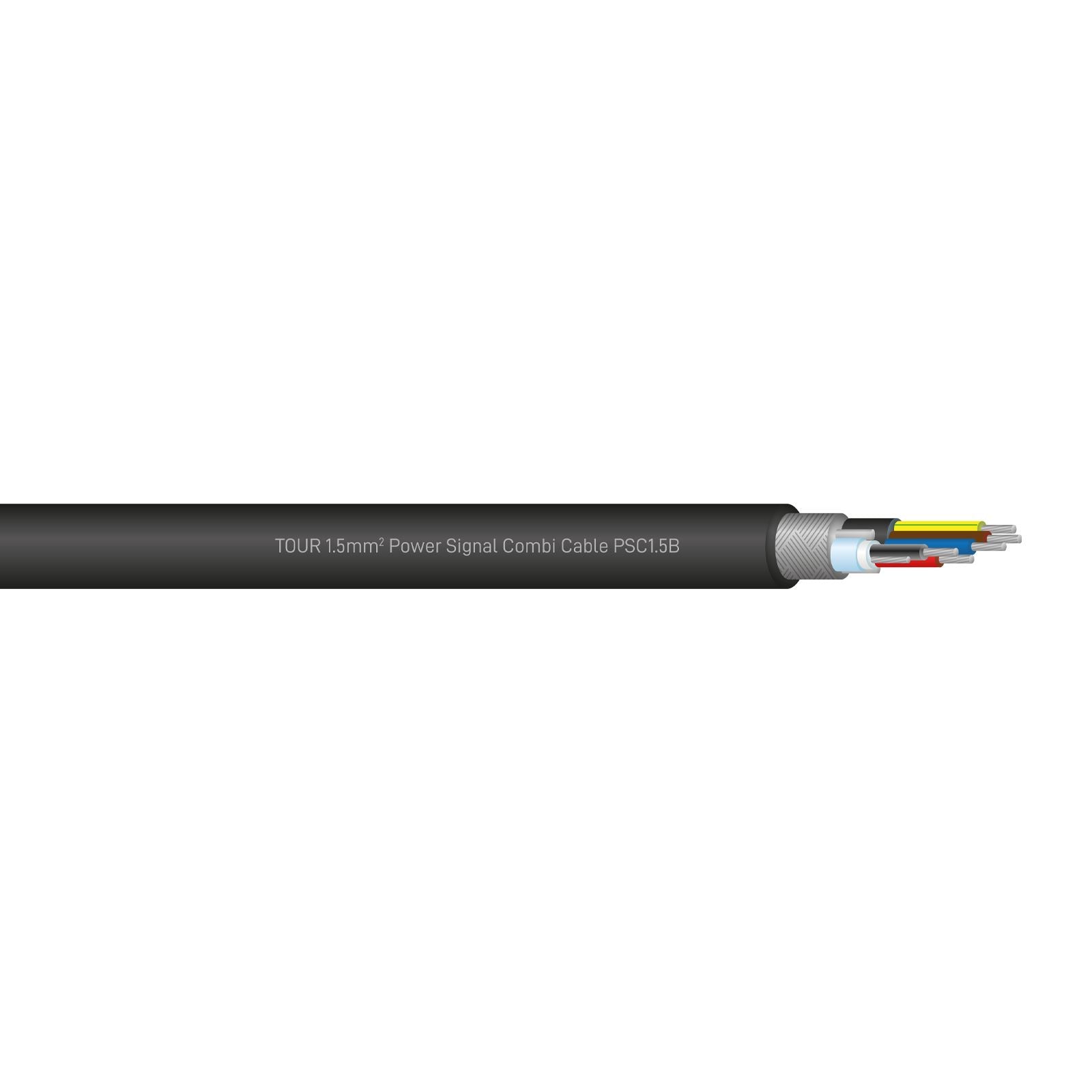

eLumen8 TOUR 1.5mm Power Signal Combi Cable PSC1.5B 100m

Description:

Hybrid multicore comprising of a screened and jacketed signal pair combined with 1.5mm jacketed power cables. Ultra flexible and designed for touring use this cable range provides an elegant solution to the problem of integrated signal and power distribution. Constructed using carefully selected fillers to maintain the overall shape and facilitate easier coiling.

- Analogue or AES digital audio, RS422/485 or DMX512 control with a three core power cable
- H05VV-F harmonised standard 1.5mm² power
- Suitable for most 110Ω balanced data application such as RS422, RS485, DMX512 and timecode
- Oxygen-free copper cores for maximum signal integrity
- Supplied on 100m reels

Specification:

- Operating temperature range: -20 to +70°C
- Filler: PVC plus non-woven fabric
- Outer jacket
- Soft PVC outer jacket: 15.5mm outer diameter
- 1.2mm outer jacket thickness
Power:
- Cross section: 1.5mm²
- Perm current rating open air: 15A
- 8.2mm black PVC jacket
Signal:
- Conductors: 2 x 0.23mm² (24AWG)
- Tinned copper drain wire: 0.22mm² (24AWG)
- Aluminium foil shield
- 110Ω impedance
- 4.1mm diameter grey PVC jacket
