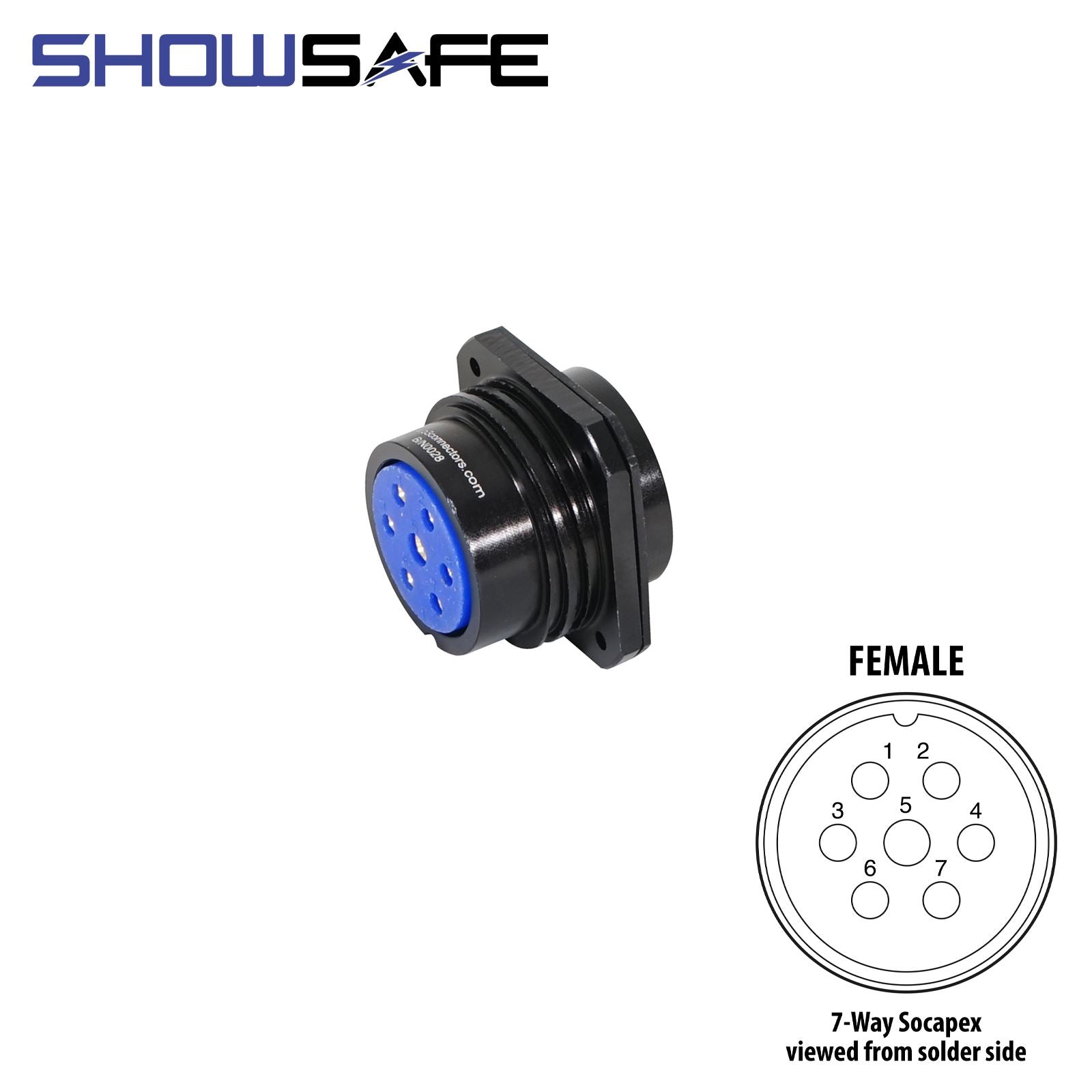

eLumen8 Socapex 7-Pin Panel Female Socket

Description

The eLumen8 Showsafe range of UL certified Socapex connectors have been manufactured to deliver the highest levels of quality, reliability and safety for chain hoist motor control connections. The super robust construction of the multi-pin devices ensures reliable operation for AV professionals. The rugged plug design has been tailored specifically for professional touring and stage lighting applications, and all products are fully Socapex compatible. Showsafe 7-Pin plugs are sealed to IP67 protection when mated, making them water and dust proof for festivals worldwide. The sand of Benicassim? The mud and rain of Glastonbury? No problem.

• Model reference: P7PFSUL

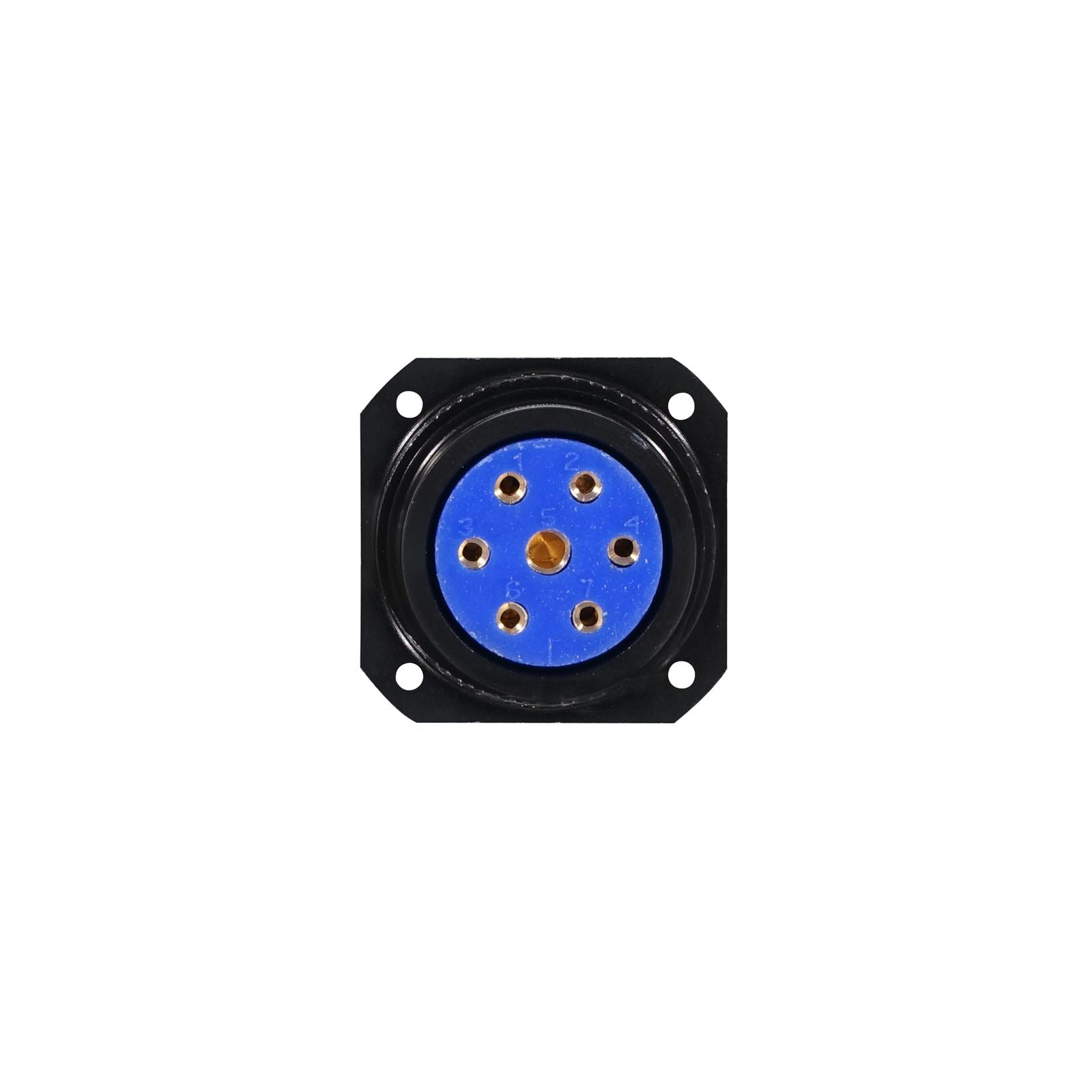

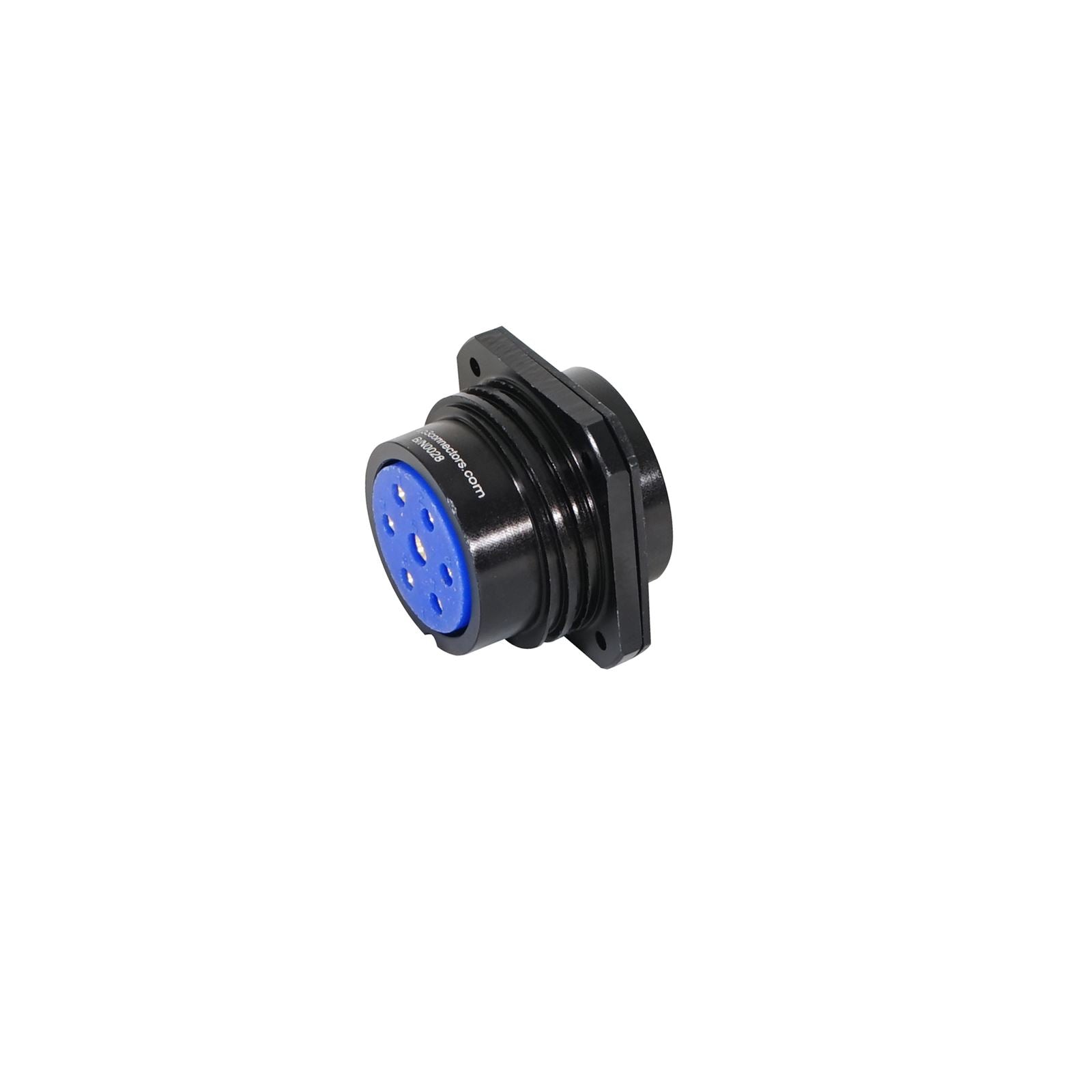

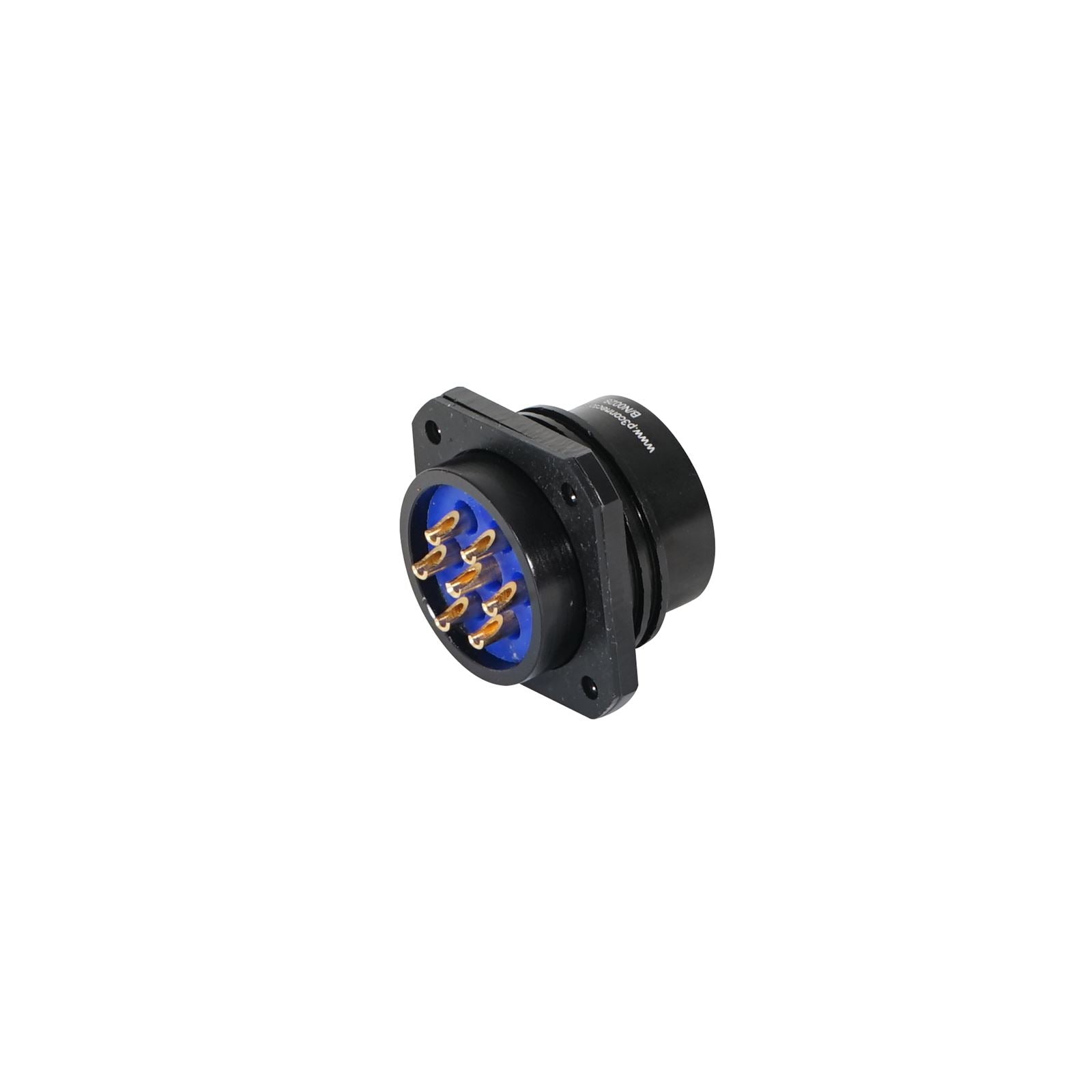

• Panel/Chassis mount female socket
• UL approved to UL1977 standard
• 100% UK manufactured and assembled
• Amphenol Socapex compatible
• 7Pin connectors are all rated at 25A
• Multipoint gold plated contacts
• Integral insulation sleeves

Specifications:

• IP67 ingress protection when mated
• Temperature rating: 55oC to +125oC
• Voltage rating: 600VAC, 700VDC max
• FMLB (first make, last break) earth contacts
• ROHS compliant
• Dimensions (L x W): 45 x 35mm
• Weight: 0.1kg
