eLumen8 Powersafe 500A Panel Source T5 Post L2 Black

Phase 3s Powersafe single pole connectors are the highest rated, safest and finest quality industrial plug available, and are used by the power distribution, events, military and cable assembly industries worldwide. A set of Powersafe line connectors can easily terminate to copper cable using either industry standard crimp tools or set-screw contacts. The three phase power distribution range includes: Earth, Neutral, L1, L2 and L3, available in either source or drain format as 800A or 500A, determined by cable size (300mm-240mm requires 800A plugs, 185mm-25mm requires 500A plugs). They are the perfect, safe alternative to Camlock connectors and fully compatible with Litton VEAM, T4 400 and T6 660 amp powerlocks, ITT Cannon and other manufacturers.

Specifications:

Made in Britain
Manufacturers code: SPS2BKT5

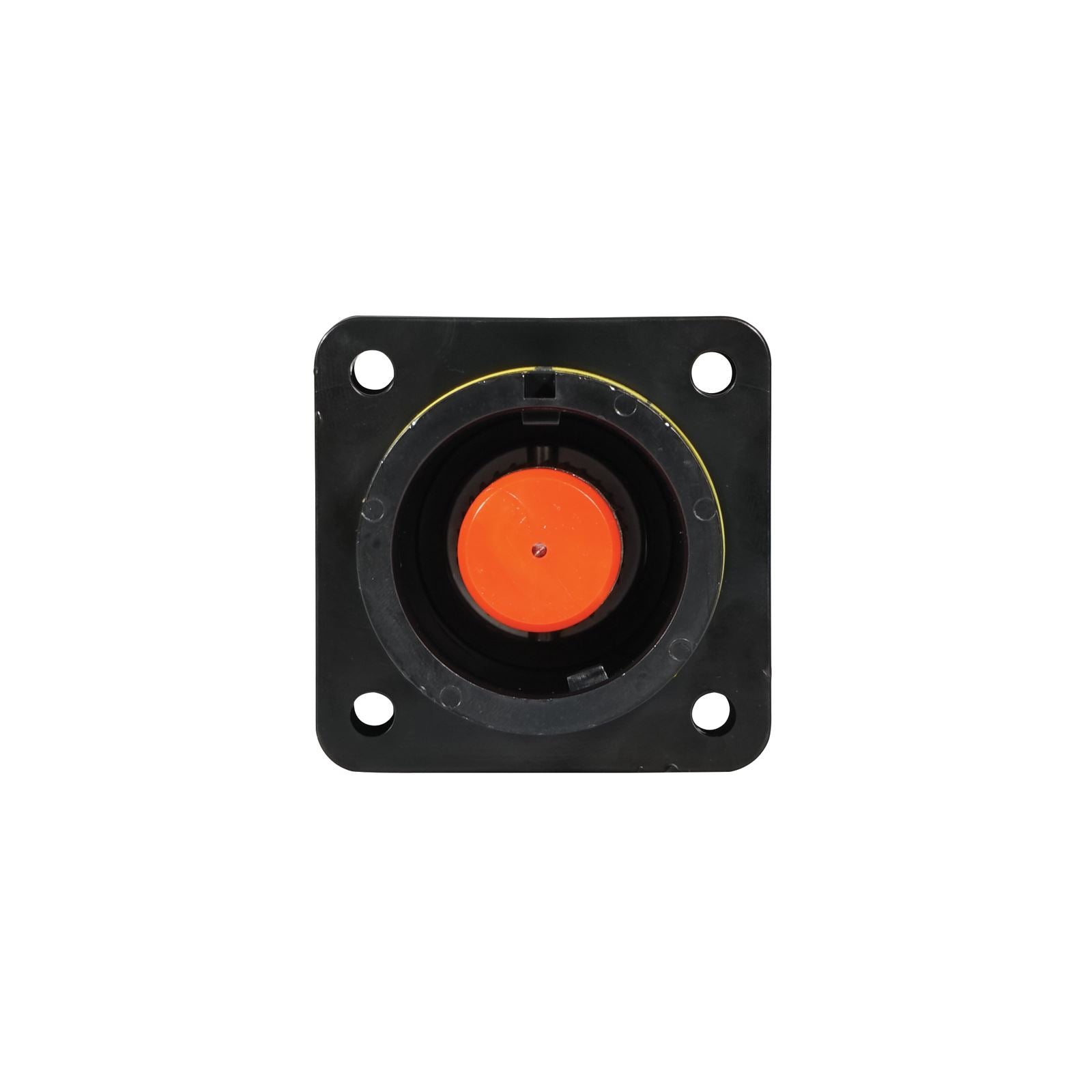

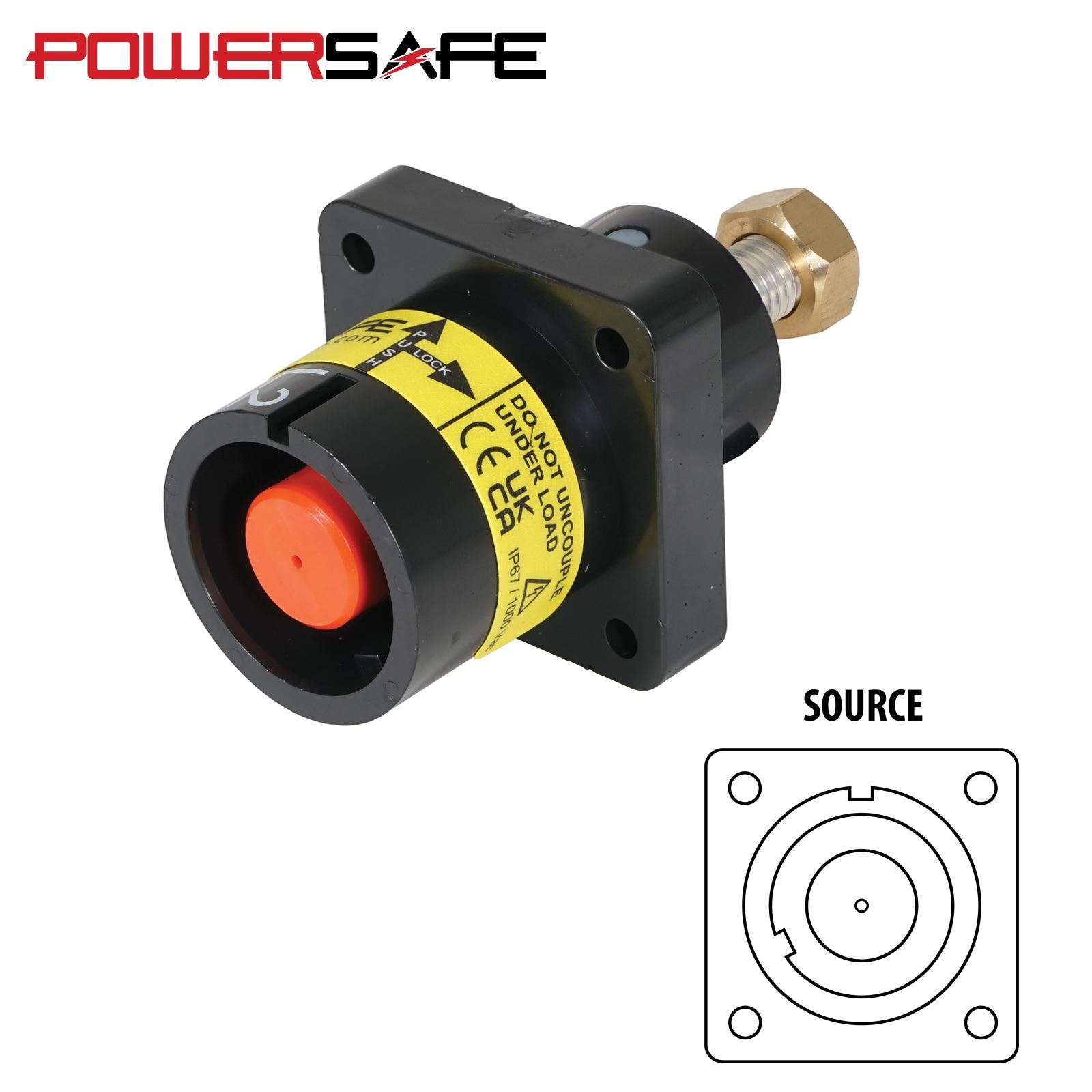

Type: 500A Panel Source T5 Post L2 Black
Mechanically keyed to eliminate the possibility of cross mating
Secondary locking prevent unintentional uncoupling under load
Fingerproof protection against electric shock IP2X
Waterproof and dustproof to IP67 rated
Colour coded for easy identification
Innovative contact band allows higher rating (400A>500A
660A>800A)
Contact band cannot come out
High impact insulator (no glass used and flame retardant)
Field installation no special tools required
Integral cable strain relief
Daisy chain capability facilitates flexible stock cable lengths
Large cable range: 25mm300mm (Please note: If you require Powersafe for power cables less than set screw 120mm
i. e. 95mm
70mm
50mm
35mm
25mm
you must purchase a reducer kit separately)
No of contacts: 1
Maximum continuous rating* Up to 500A
Surge current: 75kA
Short circuit rating up to: 35. 5kA

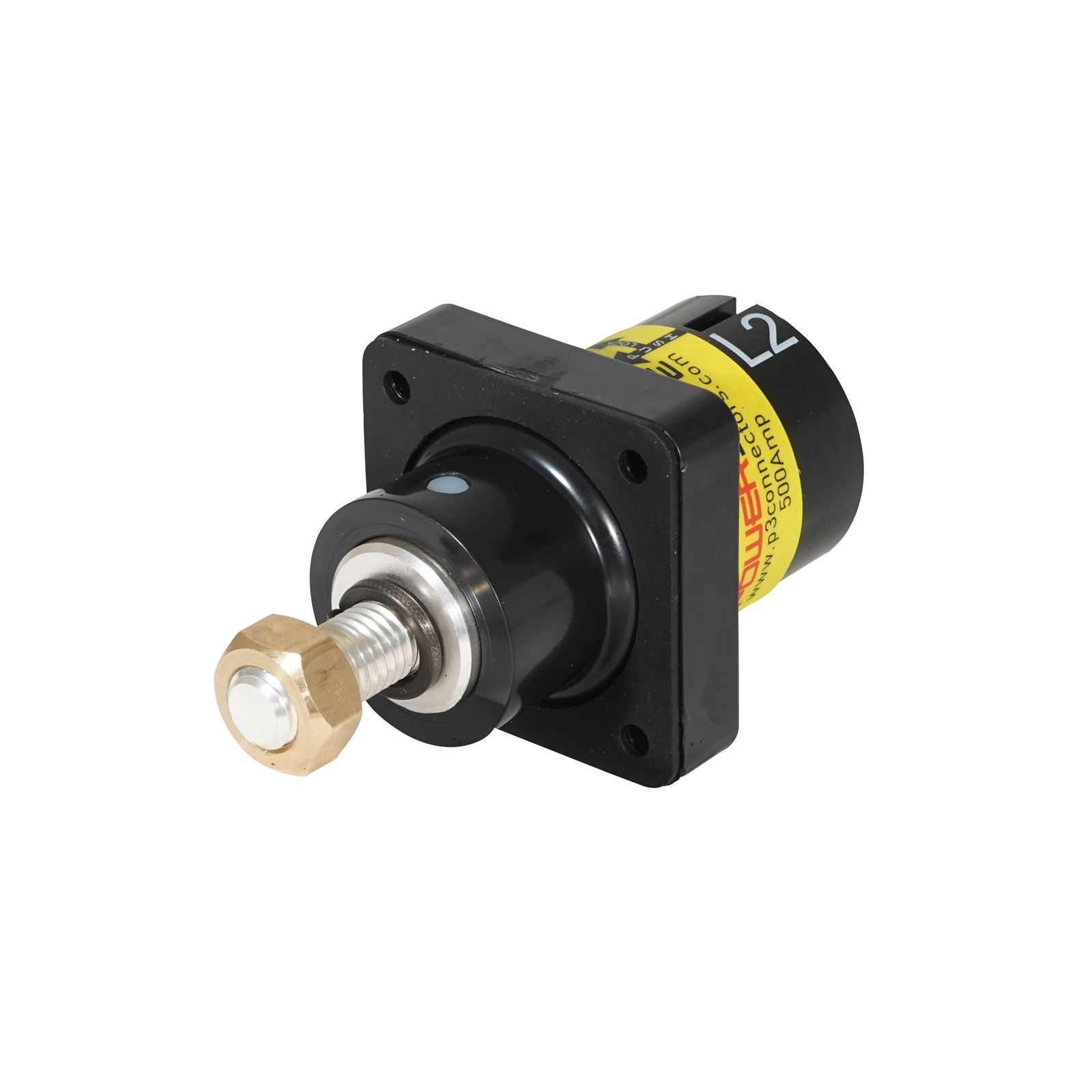

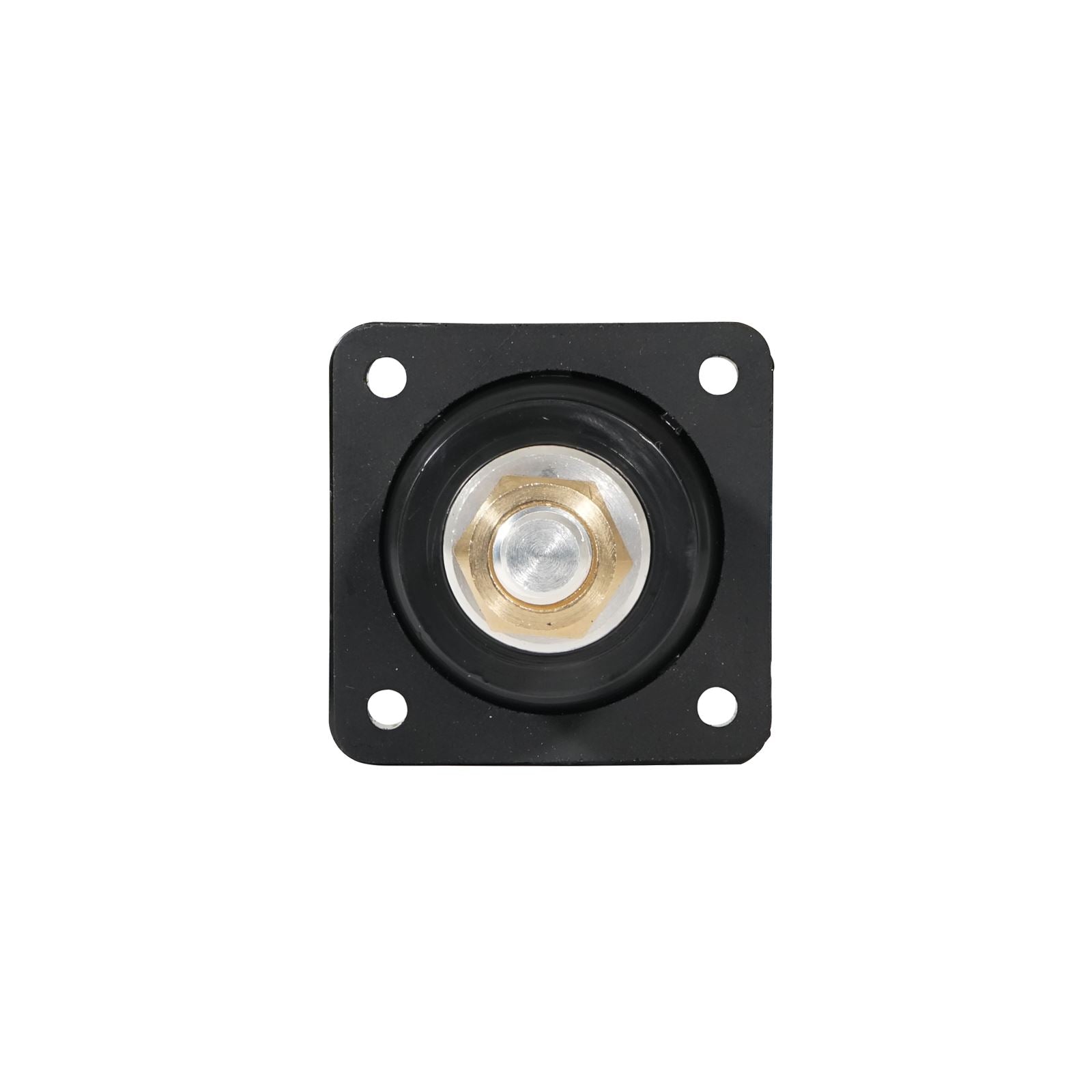

Contact termination: T5 threaded post
Mating method: Bayonet lock
Operating voltage: 1000V AC
Max. rated voltage to tarth: 2kV AC / 3kV DC
Minimum flashover: 9. 5kV DC or AC Peak
Insulation resistance: >5M ohms @ 500V DC
Ingress protection**: IP67
Protection against electrical shock: IP2X
Flammability: UL94V0
