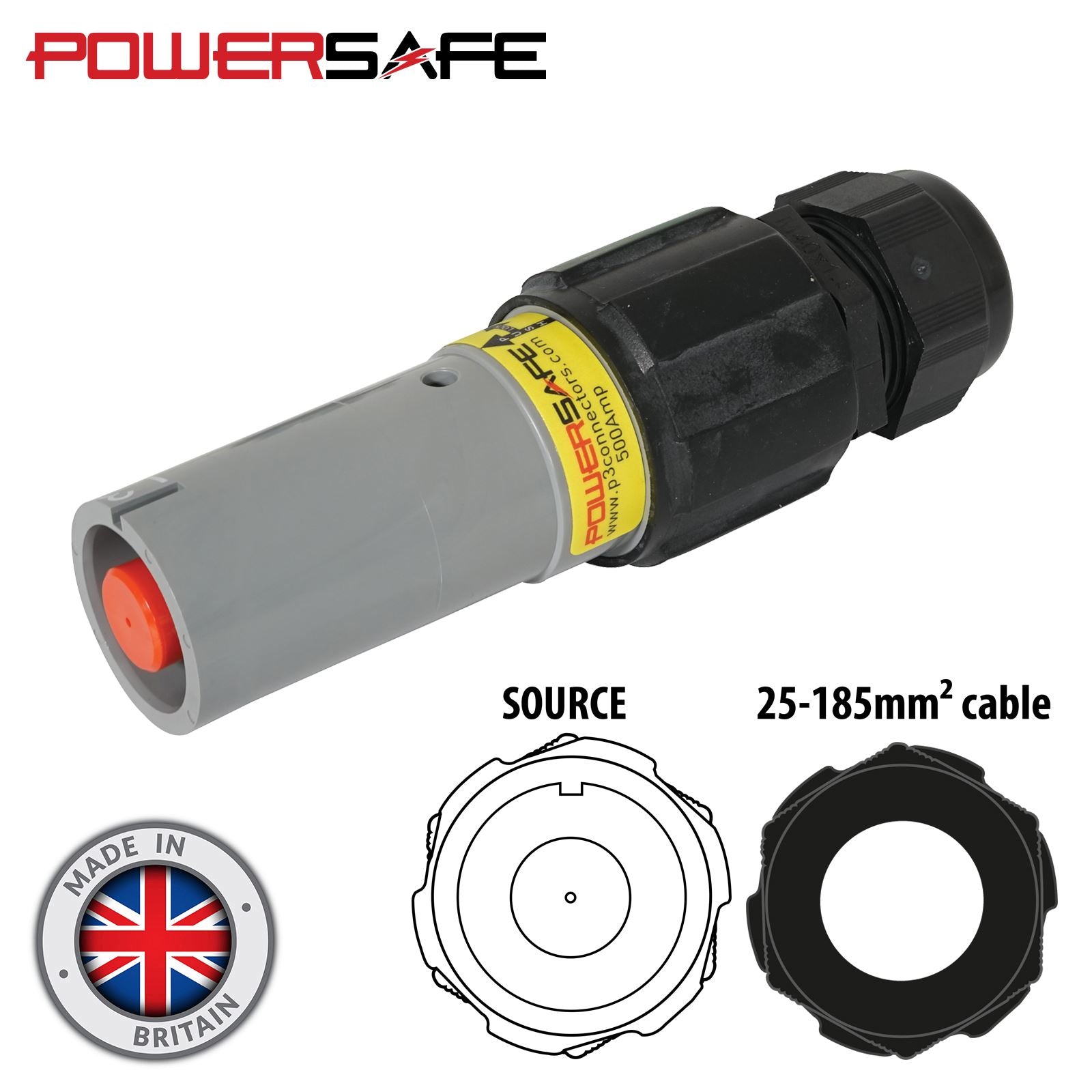

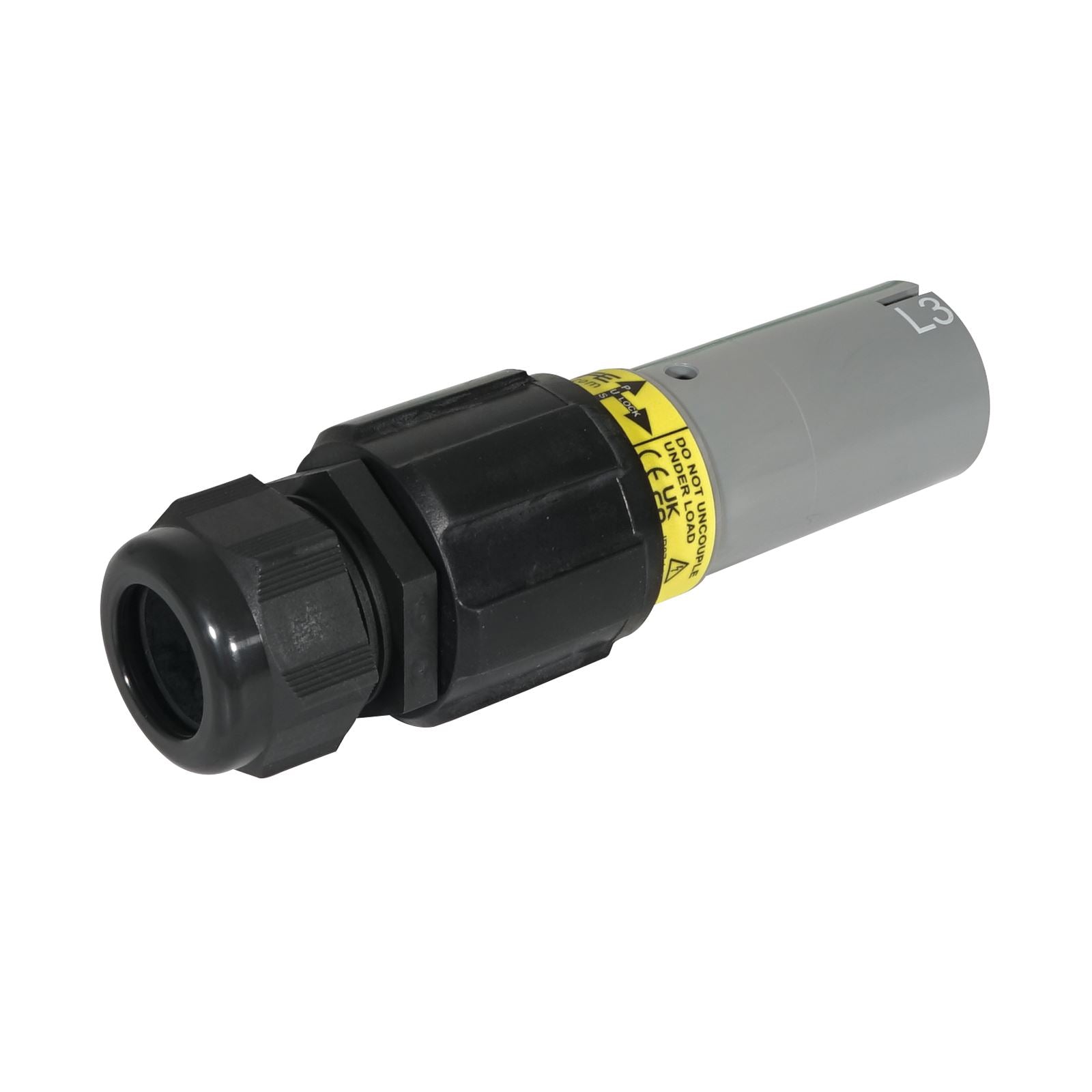

eLumen8 Powersafe 500A Line Source 150mm2 L3 Grey

Phase 3s Powersafe single pole connectors are the highest rated, safest and finest quality industrial plug available, and are used by the power distribution, events, military and cable assembly industries worldwide. A set of Powersafe line connectors can easily terminate to copper cable using either industry standard crimp tools or set-screw contacts. The three phase power distribution range includes: Earth, Neutral, L1, L2 and L3, available in either source or drain format as 800A or 500A, determined by cable size (240mm-300mm requires 800A plugs, 25mm-185mm requires 500A plugs). They are the perfect, safe alternative to Camlock connectors and fully compatible with Litton VEAM, T4 400 and T6 660 amp powerlocks, ITT Cannon and other manufacturers.

No of contacts: 1
Maximum continuous rating* Up to 500A
Surge current: 75kA
Short circuit rating up to: 35.5kA
Cables cross sectional area: C.S.A. 25mm² to 300mm²
Contact termination: Screw
Mating method: Bayonet lock
Operating voltage: 1000V AC
Max. rated voltage to tarth: 2kV AC / 3kV DC
Minimum flashover: 9.5kV DC or AC Peak
Insulation resistance: >5M ohms @ 500V DC
Ingress protection**: IP67
Protection against electrical shock: IP2X
Flammability: UL94-V0
