eLumen8 Meteor 784 IP LED Batten IP65

Description:

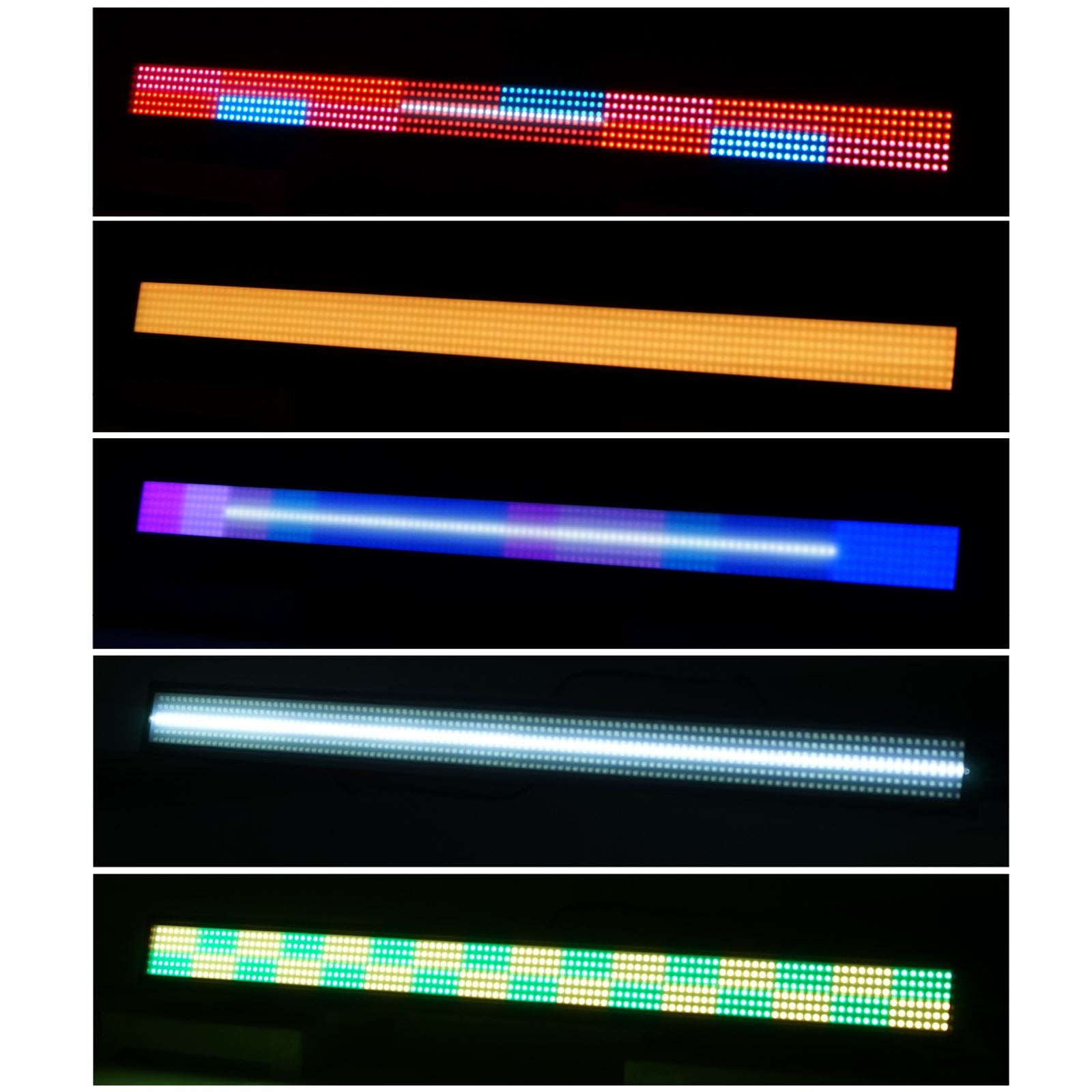

Generating intense white strobing and multicoloured pixel zone effects the Meteor 784 IP Batten features a central strip of 112 x 3W cool white SMD LEDs, surrounded on both sides by a total of 672 x 1. 5W RGB colour mixing SMD LEDs. All the LEDs are divided into independently controllable zones (16 white and 32 colour). With a wide beam angle the fixture is ideally suited to concerts, festival stages and installations. A clever twist to this fixture is the ability to switch the front glass to a frosted output. The Intelliglass Technology developed on this fixture allows the user to simply switch a DMX channel and alternate between clear and frost effects eliminating the need for additional frost filters.

Specifications:

Power consumption: 420W
Power supply: 100~240V, 50/60Hz
IP rating: IP65
Dimensions (H x W x D): 170mm x 1000mm x 114mm
Weight: 5.9kg

Features:

2 year warranty

672 x 1. 5W SMD LEDs (RGB) plus 112 x 3W SMD LEDs (CW)

RGB beam angle: 101 Degree (field angle: 149 Degree)

CW beam angle: 108 Degree (field angle: 152 Degree)

Pixel zone mapping: 32 x RGB LED zones and 16 x CW LED zones can be controlled individually

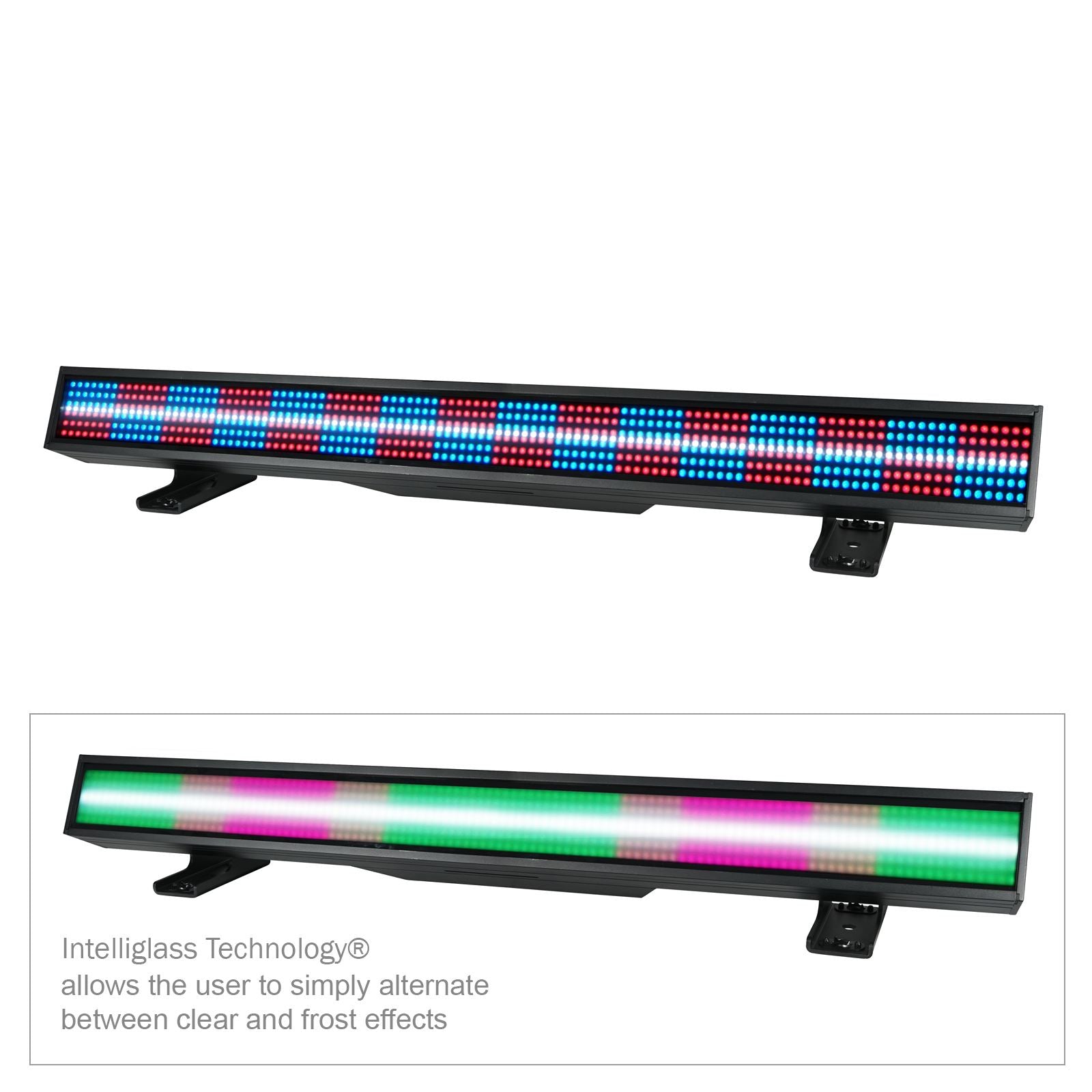

Intelliglass Technology allows the user to simply alternate between clear and frost effects eliminating the need for additional frost filters

Control protocols: DMX

Artnet and sACN

DMX channels: 7/15/17/21/33/39/65/68/70/112/117 or 121 selectable

0 100% dimming

4 dimming curves: Linear

square law

inverse square law and Scurve

Variable strobe

Supplied with installation brackets

Multiple units can be seamlessly jointed toolfree

4 button menu with OLED display

Bracket allows for multiple rigging or floor standing applications

Quick release omega clamps included

PowerCON TRUE1 input/output

IP rated 5Pin XLR input/output

EtherCON input/output

Fan cooled

Power consumption: 420W

Power supply: 100~240V

50/60Hz

IP rating: IP65

Dimensions (H x W x D): 165 x 1000 x 114mm

Weight: 8. 7kg

.
