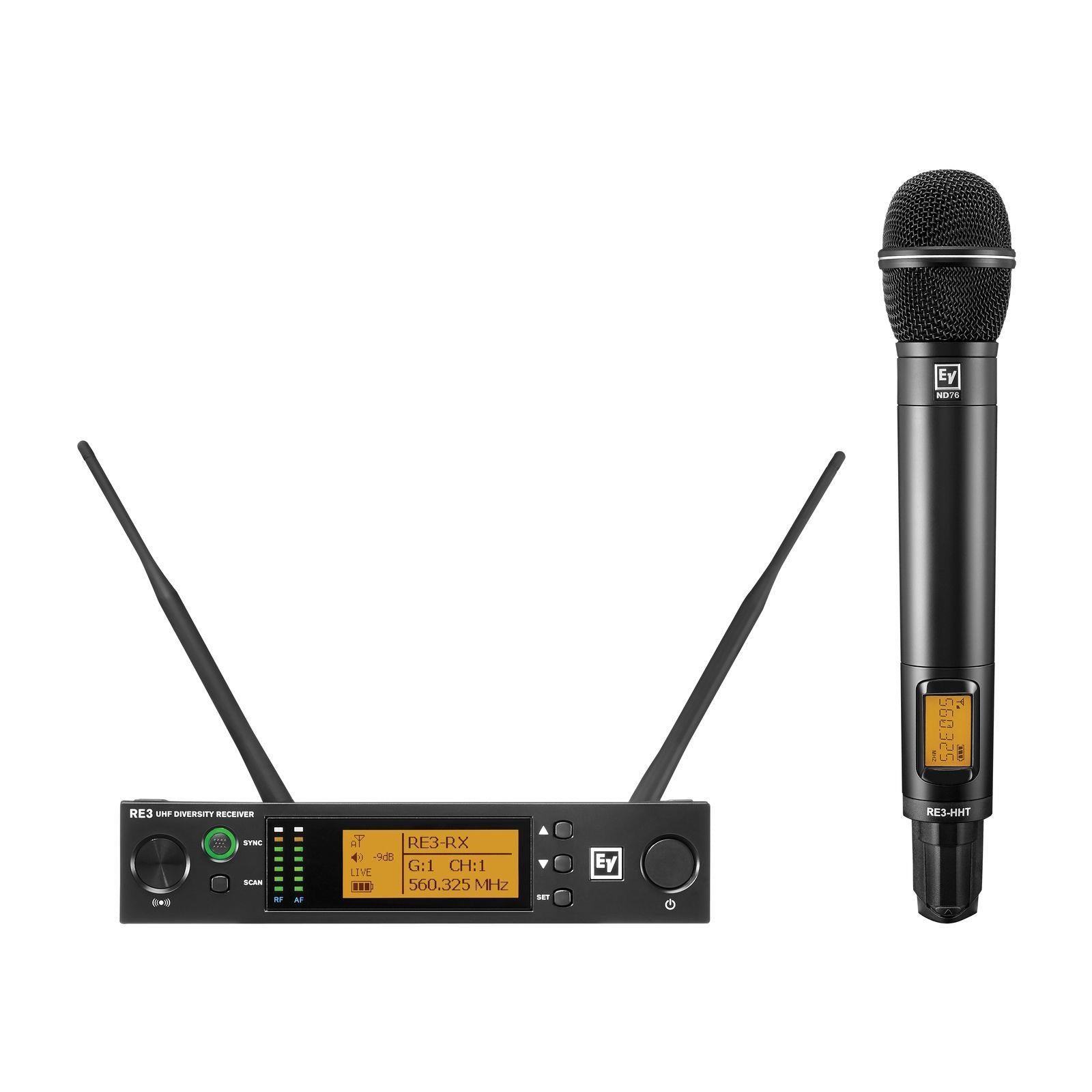

Electrovoice RED3-ND76 Wireless Handheld UHF Microphone CH70

Handheld UHF wireless set featuring ND76 dynamic cardioid microphone head for vocal performance and presentations. The ND 76’s crisp, clear, and balanced vocal presence is ideal for all-around voice applications.

Setup is quick and simple using the RE3 clear frequency scan and sync functions, and the radio link between the robust handheld transmitter and diversity receiver delivers rock-solid system performance.

Components
ND76-RC3 Wireless Head with ND76 Capsule
RE3-HHT Handheld Transmitter
RE3-RX Diversity Receiver

Microphone stand adapter
Two receiver antennas
Universal power supply
Two AA batteries
Receiver rack mounting hardware
Owner’s manual
Documentation packet
Declaration of conformity

ND76-RC3
Dynamic
Characteristic: Cardioid
Maximum SPL: 135.5 dB
Frequency range (near field): 30 Hz - 17 kHz
Colour: Black

RE3-HHT Remote Control
Robust metal housing
Automatic search for free frequencies
LCD
Replaceable head system for easy capsule replacement
Thread on microphone head: 1.25" diameter / 28 UN-2A thread pitch / 3 pins/3 slip rings
Works with 2 AA batteries or rechargeable NiMH cells
Charging contacts for the RE3-ACC-BC2 charging cradle (Article Nr. 465134 - not included)
Net weight: 0.346 kg
Colour: Black

RE3-RX Diversity Receiver
Sync Function
11 MHz Switching bandwidth
Automatic search for free frequencies
Detachable antennas with BNC connector (with 12 V DC supply)
Outputs: XLR (balanced) and 6.3 mm jack (unbalanced)
LCD
Frequency range: 51 Hz - 16 kHz ±2 dB
Power supply: 12 - 15 V DC (plus internal)
Rack-mountable (9.5" / 1 HE)
Installation depth: 175 mm (to end of antenna connector)
Weight: 1.23 kg
Colour: Black

Weight
Overall: 1.576 kg
