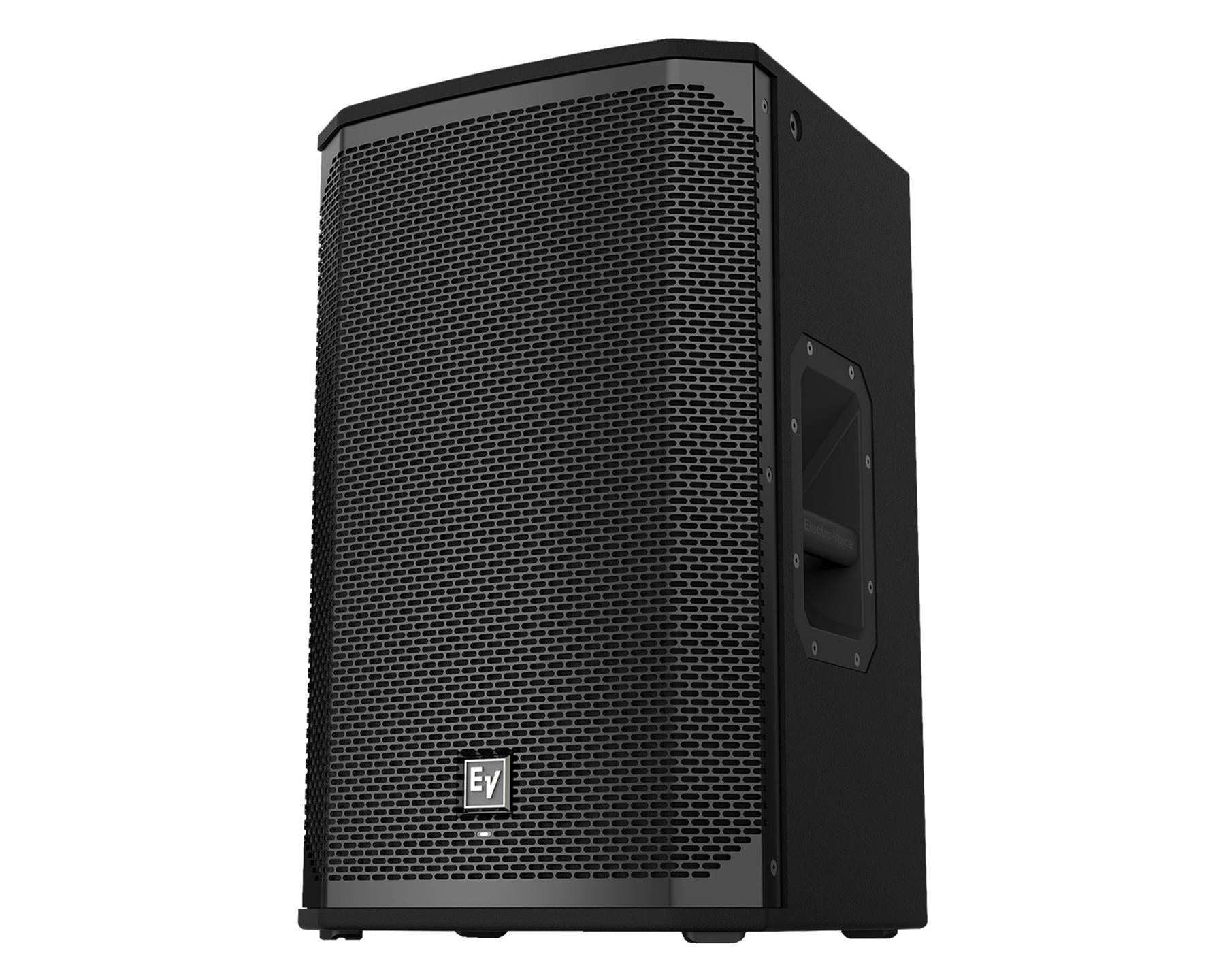

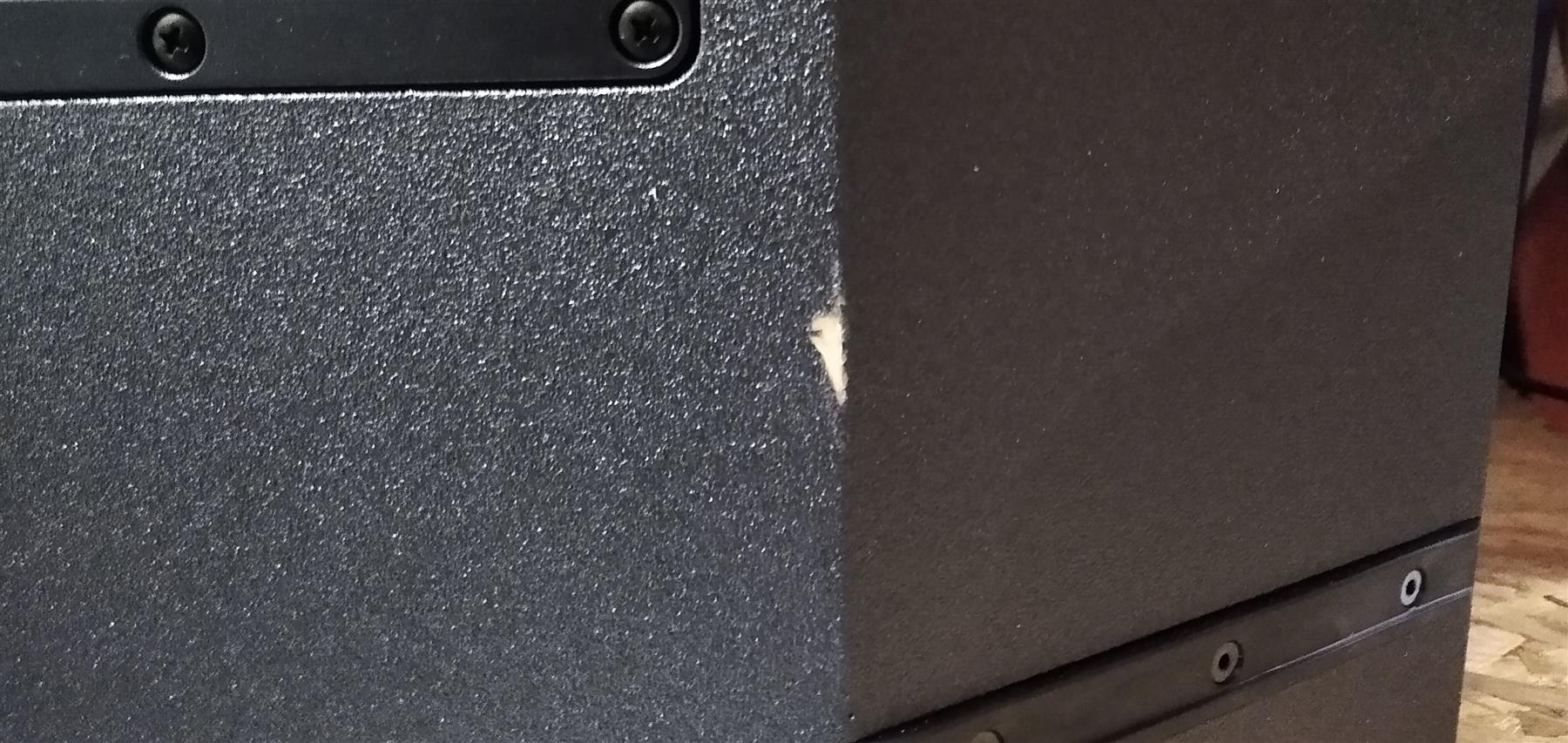

Electrovoice EV EKX-15 Passive Speaker 15" 1600W *B-Stock

Description

The EKX series is the newest member of the Electro-Voice portable loudspeaker family. It combines legendary EV sound quality and reliability with the latest technology, all in a compact package that is suitable for a wide range of sound reinforcement scenarios, including musicians, DJs, installations and other sound applications. The EKX-15 features a 15" LF driver and a 1" titanium compression driver.

EV-engineered components and EVs patented Signal Synchronized Transducers (SST) waveguide design combine to provide precise coverage and superior sound quality at high SPLs. EVs award-winning industrial design ” with robust wood enclosures and durable EVCoat finish ” ensures that EKX speakers look as great as they sound. EKX-15 delivers up to 132 dB SPL utilizing high-sensitivity transducers designed and engineered by EV (15-inch EVS-15M woofer coupled with a DH-1M 1-inch titanium compression driver).

EKX passive models are ideal for portable and installed applications, with lightweight and compact 15-mm wood enclosures with internal bracing, durable EVCoat finish, eight (8) M10 threaded mounting points, aluminum pole-mounts, and all-metal handles.

EKX-15: 1600 W (peak), 132 dB peak SPL utilizing high-sensitivity transducers designed and engineered by EV.
EV-patented Signal Synchronized Transducers™ (SST) waveguide design provides precise and consistent coverage.
Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish.

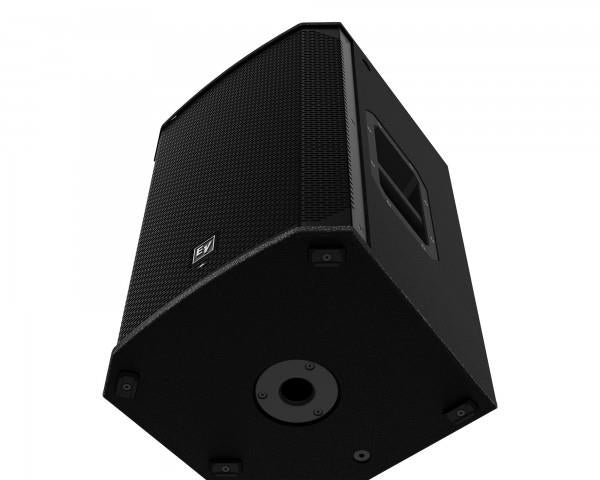

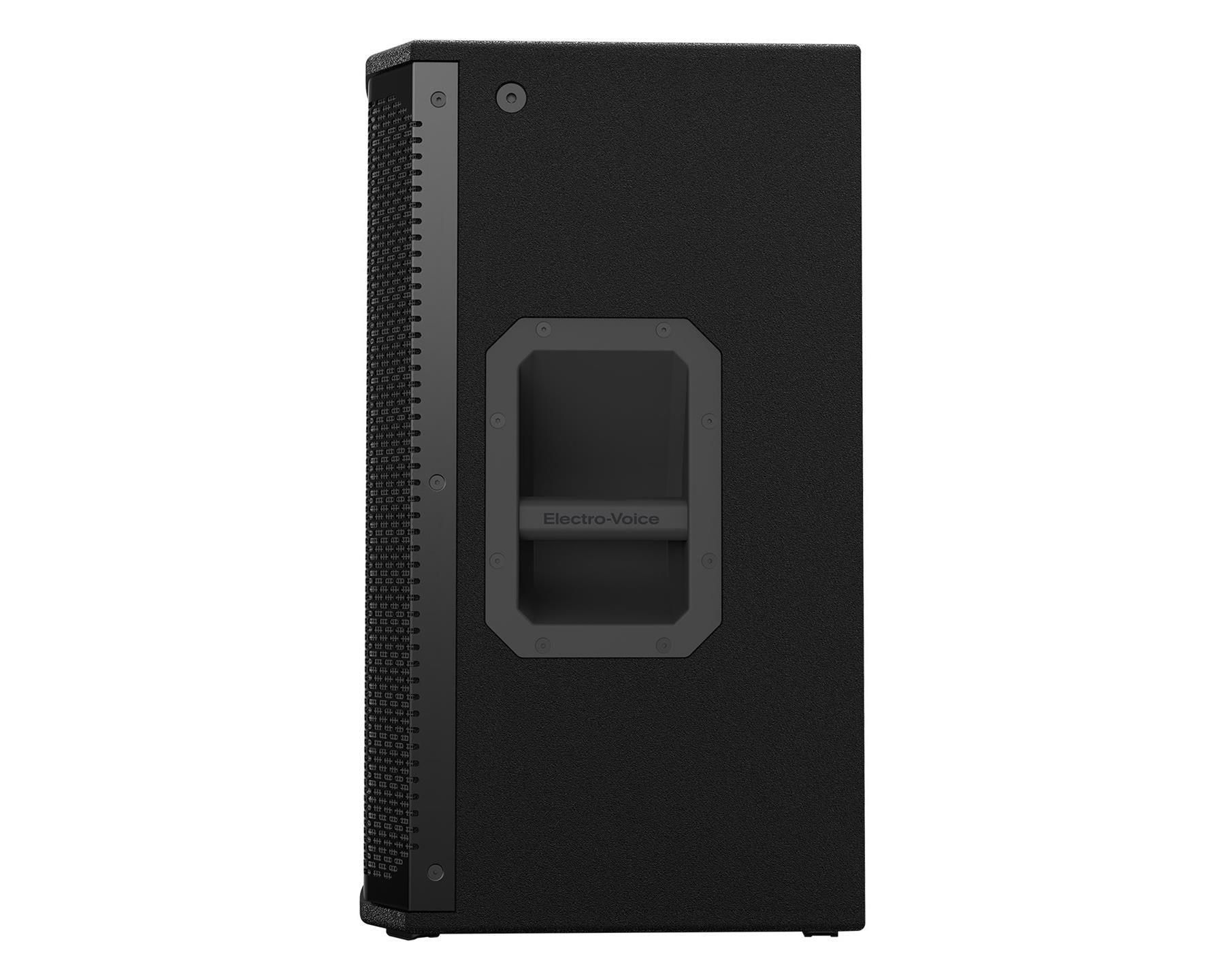

Eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.
90˚ x 60˚ pattern for best coverage on mid-size stages. 40˚ monitor angle with rubber feet.

General
Axial Sensitivity (SPL, 1 W @ 1 m): 96 dB Full Space Measurement
Maximum SPL: 132 dB Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating
Nominal Impedance: 8 Ω
Power Handling (Continuous / Peak): 400 W/1600 W
Frequency Response (-3 dB): 75 Hz - 18 k Hz Full Space Measurement
Frequency Response (-10 dB): 50 Hz - 20 k Hz Full Space Measurement
Recommended High-Pass Frequency: 50 Hz
Coverage (Nominal -6 dB) H: 90 °
Coverage (Nominal -6 dB) V: 60 °
LF Transducer: EVS-15M 381 mm (15 in)
HF Transducer: DH-1M 1-inch titanium compression driver
Crossover Frequency: 1.6 k Hz
Minimum Impedance: 7.2 Ω
Connector Type: Dual NL4
Enclosure Material: 15 mm, plywood with EVCoat
Grill: 18 AWG steel with powdercoat
Suspension: (8) M10 threaded mounting points
Physical & Dimensions
Height: 685mm
Width: 432mm
Depth: 429mm
Weight: 23.2kg
