Elation IP Tester - Test Lighting Fixtures for IP Rated Waterproof Test Outdoor

The IP TESTER is a unique mobile service tool developed by Elation to test the integrity of any compatible IP-rated lighting fixture such as ADJ's HYDRO series fixtures. Unlike other IP fixture test devices currently available in the market, Elation’s IP TESTER has been designed to test for both Vacuum and Pressure leaks.

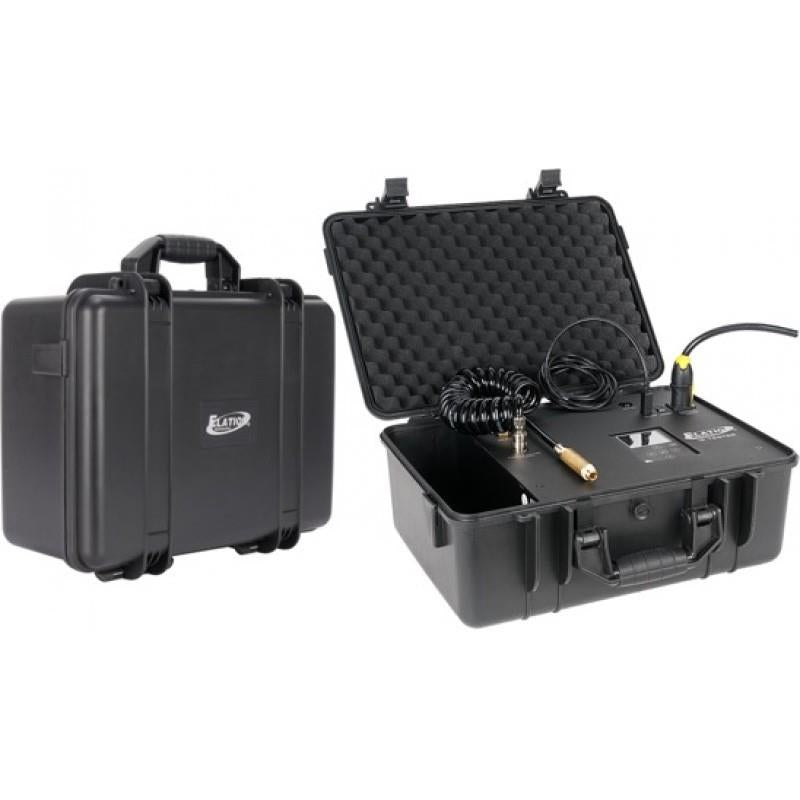

Features include an easy to carry rugged flight case, an easy to navigate 6-button LCD control menu display, testing progress bars to indicate remaining test time, manual test setup for any compatible IP-rated fixtures, fixture serial number input to keep track of fixtures tested, Micro SD card slot to store test reports, and a USB connection for PC software control.

The IP TESTER includes a 3-5 ft (0.9-1.5m) coiled air hose with quick-connect fitting, threaded M12 brass nozzle with push-to-connect fitting, 2 M12 x 1.5 nylon bolts, 6ft (1.8m) USB cable, 5ft (1.5m) PowerCON True1 power cord, a Micro SD Card, and an easy to carry rugged case.

Specifications
CONTROL / CONNECTIONS

LCD Control Menu Display

PC SOFTWARE (Win 7, 8, 8.1, 10)

Air In/Out Vent

Quick-Release Air Hose Fitting

Micro SD Card Slot

USB B Port

PowerCON True1 IN

SIZE / WEIGHT

Length: 16.5” (419.1mm)

Width: 6.5” (165.1mm)

Vertical Height: 14.25” (362mm)

Weight: 15.4 lbs. (7.0kg)

ELECTRICAL

AC 100-240V - 50/60Hz

40W Max Power Consumption

INCLUDED ITEMS

3-5ft (0.9-1.8m) Air Hose with Quick-Connect Fitting

M12 Threaded Brass Nozzle with Push-to-Connect Fitting

(x2) M12 x 1.5 Orange Colored Nylon Bolt

6ft (1.8m) USB Cable

5ft (1.5m) PowerCON True Power Cable

Micro SD Card (4GB min)

Compatible fixtures:

Hydro Beam X1
Hydro Beam X2
Hydro Wash X7
7P HEX IP
12P HEX IP
18P HEX IP
32 HEX Panel IP
15 HEX BAR IP
7PZ IP
UV72 IP
Encore Burst 100 IP
Encore Burst RGBW IP
Encore Burst UV IP
WiFly EXR QA5 IP
WiFly EXR HEX5 IP

Dimensions
419 x 165 x 362mm

Weight
7kg
