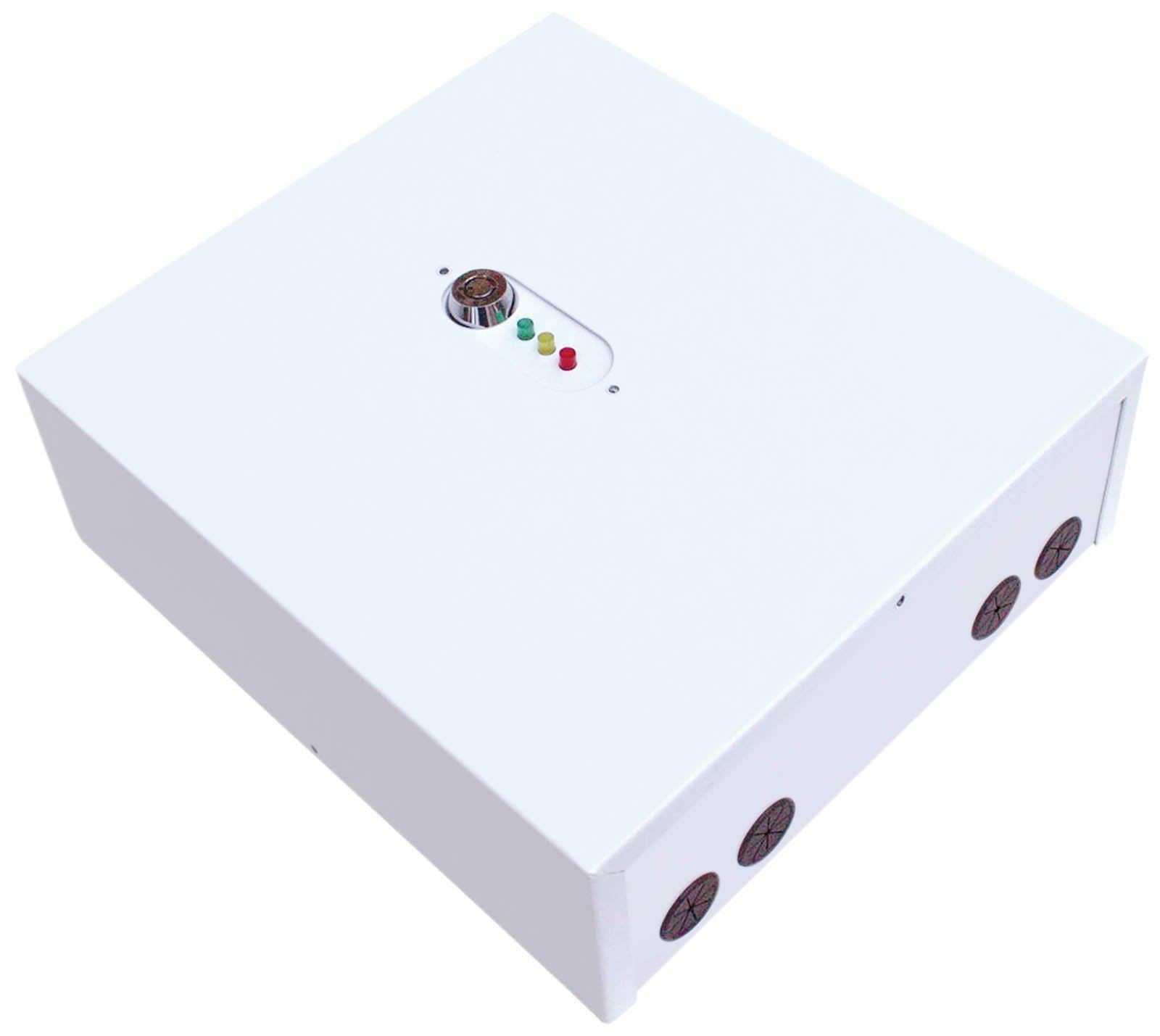

Eagle Sound Limiter Noise Pollution Control System

The Eagle Sound Limiter which is also known as an environmental noise control system is widely utilised within the entertainment industry in Pubs, bars, Halls, Health Clubs etc. and anywhere where music is played, to control the issues of noise pollution. This model is equipped with an adjustable dB setting, adjustable time setting, self-protection function & a recess or surface mount microphone. It has two microphone connections (one supplied), so that it can measure and average the sound at two points. The unit comes complete with a 4 x 32A 400V relay which can be used to switch up to 2 single phase supplies or a 3 phase supply. It also has an audio input and output so that it can attenuate the signal between mixer and amplifier if the sound level is too loud. It also features a remote-reset facility so that the output remains permanently off when the sound level is exceeded until the remote switch is pressed to reset. This product is compatible with product G920B, remote indicator panel. A single G920DA microphone unit is included as part of this kit.

Specification
Eagle Sound Limiter with an adjustable dB setting
Adjustable time setting
Self-protection function & a recess or surface mount microphone
Two microphone connections
Power Input : 230Vac
Relay Output : 4 x 32A 400V
Attenuation (dB) : 94 Max
Audio Input : 775mV rms (0dbm) Balanced
Audio Output : 0-775mV rms (-94 dBm to 0dBm) Quasibalanced
Colour : White
Connectors : Terminal Block

Dimensions
245x225x85 Depth (mm) : 85
Height (mm) : 245
Width (mm) : 225
Product Dimensions (mm) : 245x225x85

Weight
Weighting : A or C to EN60651
Net weight (kg) : 1.9
