Eagle 6 Zone 120W 100V Line Amplifier Mixer Bluetooth USB Background Music

Description:

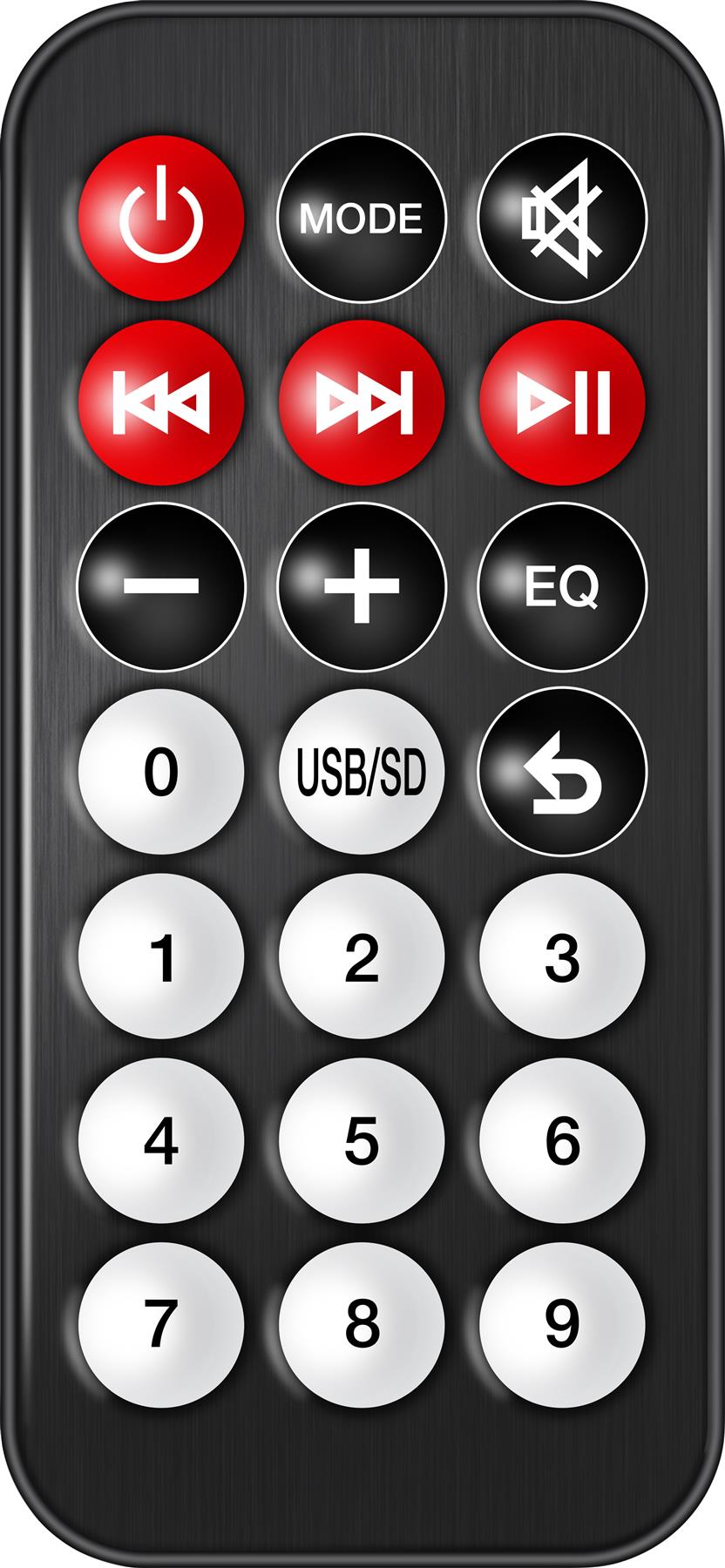

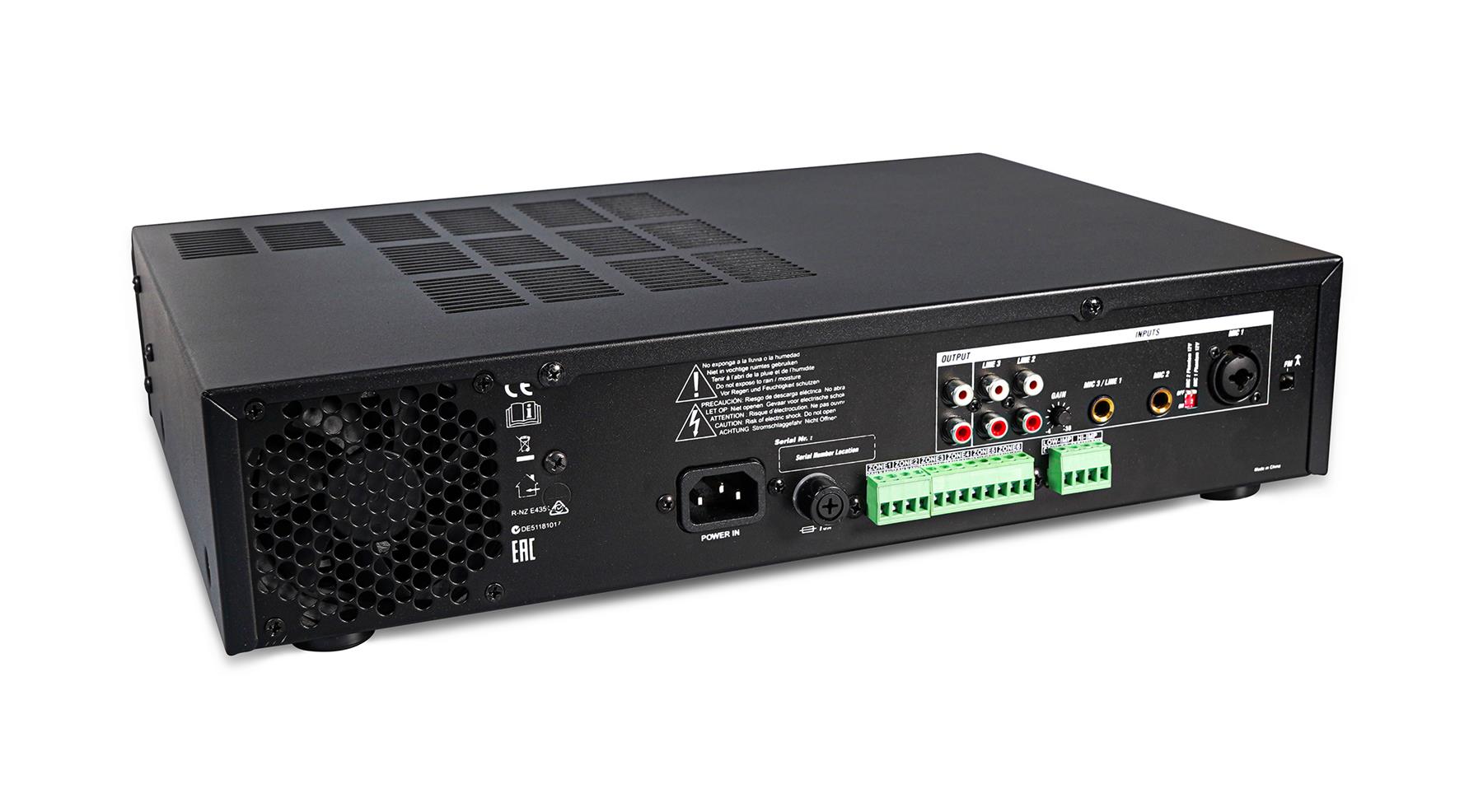

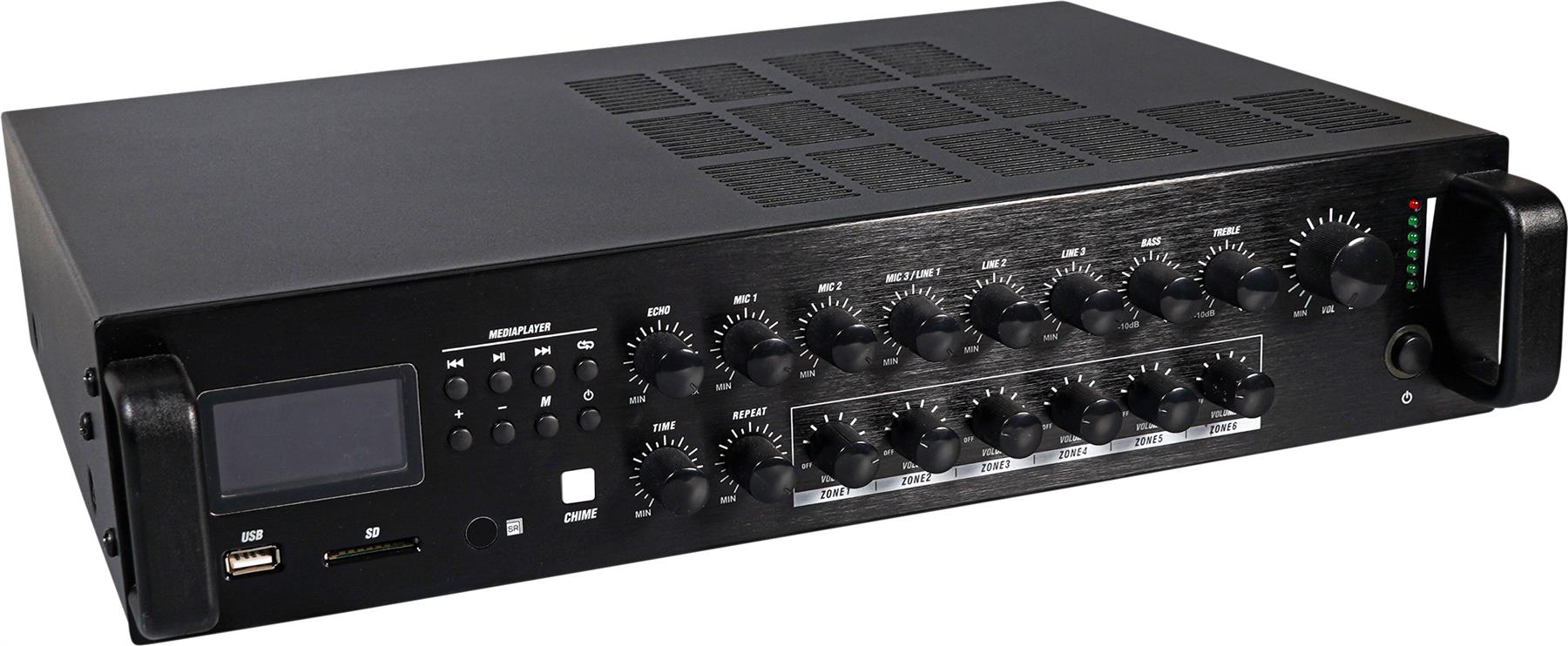

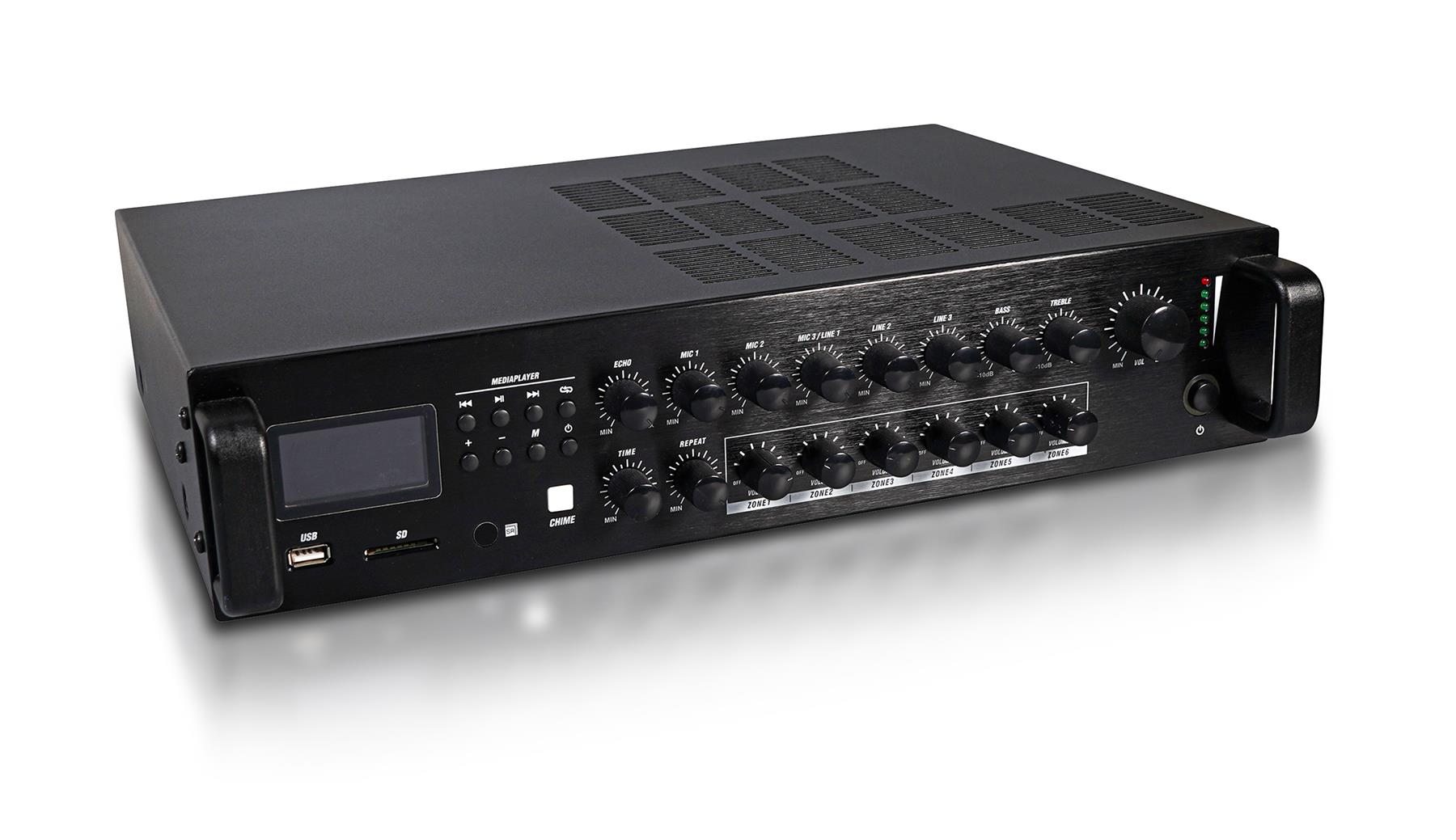

6 Zone mixer amplifier designed for multiple room commercial audio solutions. The product supports up to 3 microphones ( one with priority and two with 12V phantom power) and 3 line level inputs each with independent volume control and 6 zones output again with independent volume controls allowing the correct levels to be reached in each zone. Further to this product has a media player with FM radio, SD card reader and USB input controlled via the front panel or the remote control supplied, chime announcement facility all contained in a 2U high rack mounting case. Inputs are via combo jack/ jack and RCA phones and outputs are via terminal block. Supplied with rack mount ears.

Features:

6 Zone Mixer Amplifier
2U High 19" Rack Mount
120W RMS Rated Output
6 Zone Speaker Outputs of 100Volt Line with Independent volume control
One Zone output of 4-16 Ohm and 100 Volt Line
Built-in Media player (USB/SD,FM Radio, Bluetooth)
Three Microphone Inputs Mic 1 Combo XLR/Jack and Mic2 and 3 6.35mm Jack
Mic 1 With Priority and Mic 1 and 2 with phantom power
Line 2/3 Input by RCA
Clip, Overload, short circuit and over temperature protection

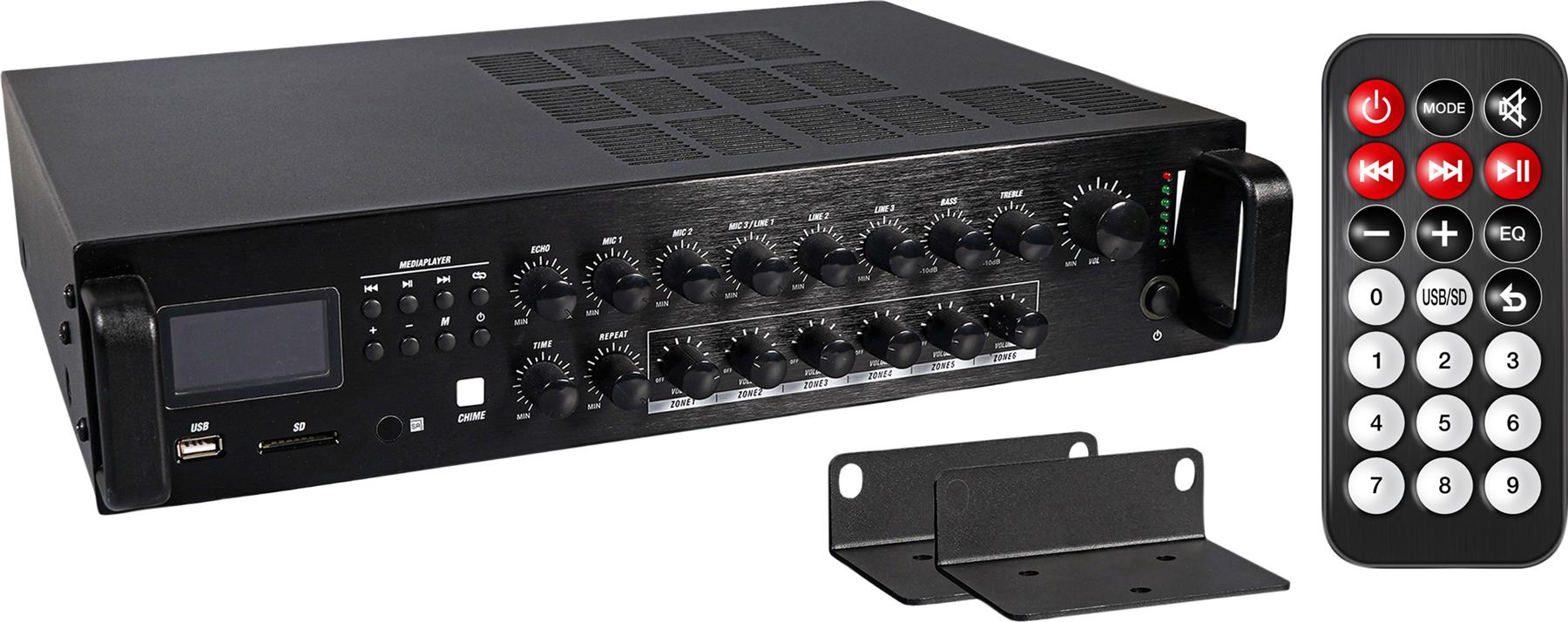

Rack Ears supplied

Specifications:

P648BA
Bluetooth Version 2
Colour Black
Frequency Response (Hz) 20-20000
Inputs 3 RCA Line
Microphone Input 3 (1 Balanced and 2 Phantom 12V
Power Input 230V AC @ 50 Hz
Speaker Type 100 Volt and Low Imp
Product Dimensions (mm) 320x350x100
Net weight (kg) 9.7
