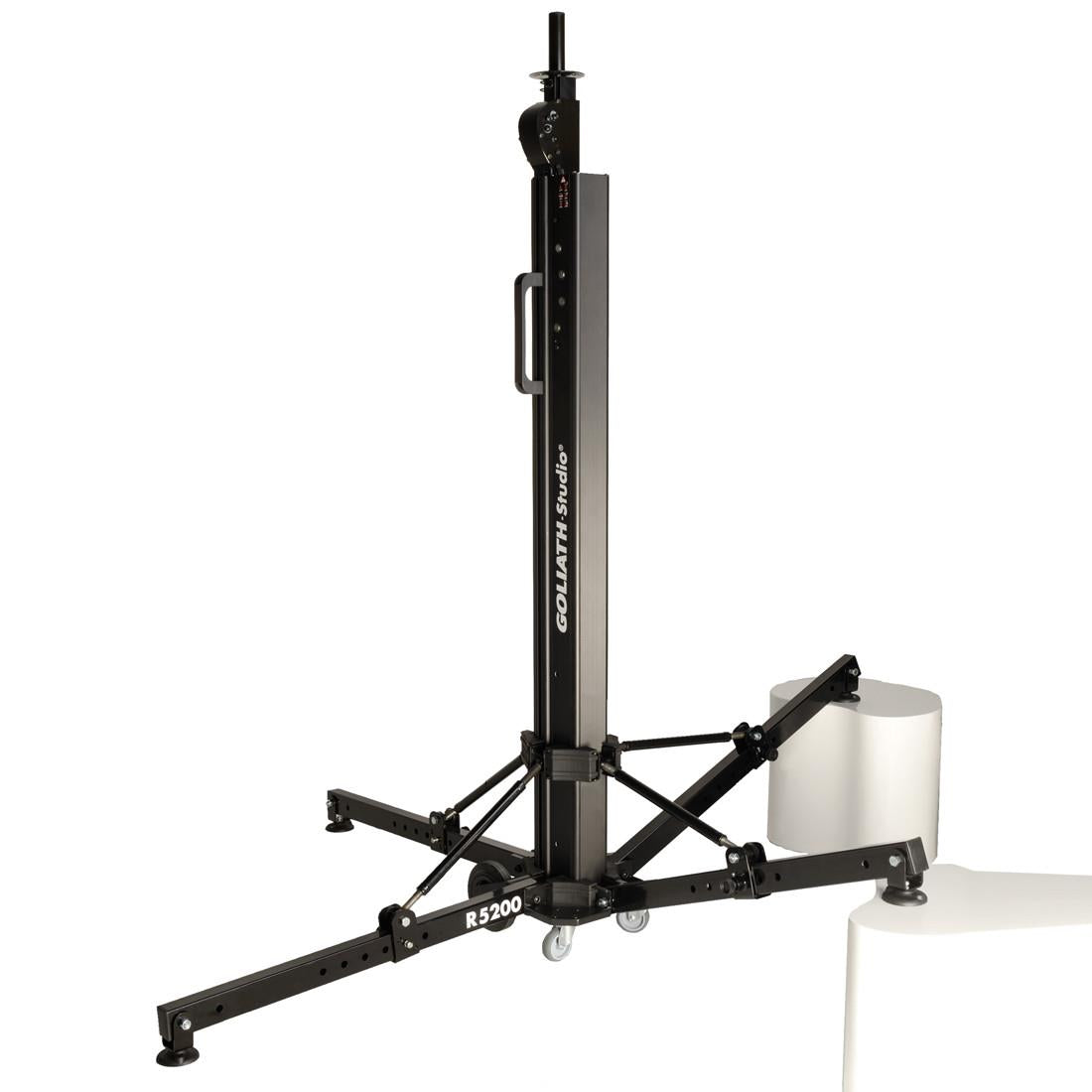

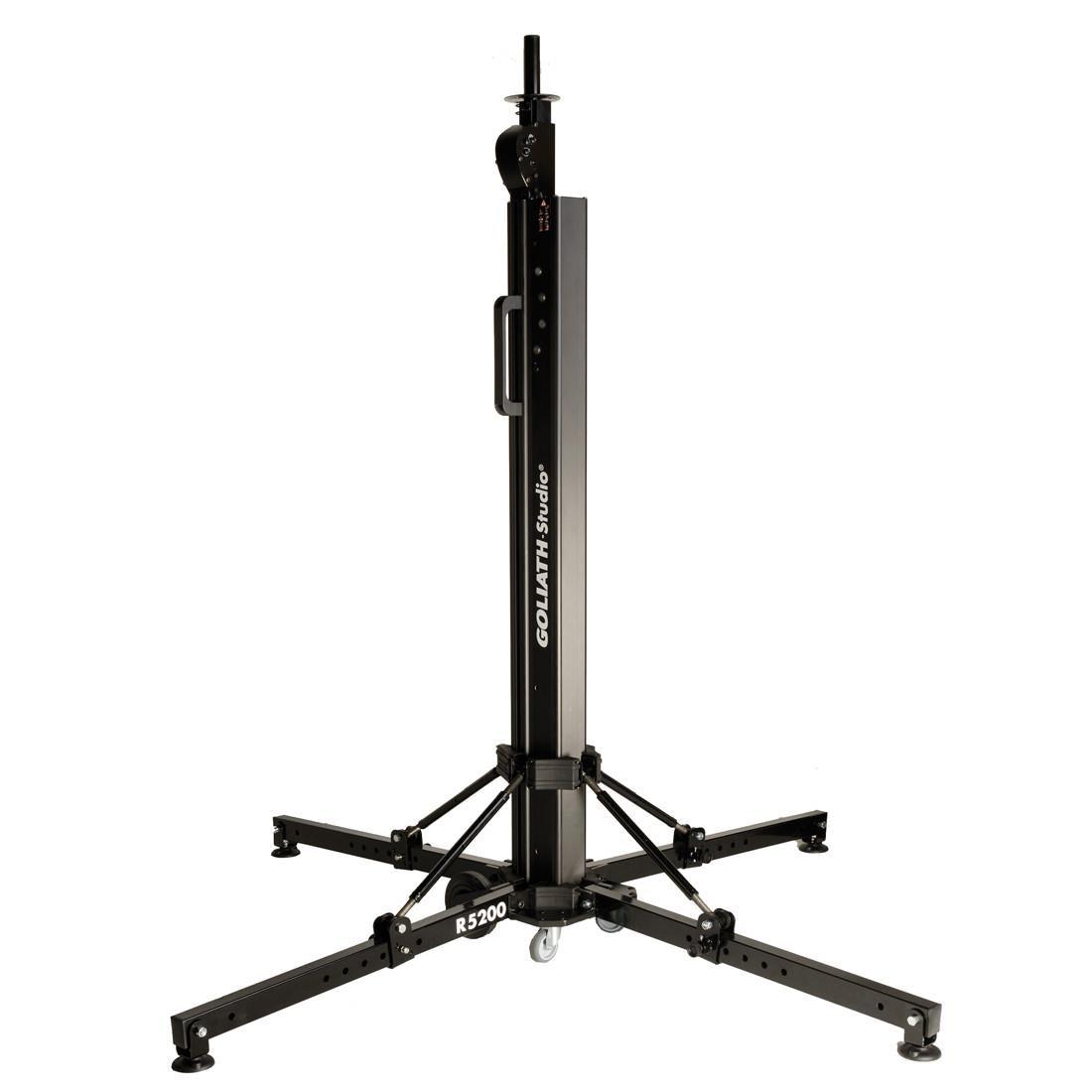

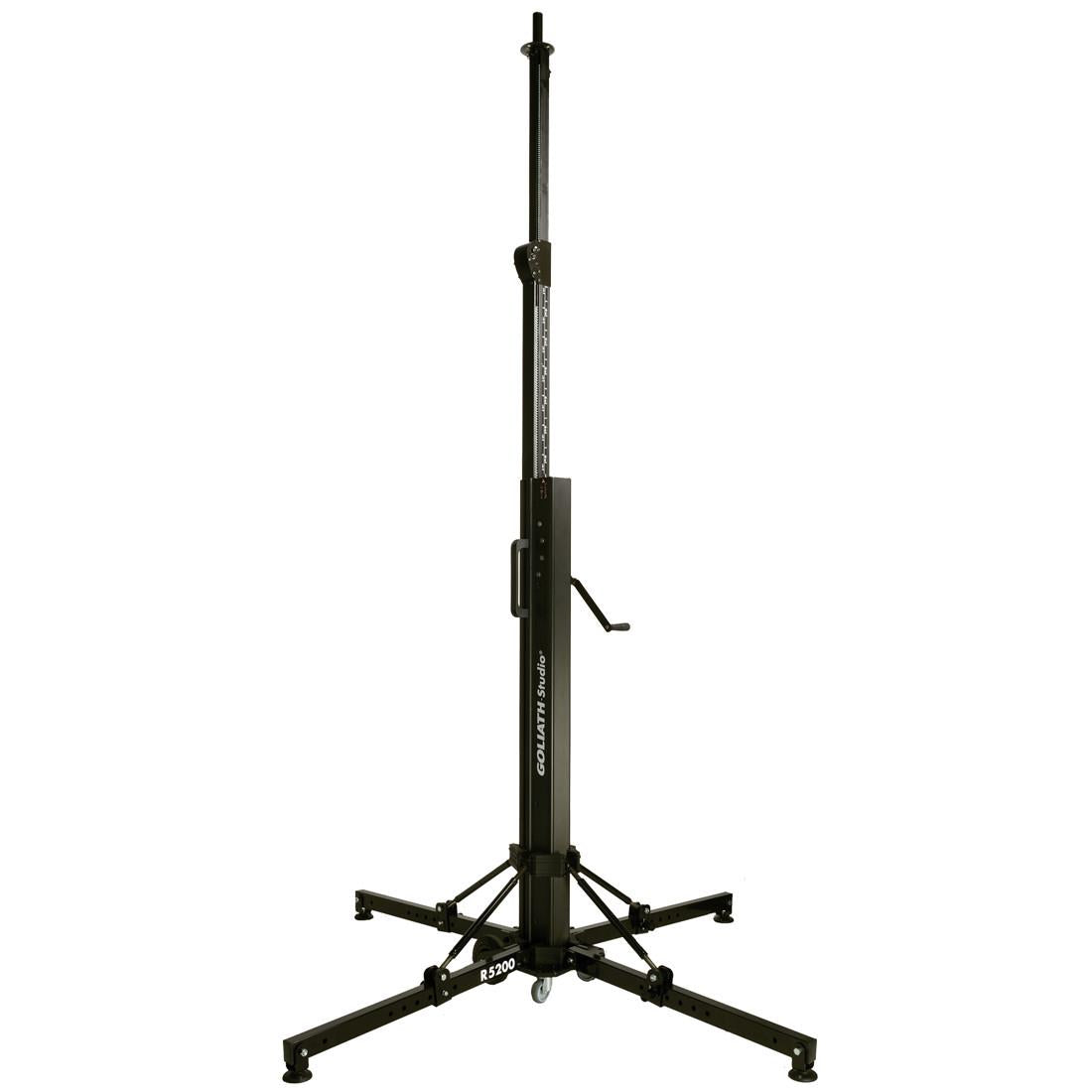

DuraTruss DT ST-R5200 5M Lift Stand 200Kg

£1,690.00
£1,690.00
The DT ST-R5200 lifter is powered by a rack and pinion drive in replacement of the usual winch cable pulley systems.
Vendor: DuraTruss
SKU: 1734000030
Icon In Stock In Stock
Icon Delivery Time
iFrame
×

Description:

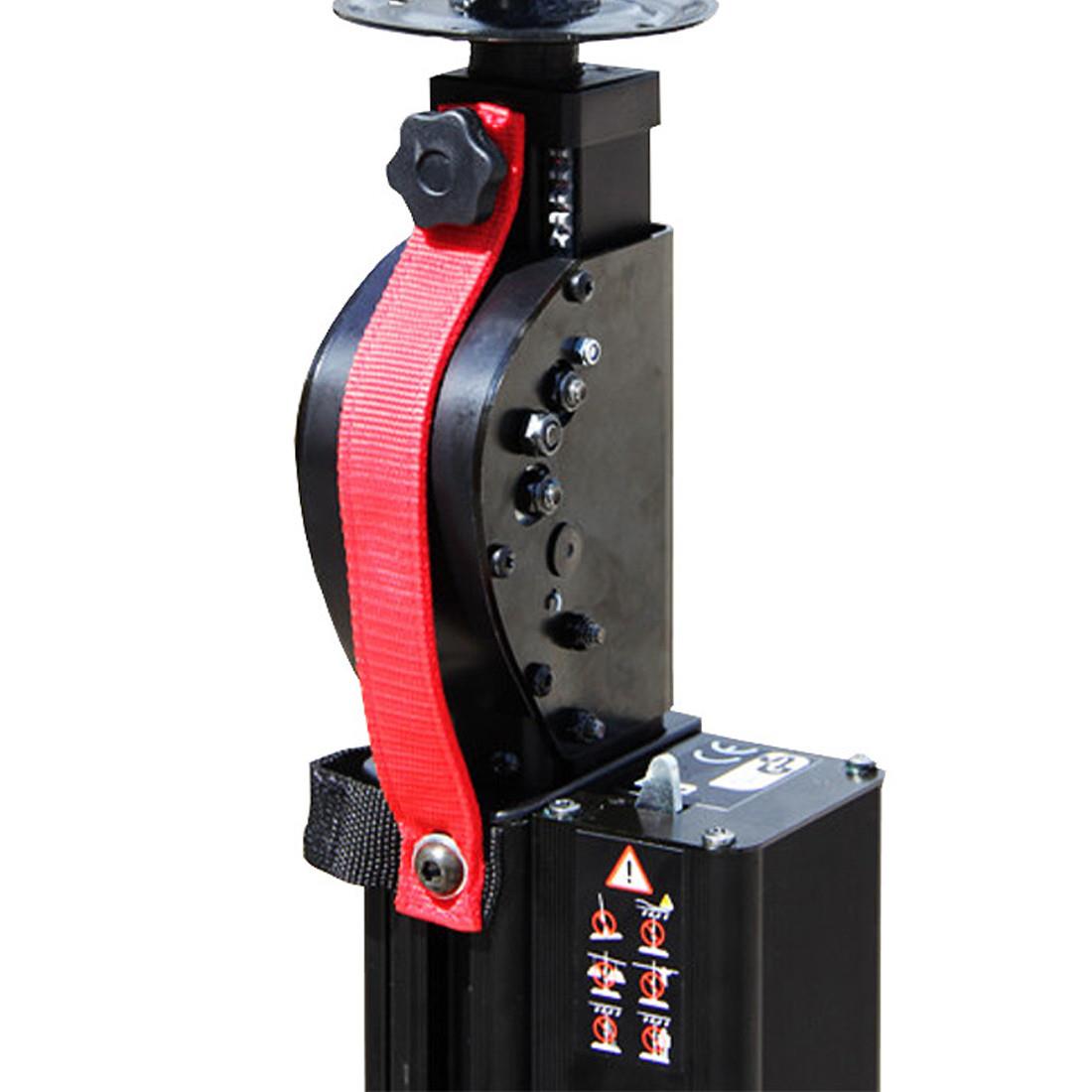

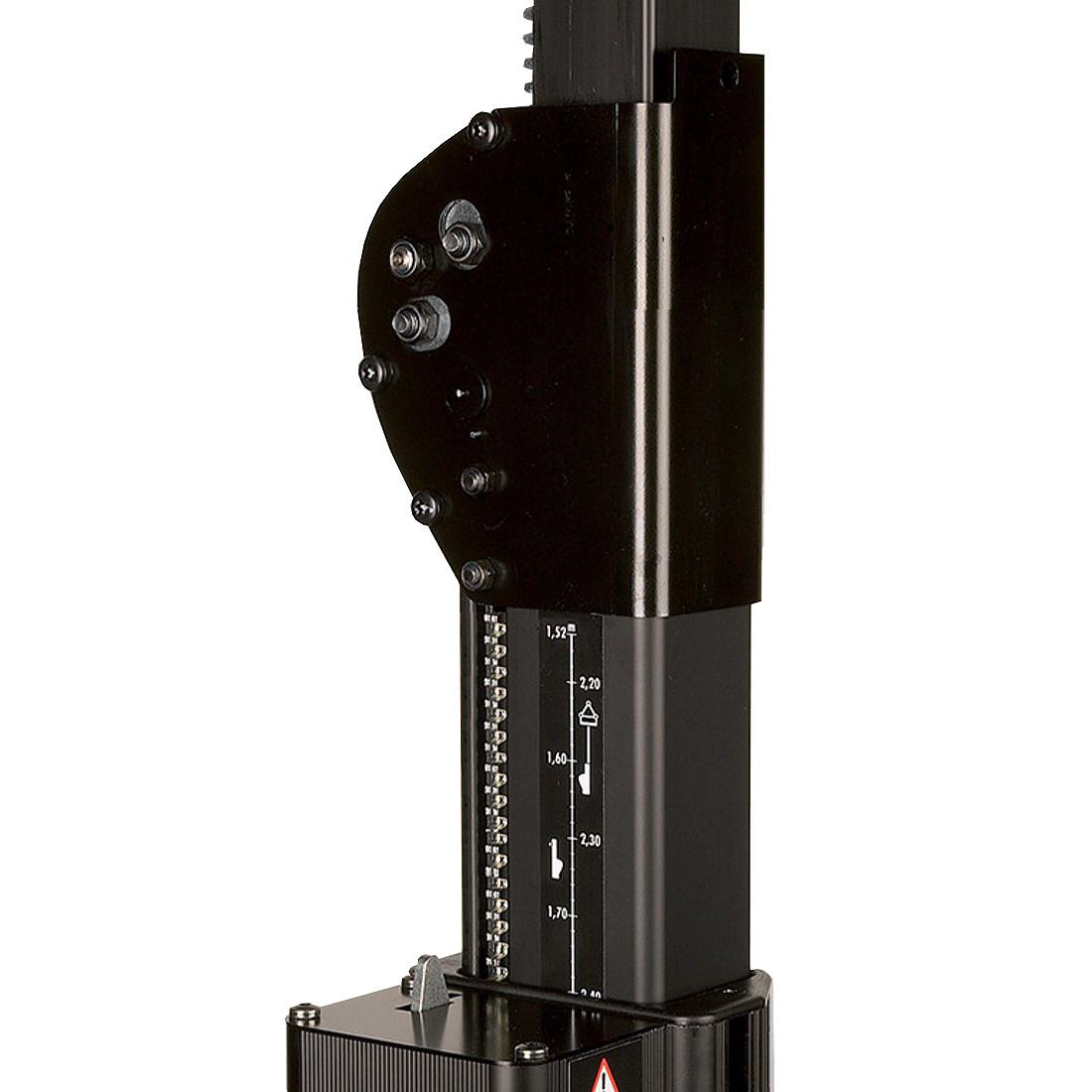

The DT ST-R5200 lifter is powered by a rack and pinion drive in replacement of the usual winch cable pulley systems. The rack and pinion drives system provides a smooth and regular lifting operation of your lights and electronic equipment and reduces (up to 10 times versus cable systems) the movement at the top when fully erected. The pinion drive is coupled to a permanent brake system (patented), and an automatic active security system for the upper modules that secure the load in all circumpstances. There is no need to stop lifting to position safety pins, This is a real improvement in efficiency and security!

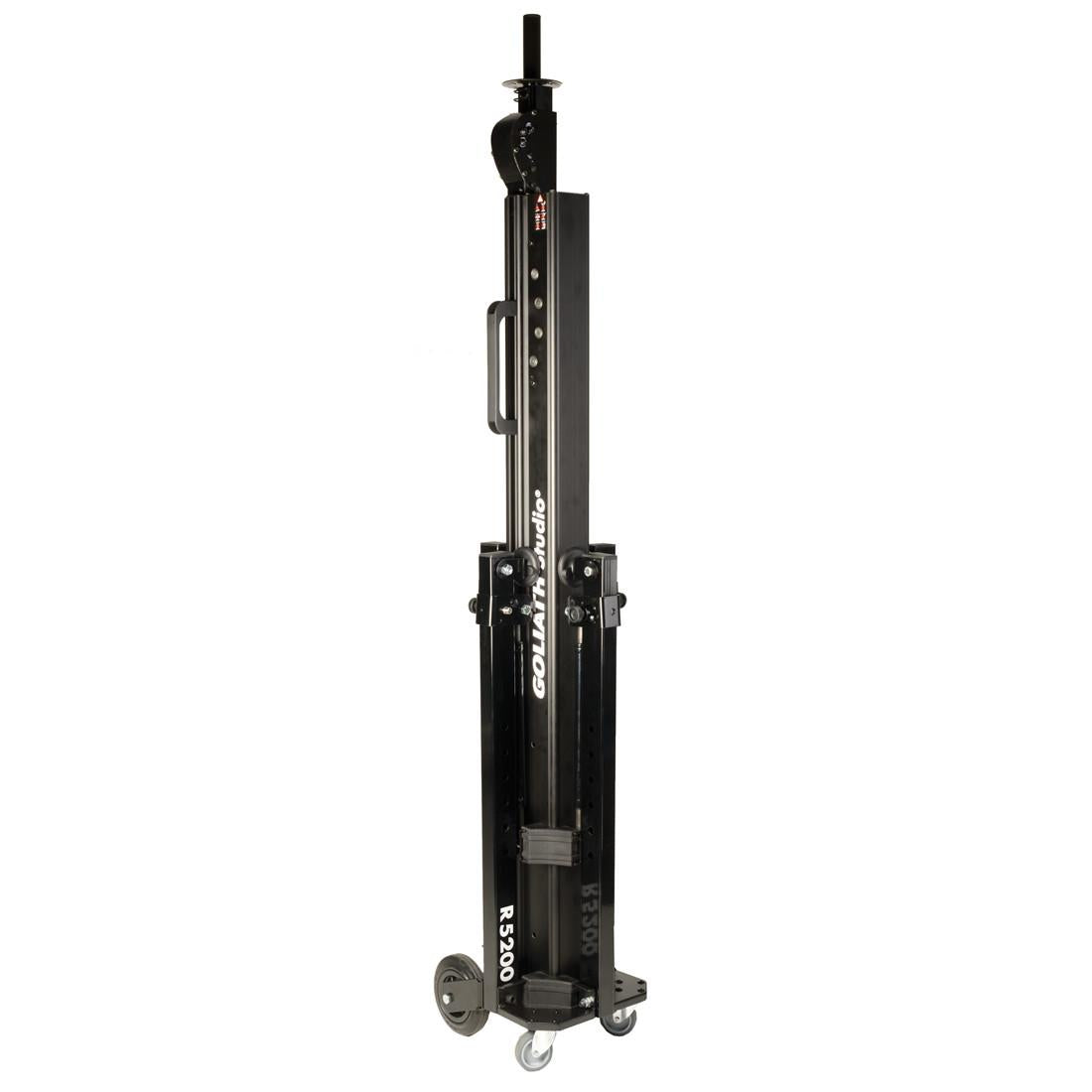

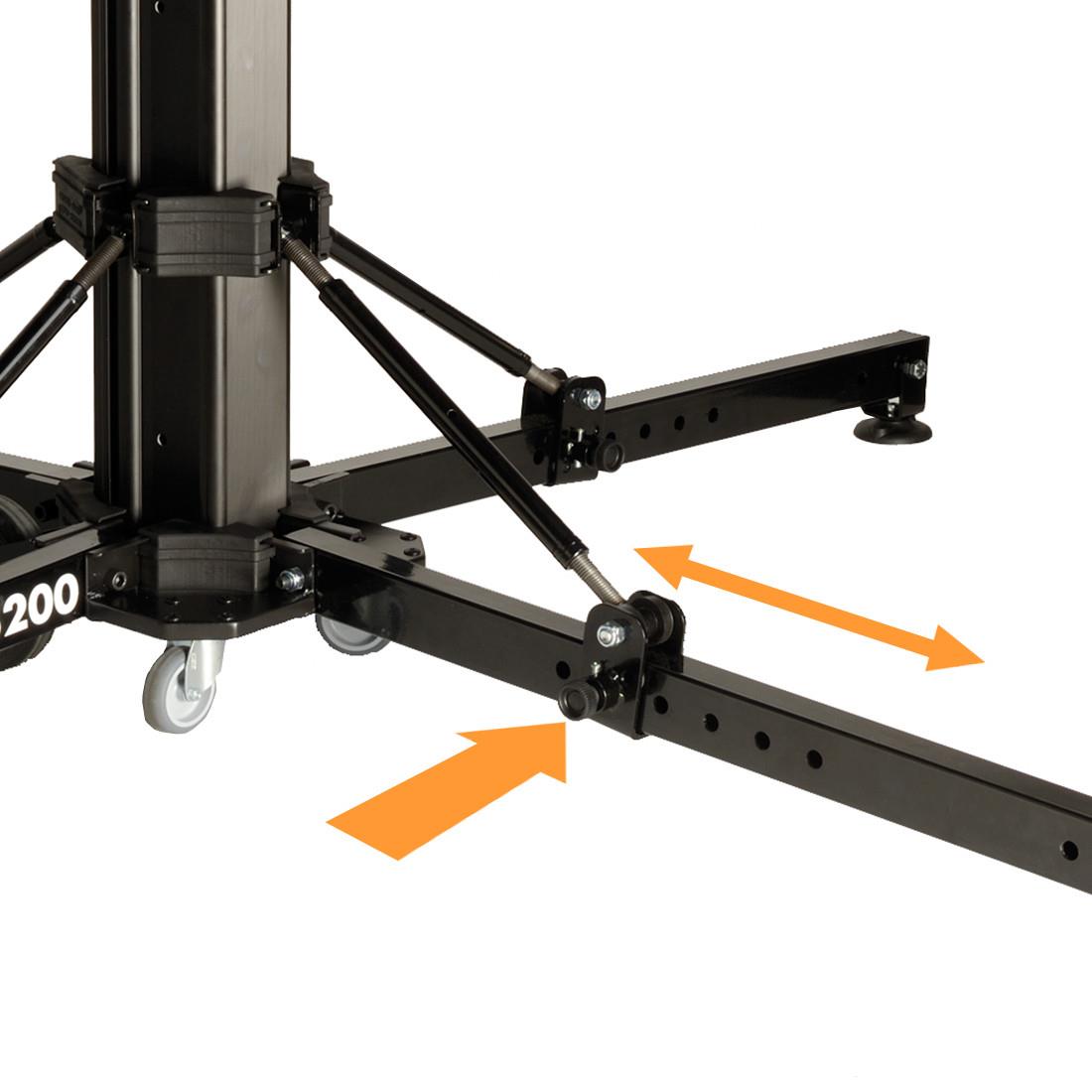

The lifters comes with a sturdy, yet compact foldable foot arangment, exceptionnally stable. The 4 legs are displayed evenly around the lifter can be folded, unfolded and adjusted very simply. the operator has only to unlock the system, slide and lock the leg in position, then adjust the screw rod for fine tuning. The R5200 receives as a standard 4 wheels and a handle to be conveniently positionned as well as 2 large wheels to allows an single operator to pull it around easily.

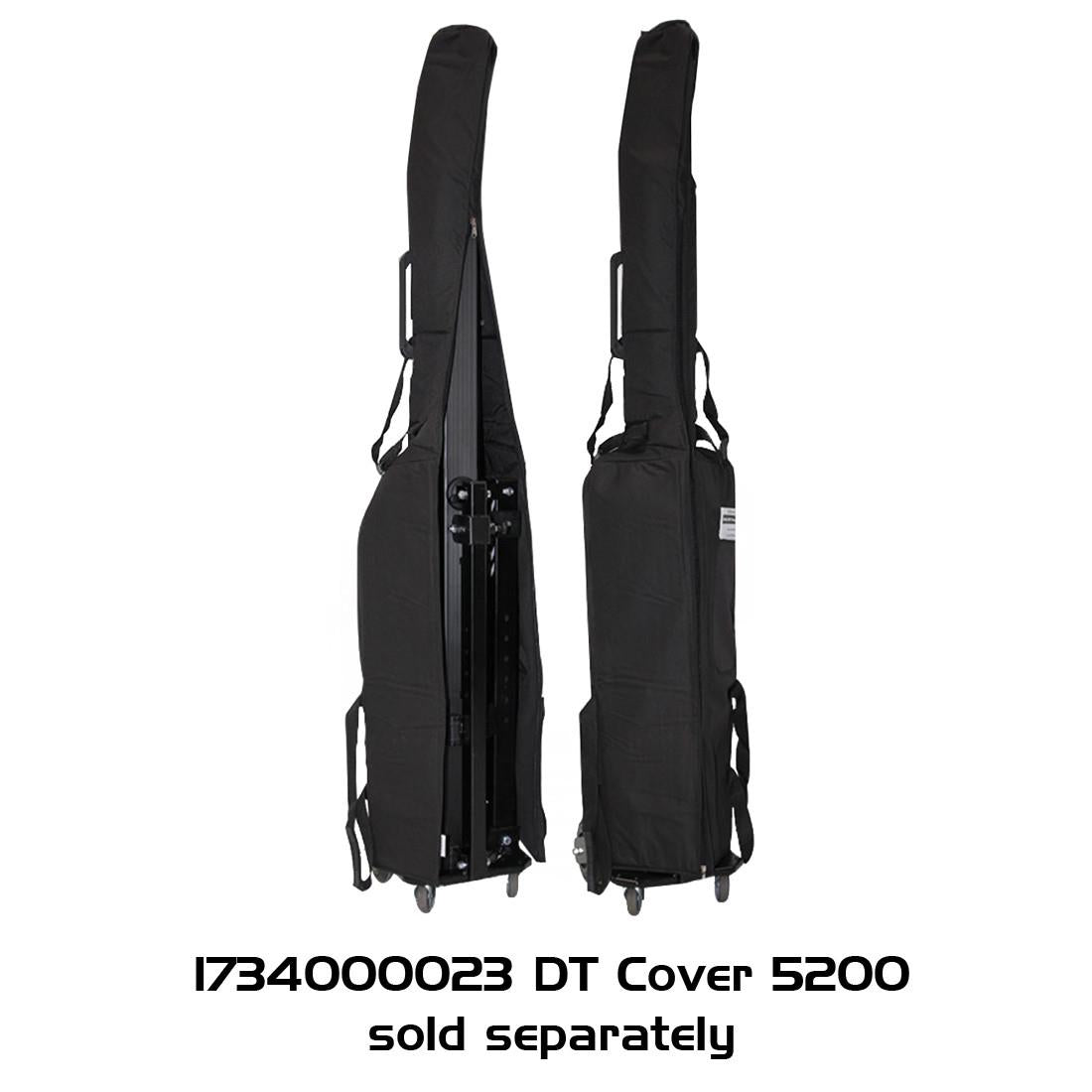

The lifters are supplied with an extention module with a 35mm end convenient for most accessoiries or speaker hole, A protective cover can be ordered as an option

Specifications:

  • Min. height : 1,86m
  • Max. height : 4,95m
  • Stand diameter : 2x2m
  • Unit weight : 69 Kg
  • Materials : aluminium
  • Stands : 4 multiposition folding and adjustable feet in high strength steel
  • Number of modules : 3 telescopic modules

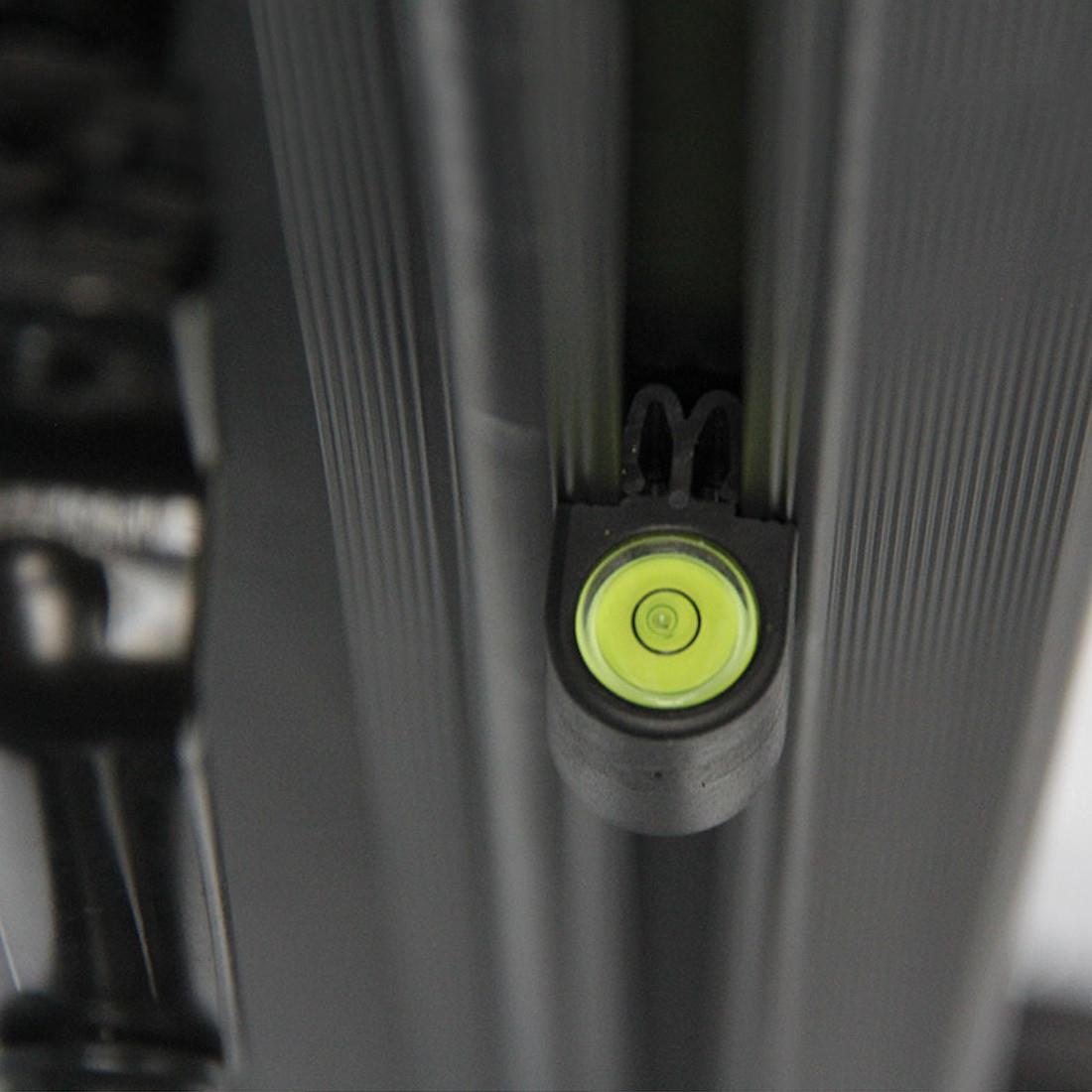

  • Bubble level : Yes
  • Removable handle : Yes

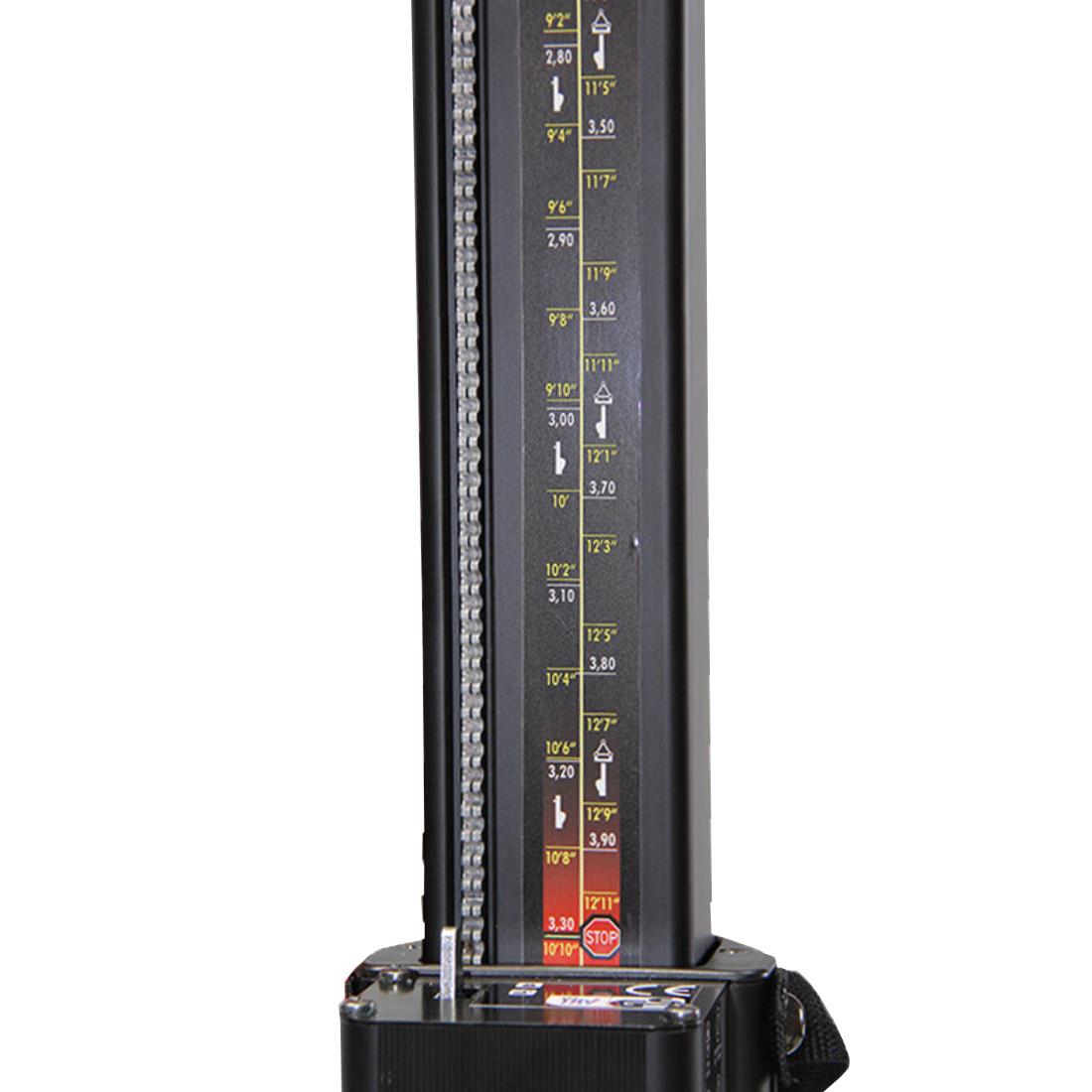

  • Adjustment scale : Yes
  • Optional Transport cover
  • Large pneumatic transport wheels
  • Output/Adaptor : Male output 35mm
  • Maximum load : 200kg
