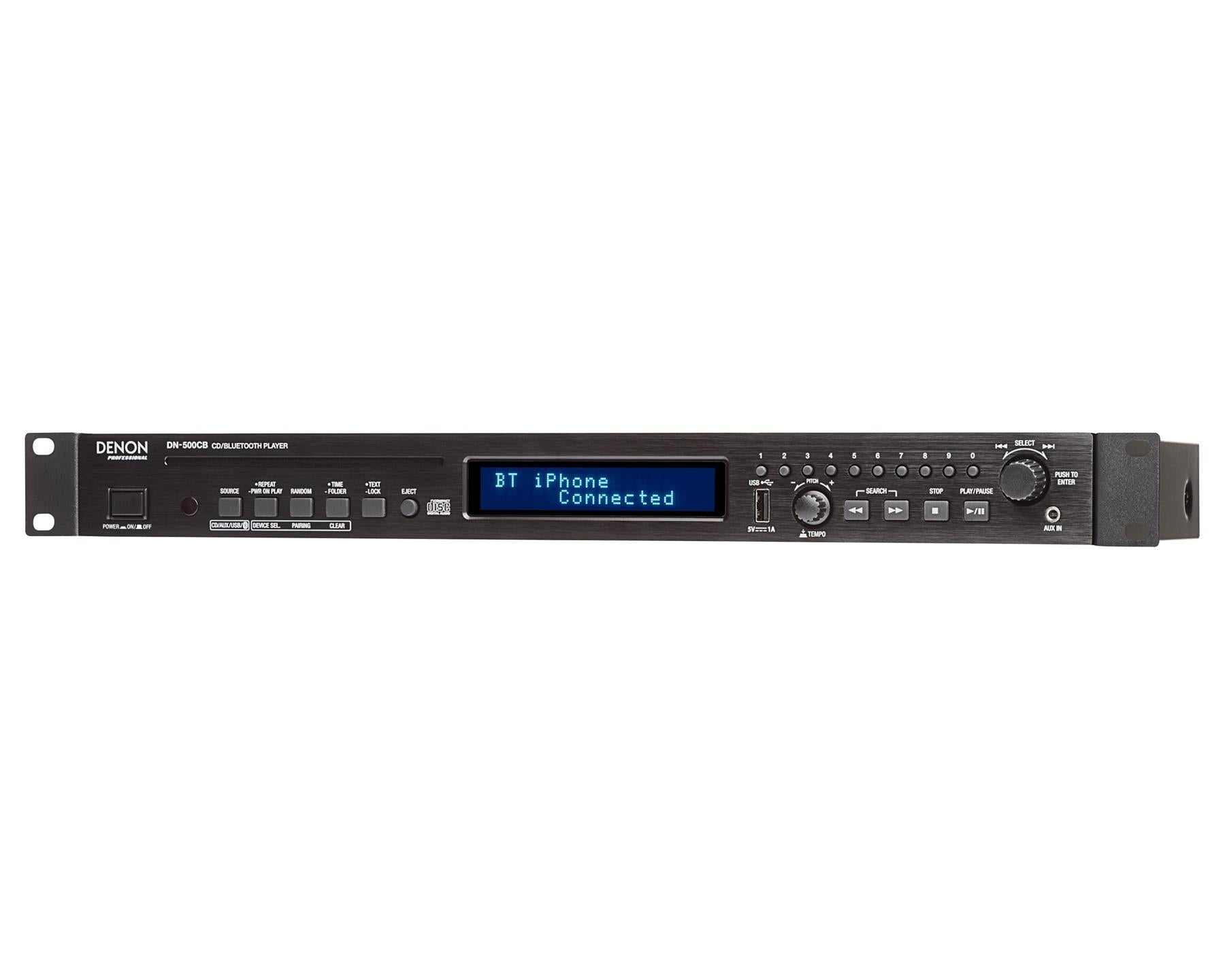

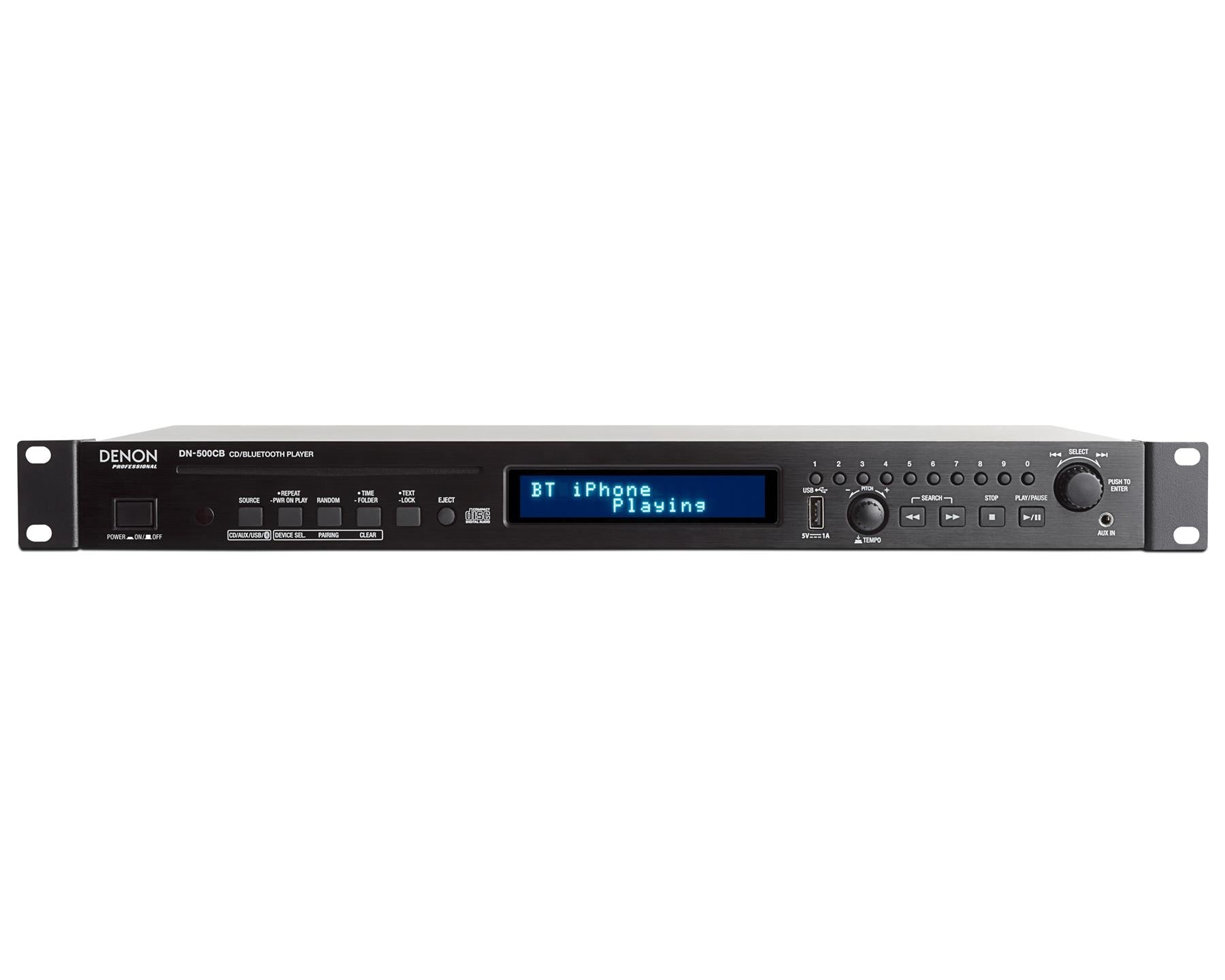

Denon DN-500CB CD/MP3/USB/Bluetooth Player

The DN-500CB is a highly-versatile yet affordable media player that excels in applications where users bring their own devices for education, instruction or entertainment. The DN-500CB plays not only CD media but provides Bluetooth connectivity, USB playback and a 3.5mm AUX input for connecting virtually any other playback device.

Like all 500 series Denon Professional media players, the DN-500CB offers an RS-232c port on the rear for control via serial command and the serial command protocol guide is available for download.

Perfect for retail, education, and hotel/conference applications, this player offers features normally found on higher-priced players, such as Bluetooth Pairing, Front Panel Lock, Power On Play, direct access to tracks, memory of settings after loss of power, and balanced XLR output.

Features
Bluetooth 3.0 pairing to (8) devices
Slot-loading CD transport
USB host port for file playback
10-button direct track access
3.5mm AUX input for playback from portable players
RS-232c control capable
Compact IR remote control included
Balanced (XLR) and unbalanced (RCA) outputs

Specification
Audio channels: 2 channels / stereo
Frequency response: 10 - 20,000 Hz, +/- 1.0dB
Dynamic range: > 85dB (10- 20,000 Hz A-weighted)
Signal to Noise ratio: > 90dB (1kHz, 0db, A-weighted)
Channel separation: > 80dB (1kHz, 0dB, A-weighted)
Total Harmonic Distortion (THD): < 0.01% (1kHz, 0dB, A-weighted)

Bluetooth Specifications
Output class: Class C
Bluetooth version: 3.0
Support profile: A2DP, AVRCP (1.3/1.4)
Support codecs: SBC, MP3, AAC, aptX

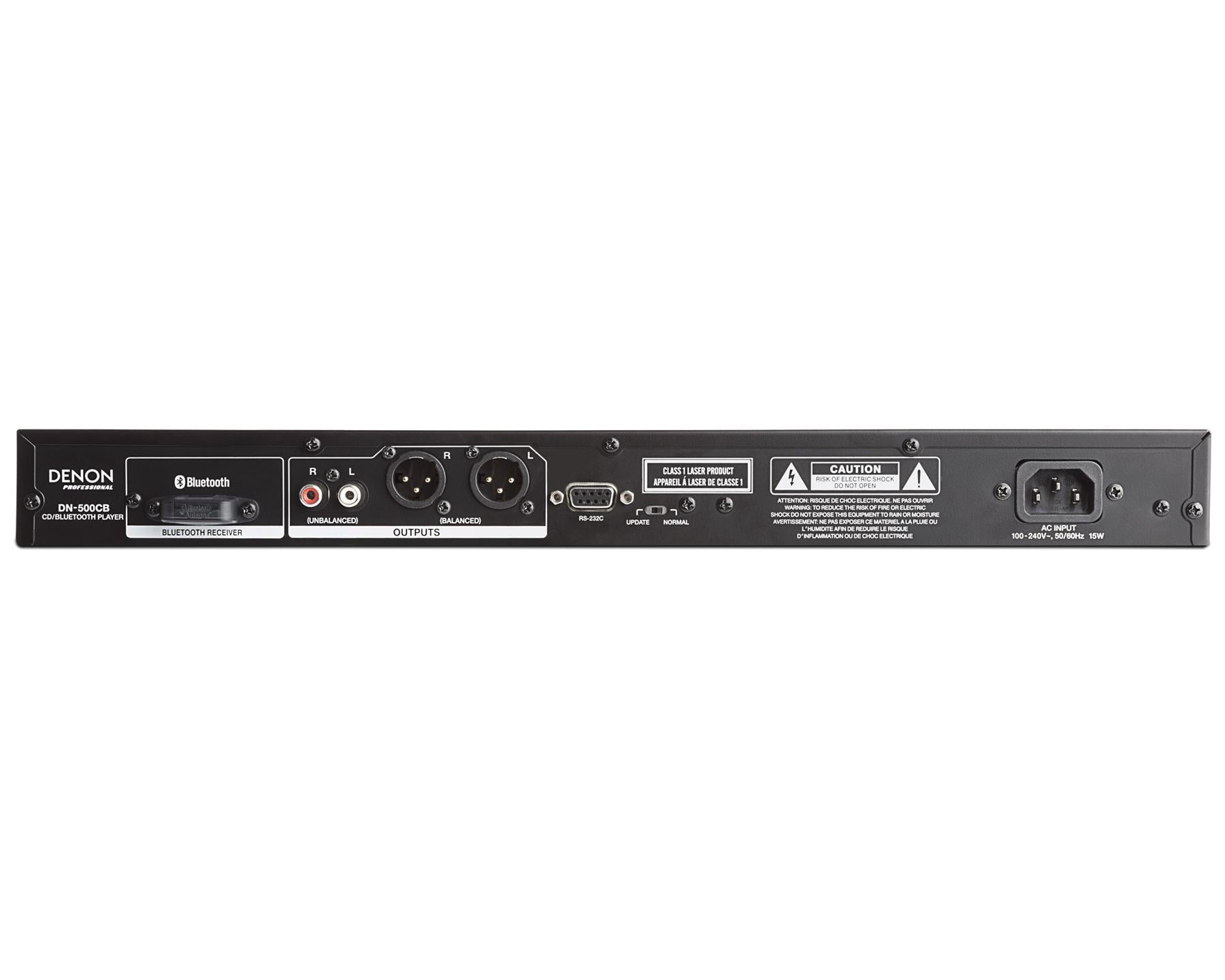

Outputs
XLR (balanced) 2.0Vrms
RCA (unbalanced) +4dBu

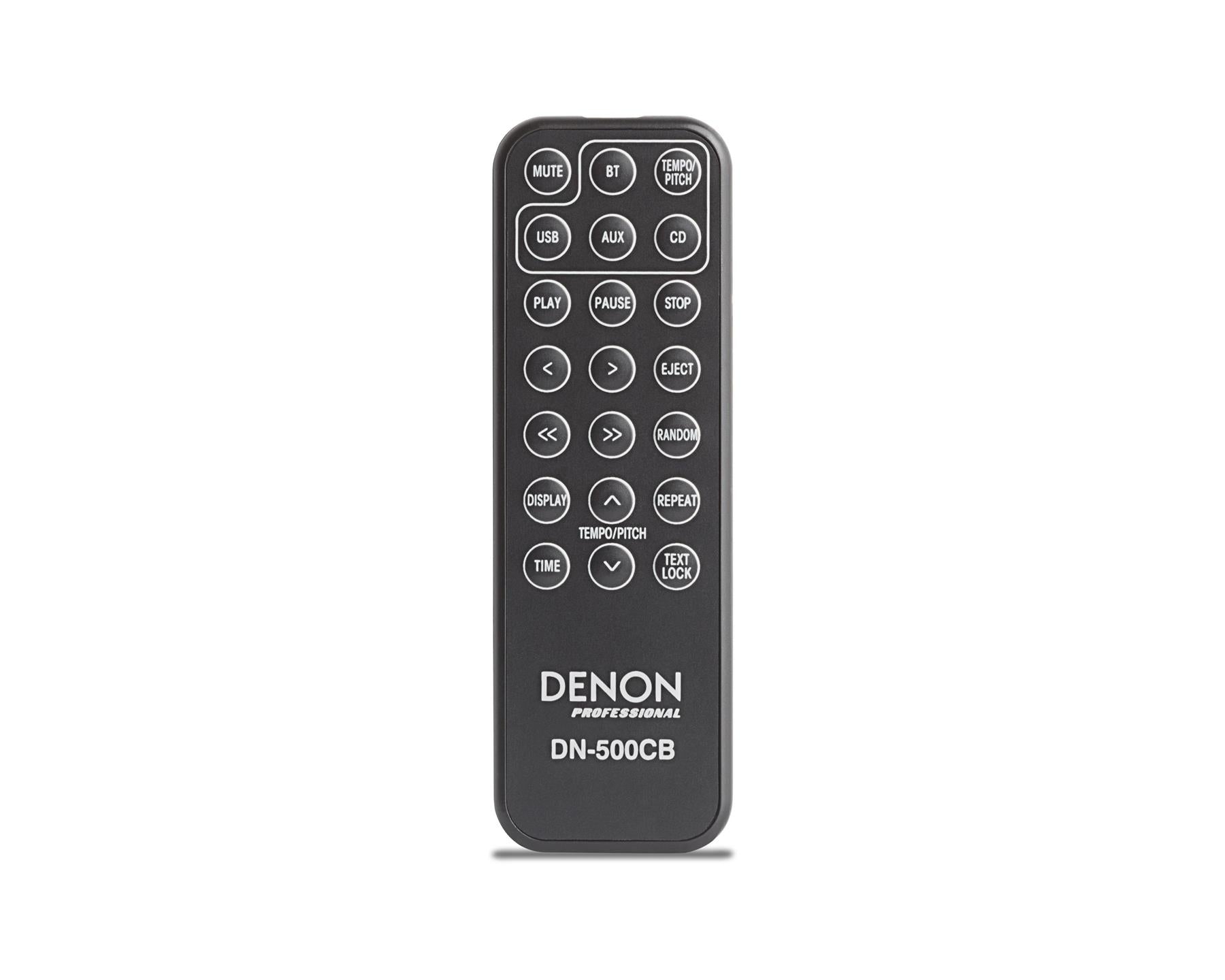

Remote Control
IR Remote
Infrared protocol / NEC format
Transmit output level: >200mVp-p
Serial Remote
D-sub 9-pin female RS-232C
Mode: Full duplex
Baud rate: 9600/38400 b/s (selectable in the menu)
Data: 8bits
Start bit: 1bit
Stop bit: 1bit
Parity: none
Flow control: none

Audio File / SIGNAL
Sample rate: CD-DA, Audio file 44.1kHz
Word length: CD-DA, Audio file 16-bit
File format: Audio file WAV/MP3/AAC
Bit rate: MP3, AAC, CBR/VBR ST/Mono 32~320kps
ID3 tag: MP3 V1.x~2.4

CD Drive
Media
File system: CD-DA (CD-TEXT), CD-ROM (ISO9660)
Disc: CD, CD-R

USB Storage Device
File system: FAT 16/32
Media type: Flash/ HDD

Environmental
Operating temperature: 40° - 95° F (5° - 35° C)
Operating humidity: 25 ~ 85% non-condensing

Power
Power requirements: 100-230 VAC
Power consumption: <30W
LCD Display: LCD 2 lines, 16 characters x 2 lines LCM display

Dimensions
44 x 483 x 347 mm

Weight
2.92 kg
