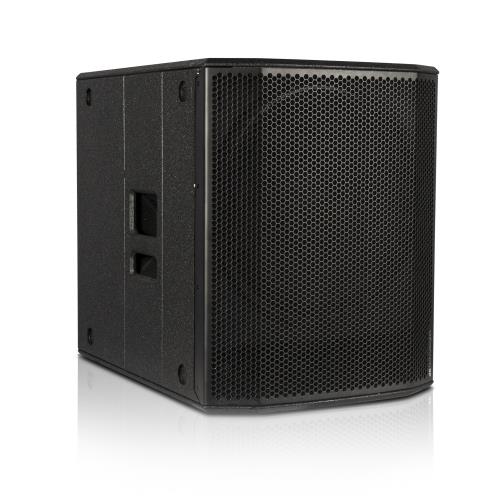

dB Technologies SUB 618 18" 1200W Active Subwoofer Speaker Bass Bin

SUB618 is a bass-reflex active subwoofer featuring a 600W RMS Class D Power Amplifier with SMPS and is equipped with an 18” transducer.
The system delivers outstanding sound pressure levels (up to 133dB) in spite of its compact housing while providing a clean, impressively precise low-end reproduction.
Sub 600s’ outstanding audio performance allows the user to build most of the PA systems with 1 single sub and 2 full-range speakers, avoiding any external processing or crossover thanks to a balanced Xover signal to left and right speakers.

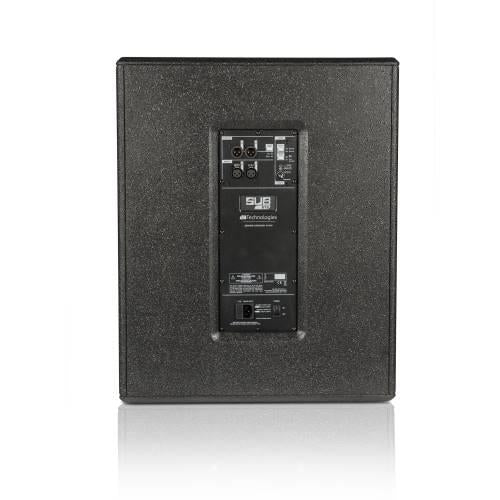

Controls on the amp panel allow the user to operate with Mono or Stereo audio feed, activate polarity inversion and choose Outputs link mode (True Bypass or Xover). Whenever a further punch is needed, a low-frequencies boost EQ can be set thanks to the Sub Mode switch.

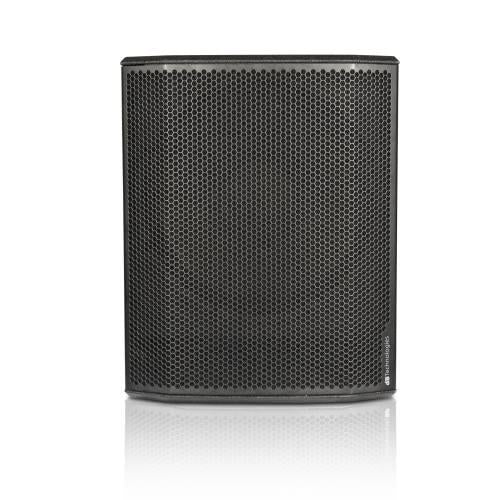

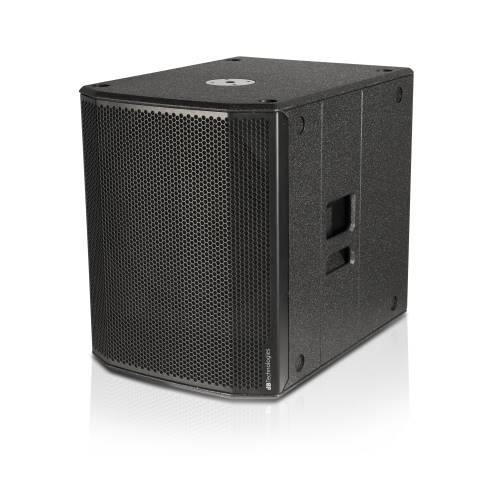

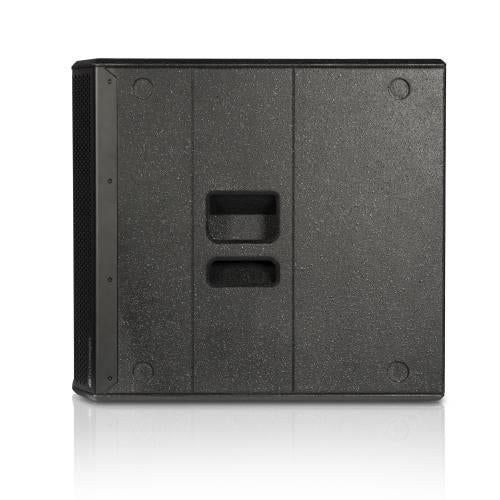

The series comes with a full grille design in a lightweight wood cabinet (total weight 31kg /68 lbs) strengthened with a hardwearing, scratch-resistant black covering. Carved side handles enhance portability. The design of the top side eases subs stacking in larger systems and features an M20 pole mount thread to stack full-range speakers.

Specifications
Speaker TypeActive Subwoofer
Acoustical data
Frequency Response [-10dB]35 - 130 Hz
Max SPL (1 m)133 dB
Directivityomnidirectional
LF18"
LF Voice Coil2.5"
Amplifier
Amp TechnologySMSP digital amplifier
Amp ClassClass D
RMS Power600 W
Peak Power1200 W
Processor
Controller28/56 bit DSP
LimiterPeak, Thermal, RMS
ControlsSubwoofer level, Outputs mode, Polarity, Subwoofer mode
Input
Signal Input2x XLR (balanced)
Signal Output2x XLR (balanced)
Mechanics
HousingPlywood
GrilleFull metal grid
Pole MountM20

Dimensions
500 x 625 x 690mm

Weight
31.1kg
