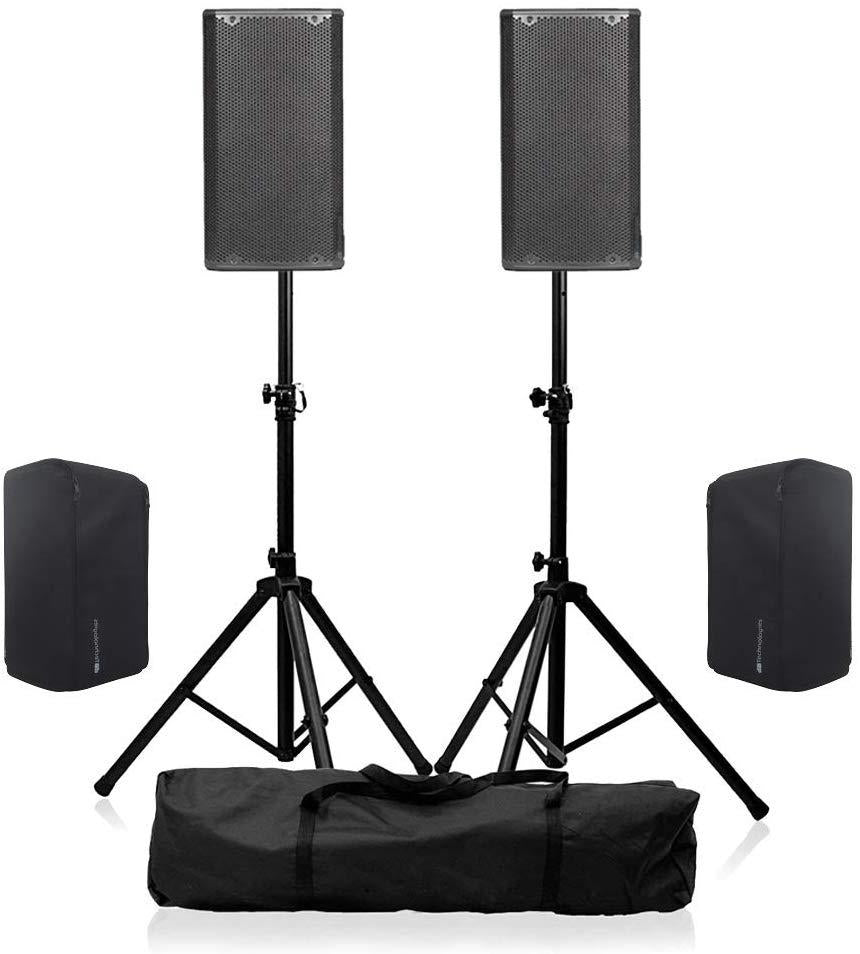

dB Technologies OPERA 12 2400W 12" Active Speaker Bundle inc Covers

With the new OPERA series, dBTechnologies succeded once again in packing leading edge DSP processing, advanced design features and user-friendliness in an unrivalled cabinet in its price range.
Exceptional power and a unique acoustic design combine in order to deliver a vigorous yet pristine sound, successfully adaptable to both playback and live music applications.

Opera’s asymmetrical horn has been completely redesigned in order to obtain both an asymmetrical vertical dispersion and a double horizontal dispersion, ensuring an optimized throw pattern.

The system is equipped with a powerful Class D 600 W amplifier featuring advanced DSP processing where FIR filters allow the systems to deliver a coherent audio performance, uniform and crystal-clear from every listening position.

Specifications
Speaker Type2-Way Active Speaker
Acoustical data
Frequency Response [-10dB]52 - 20.000 Hz
Frequency Response [- 3dB]67 - 19.600 Hz
Max SPL129 dB
HF1" Exit, 1.4 v.c.
Type HFCompression driver
Horizontal Directivity100° (85° up/120° down)
Vertical Directivity85° (+ 25°/-60°)
HornAsymmetrical Horn
LF12", 2" v.c.
Amplifier
Amp TechnologyAmp SMPS Power supply dual range
Amp ClassClass D
RMS Power600 W
Peak Power1200 W
Processor
ControllerDSP 56 bit
AD/DA Converter24 bit/48 kHz
System PresetsRotary Encoder (8 Presets)
CrossOver Frequency2000 Hz
LimiterPeak, RMS, Thermal
Advanced DSP FunctionsLinear Phase FIR Filters
Input
Signal Input1xCombo (XLR/Jack 6.3 mm) MIC/Line
1xCombo (XLR/Jack 6.3 mm) MIC/Inst
Signal Output1x XLR Male (CH1 Link/Mix OUT)
Selectable
Mechanics
HousingPolyporpylene PP
GrilleFull grille
Handles1 on left Side, 1 on Top
Rigging Points2XM10 on Top + 1x M10 on Back
Pole MountD36 mm
Angles upMonitor use 45°
Width350 mm (13.78 in)
Height642 mm (25.28 in)
Depth349 mm (13.74 in)
Weight14.3 kg (31.53 lbs)

Dimensions
350 x 642 x 349mm

Weight
14.3kg
